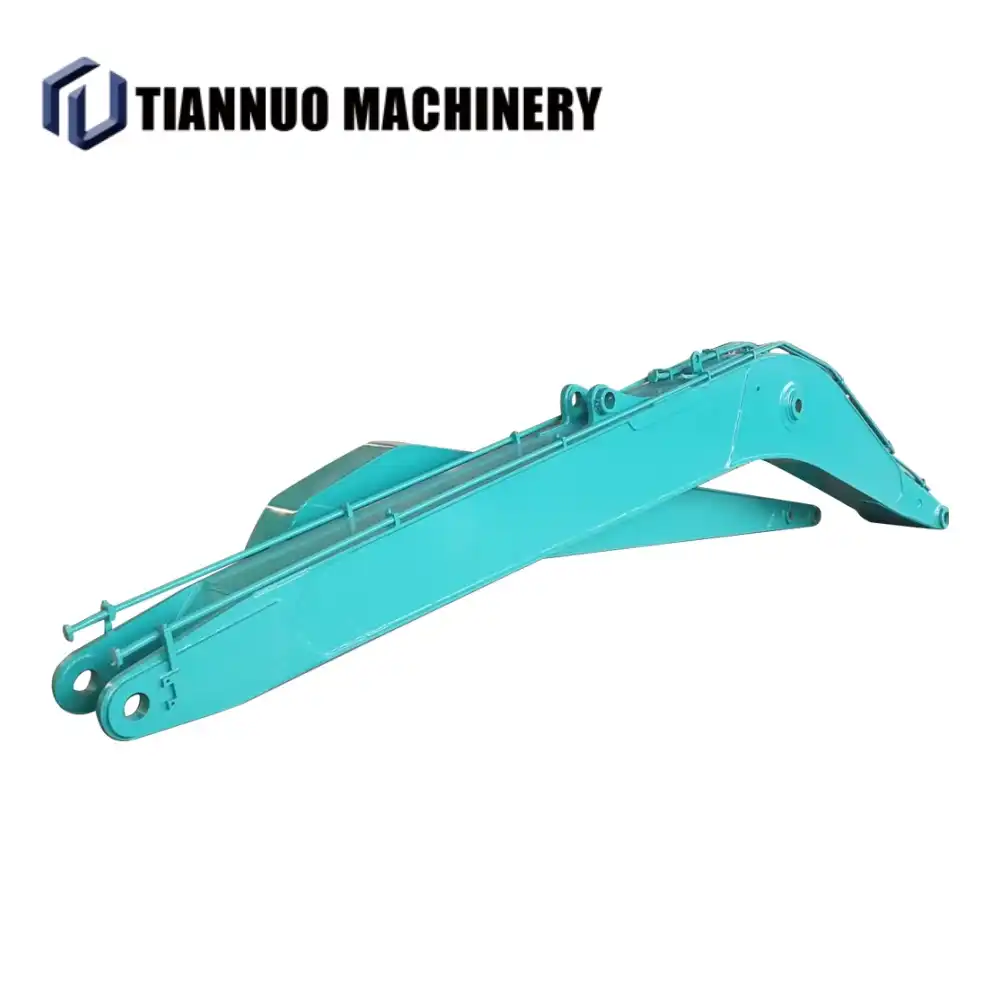

Long Reach Stick and Boom
- Product Description
What is an excavator long reach arm?
An excavator long reach arm is a heavy-duty attachment engineered to significantly extend the horizontal reach and vertical depth of a standard excavator. It transforms your machine into a versatile tool capable of tackling specialized projects that require working at distances far beyond the capabilities of standard booms.
Specification
| Applicable models(TON) | 20-25T | 30-36T | 40-47T | |||||
| Boom length（mm） | 16000 | 18000 | 18000 | 20000 | 22000 | 20000 | 22000 | 24000 |
| Maximum digging radius（mm） | 15300 | 17300 | 17300 | 19200 | 21020 | 19200 | 21020 | 23020 |
| Maximum digging depth（mm） | 11200 | 12200 | 12200 | 14200 | 15600 | 14200 | 15600 | 16500 |
| Maximum digging height（mm） | 13500 | 15300 | 15300 | 16600 | 17170 | 15600 | 16170 | 17170 |
| Maximum uninstall height（mm） | 11500 | 12200 | 12200 | 13500 | 14830 | 13700 | 14920 | 15630 |
| Boom length（mm） | 9800 | 10300 | 10500 | 12500 | 11750 | 11750 | 12750 | 13750 |
| Arm length（mm） | 6200 | 7700 | 8500 | 9500 | 8250 | 8250 | 9250 | 10250 |
Key features

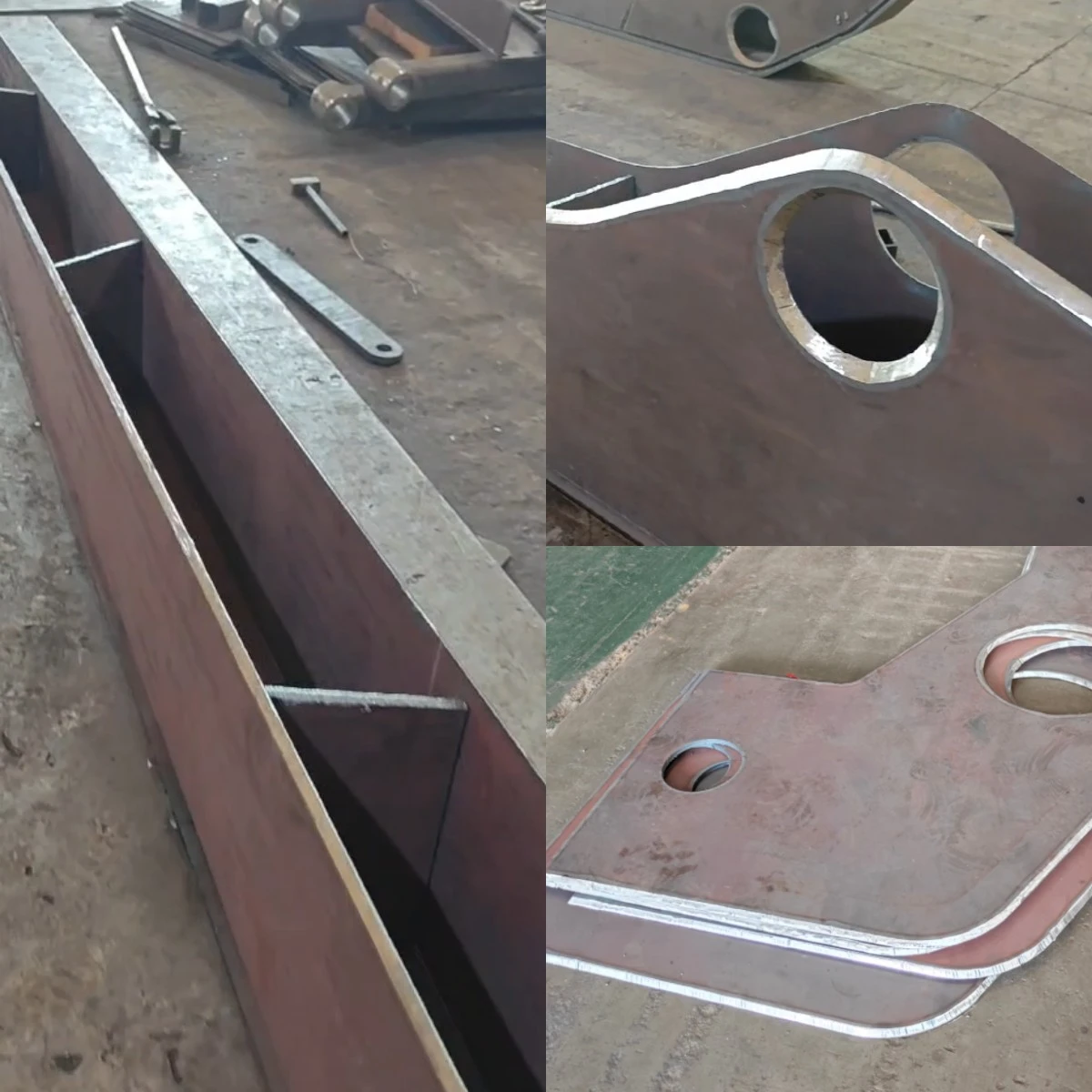

Built-in reinforced steel plate；
evenly distributed welding Prevent product distortion
Increase the product load negative gravity；
Sheet welding parts need millingedge,increase the degree ofwelding adhesion,increase thestrength；

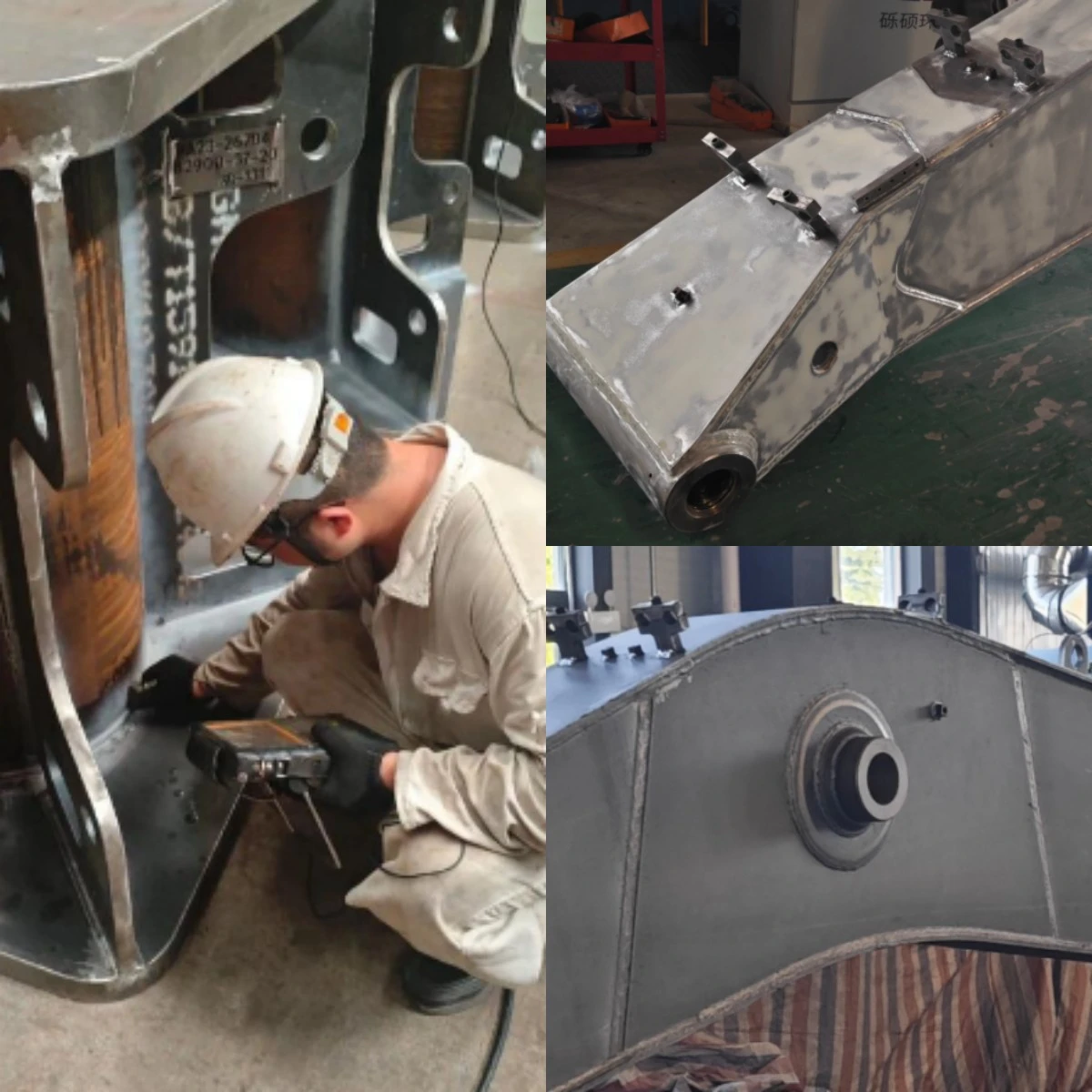

Ultrasonic testing ofwelds to ensure quality；
Pin sleeve reinforcedand thickened；
Add strengthening plate；
Ultrasonic testing ofwelds to ensure quality；

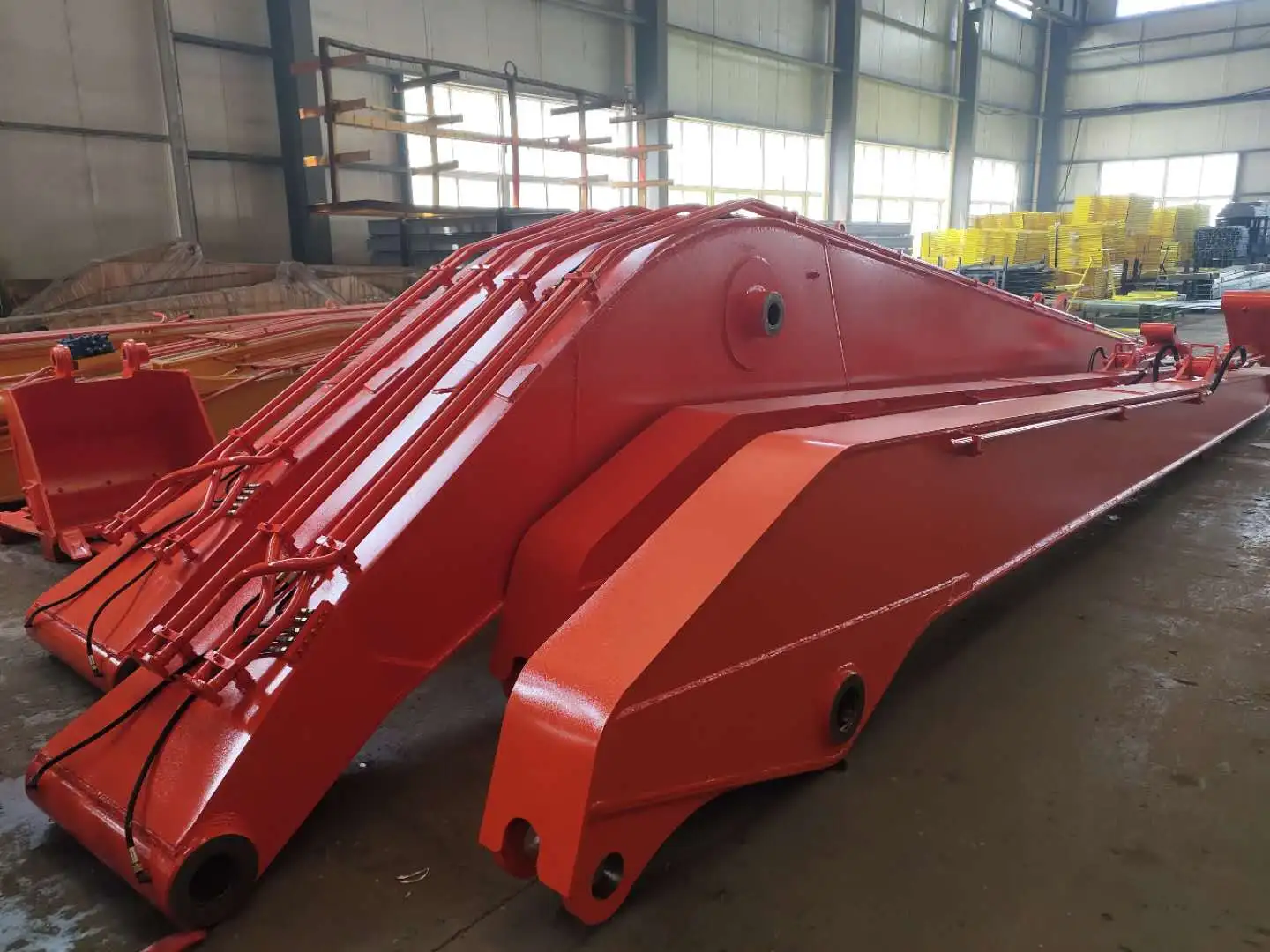

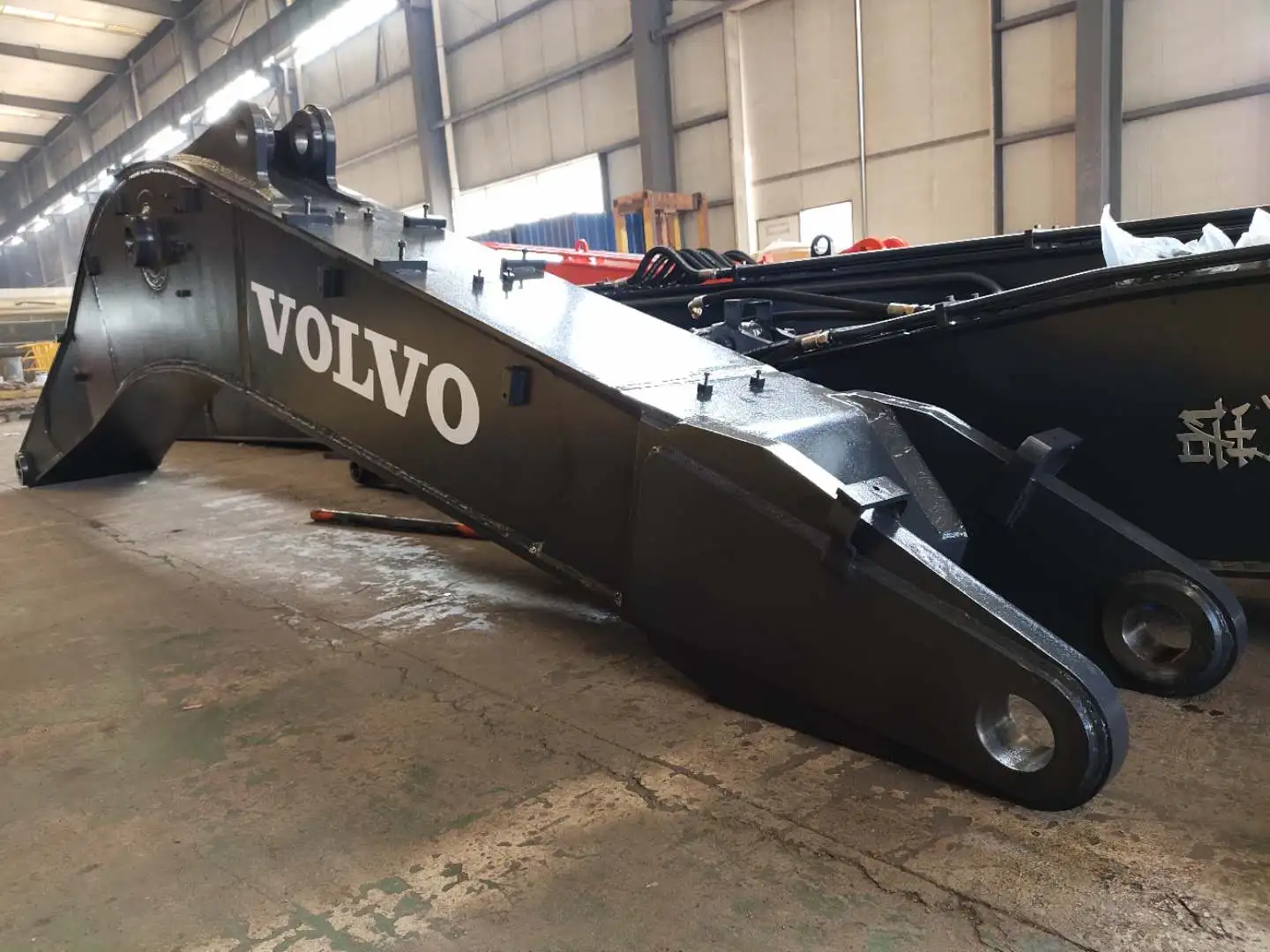

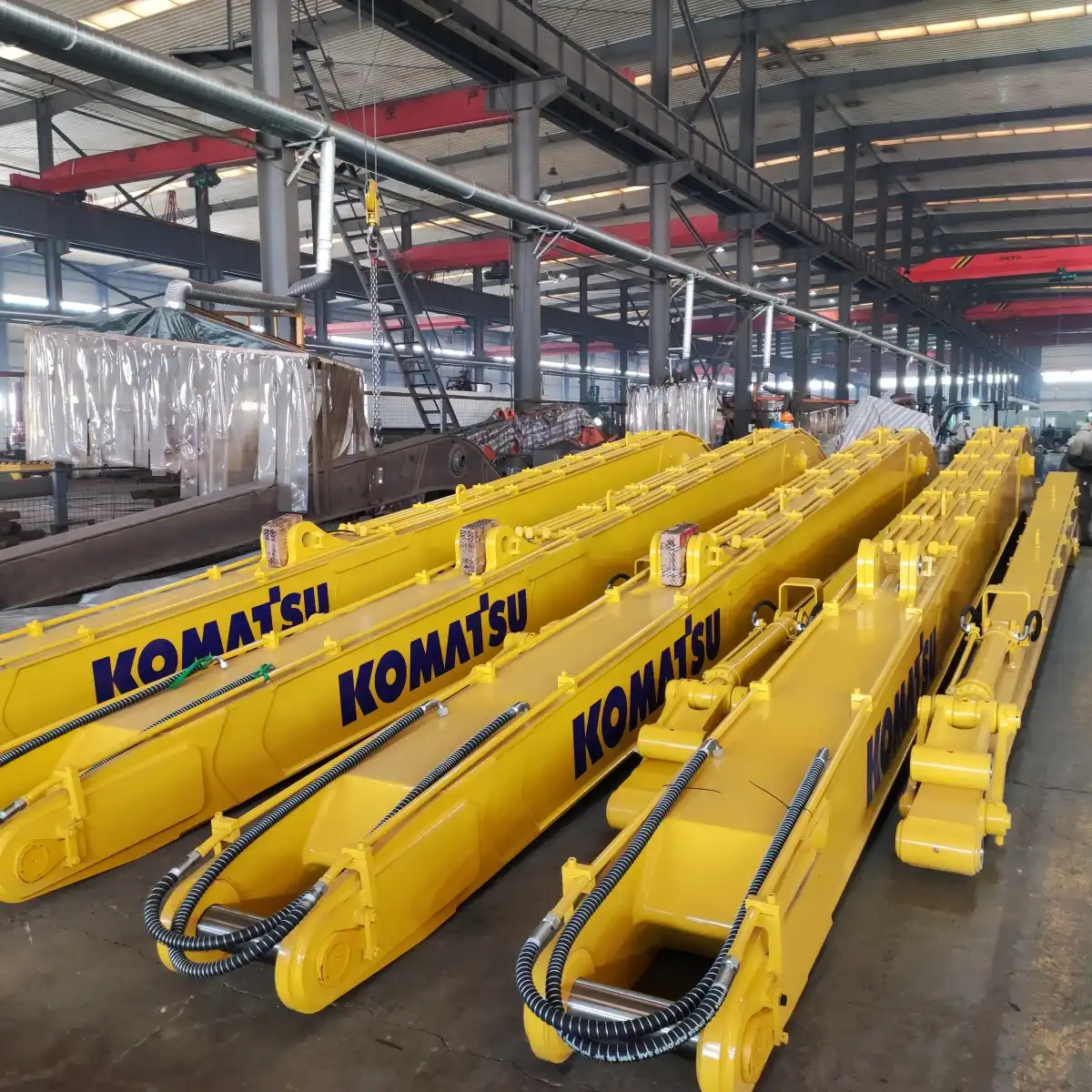

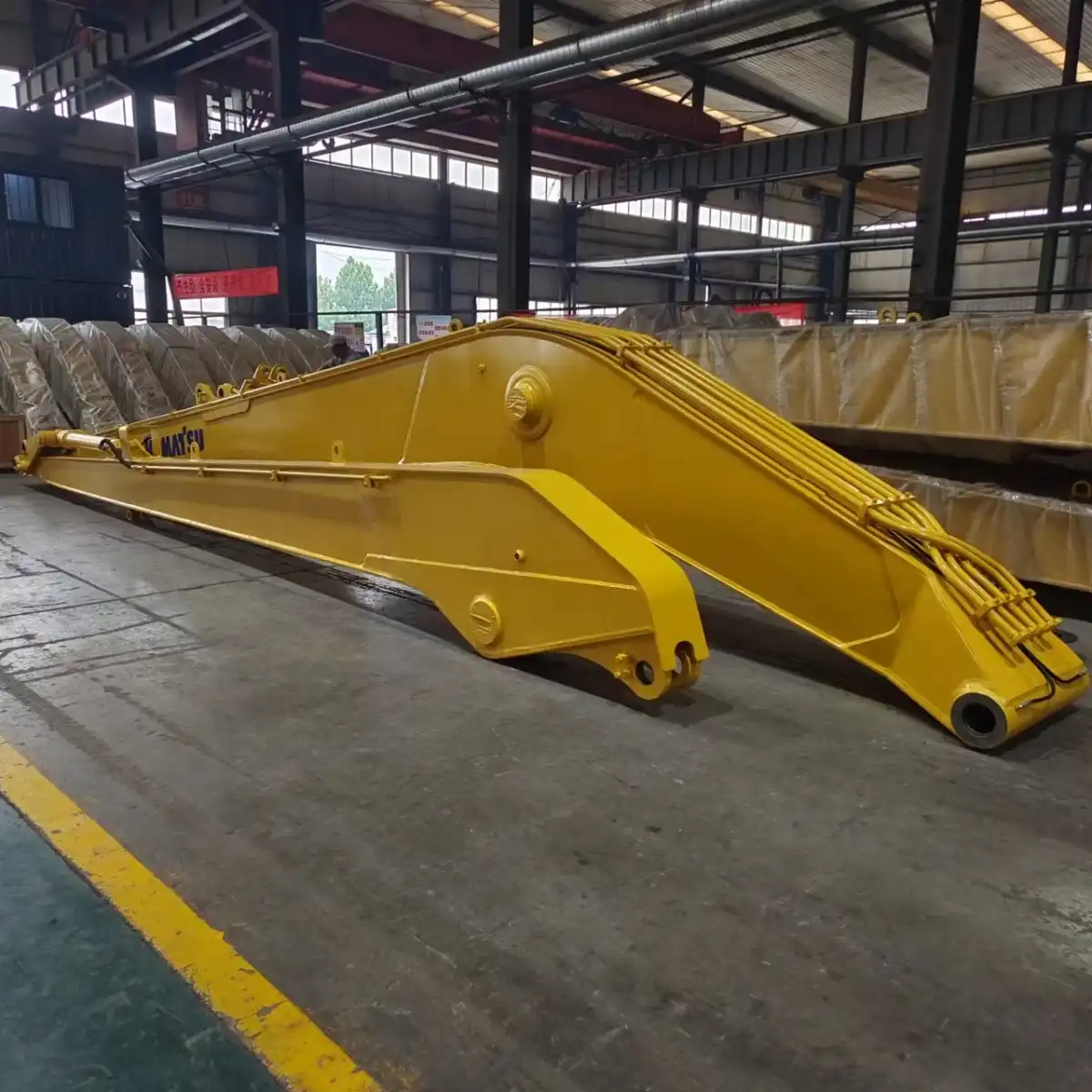

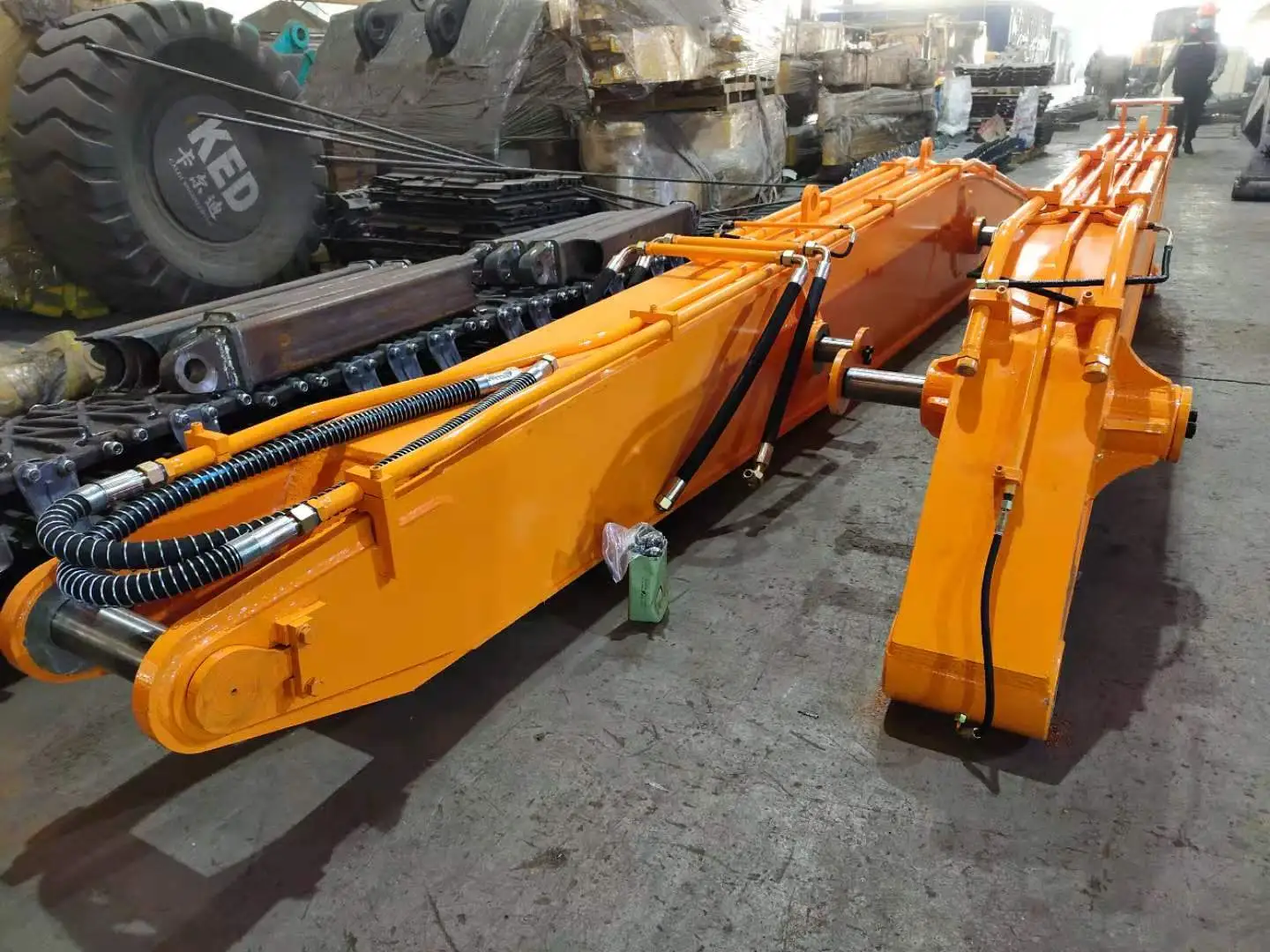

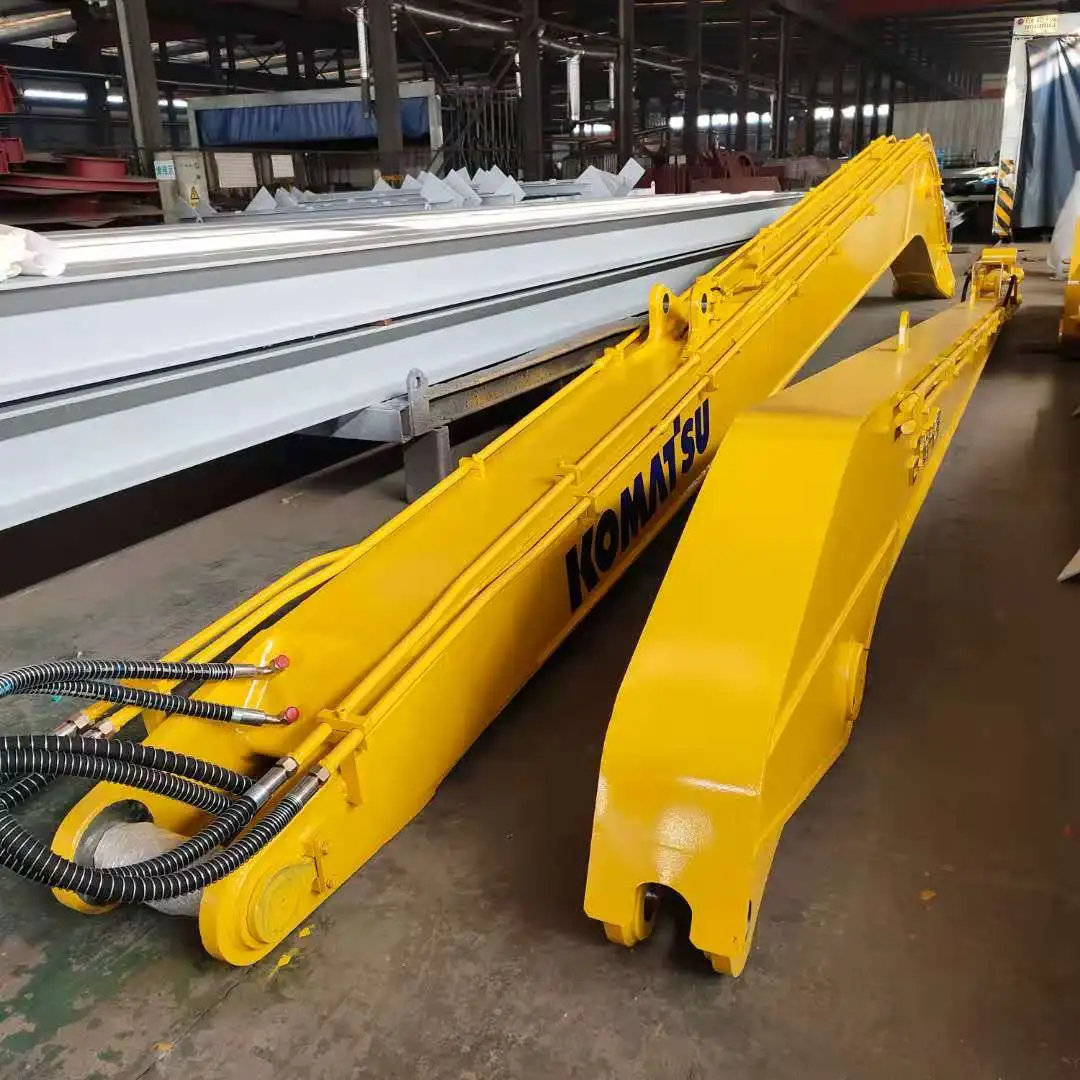

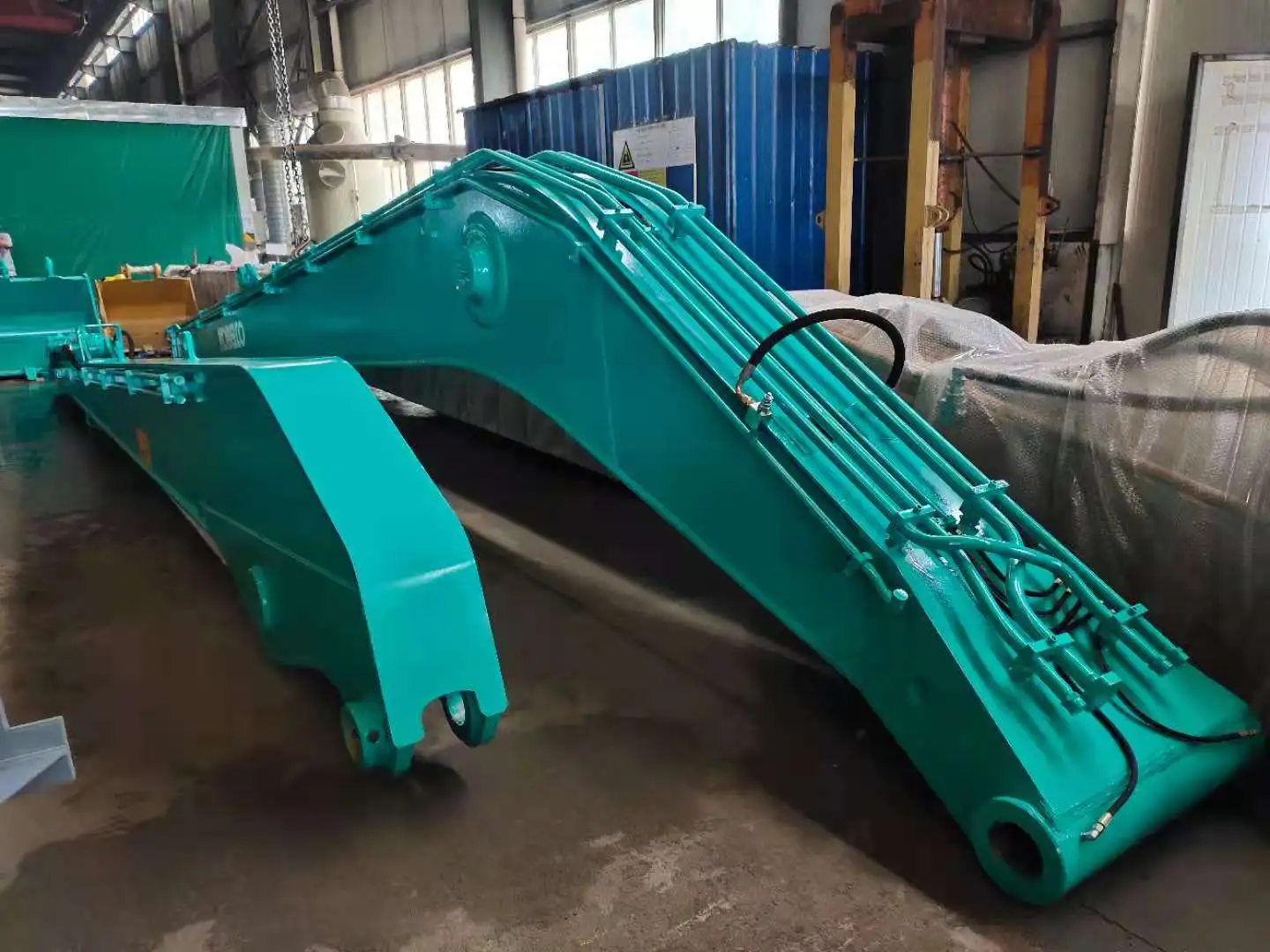

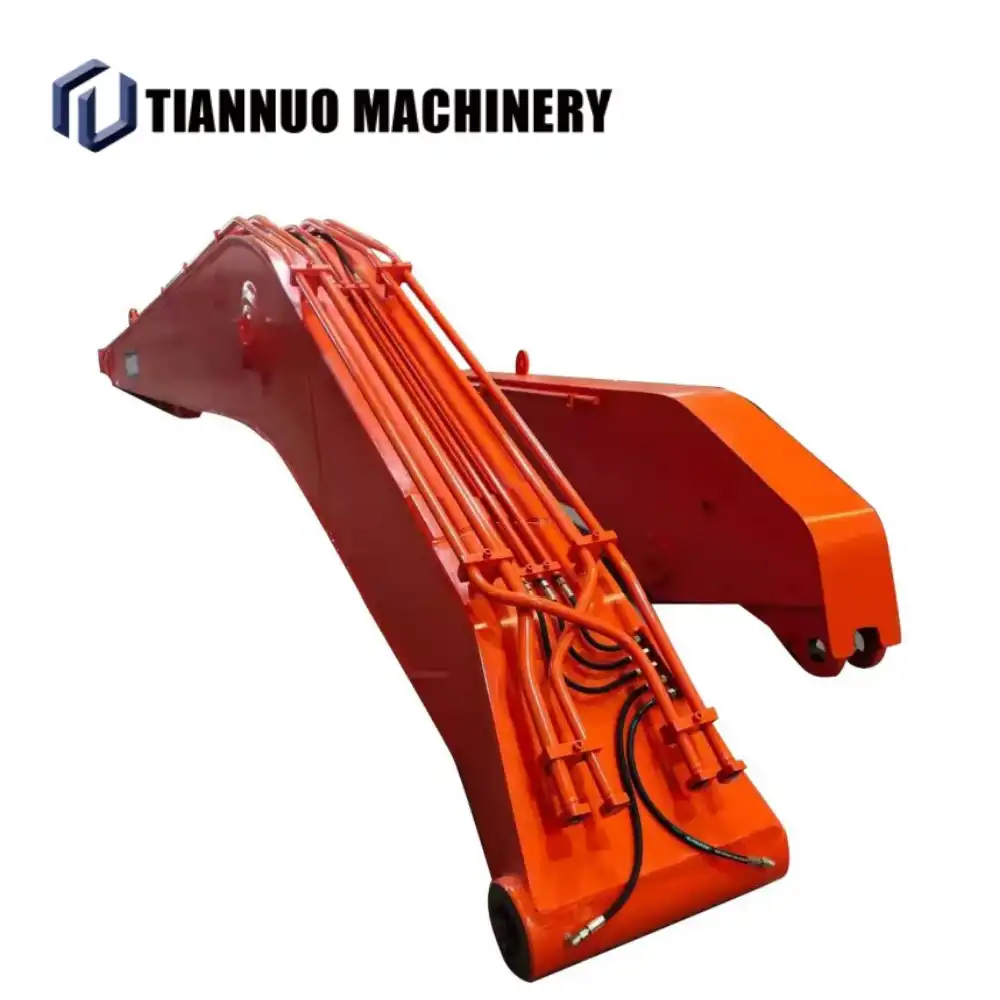

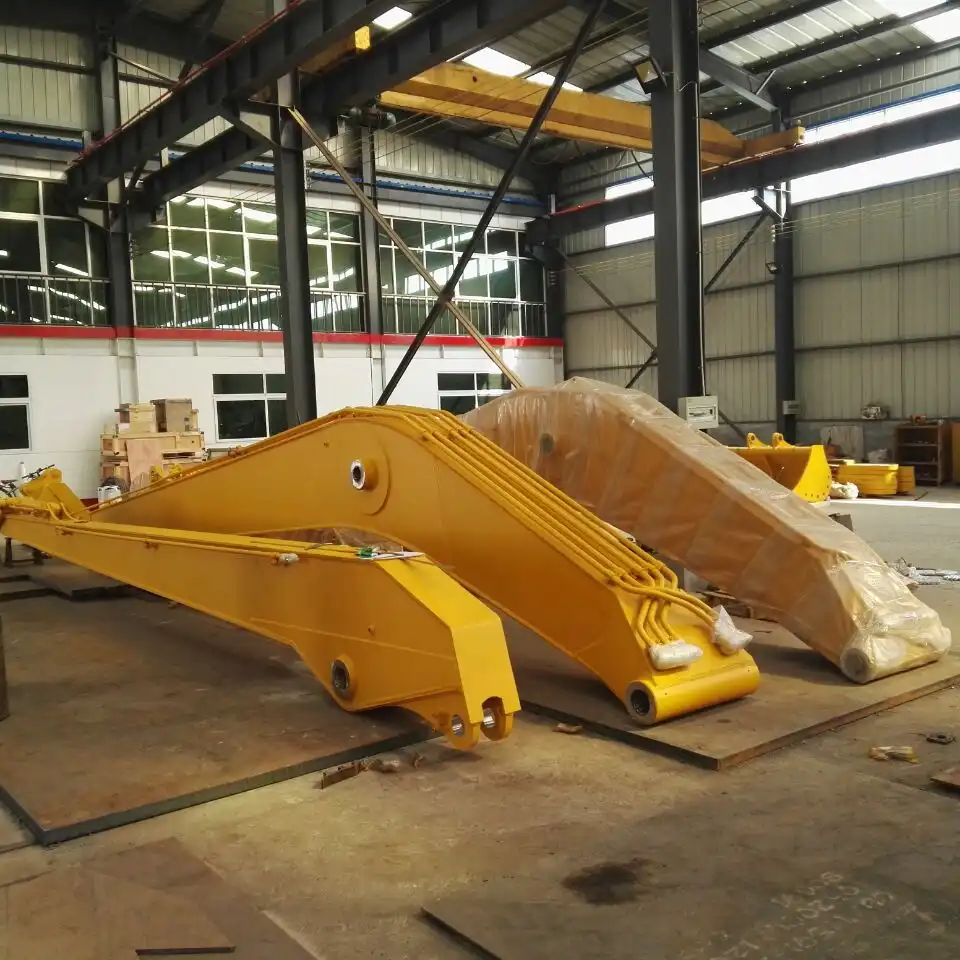

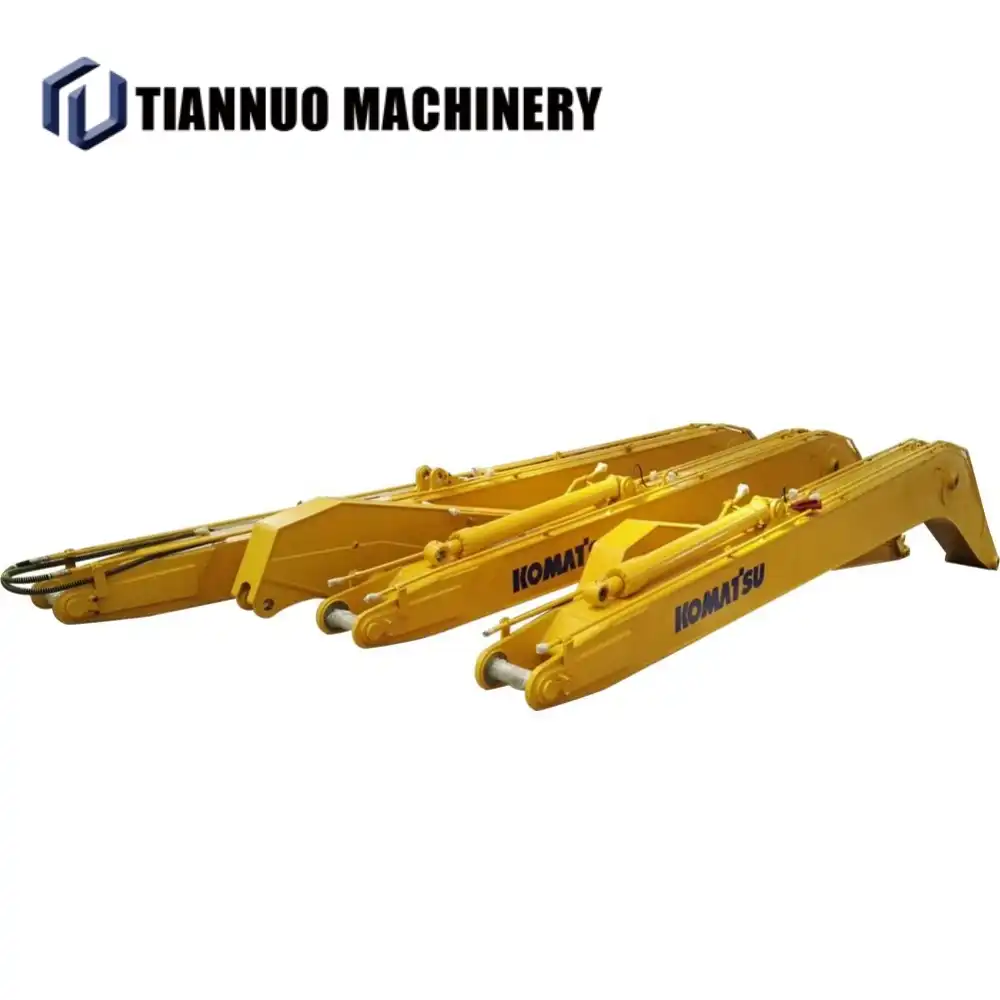

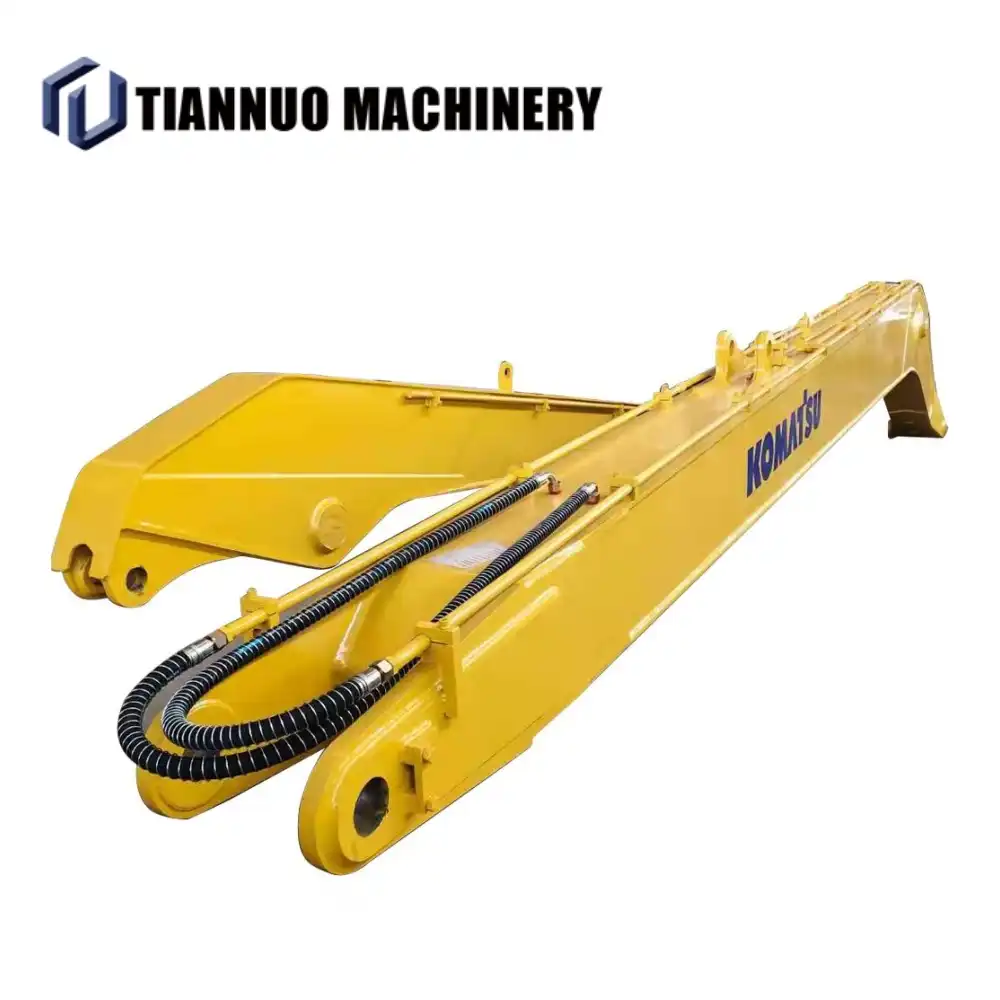

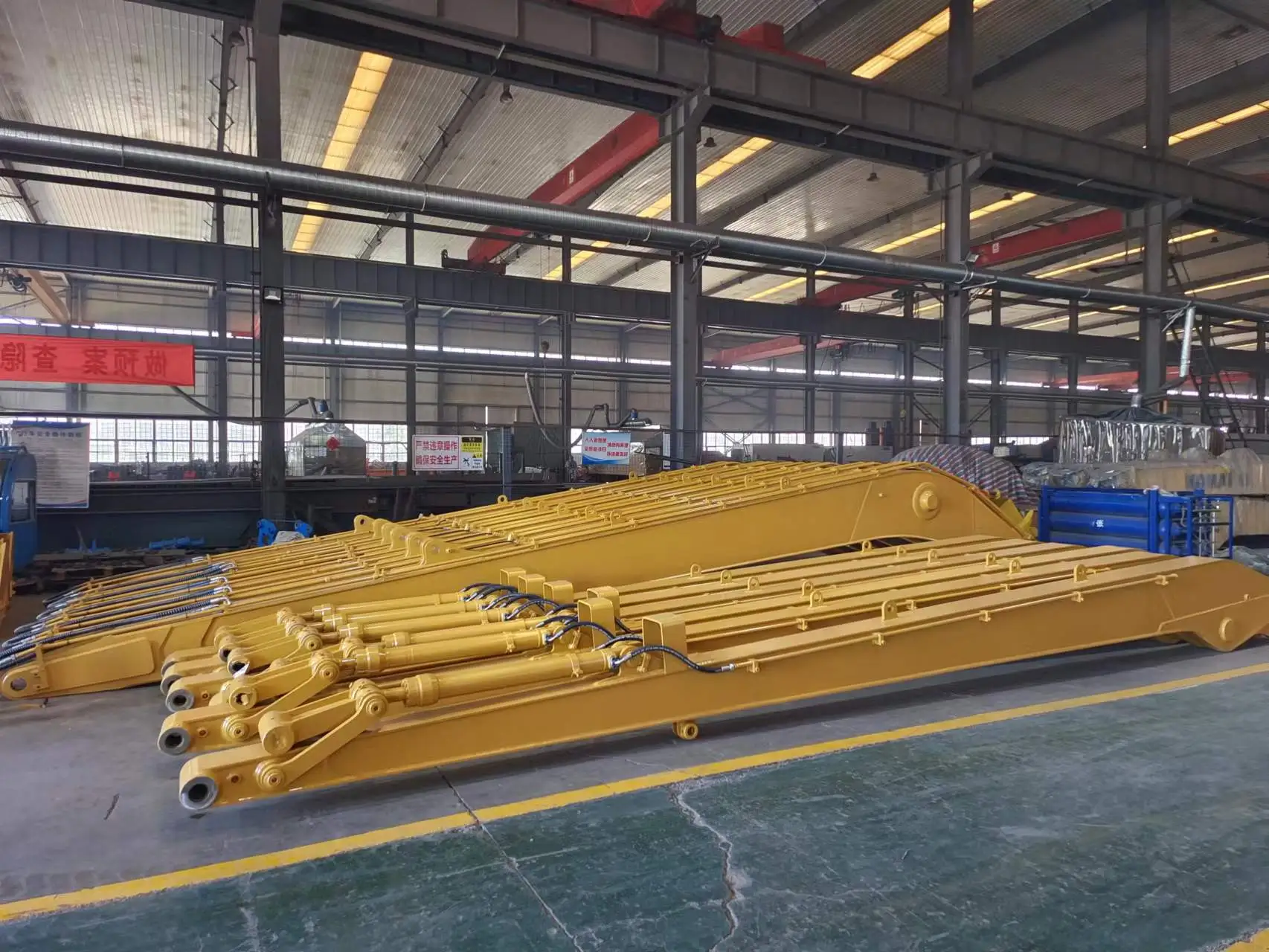

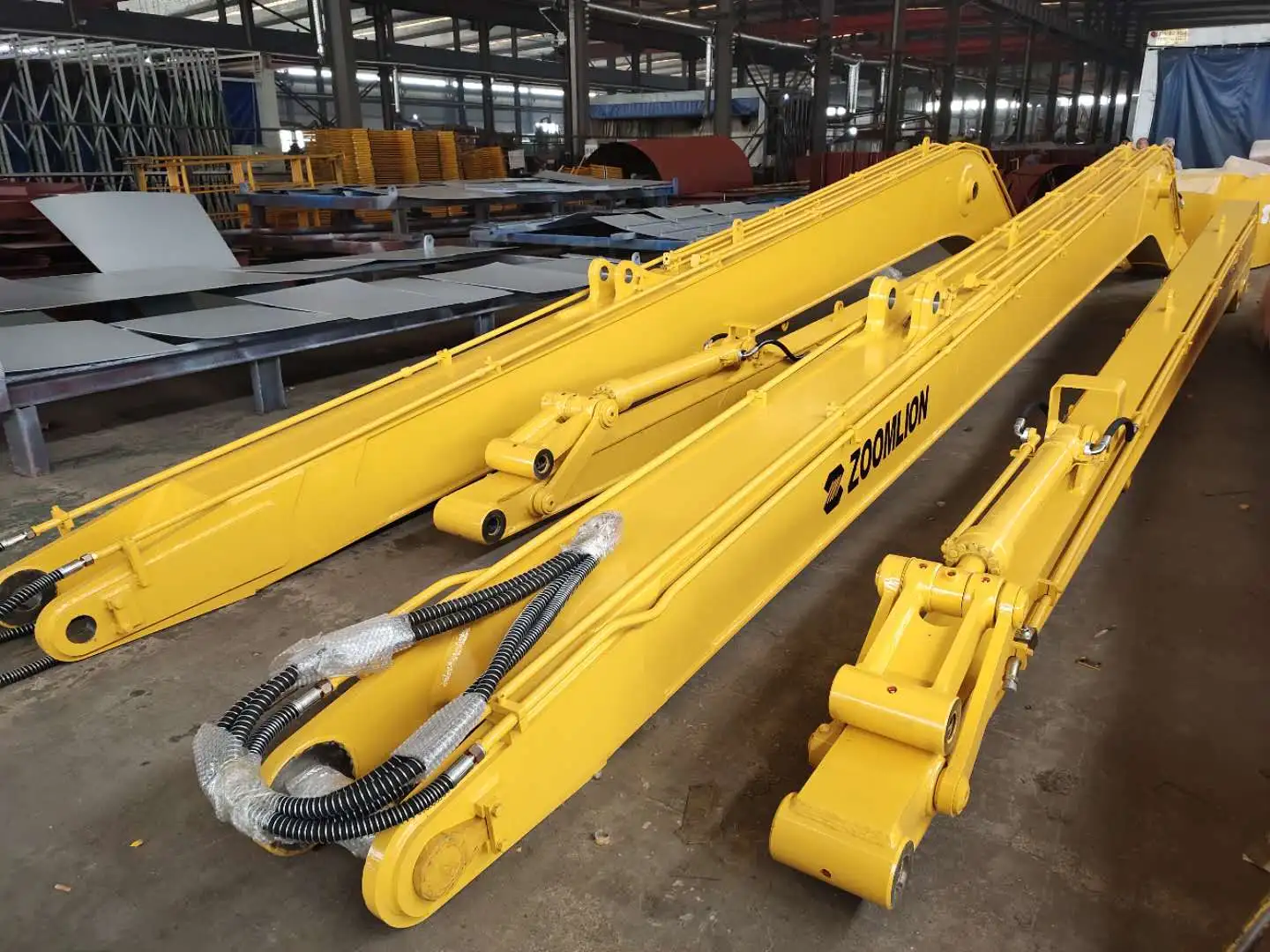

Product Display
Construction Site Display
Our Long Reach Arm systems are engineered to transform your standard excavator into a specialized reach and depth machine, unlocking new revenue streams and tackling projects you previously had to turn down.
Deep Excavation: Trenching, pond and lagoon digging, slope grading.
Industrial Demolition: Safe, controlled demolition of tall structures from a safe distance.
Marine & Dredging: Riverbank maintenance, canal dredging, dock construction without needing a barge.
Environmental Remediation: Reach into contaminated areas while maintaining a safe operator distance.
Packing and Delivery
FAQ
1. What payment terms are acceptable?
We accept 30% down payment, then we will start production,70% balance paid before delivery.if you want to used other payment methods，we need to be negotiated.
2. What is the delivery period?
if we have stock，we can deliver the attachment within 7 working days after receiving the payment. If your ordering attachment need customization, that needs to be further negotiated. Final delivery schedules depend on destination port proximity and logistics arrangements. Our team will provide precise estimates during order finalization.
3. How to install an attachment?
We can provide you professionally video indication ，also you can find excavator maintenance group in local ，that they can help you install the boom or arm.
4. Could you make our brand LOGO or color customized on the products?
Yes, sure. We accept OEM/ODM orders.
5. What sizes of excavators attachment you can do it?
We provide 5-100ton excavators attachment design.
6. What attachment you can provide?
Yes, we offer a wide range of attachments compatible with all excavator sizes, such as:
(1) Buckets (various capacities);
(2) long reach boom and counterweight (various length);
(3) Grapples and clamps;
(4) railway excavator modification
(5)Excavator lifting cab modification
(6)Excavator straddle carrier
(7) Rippers.
7.Do you provide after-sales support and warranties?
Yes, we offer 1 year warranty
(1) Comprehensive warranties for all models;
(2) Full after-sales support, including technical assistance and spare parts;.
8.How do I order an excavator attachment?
Contact us through our website and send Inquiry. Our team will wait for you in 24 hours.
