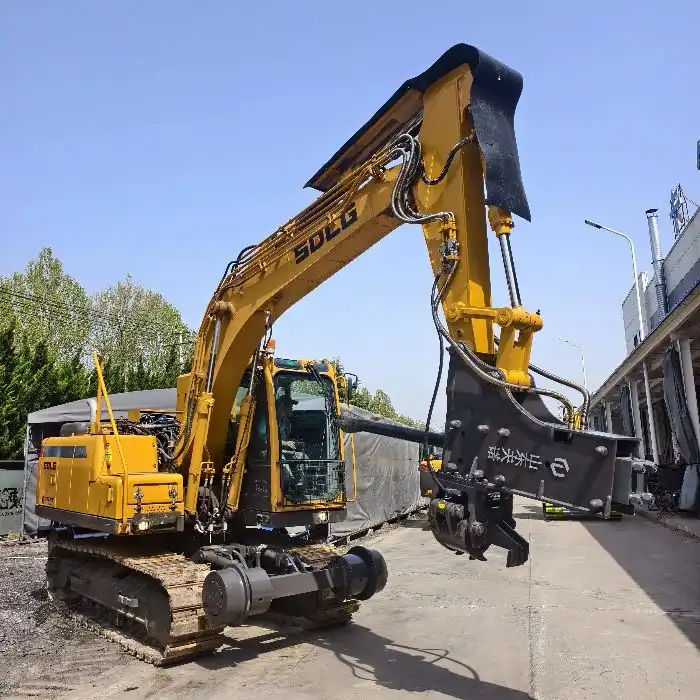

Railway Piledriver:

Specifically developed for railway subgrades, bridges, and slope protection projects, this device is a specialized hydraulic attachment designed to address railway settlement issues in regions prone to heavy rainfall. Employing a staged reinforcement process—characterized by the sequence of "pre-drilling, grouting, and subsequent piling"—it is flexibly compatible with 7.5-ton and 13.5-ton excavators. By embedding concrete piles to a depth of more than one meter below the rail surface, it provides existing railway lines with permanent support against sliding and settlement. Key Specifications and Technical Features:
Operation Mode:
Segmented Collaborative Piling: First, the Model 75 unit (410 kg) utilizes high-frequency vibration to create the pilot hole and facilitate concrete injection; subsequently, the Model 135 unit (800 kg) applies high-impact force to drive the pile body at least 1 meter below the rail surface into the stable load-bearing stratum.
Compatible Equipment:
Model 75: Compatible with 6–9 ton excavators; Model 135: Compatible with 11–16 ton excavators.
Operating Pressure:
110–160 bar (Model 75) / 150–170 bar (Model 135)
Impact Frequency:
500–800 bpm (Model 75: High-speed hole opening) / 400–700 bpm (Model 135: Powerful pile insertion)
Chisel Diameter:
75 mm / 100 mm
Single-Pass Piling Depth:
950 mm (Can be extended to over 1 meter through multiple concrete injection cycles)
Clamp Opening:
330 mm (Suitable for operations within narrow sleeper spacing)
Hydraulic System:
Load-sensing hydraulic system with a flow range of 50–120 lpm; equipped with a shock-absorbing valve block to protect the excavator's boom.
Travel Range:
Integrated with the excavator chassis, suitable for operations on ballast roadbeds, within sleeper gaps, and within standard railway clearance limits.
Operating Speed:
Precise Positioning Speed: 0–2 km/h (Stepless variable speed); Transit Speed: Dependent on the host excavator (10–15 km/h).
Structural Materials:
High-strength, wear-resistant steel plate body; critical pins and shafts utilize a forged construction process to withstand harsh field conditions.
Anti-Derailment Design:
Optimized center of gravity for the entire unit, combined with a 330 mm rail-clamping limit design, prevents lateral sliding during operation.
Key Advantages:
Rainy Season Stability: Deep-level concrete pile reinforcement effectively eliminates issues such as mud pumping and ballast fluidization in the track bed.
Dual-Machine Relay: The smaller unit creates pilot holes without causing collapse, while the larger unit delivers heavy impacts to ensure target depth—offering superior cost-effectiveness compared to using a single, oversized piece of equipment.
Low Maintenance: The chisel sleeve features a replaceable, wear-resistant bushing, extending the overall service life of the host unit.

Send Inquiry Download

Product Description

For over a decade, Tiannuo Machinery has remained at the forefront of railway infrastructure equipment manufacturing, earning recognition as a reliable partner for rail construction contractors and government agencies worldwide. With the launch of our specialized Railway Piledriver Series (Models TNTLDZJ75 & TNTLDZJ135), we continue to address critical engineering challenges such as subgrade settlement and rain-induced track collapse.

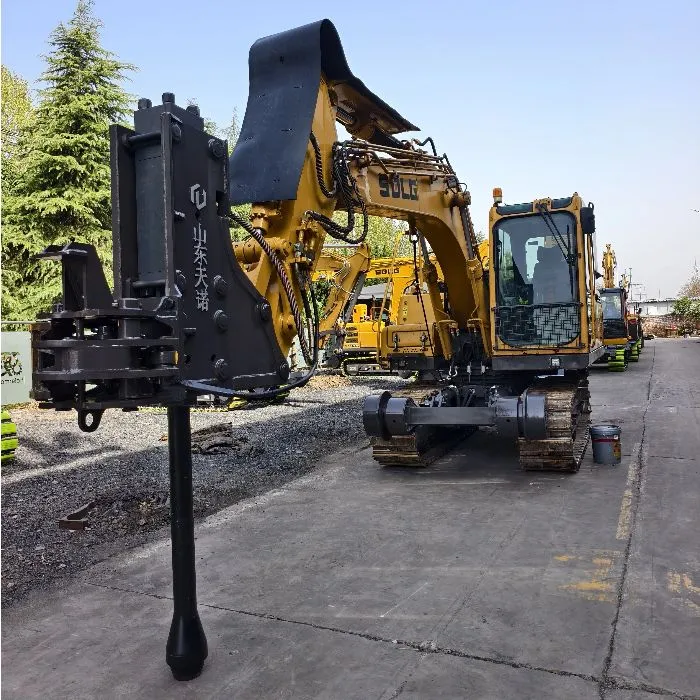

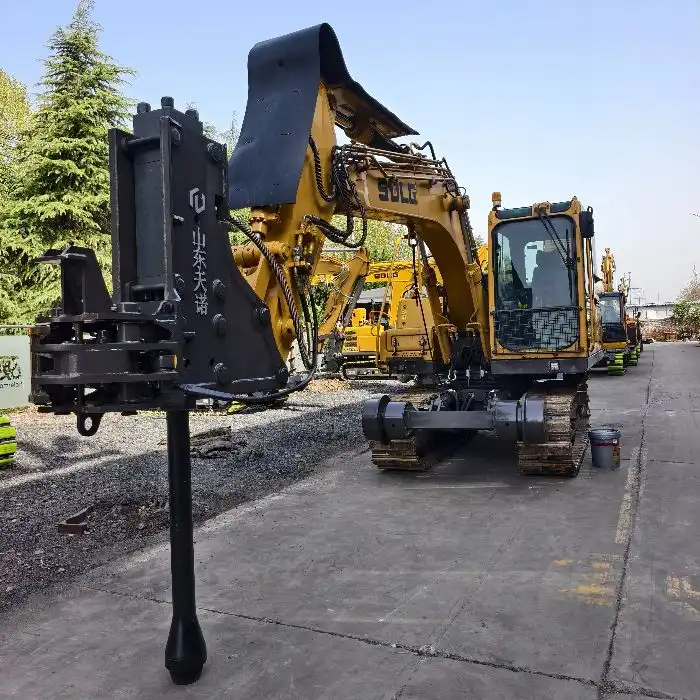

Railway Piledriver

Unlike generic pile drivers, our solution introduces a two-stage collaborative operation (7.5T excavator pre-drilling + concrete pouring, followed by 13.5T excavator deep driving), a method refined through years of on-site collaboration with railway maintenance teams. This equipment reflects our commitment to delivering innovative, durable, and cost-effective foundation solutions that reduce long-term maintenance costs. Every unit is backed by our fast delivery, comprehensive technical support, and rigorous quality control – ensuring that whether you are stabilizing a high-speed rail line or reinforcing a mountain pass, you can depend on Tiannuo for mission-critical projects.

Railway Piledriver: Preventing Track Collapse in Rainy Seasons

Maintaining railway subgrade stability is a global challenge, especially with the increasing frequency of extreme rainfall. Ordinary compaction equipment often fails to reach deep loose soil. Tiannuo Machinery introduces its specialized railway piledriver, engineered to work in two-stage coordinated operations (7.5T & 13.5T excavators), providing a deep, reinforced concrete pile foundation that actively prevents track subsidence and lateral drift.

Dual-Stage Collaborative Piling for Deep Foundation Reinforcement

Unlike standard hydraulic hammers that simply push piles in, our railway piledriver follows a scientific “Drill then Drive” protocol specifically for railway ballast and subgrade:

Pre-Drilling with TNTLDZJ75: The lightweight 75-model (410kg) creates precise pilot holes.

Concrete Pouring: Holes are filled with high-strength concrete to form a load-bearing column.

Final Driving with TNTLDZJ135: The 135-model (800kg) drives the final anchor 1+ meter below the rail surface.

This two-step method creates a “concrete nail” effect, ensuring the track bed remains solid even when saturated by seasonal rains.

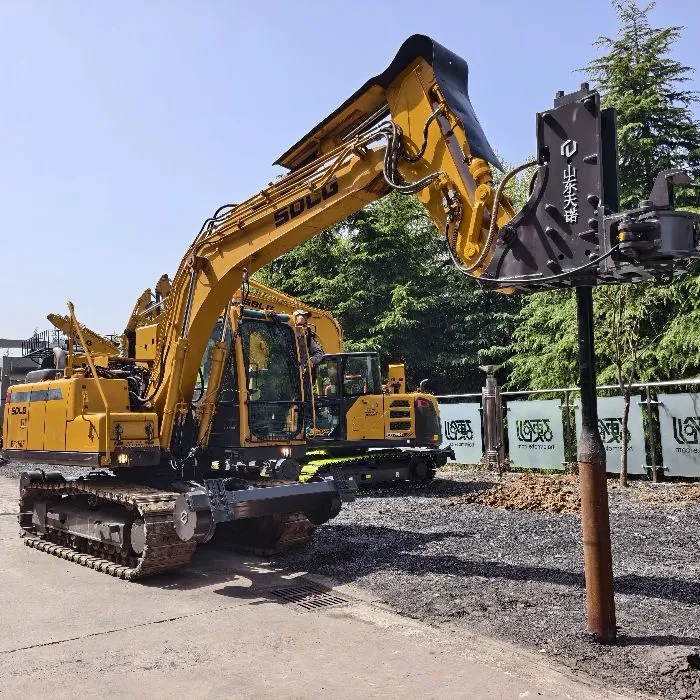

Railway Piling

Technical Specifications: Power Meets Precision

This hydraulic attachment transforms your standard excavator into a precision foundation tool. Key attributes include high-frequency striking (up to 800 bpm) for reduced soil disturbance and a <330mm clip opening for precise rail-adjacent positioning.

Item	TNTLDZJ75	TNTLDZJ135
weight	410kg	800kg
Pressure	110-160bar	150-170bar
Flow	50-90lpm	80-120lpm
Frequency	500-800bmp	500-700bmp
Suitable excavator	6-9t	11-16t
Chisel Diameter	75mm	100mm

Ergonomic Design & Robust Build

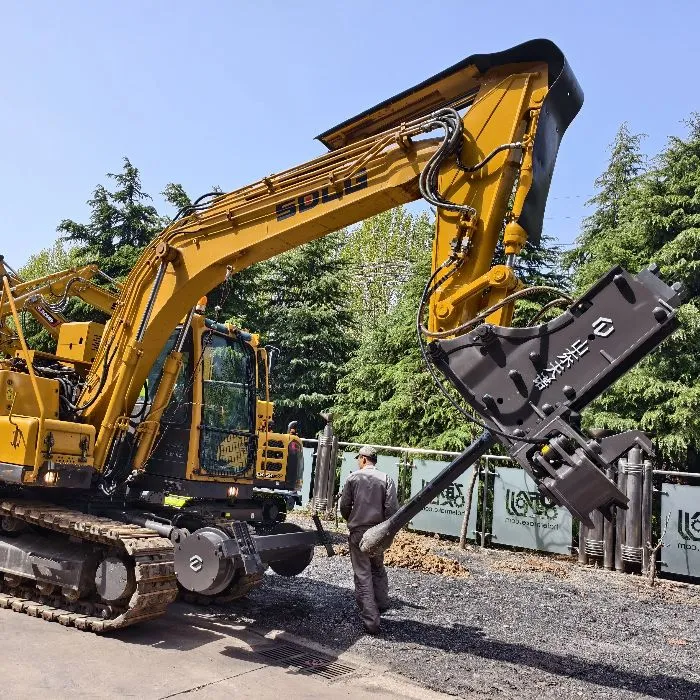

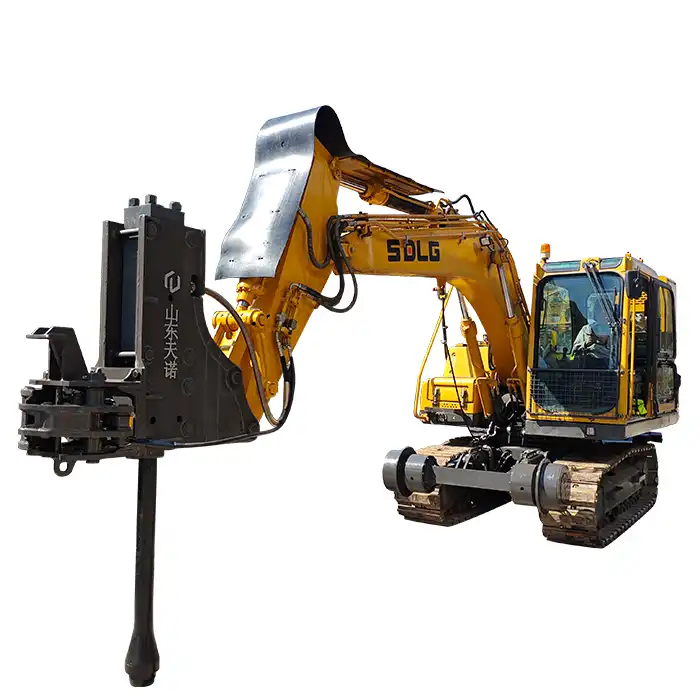

Railway Pile Driving

The robust appearance of the TNTL series features a high-strength steel casing in standard industrial yellow-black livery, designed to resist abrasion from ballast stones.

Visually, the optimized bracket geometry allows for a lower center of gravity when attached to the excavator arm, improving operator visibility along the tracks. The hydraulic hoses are routed internally along the boom to prevent snagging on overhead catenary wires or trackside equipment, ensuring a clean, safe workspace.

Technical Features & Safety

Vibration Dampening: Integrated side buffers reduce stress on the host excavator’s arm, extending the life of your 7.5T and 13.5T machines.

Auto-Lubrication Ready: Centralized grease points for the chisel and bushing, reducing daily maintenance time.

Wear-Resistant Bushings: The 330mm clip opening features replaceable wear plates, maintaining clamping force even after extended use.

Deep Reach: The compact design of the 75-model allows for piling depths of up to 950mm in a single strike, fitting between closely spaced sleepers.

Railway Pile Driving

Case & Application

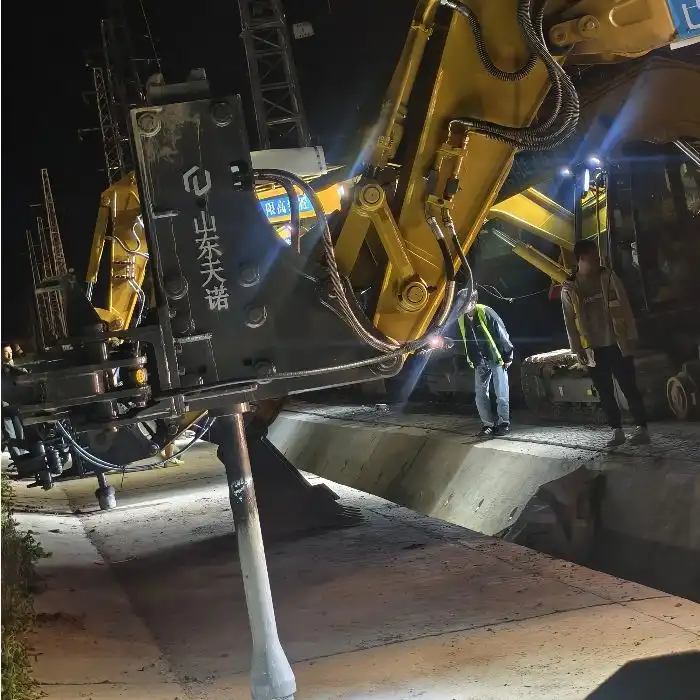

In high-rainfall regions, ballast washout leads to “subgrade diseases.” By using the TNTLDZJ75 to drill holes and pour concrete, followed by the TNTLDZJ135 to set the final depth, crews have successfully eliminated “mud pumping” (the ejection of fine soil particles) on national railway lines.

FAQ

Q: Why use two different piledrivers (75 & 135) instead of just one big one?
A: The 75-model creates clean pilot holes without collapsing the hole sides, allowing concrete to pour perfectly. The larger 135-model then provides the high energy needed to drive the casing deep below the rail level.

Q: Can this machine operate close to the rail edge without derailing?
A: Yes. The compact width and specific clip opening design allow stable operation on the trackside shoulder while maintaining a safe distance from the steel rail.

Q: How does this prevent “railway subsidence”?
A: By combining concrete injection with deep piling (below the rail surface), it creates a rigid column that physically stops the track from sinking downwards during heavy rains
