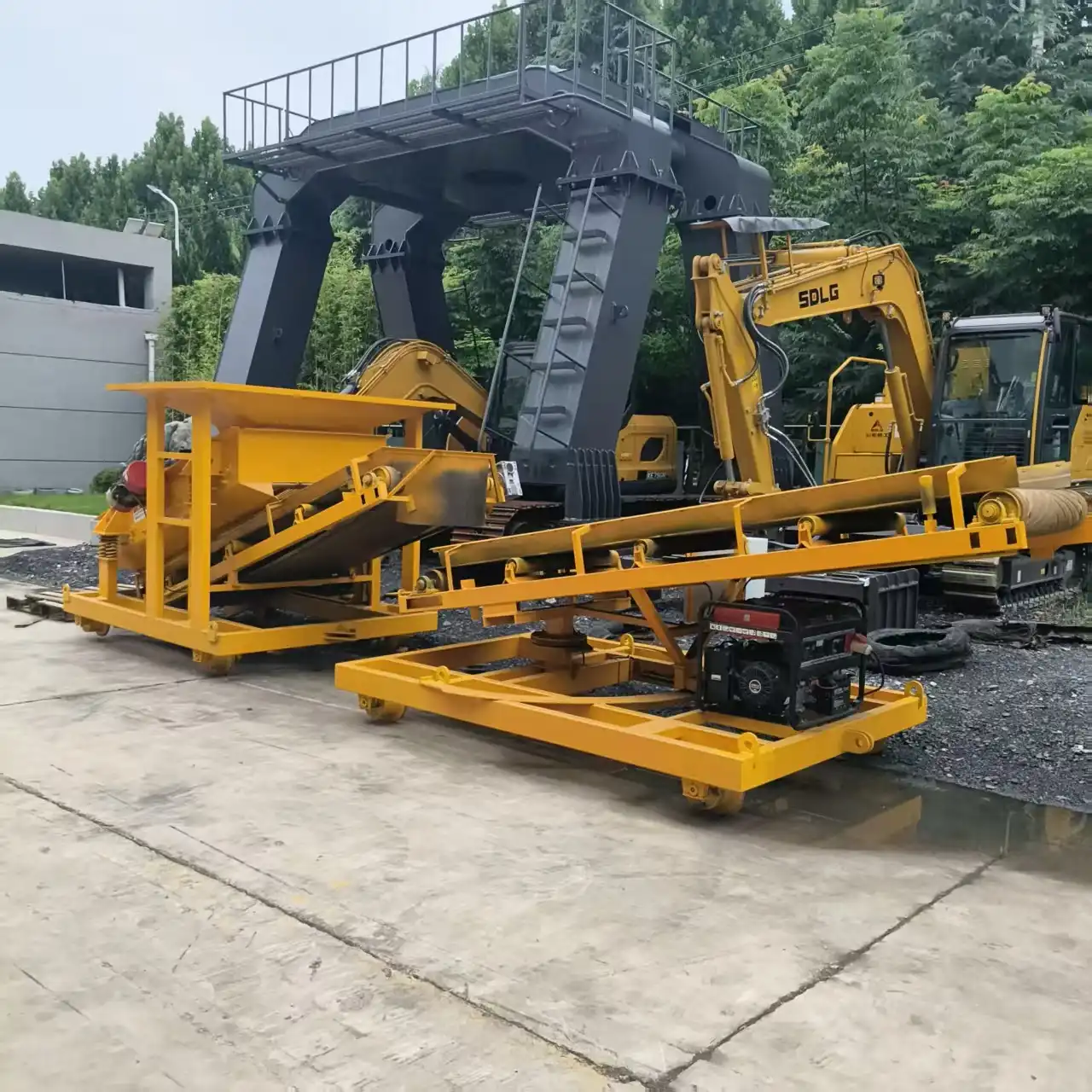

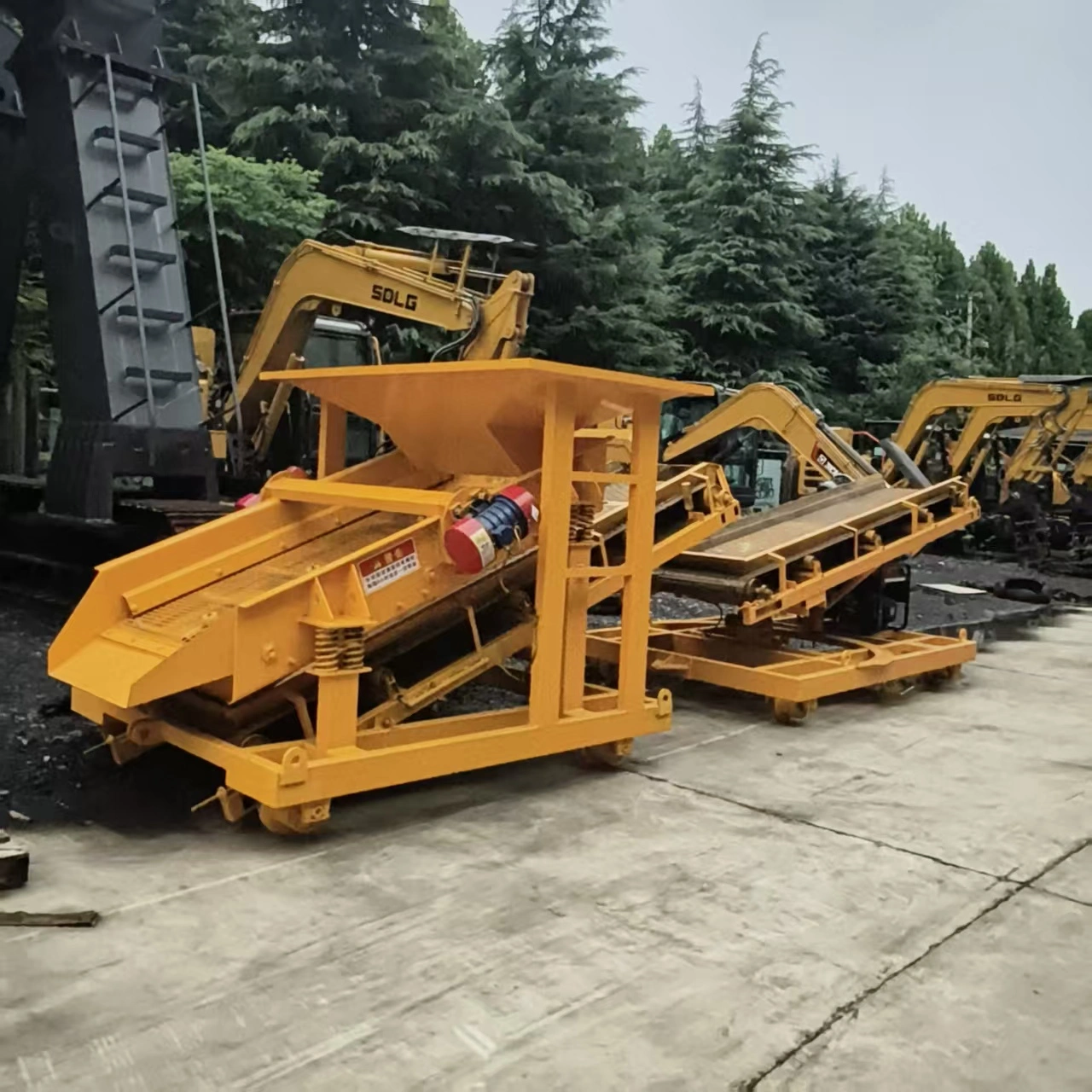

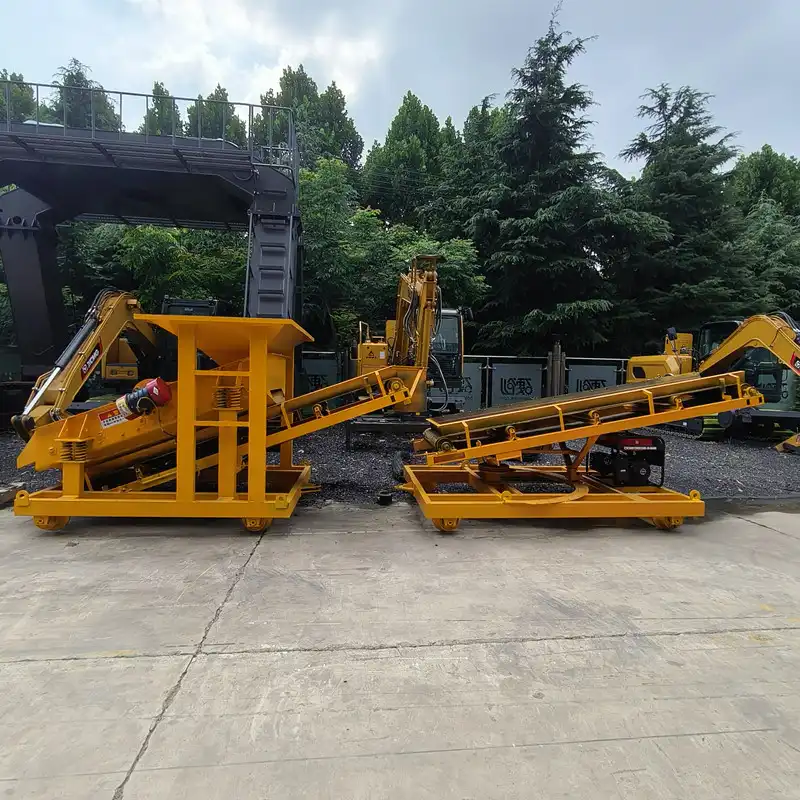

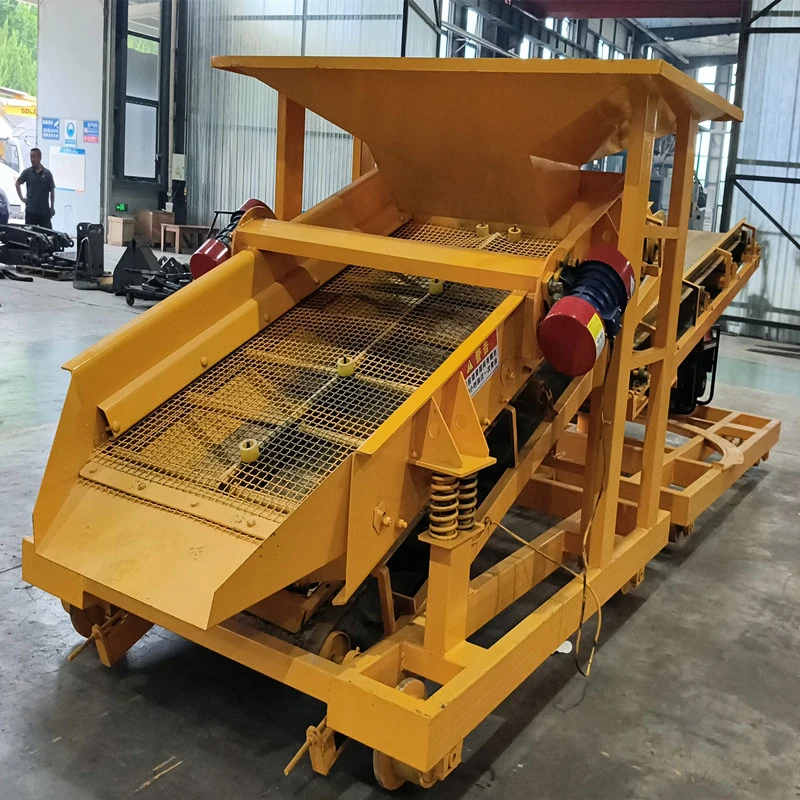

Mobile Ballast Screener TNYDSFJ75 For Railway Ballast Screening Work

Mobile ballast screener TNYDSFJ75 is professional railway maintenance equipment designed for railway ballast screening operations. This rail-mounted ballast screening machine supports front ballast leakage and dual-side ballast leakage, efficiently separating contaminated ballast and qualified ballast on railway track lines. Built with customized track gauge options, it adapts to multiple standard railway tracks for ballast cleaning and track bed renovation projects.

​

Product Introduction

The TNYDSFJ75 mobile ballast screener independently developed by Tiannuo Machinery integrates feeding, vibrating screening and conveying functions. Different from large fixed ballast cleaners, this mobile ballast screening unit features compact structure and rail traveling design. It can move along the track flexibly to complete continuous ballast screening tasks without repeated material transportation. The vibrating screen system delivers stable screening performance to remove mud, dirt and waste particles mixed in ballast, improving railway track drainage and track stability.

Core Features

The machine adopts dual ballast leakage design, supporting front ballast leakage and side ballast leakage. Operators can adjust the discharging mode according to on-site construction layout to match different railway maintenance working conditions.

​

Customizable Track Gauge

Standard optional track gauge includes 1000mm, 1435mm and 1520mm. We can modify the wheel base to adapt to narrow-gauge, standard-gauge and wide-gauge railway lines to satisfy global railway project demands.

Stable Vibration Screening System

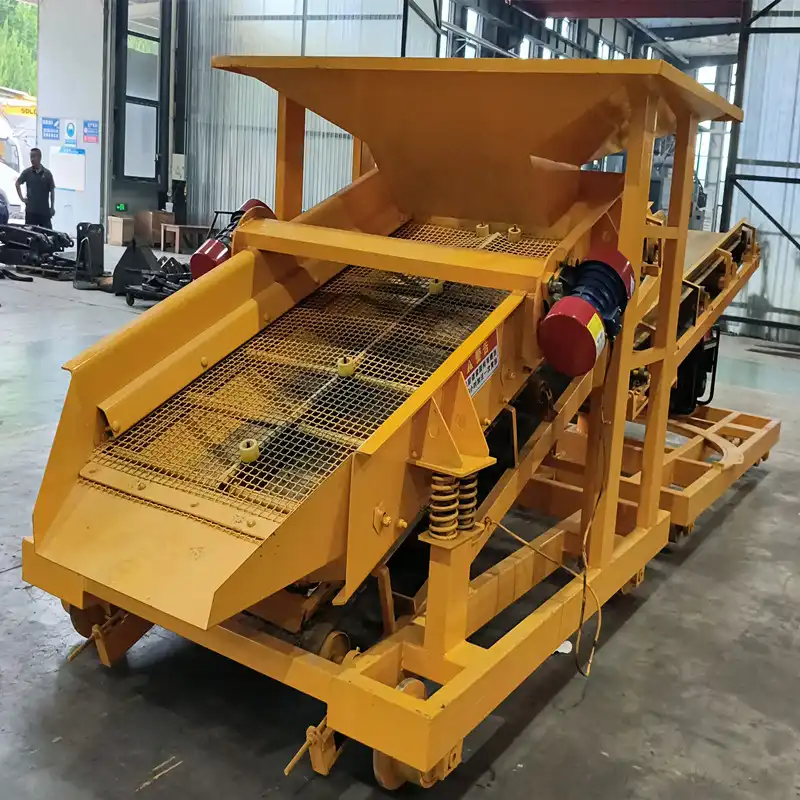

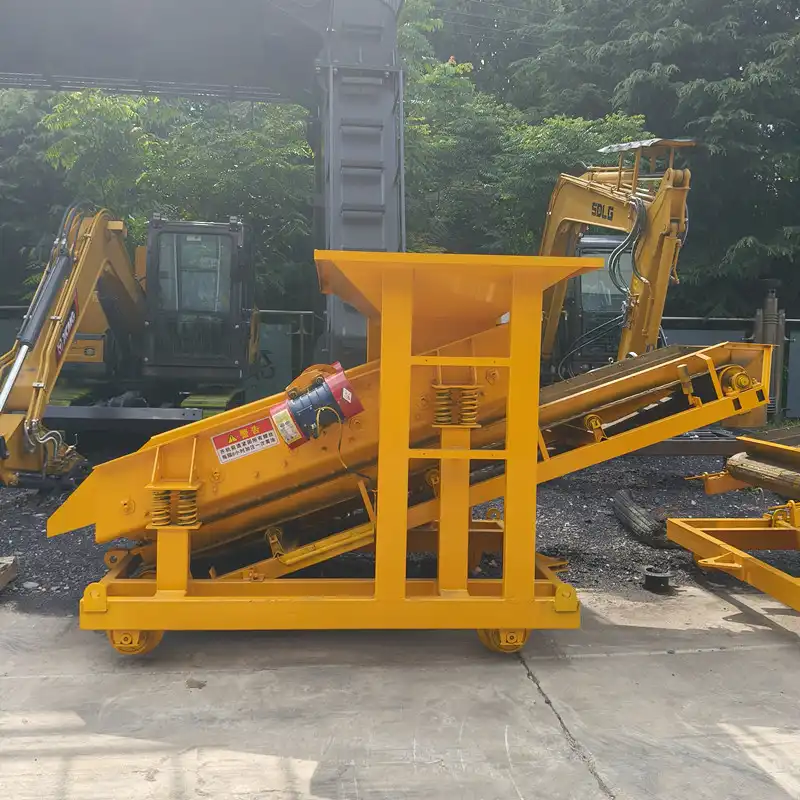

Equipped with two 0.75kw vibrating screen motors. The 2000*1800mm vibrating screen deck provides sufficient screening area, realizing continuous and uniform ballast sorting during long-hour operation.

Integrated Feeding & Conveying Structure

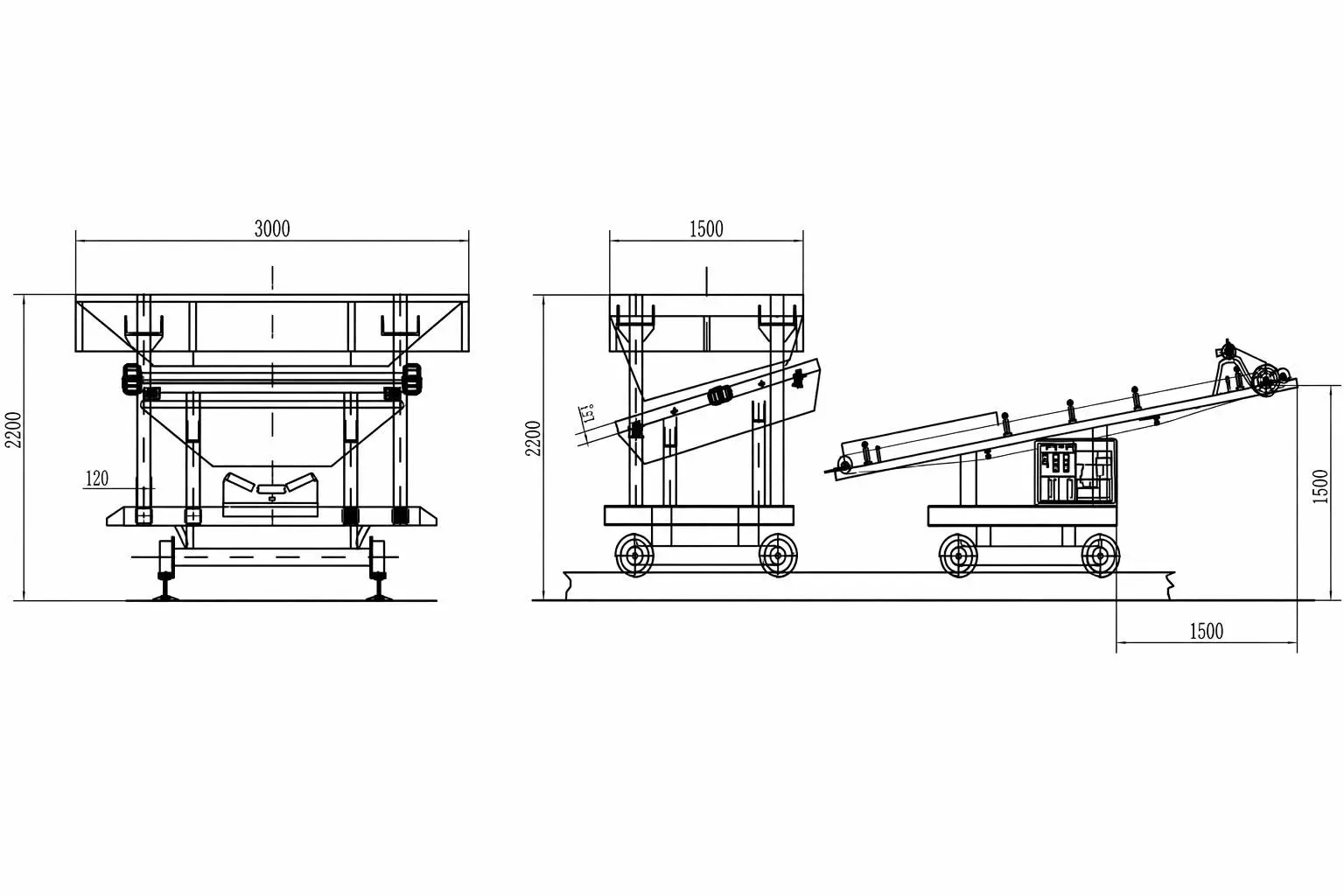

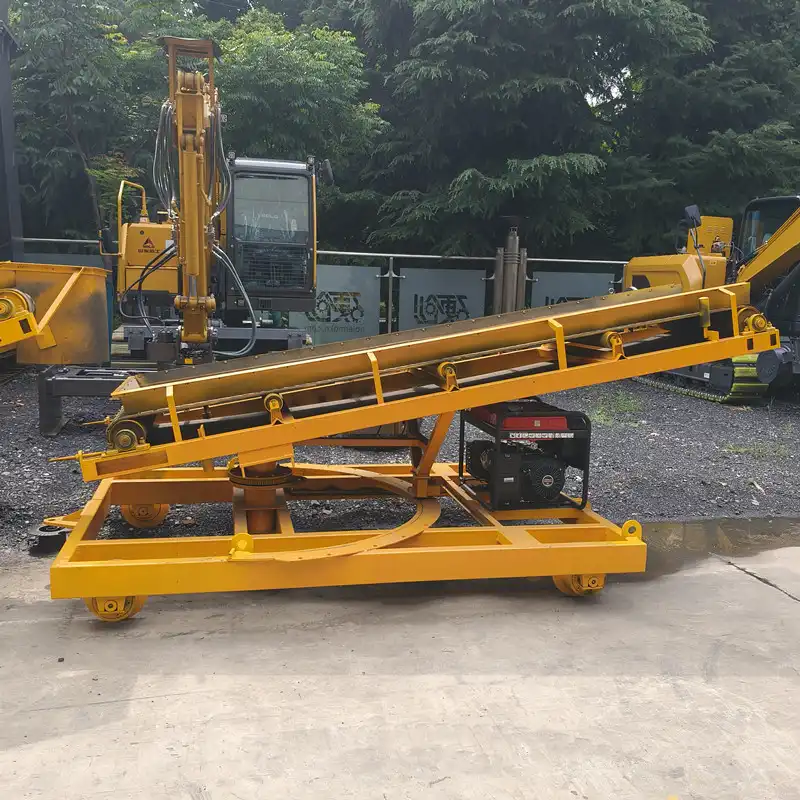

Matched with 3000*1500mm feeding hopper and 800mm wide, 4000mm long belt conveyor. It realizes automatic material feeding and screened ballast output, greatly lowering manual handling workload.

​

Technical Parameters

​

Application Scenarios

This mobile ballast screener is widely used in railway line maintenance, track renewal, ballast cleaning, turnout maintenance and freight railway track bed renovation. It works well for heavy haul railways, passenger railways and local industrial rail lines, effectively solving the problem of ballast fouling and extending railway service life.

​

FAQ

Q1: Can the mobile ballast screener adapt to 1435 standard gauge railway? A1: Yes, TNYDSFJ75 supports 1435mm track gauge, and we offer customized wheel distance for different rail standards.

Q2: What is the main working function of this rail ballast screening machine? A2: It screens contaminated ballast on railway tracks, separates waste impurities and reusable qualified ballast materials.

Q3: Is the vibrating screen mesh replaceable for different ballast size requirements? A3: The screen mesh can be replaced according to customer ballast particle demands to adjust screening classification standards.

​
