An Efficient Solution for Railway Maintenance
In railway transportation systems, the ballast bed, as a crucial foundation for the track, directly affects the stability of the line and the safety of train operation. After long-term operation, the ballast bed is prone to problems such as dirt accumulation, compaction, and mud pumping, which not only reduce the load-bearing capacity of the track but also affect drainage performance, posing potential safety hazards to the railway. While traditional large cleaning and screening vehicles can solve these problems, they are often ineffective in certain special scenarios. The emergence of the FR160F-BZL railway ballast undercutting bar provides a flexible and efficient new option for railway maintenance.
I. Core Function: Precisely Solving Ballast Bed Defects
The FR160F-BZL railway ballast undercutting bar is specifically designed for the excavation and cleaning of ballast bed bottoms. Its core objective is to solve common ballast bed defects such as dirt accumulation, compaction, and mud pumping, restoring the drainage and load-bearing capacity of the ballast bed.

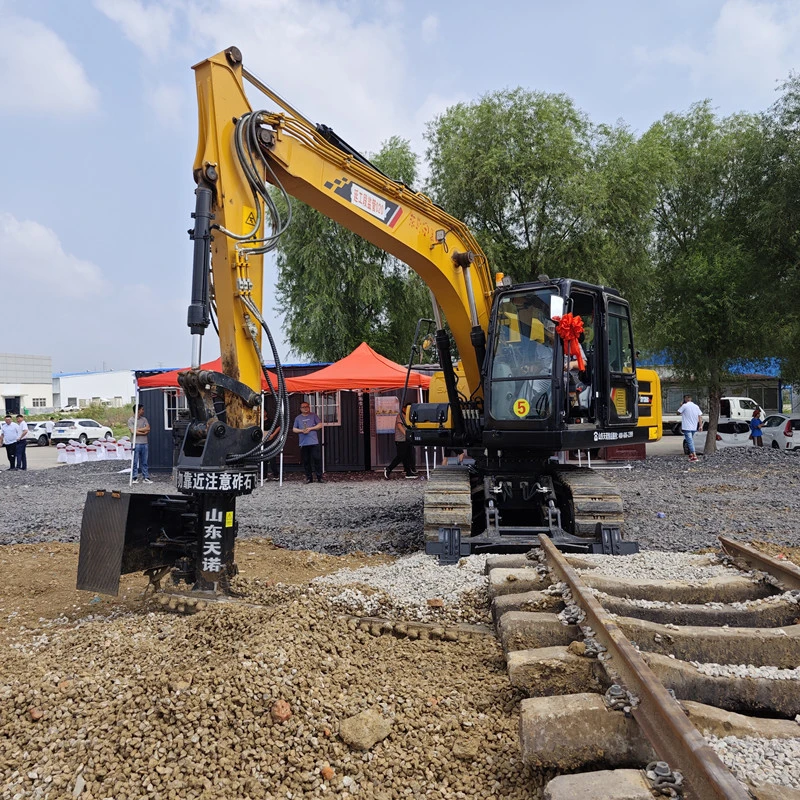

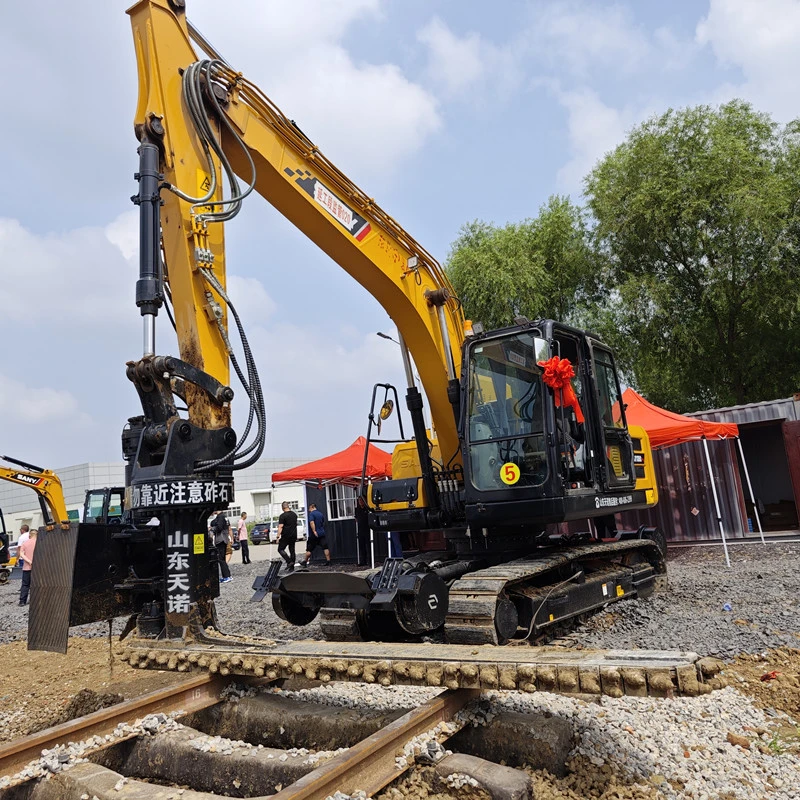

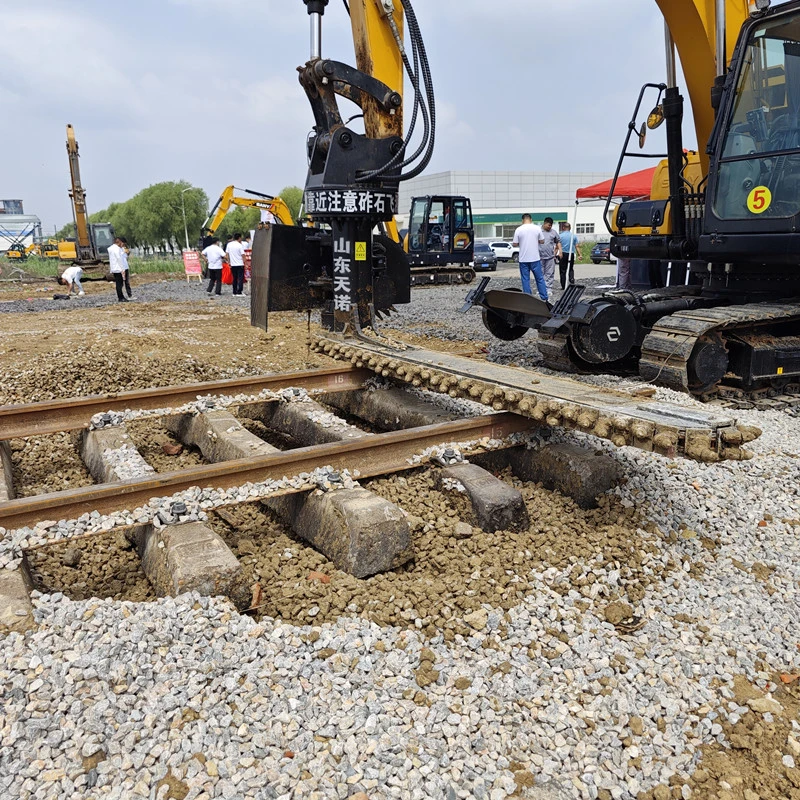

Unlike large track cleaning vehicles, this device employs a unique side-cutting operation: the excavating mechanism precisely cuts into the sleeper floor from one side of the track using a rotating mechanism, efficiently removing compacted and dirty ballast. The ballast is then transported to the outside of the sleepers via a ballast removal mechanism. This innovative design eliminates the need for extensive track dismantling and reliance on large track cleaning vehicles, demonstrating its advantages in confined spaces or special environments.
Whether it's routine railway line maintenance, meticulous cleaning of turnout areas, operations on bridges where large equipment cannot access, or regular maintenance of heavy-haul lines such as freight lines, the FR160F-BZL can handle it all with ease, providing reliable support for railway track bed maintenance under various conditions.
II. Key Parameters: Robust Strength Ensures High Efficiency
As a professional railway maintenance equipment, the FR160F-BZL's technical parameters have been meticulously calibrated to ensure high efficiency and stability during operation:
Parameter Item | Specification
Compatible Model | 15-20T (≥130Kw) Excavator
Cutting Method | Side-cutting
Cutting Angle Range | >100°
Standard Working Length | 2950mm
Effective Slag Removal Length | 2800mm
Slag Removal Efficiency | >20m/h
Slag Removal Depth Under Sleeper | 200mm
Slewing Angle | 360°
Adjustable Gear Box Angle | 30°
Hydraulic Flow Requirement | ≥150L/min
Working Pressure | 28Mpa
Material | Q460, Q355 Alloy Steel
Weight | 2200kg
Dimensions (L×W×H) 4050×1250×1650mm
In terms of compatible models, it can be directly installed on 15-20 ton excavators, utilizing existing equipment resources without the need for additional specialized equipment. Its 360° full-rotation design allows the equipment to start operation from either side of the track, unrestricted by site conditions; a cutting angle range of >100° ensures the excavating mechanism can accurately cut into the sleeper bottom, efficiently completing ballast cleaning. A 200mm ballast removal depth thoroughly cleans dirty ballast from the sleeper bottom, restoring track bed elasticity; a ballast removal efficiency of >20m/h represents a several-fold increase in operating efficiency compared to traditional manual labor or small equipment.
In terms of material selection, the use of Q460 and Q355 alloy steel gives the equipment excellent wear resistance and impact resistance, ensuring long-term stable operation even under the harsh conditions of heavy-haul railways. A working pressure of 28Mpa and a hydraulic flow requirement of ≥150L/min provide the equipment with strong power, ensuring smooth and powerful excavation and ballast removal processes.
III. Product Advantages: Four Key Features Make it the Preferred Equipment for Railway Ballast Treatment.
1. Flexible Adaptability, Cost Reduction and Efficiency Improvement
One of the biggest advantages of the FR160F-BZL is its flexible adaptability. It can be directly installed on 15-20 ton excavators, eliminating the need to purchase dedicated large ballast cleaning vehicles, significantly reducing equipment investment costs. Simultaneously, leveraging the mobility of excavators, equipment relocation is more convenient, reducing relocation costs and time. For railway maintenance units, there is no need to configure separate equipment for ballast cleaning, fully utilizing existing excavator resources and maximizing the equipment's functionality and value.
2. High-Efficiency Operation, Improved Maintenance Efficiency
The 360° full-rotation design is key to the FR160F-BZL's high-efficiency operation. During operation, the equipment can enter from either side of the track according to site conditions, without frequent adjustments to the equipment position, saving significant auxiliary time. With a 200mm ballast removal depth, the FR160F-BZL can clean the ballast under the sleepers in one go, avoiding repeated work; its operating efficiency of over 20m/h significantly accelerates railway maintenance. When facing large-area ballast defects, the FR160F-BZL can quickly complete the cleaning task, shortening line closure time and minimizing impact on railway transportation.
3. Durable and Reliable, Adaptable to Complex Working Conditions

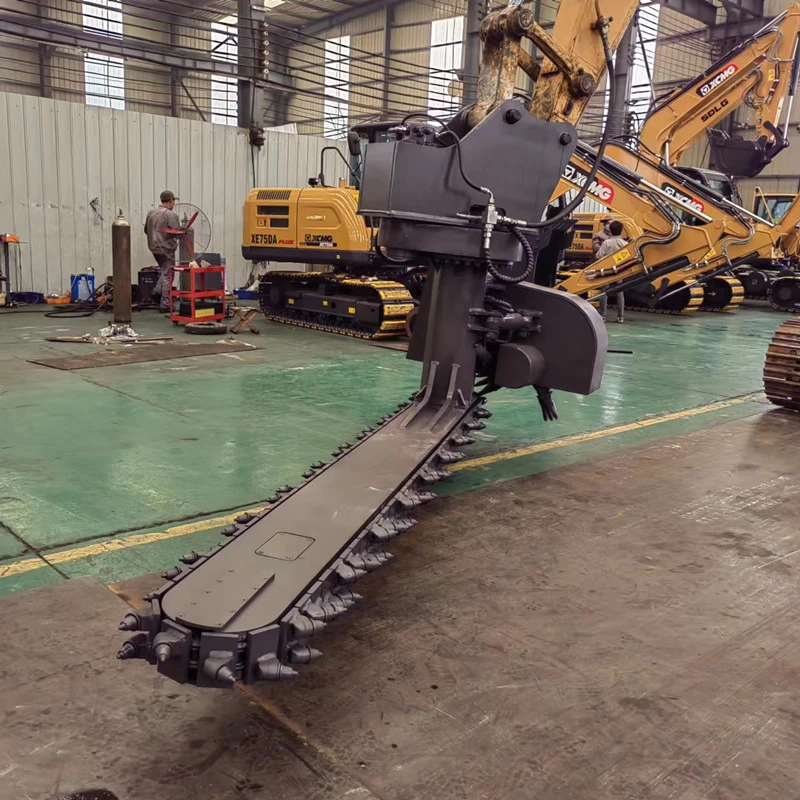

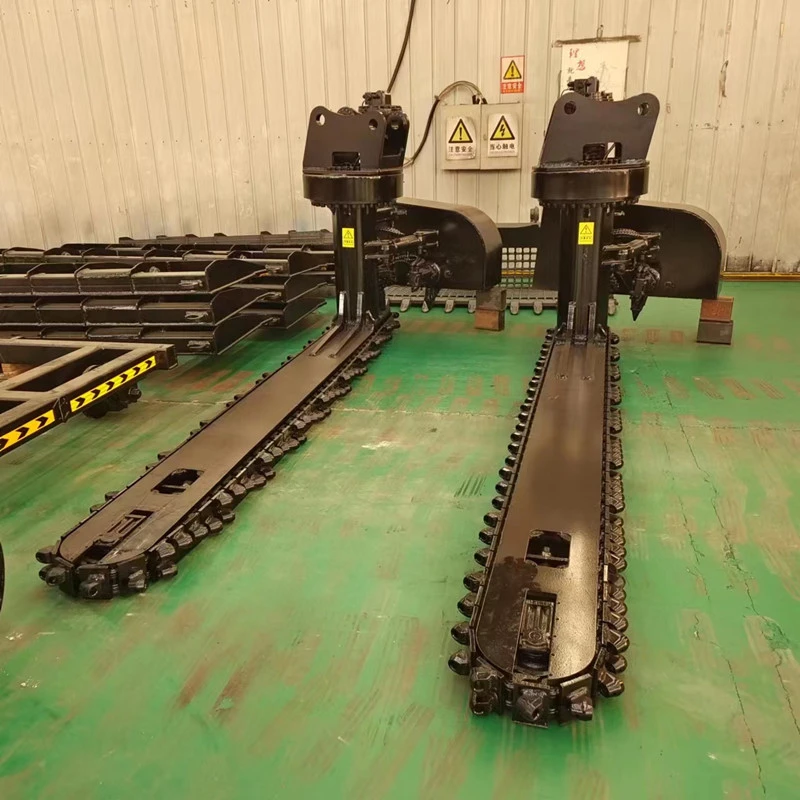

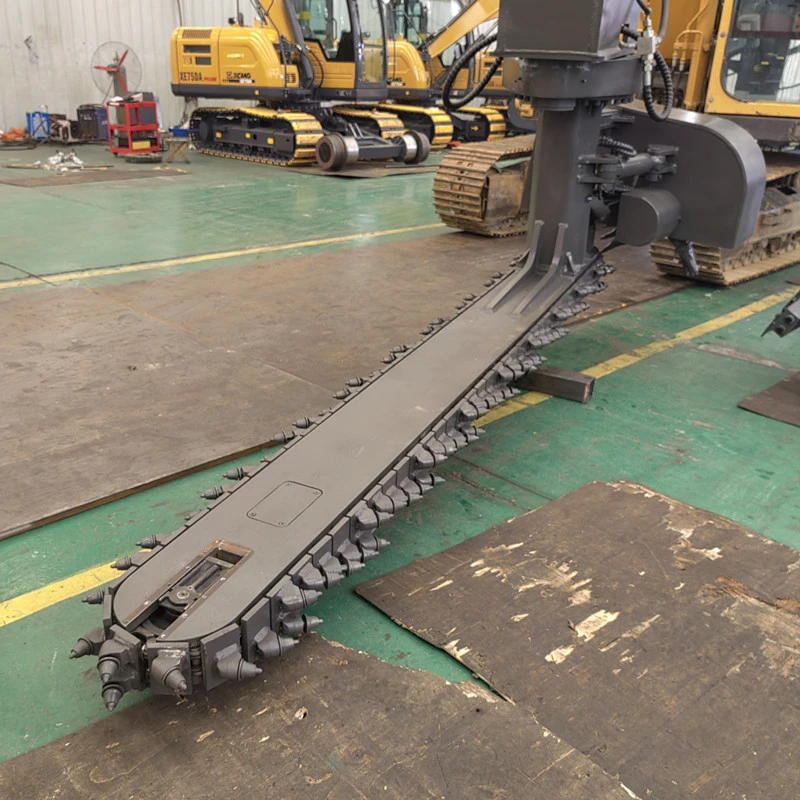

Heavy-haul railway lines experience heavy loads and high usage frequency, placing extremely high demands on the durability of maintenance equipment. The FR160F-BZL is made of Q460 and Q355 alloy steel, which possesses high strength, high wear resistance, and good impact resistance, capable of withstanding frequent wear and impacts on the ballast. Simultaneously, the equipment employs a high-torque hydraulic drive and a chain-type cutting structure, ensuring stable and reliable excavation, maintaining excellent operational performance even under harsh conditions. This durable design not only reduces the frequency and cost of equipment maintenance but also extends its service life, providing a guarantee for long-term stable railway maintenance.
4. Safety Protection and Compliance Operation
Railway construction safety is of paramount importance, and the FR160F-BZL was designed with safety factors fully in mind. The equipment features a high-speed rotating mechanism and is equipped with clear warning signs to remind construction personnel to pay attention to safety and prevent accidents. Furthermore, the ballast splash protection device effectively prevents injury to personnel and equipment from ballast splashes during operation. All safety designs strictly comply with railway construction safety regulations, allowing construction personnel to work with greater peace of mind and ensuring the safe and orderly conduct of railway maintenance work.
IV. Conclusion: An Ideal Choice for Railway Track Bed Maintenance
The FR160F-BZL railway ballast undercutting bar, with its flexible adaptability, high efficiency, durability, reliability, and safety protection, has become an ideal piece of equipment for railway track bed maintenance. It not only solves the maintenance challenges of special scenarios where large cleaning vehicles cannot access, but also provides railway maintenance units with a better option due to its high operational performance and low operating costs.
With the continuous development of railway transportation, the FR160F-BZL, with its professional design and excellent performance, will safeguard the safe and stable operation of railway lines and help railway maintenance reach new heights.
