Can excavator cabs be customized for higher pass heights?
Excavator cab systems can indeed be customized for higher pass heights to meet specific operational requirements. Standard cabs typically have limited height clearance, but modern engineering solutions now allow for significant customization that can increase effective pass heights up to 4300mm or more. This customization is particularly valuable for industries like railway construction, mining operations, and specialized construction projects where equipment needs to access elevated work areas or clear tall obstacles. Companies like Tiannuo Machinery specialize in designing and manufacturing custom cab solutions that maintain operational efficiency and safety while extending the vertical reach capabilities of excavators in the 13-40 ton range. These customizations typically involve structural modifications to the cab mounting system and may include adjustable height mechanisms, reinforced support frameworks, and specialized safety features to ensure stability at increased heights.
Customization Feasibility
Technical Possibilities for Height Adjustment
The feasibility of customizing an excavator cab for higher pass heights depends largely on the base machine's structural integrity and design specifications. Most excavators in the 13-40 ton range can be modified to accommodate increased cab heights. These modifications typically involve engineering adjustments to the cab mounting system, which may include reinforced structural components, extended hydraulic systems, and redesigned operator platforms.
Tiannuo Machinery employs advanced engineering techniques to ensure that customized cab solutions maintain the excavator's center of gravity within safe operating parameters. This often requires a comprehensive analysis of the machine's weight distribution, hydraulic system capacity, and structural limitations before proceeding with any modification.
The customization process typically begins with a detailed assessment of the base machine's specifications and the client's specific height requirements. Engineers then develop a customized solution that may involve extending the cab support structure, modifying the hydraulic systems, or completely redesigning the cab mounting platform to achieve the desired pass height while maintaining operational stability.
Industry Applications for Elevated Cab Systems
Elevated excavator cab systems serve critical functions across multiple industries, each with unique height requirements and operational challenges:

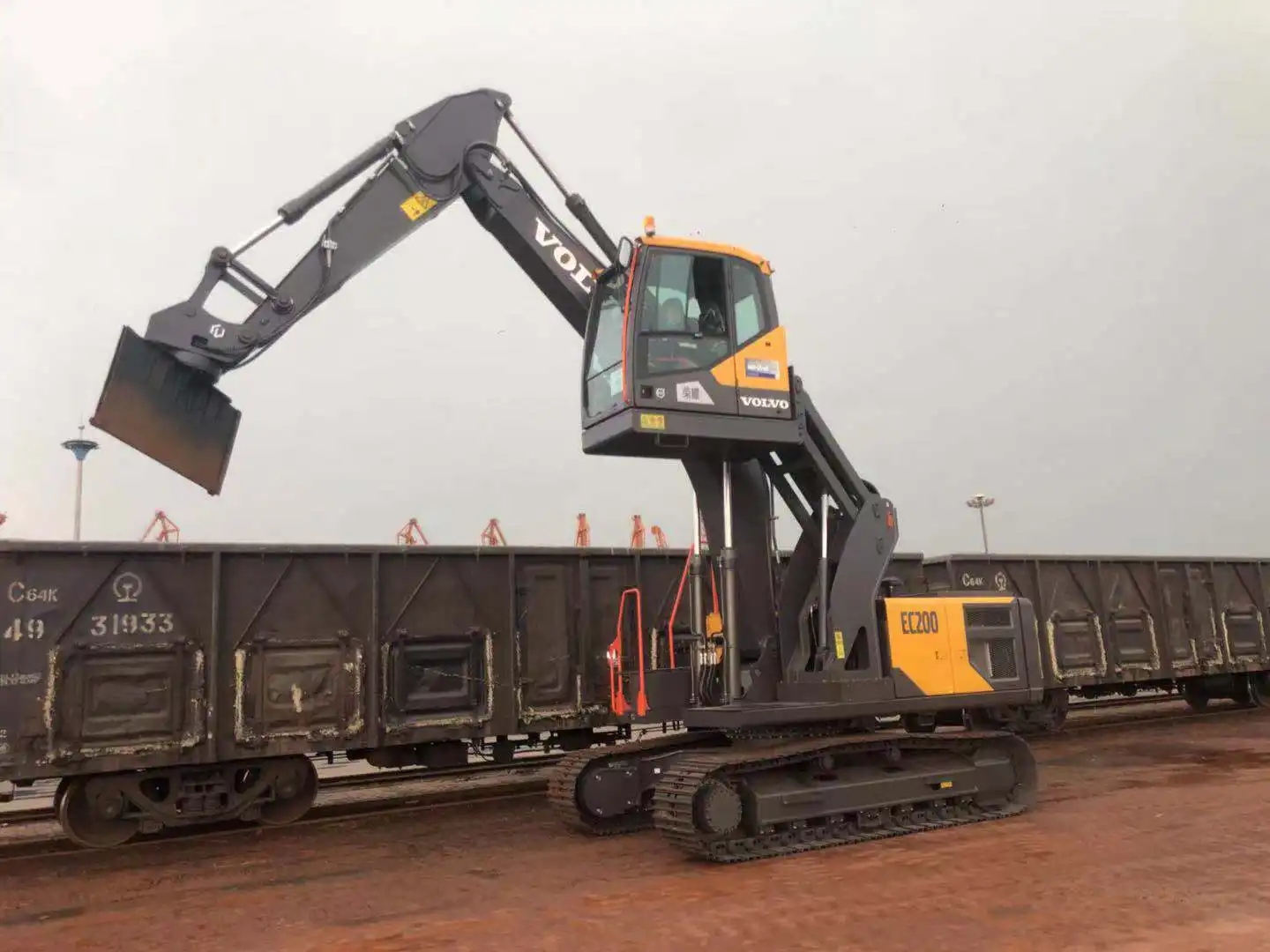

Railway maintenance operations often require excavators to work alongside or above train tracks, necessitating cab heights that provide operators with clear visibility over railcars and infrastructure. Customized cabs for this industry typically feature pass heights of 4300mm or more, allowing operators to effectively monitor and manage track maintenance activities from an elevated position.
Mining operations frequently require excavators to access elevated work areas, such as high-wall mining or overhead material handling. Customized cab systems for mining applications often incorporate additional reinforcement to withstand harsh operating conditions while providing the necessary height clearance for efficient operation.
Demolition projects involving multi-story structures benefit significantly from elevated cab systems, which allow operators to safely view upper demolition zones while maintaining a stable working platform. These specialized applications often require not only increased height but also enhanced cab protection features to shield operators from falling debris.
Benefits of Height-Customized Excavator Cabs
Customizing an excavator cab for increased pass height offers numerous operational advantages that can significantly improve project efficiency and safety:
Enhanced visibility represents perhaps the most immediate benefit, as operators gain a commanding view of the work area from an elevated position. This improved sight line allows for more precise operation, reduced risk of accidents, and better overall workflow management, particularly in complex work environments like railway yards or crowded construction sites.
Operational versatility increases substantially with an elevated cab system, as the excavator can effectively navigate taller obstacles or access elevated work areas that would be impossible with standard cab configurations. This versatility often eliminates the need for additional specialized equipment, reducing project costs and simplifying logistics.
Safety improvements accompany well-designed elevated cab systems, which incorporate additional protective features like reinforced guardrails, anti-slip surfaces, and enhanced operator restraint systems. These safety enhancements are especially valuable in high-risk environments where operator protection is paramount.
Customization Methods
Structural Modification Approaches
The technical process of modifying an excavator cab for increased height involves several engineering approaches, each suited to different operational requirements and base machine specifications:

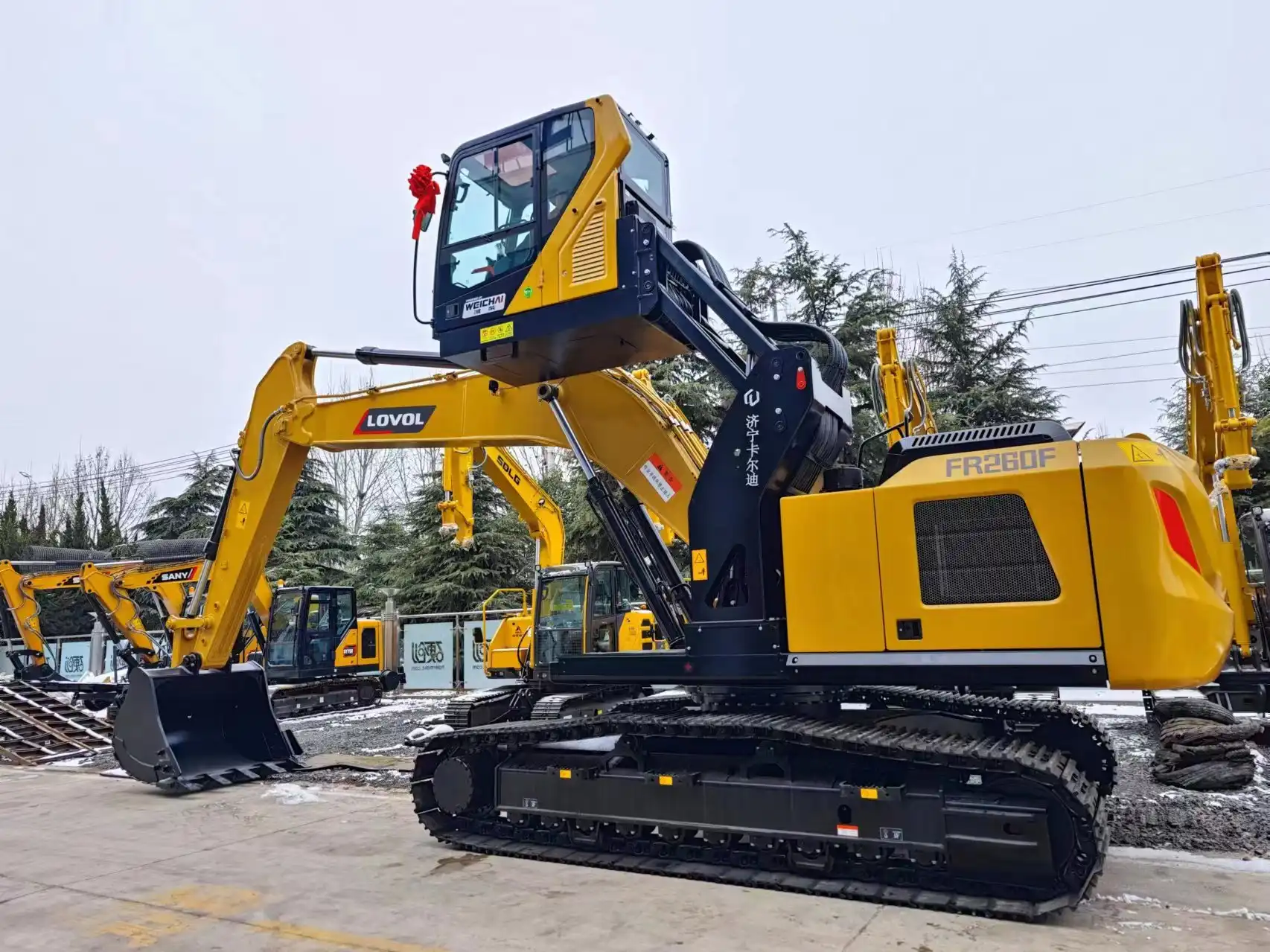

Fixed elevation systems represent the most straightforward approach, utilizing a permanently extended support structure to raise the cab to a predetermined height. This method offers excellent stability and typically requires less maintenance than adjustable systems, making it ideal for applications with consistent height requirements. Tiannuo's fixed elevation systems can achieve pass heights of up to 4300mm, with customizations available for specific project needs.

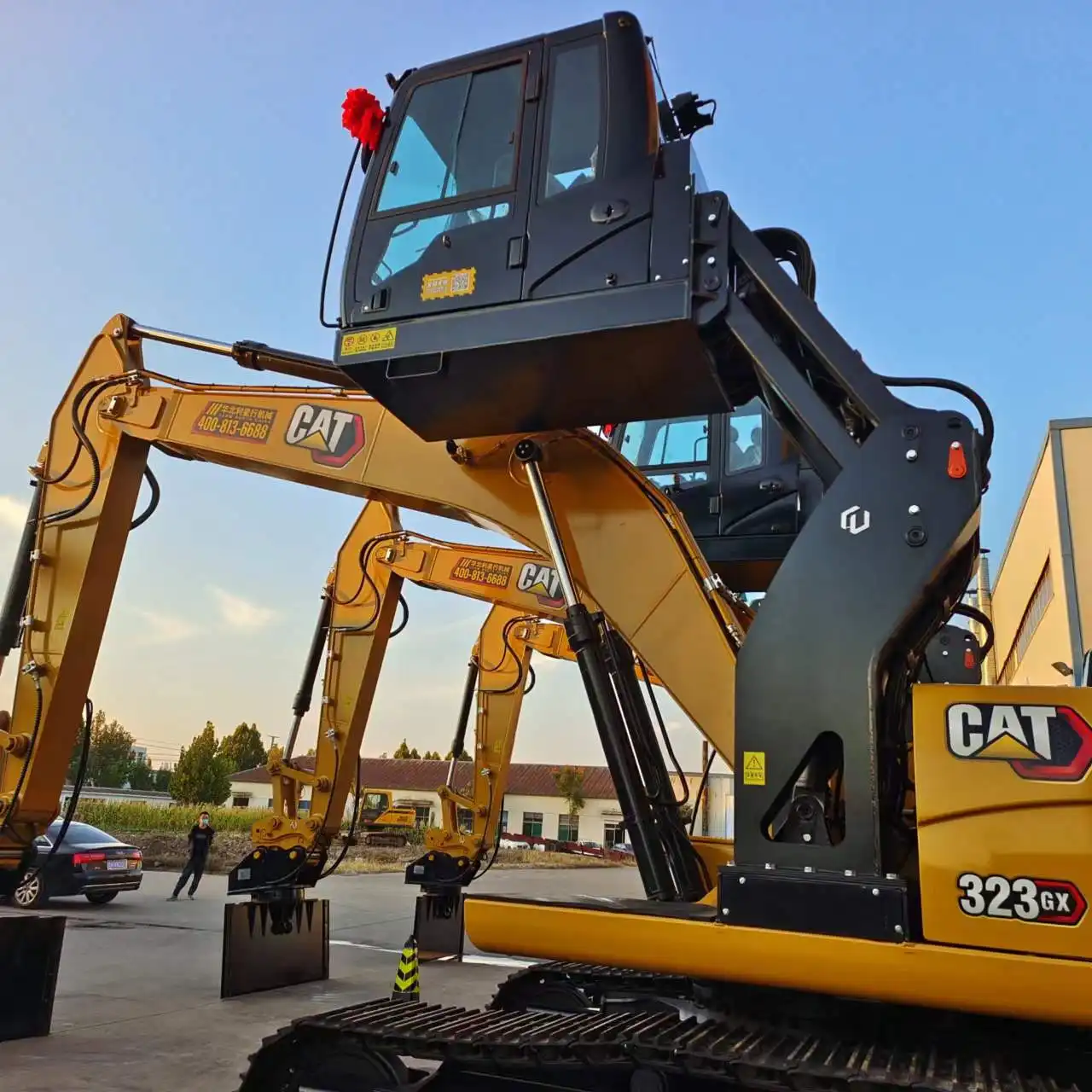

Hydraulic adjustment mechanisms provide a more versatile solution, allowing operators to adjust cab height as needed for different tasks or operating environments. These systems incorporate additional hydraulic cylinders and control circuits, enabling smooth height transitions without compromising operational stability. While more complex than fixed systems, hydraulic adjustment provides unmatched flexibility for multi-purpose excavator applications.
Specialized mounting frameworks offer another approach, completely redesigning the cab attachment system to optimize both height and stability. These custom frameworks often incorporate advanced materials and engineering solutions to maintain strength while minimizing weight, ensuring that the elevated cab doesn't compromise the excavator's performance or lifting capacity.
Integration of Safety Features
Safety represents a critical consideration in excavator cab height customization, requiring thoughtful integration of multiple protective elements:
Stability enhancement systems form the foundation of safe elevated cab operation, incorporating extended outriggers, counterweights, or modified track systems to ensure the excavator remains stable even when the cab is at maximum height. These systems often include automatic stability monitoring that alerts operators to potential instability before it becomes dangerous.
Protective railings and barriers provide essential operator protection at elevated heights, preventing falls and offering secure points of contact during entry and exit. Tiannuo's elevated cab designs include comprehensive railing systems that meet or exceed international safety standards while maintaining operator comfort and accessibility.
Emergency descent mechanisms represent a critical safety feature, providing a reliable method for lowering the cab in case of power failure or other emergency situations. These systems typically incorporate backup power sources or mechanical override systems that ensure operators can safely exit an elevated cab under any circumstances.
Considerations for Customization
Engineering and Design Factors
Several critical factors influence the successful design and implementation of an elevated excavator cab system:
Weight distribution analysis represents an essential first step in the customization process, as adding height to the cab shifts the excavator's center of gravity upward. Engineers must carefully calculate how this shift affects stability during various operations, often implementing compensatory measures like extended counterweights or modified boom designs to maintain safe operation.
Structural integrity requirements become more demanding as cab height increases, necessitating reinforced attachment points, additional bracing, or upgraded materials to withstand the increased leverage forces that accompany elevation. Tiannuo employs advanced finite element analysis to identify potential stress points and design appropriate reinforcement for each customized cab system.
Operator ergonomics must remain a priority despite the engineering challenges of height customization. This includes maintaining comfortable access points, preserving visibility in all directions, and ensuring that control layouts remain intuitive and accessible regardless of cab height. Thoughtful ergonomic design prevents operator fatigue and maintains productivity during extended operations.
Regulatory Compliance Requirements
Elevated excavator cab systems must adhere to various regulatory standards and certification requirements:
Safety certification processes vary by region and industry, but typically involve thorough testing of stability, structural integrity, and safety systems before an elevated cab excavator can be approved for operational use. Tiannuo works closely with certification authorities to ensure that all customized cab systems meet or exceed applicable safety standards.
Industry-specific regulations may impose additional requirements on elevated cab designs, particularly in highly regulated sectors like railway construction or mining. These regulations often address specific operational risks or environmental conditions, requiring specialized design features or enhanced safety systems.
Documentation and training requirements accompany most elevated cab systems, ensuring that operators understand the unique operational characteristics and safety considerations associated with heightened operation. Comprehensive documentation and specialized training programs help operators transition smoothly to elevated cab operation while maintaining safe work practices.
FAQ
①What is the maximum pass height available for customized excavator cabs?
While standard Tiannuo excavator cab customizations offer pass heights up to 4300mm, further customization can achieve even greater heights depending on the base machine specifications and operational requirements. Each customization project undergoes thorough engineering analysis to determine the maximum safe operating height for the specific application.
②How does an elevated cab affect excavator stability and performance?
A properly engineered elevated cab solution maintains excavator stability through careful weight distribution, structural reinforcement, and possibly additional counterweighting. While some minor adjustments to operating procedures may be necessary, especially at maximum reach positions, overall performance remains comparable to standard configurations when the system is properly designed.
③What safety features are included in customized elevated cab systems?
Tiannuo's elevated excavator cab systems incorporate comprehensive safety features, including protective railings, anti-slip surfaces, emergency descent mechanisms, stability monitoring systems, and enhanced operator restraints. These features work together to ensure operator safety even at maximum elevation.
④Can existing excavators be retrofitted with elevated cab systems?
Yes, most excavators in the 13-40 ton range can be retrofitted with elevated cab systems, though the specific approach may vary depending on the machine's age, model, and condition. Tiannuo provides comprehensive assessment services to determine the most appropriate customization approach for existing equipment.
Customized Excavator Cab
Customizing excavator cab systems for higher pass heights represents a valuable solution for operations requiring enhanced visibility and access to elevated work areas. Through careful engineering, integration of comprehensive safety systems, and thoughtful adaptation of control mechanisms, companies like Tiannuo Machinery can transform standard excavators into specialized tools capable of safely and efficiently operating at increased heights. These customizations not only expand the operational capabilities of excavation equipment but also enhance safety and efficiency across industries ranging from railway maintenance to mining and construction.
For those considering elevated cab solutions for their specific operational challenges, a consultation with experienced engineers is the first step toward determining the optimal approach. With the right customization strategy, excavators can achieve significantly increased operational heights while maintaining stability, control, precision, and operator safety. To learn more about customized cab solutions tailored to your specific requirements, contact us at raymiao@stnd-machinery.com.
References
Journal of Construction Engineering and Heavy Equipment, "Advancements in Excavator Operator Cabin Design: A Focus on Visibility and Safety" (2023)
International Mining Safety Standards Handbook, "Guidelines for Elevated Equipment Operation in Extraction Industries" (2022)
Railway Construction and Maintenance Equipment Review, "Modern Solutions for Track Maintenance: Elevated Excavator Systems" (2023)
Construction Equipment Modification Standards, "Safety Requirements for Height-Modified Heavy Equipment in Construction Applications" (2024)
Heavy Equipment Engineering Quarterly, "Structural Integrity Considerations in Excavator Cab Elevation Systems" (2023)
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company.
