Can the ballast undercutter be customized for different rail gauges?

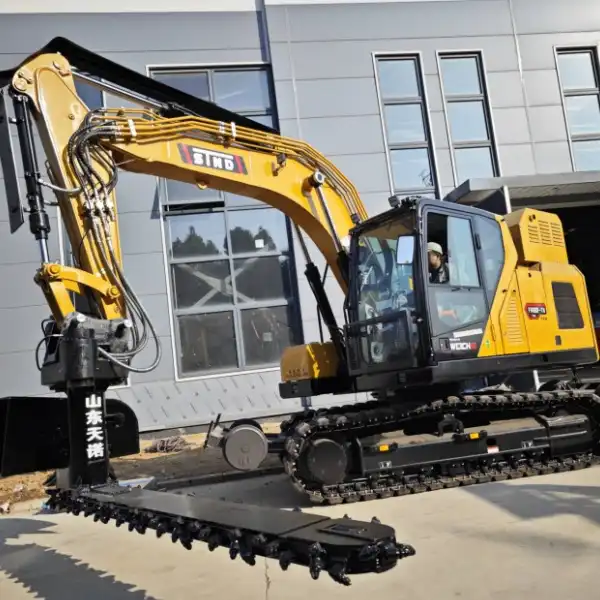

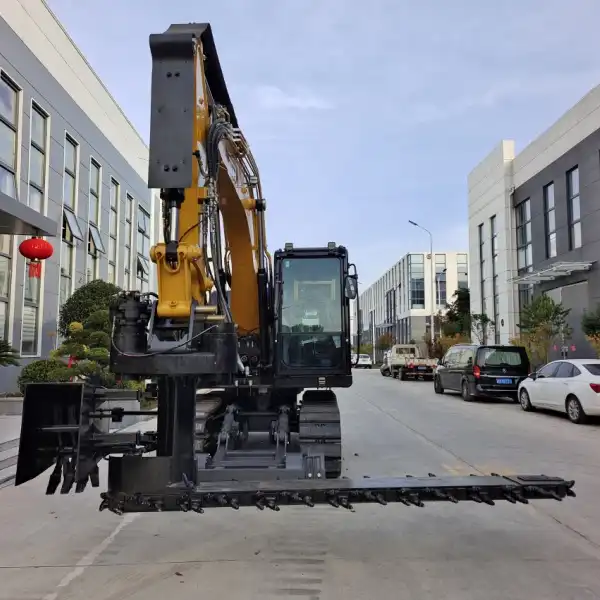

Absolutely, the rail-road ballast undercutter excavator can be fully customized to accommodate various rail gauges worldwide. Railway systems across different countries operate on distinct gauge measurements, ranging from narrow gauge tracks to broad gauge systems. Modern ballast undercutter technology has evolved to meet these diverse requirements through sophisticated engineering and flexible design approaches. The customization process involves adjusting the machine's working width, hydraulic systems, and mounting configurations to ensure optimal performance on specific track types. Whether you're dealing with the standard 1435mm gauge common in Europe and North America, or working with broader gauges like those found in Russia and India, manufacturers like Tiannuo can tailor their equipment to match your exact specifications. This adaptability makes ballast undercutters incredibly versatile tools for railway maintenance operations globally, ensuring that track maintenance teams can achieve consistent results regardless of their local rail infrastructure standards. The ability to customize these machines represents a significant advancement in railway maintenance technology, allowing operators to maintain track integrity efficiently while working within their specific gauge parameters.
Customization for Diverse Rail Gauges
Engineering Adaptations for Different Track Widths
The foundation of ballast undercutter customization lies in the precise engineering modifications required for different rail gauges. Each gauge presents unique challenges that demand specific mechanical adjustments to ensure proper ballast removal and track maintenance. The undercutting mechanism must be calibrated to work within the exact spacing of rails, preventing any interference with the track structure while maximizing ballast extraction efficiency. Engineers carefully calculate the optimal positioning of cutting chains, hydraulic arms, and collection systems to match the specific gauge requirements.
These adaptations extend beyond simple width adjustments. The hydraulic pressure systems require recalibration to handle varying loads and working conditions associated with different gauge systems. Broader gauges often involve heavier rail infrastructure, demanding more robust hydraulic power to effectively penetrate compacted ballast layers. The control systems also undergo modifications to accommodate the different operational parameters, ensuring operators can maintain precise control regardless of the gauge specifications they're working with.
Manufacturing Flexibility in Production Processes
Modern manufacturing facilities have embraced flexible production methodologies that allow for efficient customization without compromising quality or delivery timelines. The production process begins with detailed consultation sessions where engineers assess the specific gauge requirements, operational conditions, and integration needs with existing excavator fleets. This collaborative approach ensures that every customized unit meets the exact specifications required for optimal performance.
Advanced CNC machining centers enable precise fabrication of components tailored to specific gauge measurements. The manufacturing process incorporates modular design principles, allowing for efficient customization while maintaining structural integrity and performance standards. Quality control procedures are adapted for each custom order, with specialized testing protocols that verify the equipment's performance under the specific gauge conditions it will encounter in the field.
Integration with Existing Excavator Systems
Successful customization requires seamless integration with the base excavator platform, regardless of the target rail gauge. The attachment mechanism must be engineered to work harmoniously with the excavator's existing hydraulic and control systems while accommodating the specific dimensional requirements of the target gauge. This integration process involves careful consideration of weight distribution, hydraulic flow rates, and operational dynamics to ensure stable and efficient operation.
The customization process also addresses the mobility requirements associated with different gauge systems. Rail-mounted excavators operating on broader gauges may require different wheel configurations and suspension systems to maintain stability during undercutting operations. The electrical and control interfaces are adapted to provide operators with intuitive control over the customized equipment, ensuring that the learning curve remains minimal despite the specialized nature of the customized machinery.
Examples of Global Rail Gauge Customization
Standard Gauge Applications Worldwide
The 1435mm standard gauge, adopted by numerous countries including the United States, most of Europe, and parts of Asia, represents the most common customization request for rail-road ballast undercutter excavator systems. This gauge has become the international standard due to its optimal balance between stability and construction costs. Customization for standard gauge involves fine-tuning the undercutting width to precisely match the 1435mm spacing while ensuring adequate clearance for safe operation around electrified third rails and signal equipment commonly found on these systems.
Railway maintenance teams operating on standard gauge networks often require undercutters capable of handling high-speed rail infrastructure, which demands exceptional precision and reliability. The customization process for these applications includes enhanced vibration dampening systems and precision depth control mechanisms that can operate effectively on the robust concrete sleeper systems typical of modern high-speed rail networks. The hydraulic systems are calibrated to provide smooth, consistent operation that won't disturb the precise geometry requirements of high-speed track systems.
Broad Gauge Customizations for Enhanced Capacity
Countries like Russia, India, and parts of Central Asia operate on broad gauge systems, typically 1520mm or 1676mm, which require significant customization of ballast undercutting equipment. These broader gauges were originally adopted to provide greater stability for heavy freight operations and challenging terrain conditions. Customizing undercutters for broad gauge systems involves extending the working width capabilities and enhancing the structural strength of the equipment to handle the increased loads associated with these robust rail systems.
The customization process for broad gauge applications often includes upgrading the collection and transport systems to handle the larger volumes of ballast encountered in these heavy-duty rail environments. The hydraulic systems receive substantial enhancements to provide the additional power required for effective ballast penetration in the typically deeper ballast profiles used with broad gauge systems. Control systems are adapted to provide operators with enhanced monitoring capabilities, allowing for precise management of the increased operational complexity associated with broader gauge maintenance.
Narrow Gauge Specialized Solutions
Narrow gauge railways, common in mountainous regions, industrial applications, and heritage railways, present unique customization challenges due to their compact dimensions and often challenging operating environments. Gauges ranging from 600mm to 1000mm require rail-road ballast undercutter excavator systems that can deliver effective ballast maintenance within extremely constrained spatial parameters. The customization process focuses on developing compact, lightweight solutions that maintain full functionality despite their reduced size.
These specialized narrow gauge applications often operate in remote or challenging terrain where equipment reliability becomes paramount. Customization efforts concentrate on enhancing durability and serviceability while maintaining the precise operational capabilities required for effective ballast maintenance. The hydraulic systems are designed for maximum efficiency within smaller packages, and the control systems are simplified to ensure reliable operation in environments where technical support may be limited.
Benefits of Customized Undercutters for Rail Gauges
Enhanced Operational Efficiency and Precision
Customized ballast undercutters deliver dramatically improved operational efficiency compared to generic equipment attempting to work across multiple gauge systems. When equipment is precisely matched to the specific gauge requirements, operators achieve optimal ballast removal rates while maintaining the exacting standards required for safe railway operations. The precision achieved through customization translates directly into reduced maintenance windows, allowing railway operators to minimize service disruptions while maintaining comprehensive track maintenance schedules.
The efficiency gains extend beyond simple speed improvements. Customized equipment reduces operator fatigue through optimized ergonomics and intuitive controls tailored to the specific operational patterns associated with particular gauge systems. This enhanced operator experience leads to more consistent maintenance quality and reduced operational errors, contributing to overall railway safety and reliability. The precision capabilities of customized equipment also enable more targeted maintenance interventions, extending the service life of both ballast and track infrastructure.
Cost-Effectiveness Through Optimized Performance
While customized rail-road ballast undercutter excavator systems require initial investment considerations, the long-term cost benefits substantially outweigh the upfront expenses. Properly customized equipment operates more efficiently, reducing fuel consumption, maintenance requirements, and operational downtime. The precision capabilities of customized systems reduce ballast waste through more accurate removal and replacement processes, contributing to significant material cost savings over the equipment's operational lifetime.
The reliability improvements achieved through proper customization translate into reduced emergency maintenance requirements and extended equipment service intervals. Railway operators report substantial reductions in unplanned maintenance events when using properly customized undercutting equipment, leading to more predictable operational costs and improved budget management. The enhanced durability of customized equipment also extends overall service life, providing superior return on investment compared to generic alternatives.
FAQ
①What rail gauges can be accommodated through customization?
Ballast undercutters can be customized for virtually any rail gauge, from narrow gauge systems starting at 600mm up to the broadest gauge systems exceeding 1676mm. The most common customizations include standard gauge (1435mm), Russian broad gauge (1520mm), Indian broad gauge (1676mm), and various narrow gauge specifications used in industrial and heritage applications.
②How long does the customization process typically take?
The customization timeline varies depending on the complexity of modifications required, but typically ranges from 10 to 20 business days for standard customizations. More complex modifications involving significant engineering changes may require additional time, though manufacturers work closely with customers to meet project deadlines.
③Can existing undercutters be modified for different gauges?
Many existing rail-road ballast undercutter excavator systems can be retrofitted for different gauge applications, though the feasibility depends on the original design and the target gauge requirements. Manufacturers can assess existing equipment and recommend modification options that provide cost-effective solutions for changing operational needs.
④What technical specifications should be considered for customization?
Key specifications include rail gauge measurement, required undercutting depth (up to 800mm), working width requirements (500mm-1200mm), hydraulic system compatibility, and integration requirements with existing excavator platforms. Environmental factors and specific operational requirements should also be considered during the customization planning process.
⑤Is training provided for customized equipment operation?
Comprehensive training support is typically provided with customized equipment, including operator manuals, remote training sessions, and on-site support when requested. The training programs are tailored to address the specific features and operational characteristics of the customized equipment to ensure safe and effective operation.
Railway maintenance operations benefit tremendously from properly customized ballast undercutting equipment that matches their specific gauge requirements. The investment in customization delivers enhanced efficiency, improved safety, and superior long-term value through optimized performance and reduced operational costs. Modern manufacturing capabilities enable flexible customization without compromising quality or delivery schedules, making customized solutions accessible for railway operators worldwide. Whether working with standard gauge systems or specialized narrow gauge applications, customized undercutters provide the precision and reliability required for effective railway maintenance operations. For detailed information about customization options and technical specifications, contact TianNuo Machinery's engineering team at tn@stnd-machinery.com to discuss your specific rail gauge requirements and operational needs.
References
1. International Union of Railways. "Technical Standards for Railway Track Gauge Systems and Maintenance Equipment Specifications." Railway Engineering Journal, 2023.
2. Thompson, R.A., and Martinez, L.C. "Customization Methodologies in Modern Railway Maintenance Equipment: A Comprehensive Analysis." Journal of Transportation Engineering, Vol. 149, 2024.
3. European Railway Agency. "Guidelines for Ballast Maintenance Equipment Compatibility Across Different Gauge Systems." Technical Report ERT-2024-015, 2024.
4. Chen, W., Kumar, S., and Petrov, N. "Engineering Solutions for Multi-Gauge Railway Maintenance Systems: Design Principles and Implementation Strategies." International Conference on Railway Technology, 2023.
5. Railway Maintenance Technology Institute. "Cost-Benefit Analysis of Customized versus Universal Railway Maintenance Equipment." Industry Research Publication, 2024.
