Can the excavator cab be raised?
An excavator cab can be raised through specialized elevation systems that enhance operator visibility and accommodate unique operational requirements. Modern elevation solutions utilize hydraulic or mechanical lifting mechanisms that maintain structural integrity while providing adjustable working heights up to several meters above standard configurations. These systems prove particularly valuable in applications requiring elevated perspectives such as deep excavation monitoring, material handling over obstacles, or specialized construction tasks where ground-level operation limits effectiveness. Professional elevation systems incorporate safety features, including emergency lowering capabilities, structural reinforcement, and stability monitoring to ensure operator protection during elevated operations. The feasibility of cab elevation depends on the excavator model, weight distribution, hydraulic capacity, and specific application requirements that determine optimal lifting height and operational parameters.
Product Specifications and Design Features
Hydraulic Elevation Systems
Modern hydraulic elevation systems provide smooth, controlled vertical movement through high-pressure hydraulic cylinders integrated with existing excavator hydraulic circuits. These systems typically offer lifting capacities ranging from 2,000 to 5,000 pounds, accommodating standard operator cabs plus additional equipment loads. Hydraulic flow requirements usually demand 15-25 gallons per minute at 3,000-4,000 PSI operating pressure, necessitating adequate hydraulic pump capacity for proper operation. Control systems incorporate proportional valves that enable precise positioning and speed control during elevation and lowering operations.
Safety redundancy features include dual hydraulic circuits, emergency manual lowering valves, and pressure relief systems that prevent over-pressurization damage. Structural components utilize high-strength steel construction with safety factors exceeding industry standards for lifting equipment. Professional installations include load monitoring systems that track hydraulic pressure and mechanical stress to prevent overloading conditions. Regular maintenance schedules ensure hydraulic seals, filters, and safety systems remain functional throughout the equipment's service life.
Mechanical Lifting Mechanisms
Mechanical elevation systems employ telescoping masts, scissor lifts, or articulating boom configurations that provide reliable vertical positioning without continuous hydraulic pressure requirements. These systems often incorporate manual or electric winch mechanisms for precise height adjustment, while spring-loaded counterbalance systems reduce operator effort during positioning operations. Mechanical advantage ratios typically range from 3:1 to 10:1, enabling operators to elevate heavy cab assemblies with minimal input force.
Structural stability relies on wide-base platforms and outrigger systems that maintain equipment balance during elevated operations. Locking mechanisms secure the excavator cab at desired heights while preventing inadvertent movement during work activities. Material selection emphasizes corrosion-resistant alloys and protective coatings that withstand harsh environmental conditions common in construction and mining applications. Modular designs facilitate field installation and maintenance while accommodating various excavator chassis configurations.
Electronic Control Integration
Advanced elevation systems incorporate electronic controls that integrate with excavator management systems for coordinated operation and safety monitoring. Digital displays provide real-time height information, hydraulic pressure readings, and system status indicators that enhance operator awareness during elevated operations. Programmable height presets enable rapid positioning for repetitive tasks, while automated safety interlocks prevent unsafe operating conditions.
Communication systems maintain connectivity between elevated operators and ground personnel through intercom systems and wireless technology. GPS integration enables precise positioning documentation for surveying applications, while telematics systems provide remote monitoring capabilities for fleet management. Battery backup systems ensure control functionality during hydraulic system maintenance or emergencies requiring immediate cab lowering.
Customization
Application-Specific Modifications
Customization options address unique operational requirements across diverse industries, including construction, mining, waste management, and specialized maintenance applications. Deep excavation projects often require elevation heights exceeding 10 meters for adequate oversight and safety monitoring, while material handling applications may need horizontal reach extension combined with vertical positioning. Specialized excavator attachments, including lighting systems, camera mounts, and tool storage, integrate seamlessly with elevation platforms to create comprehensive work solutions.
Environmental considerations influence customization choices, with corrosion-resistant materials and sealed components necessary for marine or chemical processing environments. Temperature extremes require specialized hydraulic fluids and insulation systems that maintain performance across seasonal variations. Noise reduction modification, including sound-dampening materials and low-noise hydraulic pumps, addresses urban construction requirements where noise ordinances limit operational hours.
Capacity and Size Variations
Elevation systems accommodate various excavator cab sizes and weights through scalable design platforms that match specific equipment requirements. Compact excavator systems typically handle 500-1,500 pound payloads with lifting heights up to 3 meters, while large mining excavator applications may require 8,000+ pound capacity with elevation ranges exceeding 15 meters. Modular component design enables field upgrades and capacity increases without complete system replacement.
Platform dimensions vary from compact 4x4-foot configurations for single-operator applications to expansive 8x12-foot platforms accommodating multiple personnel and equipment loads. Adjustable guardrail systems and safety harness attachment points provide operator protection regardless of platform size. Load distribution calculations ensure proper weight balance while maintaining excavator stability during elevated operations across varying terrain conditions.
Integration with Existing Equipment
Professional installation services ensure seamless integration with existing excavator hydraulic, electrical, and control systems without compromising original equipment functionality. Mounting systems utilize existing attachment points and structural reinforcement to maintain manufacturer warranties while adding elevation capabilities. Hydraulic connections employ quick-disconnect fittings that enable rapid system removal for standard excavator operations.
Compatibility assessments evaluate excavator specifications, including hydraulic flow rates, electrical system capacity, and structural load limits to ensure proper system matching. Software integration enables elevation system controls to appear on existing display screens while maintaining separation between critical excavator functions and auxiliary systems. Training programs familiarize operators with new controls and safety procedures specific to elevated operations.
Operational Mechanisms
Control Systems and User Interface
Modern elevation systems employ intuitive control interfaces that minimize operator learning curves while maximizing safety and efficiency. Joystick controls provide proportional speed adjustment for smooth elevation and lowering operations, while preset buttons enable rapid positioning to frequently used heights. Digital displays show current elevation, hydraulic system status, and safety system conditions in easily readable formats. Emergency stop controls remain accessible from multiple locations to ensure immediate system shutdown capabilities.
Automated safety features include tilt sensors that prevent operation on unstable surfaces, load monitoring systems that warn of approaching capacity limits, and wind speed sensors that restrict elevation during adverse weather conditions. Interlock systems prevent excavator movement while the excavator cab remains elevated, reducing the risk of tip-over incidents. Radio remote controls enable ground personnel to operate elevation systems during maintenance or emergency situations.
Safety Protocols and Procedures
Comprehensive safety protocols govern elevated operations through detailed procedures covering pre-operation inspections, operational limitations, and emergency response procedures. Daily inspection checklists verify hydraulic fluid levels, structural integrity, and safety system functionality before elevated operations commence. Operational limits include maximum wind speeds, ground slope restrictions, and load capacity guidelines that prevent unsafe operating conditions.
Emergency procedures address hydraulic system failures, power loss situations, and medical emergencies occurring during elevated operations. Backup lowering systems enable safe descent even during primary system failures, while communication protocols ensure ground support awareness of elevated operations. Training certification requirements ensure operators understand safety procedures and emergency response protocols before operating elevation systems independently.
Maintenance and Service Requirements
Regular maintenance schedules ensure elevation systems maintain peak performance and safety standards throughout their operational life. Hydraulic system maintenance includes fluid changes, filter replacements, and seal inspections performed according to manufacturer specifications and operating hours. Structural inspections verify weld integrity, bolt torque specifications, and wear patterns that might indicate developing problems requiring attention.
Preventive maintenance programs identify potential issues before they cause operational failures or safety hazards. Lubrication schedules ensure moving components operate smoothly while preventing premature wear. Electrical system maintenance includes connection inspections, control system calibration, and backup power system testing. Documentation requirements track maintenance activities, inspection results, and component replacement history for regulatory compliance and warranty purposes.
Advanced Applications and Benefits
Specialized Industry Applications
Railway construction and maintenance operations benefit significantly from elevated cab systems that provide enhanced visibility over rail networks and improve safety during track installation or repair activities. Mining applications utilize elevation systems for overburden removal monitoring, while ensuring operator safety in unstable excavation areas. Waste management facilities employ elevated cabs for material sorting oversight and contamination monitoring in recycling operations.
Productivity Enhancement Features
Elevated operator positions dramatically improve work efficiency through enhanced visibility that reduces positioning errors and increases precision during material handling operations. Panoramic views enable operators to coordinate multiple equipment movements simultaneously while reducing the need for ground personnel in hazardous areas. Documentation capabilities, including photography and video recording from elevated positions, provide valuable project records and quality assurance data.
Economic Considerations
Investment in elevation systems often provides rapid payback through increased operational efficiency, reduced project completion times, and enhanced safety records that lower insurance costs. Versatile elevation systems enable excavators to perform specialized tasks that would otherwise require additional equipment rentals or subcontractor services. Resale value improvements reflect the added capability and versatility that elevation systems provide to construction and mining equipment.
FAQ
①What is the maximum height an excavator cab can be raised?
Professional elevation systems can raise excavator cabs up to 15-20 meters, depending on equipment size, application requirements, and safety considerations.
②How much does it cost to add cab elevation capability?
Elevation system costs range from $50,000 to $200,000,+ depending on lifting capacity, height requirements, and customization features needed.
③Can elevation systems be retrofitted to existing excavators?
Yes, professional elevation systems can be retrofitted to most excavator models with proper engineering analysis and installation by certified technicians.
④What safety certifications are required for elevated cab operations?
Elevation systems must comply with OSHA lifting equipment standards and may require additional certifications depending on local regulations and application.
⑤How long does installation take?
Professional installation typically requires 3-5 days depending on system complexity, excavator model, and customization requirements.
Professional Elevation Solutions
Understanding cab elevation possibilities opens new operational opportunities for construction, mining, and specialized maintenance applications. Professional elevation systems provide reliable, safe solutions for challenging projects requiring enhanced operator visibility and positioning flexibility. The investment in elevation technology often yields significant returns through improved efficiency, safety, and operational versatility.

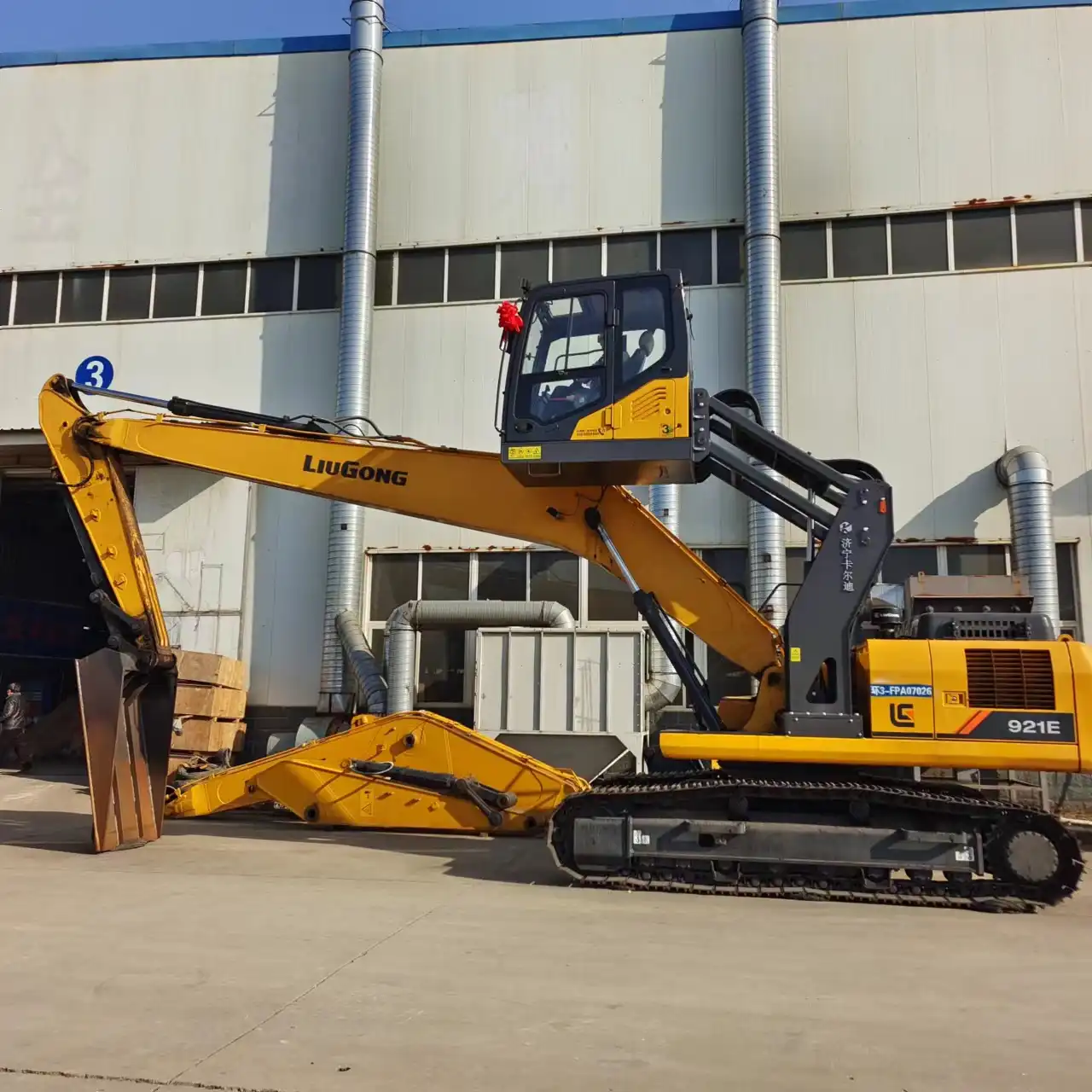

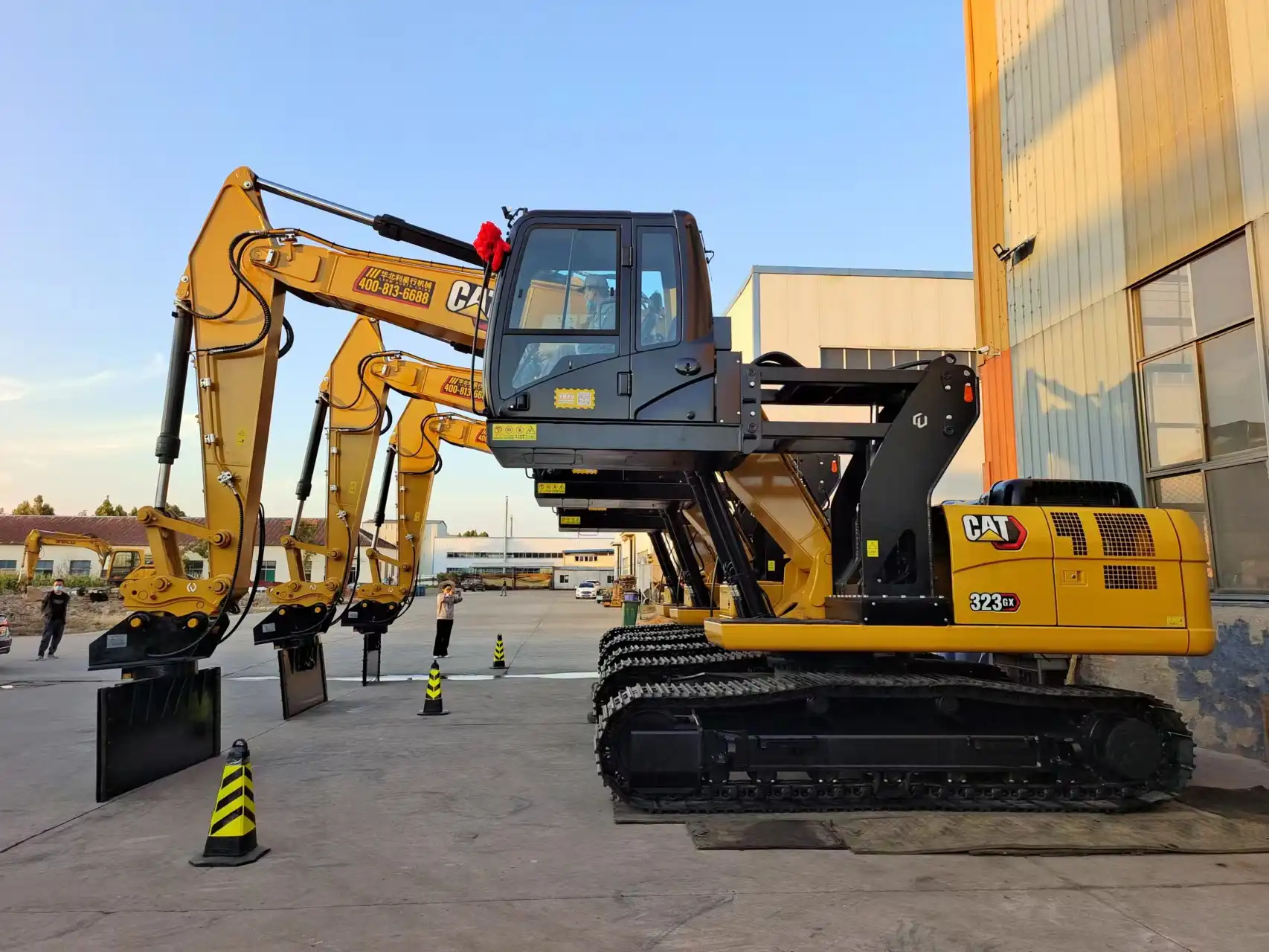

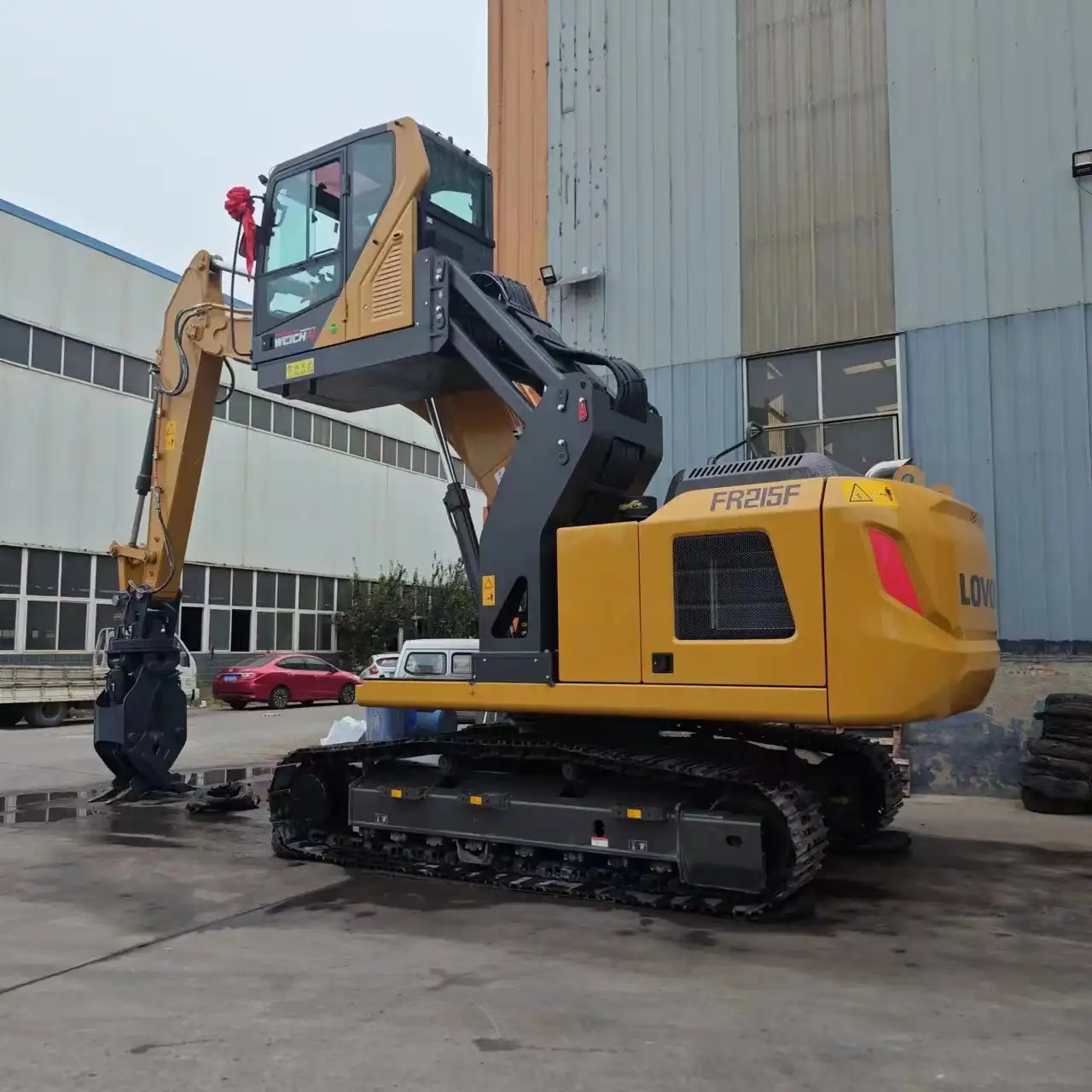

Tiannuo's excavator cab solutions accommodate excavators from 13-40 tons with above-train assignment configurations that provide exceptional operational flexibility. Our systems offer 4300mm effective pass height and 4200mm effective passing width, both customizable for specific application requirements. The four-leg configuration ensures maximum stability during operations, while crawler walking remains controlled through the main machine's track lever for seamless integration. Safety devices include protective railings that meet stringent industry standards, and bucket capacity ranges from 2-3.5 cubic meters to match various operational needs.
Ready to explore how cab elevation can transform your excavator's capabilities and improve operational efficiency? Our engineering team provides comprehensive consultation covering feasibility analysis, system selection, and installation planning tailored to your specific requirements. Whether you need enhanced visibility for complex projects or specialized positioning for unique applications, we deliver solutions that maximize equipment potential while ensuring operator safety. Contact our specialists today at tn@stnd-machinery.com to discuss your elevation needs and discover how advanced cab systems can revolutionize your equipment operations.
References
- Hydraulic Lifting Systems for Heavy Equipment Applications. Construction Equipment Engineering Journal, 2023.
- Safety Standards for Elevated Operator Platforms in Construction Machinery. International Equipment Safety Association, 2024.
- Excavator Modification Guidelines: Structural Integrity and Performance Considerations. Heavy Equipment Manufacturers Council, 2023.
- Elevated Cab Systems: Design Principles and Operational Benefits. Mining Equipment Technology Review, 2024.
- Cost-Benefit Analysis of Excavator Elevation Systems in Construction Applications. Construction Industry Research Institute, 2023.
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company.
