Clamshell Bucket Design
The clamshell bucket design has revolutionized the excavation industry, offering unparalleled efficiency and versatility. These innovative attachments, resembling the shape of a clamshell, have become indispensable in various sectors, including construction, mining, and dredging operations. With their unique dual-jaw mechanism, these buckets excel at handling a wide range of materials, from loose soil to heavy rocks. The design's ability to scoop, lift, and precisely place materials has significantly improved project timelines and reduced labor costs.
Structural Features of Clamshell Buckets

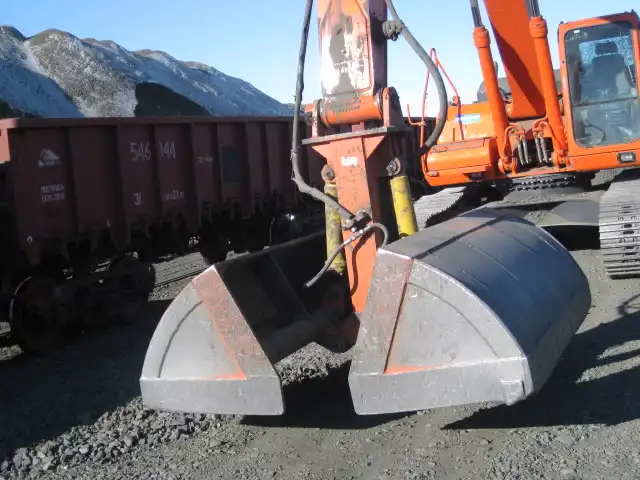

Dual-jaw mechanism for optimal material handling
The heart of a clamshell bucket's design lies in its dual-jaw mechanism. This ingenious feature allows for efficient grabbing and releasing of materials, making it ideal for a variety of excavation tasks. The jaws are typically symmetrical, enabling even distribution of forces during operation. This balance is crucial for maintaining stability and preventing uneven wear on the bucket's components.
The dual-jaw design also offers exceptional control over the excavation process. Operators can adjust the opening and closing of the jaws with precision, allowing for selective material pickup. This level of control is particularly valuable in environments where careful material separation is required, such as in waste management or environmental cleanup projects.
Reinforced hinge design for durability and longevity
A critical aspect of clamshell bucket design is the reinforced hinge that connects the two jaws. This component bears significant stress during operation and must withstand repeated cycles of opening and closing under heavy loads. Manufacturers employ high-strength alloys and innovative engineering techniques to create hinges that can endure the rigors of demanding work environments.
The reinforced hinge design often incorporates bushings or bearings to reduce friction and wear. Some advanced models feature sealed lubrication systems, ensuring smooth operation and minimizing maintenance requirements. This attention to the hinge mechanism significantly extends the bucket's operational life, providing a better return on investment for equipment owners.
Integration of wear-resistant materials for extended use
To combat the abrasive nature of many excavation materials, clamshell buckets incorporate wear-resistant materials in their construction. The edges of the jaws, which experience the most contact with abrasive substances, are often fitted with replaceable wear plates or hardened steel inserts. These components can be easily swapped out when worn, preserving the bucket's overall structure and extending its usable life.
Some manufacturers go a step further by using advanced materials like tungsten carbide or ceramic composites in high-wear areas. These materials offer superior resistance to abrasion and impact, significantly reducing the frequency of repairs and replacements. The strategic use of these materials ensures that clamshell buckets maintain their performance characteristics even after prolonged use in challenging conditions.
Variations in Jaw Shape and Capacity
Customizable jaw profiles for diverse material types
The versatility of clamshell buckets is greatly enhanced by the ability to customize jaw profiles. Different materials and excavation tasks require specific jaw shapes to maximize efficiency. For instance, buckets designed for handling loose materials like sand or gravel may feature smoother, more rounded jaws to facilitate easy flow and prevent material sticking.
In contrast, buckets intended for rock or debris removal often have serrated or toothed jaw profiles. These aggressive designs provide better penetration and gripping power when dealing with larger, more compact materials. Some manufacturers offer interchangeable jaw plates, allowing operators to adapt their clamshell buckets to various job requirements without investing in multiple specialized attachments.
Capacity range: From compact 0.75m³ to large 8m³ buckets
Clamshell buckets come in a wide range of capacities to suit different project scales and equipment sizes. Compact buckets with capacities around 0.75m³ are ideal for smaller excavators and confined spaces, offering precision and maneuverability in tight urban construction sites or landscaping projects.
At the other end of the spectrum, large-capacity buckets reaching up to 8m³ are designed for heavy-duty applications in mining, large-scale dredging, or bulk material handling at ports. These massive buckets significantly boost productivity in high-volume operations, reducing the number of cycles required to move large quantities of material.
Specialized teeth configurations for enhanced digging power
Many clamshell bucket designs incorporate specialized teeth configurations to enhance digging power and material penetration. These teeth are strategically placed along the jaw edges to break up compacted materials and improve the bucket's ability to fill quickly and completely.
Tooth designs vary based on the intended application. Some feature replaceable tips for easy maintenance, while others are integrated into the jaw structure for maximum durability. Advanced tooth configurations may include a combination of different shapes and sizes, optimized for specific material types or excavation conditions.
Hydraulic vs. Mechanical Design Considerations
Hydraulic systems: Precision control in varied environments

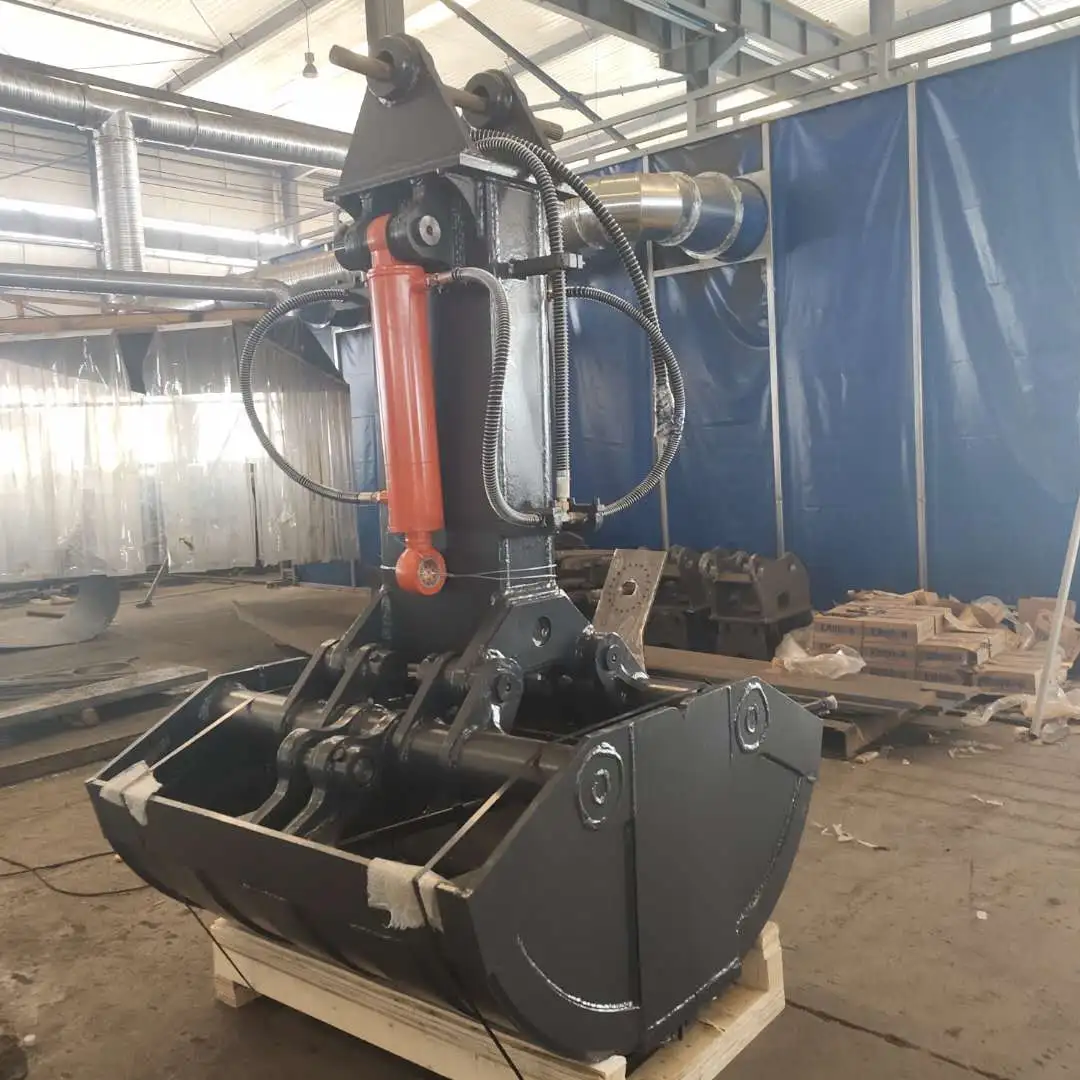

Hydraulic clamshell buckets have gained popularity due to their precision control and adaptability to various operating conditions. These systems use hydraulic cylinders to open and close the jaws, offering smooth and powerful operation. The hydraulic design allows for fine-tuned control over the bucket's movements, enabling operators to handle delicate tasks with accuracy.
One of the key advantages of hydraulic systems is their ability to maintain consistent performance across different temperatures and altitudes. This makes them particularly suitable for projects in extreme environments or at varying elevations. Additionally, hydraulic clamshell buckets can often generate higher closing forces, making them ideal for handling heavy or compacted materials.
Mechanical designs: Simplicity and reliability for basic tasks
While hydraulic systems offer advanced features, mechanical clamshell bucket designs continue to find applications in certain scenarios. These buckets operate using cables or chains to control the opening and closing of the jaws. The simplicity of mechanical designs translates to lower initial costs and reduced maintenance requirements, making them attractive for smaller operations or less demanding applications.
Mechanical clamshell buckets are often favored in scenarios where hydraulic power sources are not readily available or when simplicity is paramount. Their straightforward operation can be an advantage in remote locations or in situations where minimizing potential points of failure is crucial.
Hybrid solutions: Balancing power and operational flexibility
Recognizing the strengths of both hydraulic and mechanical systems, some manufacturers have developed hybrid clamshell bucket designs. These innovative solutions aim to combine the precision and power of hydraulic systems with the simplicity and reliability of mechanical designs.
Hybrid clamshell buckets might use hydraulic systems for primary operations while incorporating mechanical backup systems for redundancy. This approach ensures operational continuity even in the event of hydraulic system failure. Some designs utilize hydraulics for jaw movement but rely on mechanical locking mechanisms for added security when holding loads.
Clamshell bucket design continues to evolve, driven by the demands of modern excavation projects and environmental considerations. The integration of advanced materials, precision engineering, and innovative features has resulted in attachments that significantly enhance excavation efficiency across various industries. As we look to the future, we can expect further refinements in clamshell bucket technology, potentially incorporating smart sensors for real-time performance optimization and even more sustainable operational practices. For professionals in construction, mining, and related fields, staying informed about these advancements is crucial for maintaining a competitive edge in an ever-changing industry landscape.
FAQ
1. What are the main advantages of using a clamshell bucket in excavation projects?
Clamshell buckets offer versatility in handling various materials, precision in material placement, and efficiency in deep excavations. They excel in projects requiring vertical digging and are particularly useful in confined spaces.
2. How does the capacity of a clamshell bucket affect its performance?
Bucket capacity directly influences productivity and suitability for different tasks. Larger capacities increase the volume of material moved per cycle, boosting efficiency in high-volume projects. However, they may require larger equipment and have limitations in confined spaces.
3. Can clamshell buckets be used for underwater excavation?
Yes, many clamshell buckets are designed for underwater use, particularly in dredging operations. These specialized buckets often feature sealed hydraulic systems and corrosion-resistant materials to withstand submerged conditions.
4. What maintenance is required for clamshell buckets?
Regular maintenance includes inspecting and lubricating moving parts, checking hydraulic systems for leaks, replacing worn teeth or wear plates, and ensuring proper alignment of jaws. The frequency of maintenance depends on usage intensity and operating conditions.
5. How do environmental factors influence clamshell bucket design?
Environmental considerations have led to designs that minimize material spillage and reduce energy consumption. Some buckets feature enclosed designs to prevent dust emissions, while others are optimized for fuel efficiency in their operation.
Clamshell Bucket Manufacturer
TianNuo Machinery stands at the forefront of clamshell bucket manufacturing in China. With a comprehensive range of excavation solutions, including railway maintenance equipment and excavator accessories, TianNuo has established itself as a leader in the industry. Their buckets are renowned for their durability and efficiency, featuring capacities from 0.4m³ to 8m³ and compatibility with various excavator models. Made from high-strength, wear-resistant steel, these buckets offer extended service life and optimal performance in demanding environments. For inquiries about their excavation equipment, contact us at rich@stnd-machinery.com.
