Common maintenance issues for three-piece boom excavators

Three-piece boom excavators are versatile machines used in various industries, including construction, mining, and demolition. These powerful tools feature a unique articulated design that allows for enhanced reach and flexibility. However, like any heavy machinery, 3 piece boom excavators require regular maintenance to ensure optimal performance and longevity. In this article, we'll explore common maintenance issues and provide practical solutions to keep your excavator in top shape.

Pivot point wear: Prevention tips

One of the most critical aspects of maintaining a three-piece boom excavator is addressing pivot point wear. These crucial connection points bear significant stress during operation, making them susceptible to damage over time. Let's dive into some essential prevention tips to keep your excavator's pivot points in prime condition.

Lubrication techniques for 3-piece boom joints

Proper lubrication is the cornerstone of preventing pivot point wear. Implementing a robust lubrication routine can significantly extend the life of your excavator's joints. Start by identifying all grease points on the boom, including those at the base, stick, and bucket connections. Use a high-quality, heavy-duty grease that can withstand extreme pressures and temperatures.

Apply grease at regular intervals, typically every 8-10 hours of operation or daily, depending on the workload. When lubricating, ensure that fresh grease is visible at all joint surfaces. This practice not only reduces friction but also helps flush out contaminants that can accelerate wear.

Inspecting bushings and pins on excavator arms

Regular inspections of bushings and pins are crucial for early detection of wear issues. Set up a routine inspection schedule, ideally performed weekly or bi-weekly. During these checks, look for signs of excessive movement, unusual noises, or visible damage to the bushings and pins.

Pay close attention to any gaps between the pin and bushing, as this can indicate wear. Use a feeler gauge to measure clearances and compare them to the manufacturer's specifications. If you notice any discrepancies, it's time to consider replacement or repair.

Replacing worn components: When and how

Knowing when and how to replace worn components is essential for maintaining your three-piece boom excavator's performance. As a general rule, replace bushings and pins when clearances exceed the manufacturer's recommendations or when visible damage is present.

When replacing these components, always use OEM or high-quality aftermarket parts that meet or exceed original specifications. Follow the manufacturer's guidelines for proper installation, including torque specifications for bolts and nuts. If you're unsure about the replacement process, consult a professional technician to ensure the job is done correctly.

Hydraulic system care: Best practices

The hydraulic system is the lifeblood of your three-piece boom excavator, powering its movements and providing the necessary force for various tasks. Proper care of this system is essential for maintaining the machine's efficiency and preventing costly breakdowns. Let's explore some best practices for hydraulic system maintenance.

Monitoring hydraulic fluid levels in boom cylinders

Regular monitoring of hydraulic fluid levels is crucial for the smooth operation of your excavator's boom cylinders. Check the fluid levels daily, preferably before starting work. Ensure the machine is on level ground and the boom is in its fully retracted position for accurate readings.

Look for any signs of low fluid levels, which could indicate leaks or internal issues. If you notice a consistent drop in fluid levels, investigate the cause immediately. Keep in mind that different temperatures can affect fluid volume, so consult your operator's manual for the correct checking procedure and fluid specifications.

Preventing contamination in 3-piece boom hydraulics

Contamination is a major enemy of hydraulic systems. Even small particles can cause significant damage to pumps, valves, and cylinders. To prevent contamination, always use clean tools and containers when handling hydraulic fluid. When refilling or topping up, ensure the area around the fill port is clean to prevent debris from entering the system.

Regularly inspect and replace hydraulic filters according to the manufacturer's recommendations. Consider implementing an oil analysis program to monitor fluid condition and catch potential issues early. This proactive approach can save you from costly repairs down the line.

Troubleshooting hydraulic leaks on excavator booms

Hydraulic leaks can significantly impact your excavator's performance and efficiency. Regularly inspect the entire boom assembly for signs of leaks, such as wet spots, drips, or accumulated dirt around fittings and seals. Pay special attention to cylinder seals, hoses, and connection points.

If you detect a leak, identify its source and severity. Minor leaks from fittings may be resolved by tightening connections or replacing seals. For more significant leaks, especially those involving cylinders or hoses, consult a hydraulic specialist. Never ignore a hydraulic leak, as it can lead to system failure and potential safety hazards.

Longevity secrets: Proper maintenance schedule

Implementing a comprehensive maintenance schedule is the key to ensuring the longevity and reliability of your three-piece boom excavator. By following a structured approach to maintenance, you can prevent many common issues and extend the life of your equipment. Let's break down the maintenance tasks into daily, monthly, and annual categories.

Daily checks for three-piece boom excavators

Start each workday with a thorough inspection of your excavator. Begin by checking all fluid levels, including hydraulic oil, engine oil, and coolant. Inspect the boom, stick, and bucket for any signs of damage or excessive wear. Look for loose or missing bolts, and tighten or replace them as needed.

Grease all pivot points and bushings according to the manufacturer's recommendations. Check the tracks or tires for proper tension and any signs of damage. Lastly, test all controls and functions to ensure smooth operation before starting work.

Monthly maintenance tasks for optimal performance

Monthly maintenance goes a bit deeper than daily checks. Start by inspecting and cleaning the air filter system. Check the tension and condition of all belts and hoses, replacing any that show signs of wear or damage. Inspect the undercarriage components, including sprockets, idlers, and rollers, for wear and proper alignment.

Test the battery condition and clean the terminals if necessary. Inspect and clean the radiator and oil cooler fins to ensure proper heat dissipation. Don't forget to check and adjust track tension if needed, as proper tension is crucial for efficient operation and reduced wear.

Annual overhaul: Extending excavator boom lifespan

An annual overhaul is essential for maximizing the lifespan of your three-piece boom excavator. This comprehensive maintenance should ideally be performed by a qualified technician or dealership. During the overhaul, all major systems should be inspected and serviced.

This includes a complete hydraulic system flush and filter replacement, inspection and adjustment of all boom and arm bushings and pins, and a thorough check of the swing bearing and gear. The engine should undergo a detailed inspection, including valve adjustments if necessary. Additionally, this is an excellent time to address any recurring issues or perform upgrades to improve performance and efficiency.

Maintaining a three-piece boom excavator requires dedication and attention to detail. By focusing on pivot point care, hydraulic system maintenance, and adhering to a comprehensive maintenance schedule, you can significantly extend the life of your equipment and minimize downtime. Remember, prevention is always better than cure when it comes to heavy machinery. Regular inspections, timely repairs, and proactive maintenance are your best tools for keeping your excavator in top condition, ensuring productivity and safety on your job sites.

FAQ

①How often should I lubricate the pivot points on my three-piece boom excavator?

Lubricate pivot points every 8-10 hours of operation or daily, depending on workload intensity. Always follow the manufacturer's recommendations for your specific model.

②What are the signs of hydraulic system contamination in a 3 piece boom excavator?

Signs include erratic or slow boom movements, unusual noises from the hydraulic pump, overheating, and visible contaminants in the hydraulic fluid during oil analysis.

③Can I use any type of grease for lubricating excavator joints?

No, it's crucial to use a high-quality, heavy-duty grease specifically designed for construction equipment. Consult your operator's manual for the recommended grease type.

④How do I know when it's time to replace the bushings and pins on my excavator's boom?

Replace bushings and pins when clearances exceed manufacturer specifications, or when you notice visible damage, excessive movement, or unusual noises during operation.

⑤Is it necessary to perform an annual overhaul if my excavator seems to be working fine?

Yes, annual overhauls are crucial for preventive maintenance. They help identify potential issues before they become major problems and ensure optimal performance and longevity of your equipment.

China 3 Piece Boom Excavator Solution

When it comes to innovative solutions for boom, Tiannuo Machinery stands out as a leader in the field. Our expertise extends beyond standard excavator designs, encompassing a wide range of specialized equipment for various industries. From railway maintenance equipment like sleeper changing machines and tamping machines to excavator modifications such as lifting and tilting cabs, we offer comprehensive solutions tailored to your specific needs.

Our engineering arms, including extended arms, three-section arms, and pile driving arms, are designed to enhance your excavator's versatility and reach. We also provide a diverse selection of excavator accessories, from specialized buckets to wood clamps and soil rippers, ensuring you have the right tool for every job. For those in need of engineering vehicle auxiliary equipment, our offerings include loader buckets, extended arms, and anti-skid tracks for various applications.

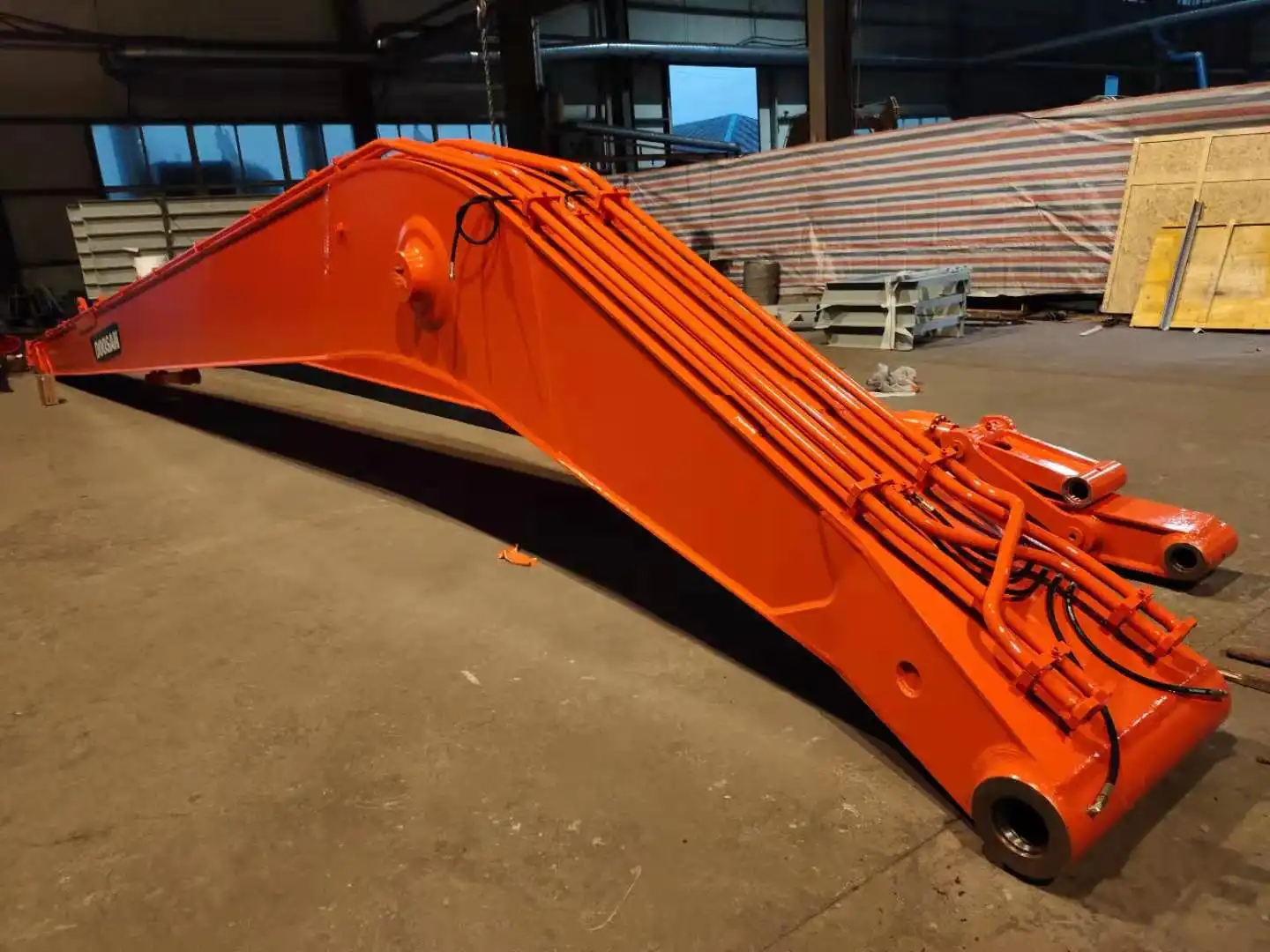

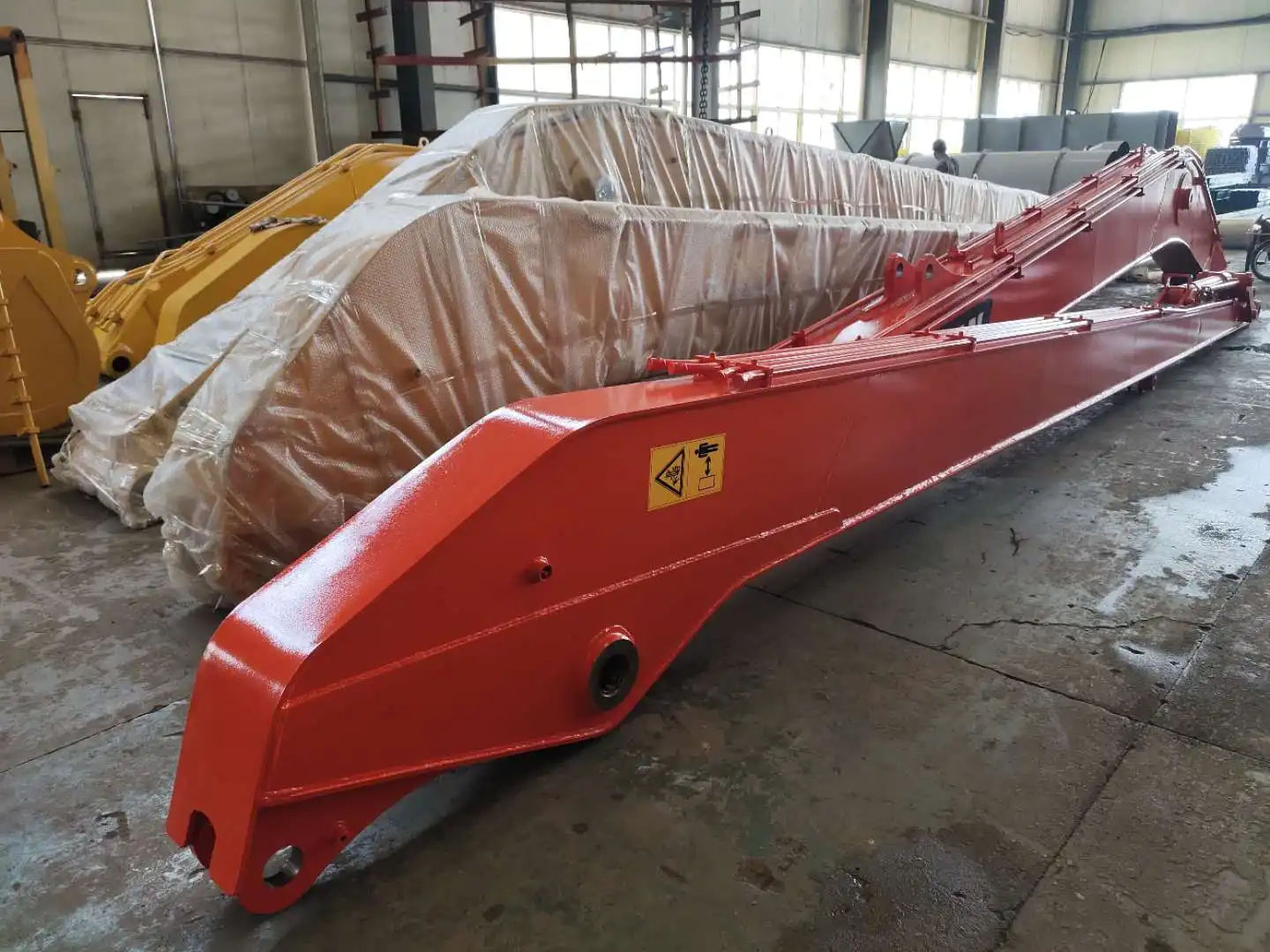

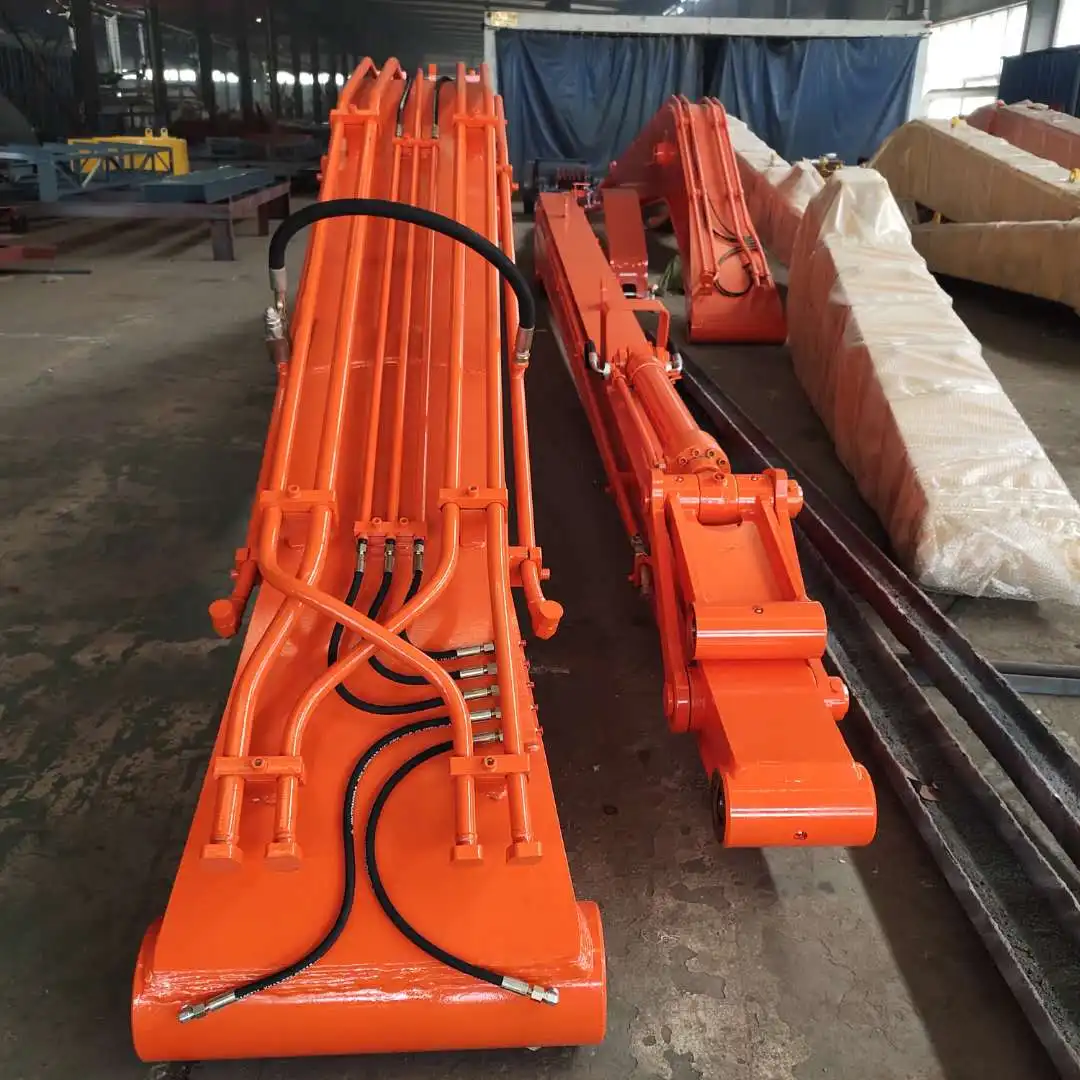

Tiannuo Machinery's 3 piece boom excavators are known for their high reach capability, allowing for demolition of buildings up to 20-30 meters high. Built with high-strength steel plates, our booms offer exceptional durability and resistance to stress and vibration. We prioritize operator safety with stable structures that reduce the risk of overturning during high-reach operations. Our precision-controlled hydraulic systems ensure smooth movements, significantly improving working efficiency.

Flexibility is key in our design philosophy. Our 3-piece boom excavators can be customized for 20-50 ton excavators from various manufacturers, including Hitachi, Caterpillar, Komatsu, Volvo, and Doosan. The modular design of our booms facilitates easy transportation and assembly, making them ideal for projects that require frequent relocation. Moreover, we offer a range of customizable options, including compatibility with multiple attachments such as hydraulic shears, crushers, pulverizers, and grapples.

For more information about our innovative excavator boom solutions and how they can benefit your operations, contact us at raymiao@stnd-machinery.com. Our team of experts is ready to help you find the perfect solution for your excavation and demolition needs.
