Compare railway track sweepers vs ballast cleaners

Railway track sweepers and ballast cleaners play crucial roles in maintaining the safety and efficiency of rail networks. While both machines contribute to track maintenance, they serve distinct purposes and operate differently. Track sweepers focus on removing debris and smaller particles from the track surface, ensuring a clean and safe environment for train operations. On the other hand, ballast cleaners target the deeper layers of track infrastructure, excavating and cleaning the ballast material that supports the rails and ties. This comparison will delve into the specific functions, mechanisms, and operational aspects of these essential railway maintenance equipment, helping industry professionals make informed decisions about their track maintenance strategies.

Purpose

Maintaining Railway Safety and Efficiency

Railway track sweepers and ballast cleaners are indispensable tools in the quest for maintaining optimal railway safety and efficiency. Track sweepers primarily focus on surface-level cleanliness, removing debris, leaves, and small objects that could potentially cause accidents or disrupt train operations. By keeping the tracks clear of these hazards, sweepers significantly reduce the risk of derailments and ensure smoother train movements.

Ballast cleaners, in contrast, tackle a more fundamental aspect of track maintenance. They work to preserve the integrity of the ballast layer, which is crucial for track stability and drainage. Over time, ballast can become contaminated with fine particles, reducing its ability to support the track structure and drain water effectively. Ballast cleaners excavate, screen, and clean this material, restoring its essential properties.

Extending Track Lifespan and Performance

Both types of equipment contribute significantly to extending the lifespan and enhancing the performance of railway tracks. Regular use of track sweepers prevents the accumulation of abrasive materials that can wear down rail surfaces and other track components. This proactive approach to maintenance helps preserve the track's condition, reducing the need for costly repairs or premature replacements.

Ballast cleaners play a vital role in maintaining the track's geometric alignment and load-bearing capacity. By removing fouled ballast and replacing it with clean material, these machines help maintain proper track elevation and prevent settlement issues. This process is crucial for ensuring that tracks can continue to support high-speed operations and heavy loads without compromising safety or ride quality.

Ensuring Proper Drainage and Stability

Proper drainage is a critical factor in railway track performance, and both sweepers and cleaners contribute to this aspect in different ways. Track sweepers help keep drainage channels and track-side ditches clear of debris, allowing water to flow away from the track structure efficiently. This prevents water accumulation that could lead to track instability or accelerated deterioration of track components.

Ballast cleaners have a more profound impact on drainage capabilities. By removing fine particles and contaminants from the ballast, they restore its porosity and permeability. This enhanced drainage capacity is essential for preventing water-related issues such as subgrade softening, frost heave, and ballast degradation. The cleaned and properly graded ballast also provides better stability to the track structure, reducing the risk of track geometry defects and ensuring a smoother, safer ride for trains.

Mechanism

Sweeping vs Excavating: Key Differences

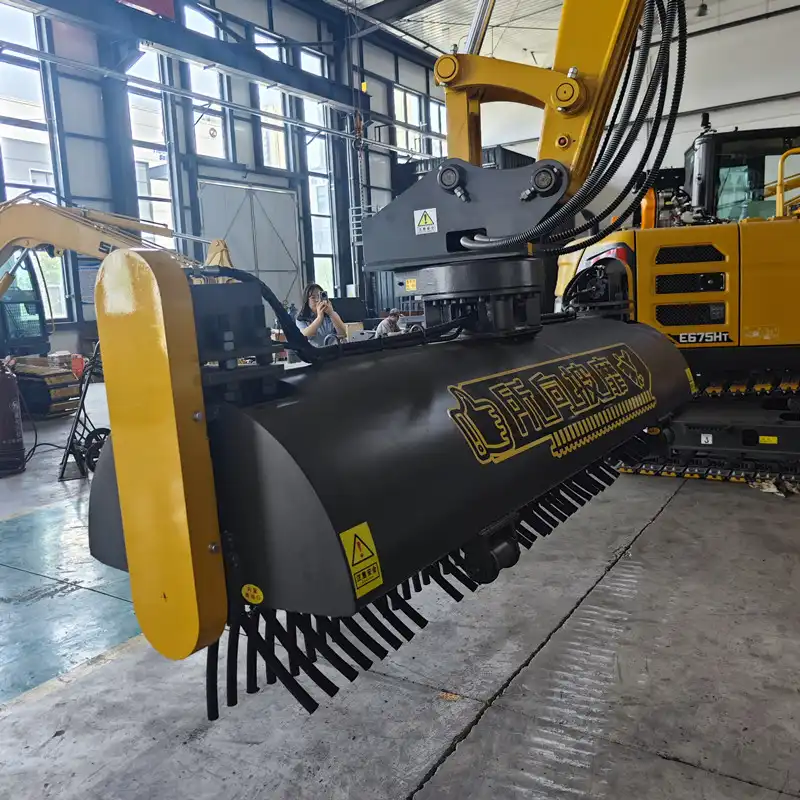

The fundamental difference between railway track sweepers and ballast cleaners lies in their operational mechanisms. Track sweepers employ brushes or air jets to remove surface debris from the rails, ties, and immediate surroundings. These machines typically use rotating brushes made of steel or synthetic materials, designed to effectively sweep away a variety of contaminants without damaging track components. Some advanced sweepers also incorporate vacuum systems to collect and contain the swept material, preventing it from being dispersed into the environment.

Ballast cleaners, on the other hand, utilize a more invasive approach. They excavate the ballast material from beneath and around the tracks using a series of digging chains or excavator buckets. This process allows the machine to access deeper layers of ballast that may have become contaminated over time. The excavated material is then processed through a series of vibrating screens and sorting mechanisms to separate clean ballast from waste materials.

Filtration and Sorting Technologies

While track sweepers generally rely on simple filtration methods to capture debris, ballast cleaners employ sophisticated sorting technologies. Modern ballast cleaning machines use multi-stage screening systems with various mesh sizes to efficiently separate ballast stones from smaller particles and contaminants. Some advanced models incorporate washing systems to further clean the ballast material, ensuring optimal performance when it's returned to the track bed.

Additionally, many ballast cleaners now feature sensor-based sorting technologies that can detect and remove non-ballast materials such as metal objects, wood, and plastics. This level of sorting precision not only improves the quality of the cleaned ballast but also contributes to more sustainable practices by facilitating the recycling of various materials found within the track structure.

Waste Removal and Material Recycling Processes

The waste removal and recycling processes for track sweepers and ballast cleaners differ significantly due to the nature and volume of materials they handle. Track sweepers typically collect smaller amounts of debris, which can often be disposed of more easily. Some advanced sweeper models incorporate on-board storage compartments or conveyors to transfer collected waste to designated disposal areas along the track.

Ballast cleaners, given the larger volumes of material they process, require more complex waste management systems. These machines often work in conjunction with a series of conveyor belts and hopper cars to transport and store both cleaned ballast and waste materials. The waste, which can include fine particles, organic matter, and various contaminants, is usually taken to specialized facilities for further processing or environmentally responsible disposal.

Importantly, both types of equipment are increasingly being designed with recycling capabilities in mind. Many modern ballast cleaners can reclaim a significant portion of the excavated material, reducing the need for new ballast and minimizing waste. Similarly, some advanced track sweepers now incorporate systems to separate recyclable materials from general debris, contributing to more sustainable railway maintenance practices.

Operation

Speed and Efficiency in Track Maintenance

The operational speed and efficiency of railway track sweepers and ballast cleaners vary significantly, reflecting their distinct roles in track maintenance. Track sweepers generally operate at higher speeds, capable of cleaning long stretches of track relatively quickly. This efficiency makes them ideal for routine maintenance and rapid response to localized debris issues. Some high-performance sweepers can maintain speeds of up to 60 km/h while effectively cleaning the track, allowing for minimal disruption to regular train schedules.

Ballast cleaners, due to their more intensive cleaning process, operate at slower speeds. Typical working speeds range from 200 to 600 meters per hour, depending on the depth of excavation and the condition of the ballast. While this may seem slow compared to sweepers, ballast cleaners perform a much more thorough and transformative maintenance process. Their ability to restore the fundamental properties of the track bed often results in longer-lasting improvements to track quality and reduced need for frequent maintenance interventions.

Manpower Requirements and Automation Features

The manpower requirements for operating track sweepers and ballast cleaners have evolved with technological advancements. Modern track sweepers often require minimal crew, sometimes operating with just one or two personnel. Many are equipped with automated features that adjust brush pressure and speed based on track conditions, enhancing efficiency and reducing operator workload.

Ballast cleaners, given their complexity, typically require larger crews. A standard ballast cleaning operation might involve 5-10 skilled personnel, including operators, technicians, and supervisors. However, recent developments in automation have started to reduce these requirements. Advanced ballast cleaners now incorporate sensors and computerized systems that can automatically adjust excavation depth, screening intensity, and material distribution, optimizing the cleaning process while reducing the need for constant manual intervention.

Environmental Impact and Sustainability Considerations

Both track sweepers and ballast cleaners have environmental implications that are increasingly being addressed through innovative design and operational practices. Modern track sweepers often feature dust suppression systems and enclosed debris collection mechanisms to minimize air pollution and prevent the spread of contaminants. Some advanced models are also being equipped with hybrid or fully electric power systems, reducing emissions and noise pollution during operation.

Ballast cleaners, while more resource-intensive in their operation, offer significant environmental benefits through material recycling. By cleaning and reusing existing ballast, these machines reduce the need for new quarried materials, lowering the overall environmental footprint of track maintenance. Additionally, the ability to sort and separate various materials during the cleaning process facilitates better waste management and recycling practices.

Both types of equipment are also being designed with water conservation in mind. Advanced track sweepers may use recirculating water systems for dust control, while some ballast cleaners employ closed-loop water cleaning systems that minimize water consumption and prevent contaminated runoff from entering the surrounding environment.

Railway track sweepers and ballast cleaners are essential components in the comprehensive maintenance strategy of modern railway systems. While track sweepers excel in rapid, surface-level cleaning to ensure day-to-day operational safety, ballast cleaners provide crucial deep cleaning and restoration of the track's foundational elements. The choice between these machines depends on specific maintenance needs, budget considerations, and long-term track performance goals. As railway technology continues to evolve, we can expect further advancements in both types of equipment, leading to more efficient, environmentally friendly, and cost-effective track maintenance solutions.

FAQ

1. How often should railway tracks be swept or cleaned?

The frequency of track sweeping or cleaning depends on various factors such as traffic volume, environmental conditions, and specific railway regulations. Generally, high-traffic areas may require sweeping weekly or even daily, while ballast cleaning is typically performed every 5-15 years, depending on track degradation rates.

2. Can track sweepers remove all types of debris from railway tracks?

While track sweepers are effective at removing most surface debris, they may have limitations with larger objects or deeply embedded materials. They're most effective for leaves, small rocks, and light trash. For heavier debris or materials stuck between rails, manual intervention or specialized equipment may be necessary.

3. How does ballast cleaning improve track drainage?

Ballast cleaning removes fine particles and contaminants that clog the spaces between ballast stones. This restoration of porosity allows water to drain more efficiently through the ballast layer, preventing water accumulation that can lead to track instability and accelerated degradation of track components.

4. Are there any alternatives to traditional ballast cleaning methods?

Yes, alternatives include ballast rejuvenation techniques using high-pressure air to dislodge contaminants, and chemical treatments to stabilize fouled ballast. However, these methods are often complementary to traditional cleaning and may not fully replace the need for comprehensive ballast cleaning in severely fouled sections.

5. How do weather conditions affect the operation of track sweepers and ballast cleaners?

Extreme weather conditions can impact the effectiveness of both types of equipment. Heavy rain or snow can reduce the efficiency of track sweepers and may require multiple passes. For ballast cleaners, very wet conditions can make excavation and screening more challenging. Conversely, extremely dry conditions may necessitate additional dust suppression measures for both types of equipment.
