Efficient Railway Ballast Transport Car for Track Maintenance

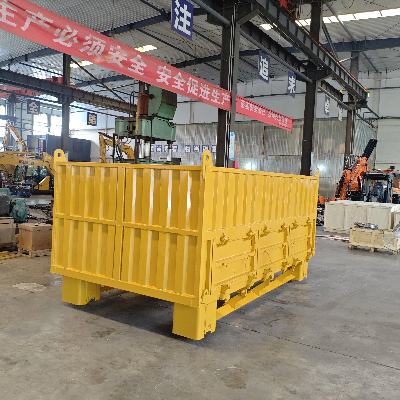

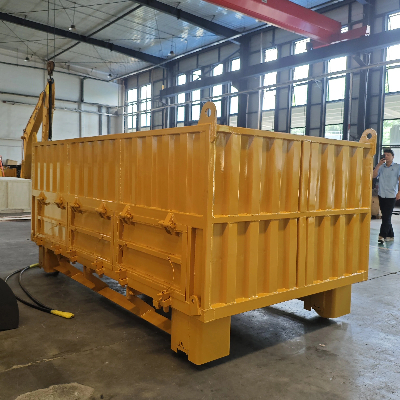

Railway construction and maintenance require specialized equipment for efficient ballast handling. Our Railway Ballast Transport Car is specifically designed for new railway line construction, major renovation projects, and ballast replenishment operations on factory and mine dedicated lines. This attachment works in conjunction with track machines (excavators) to provide a complete ballast solution, ensuring reliable and cost-effective track maintenance.
Versatile Hydraulic Control and Unloading Options

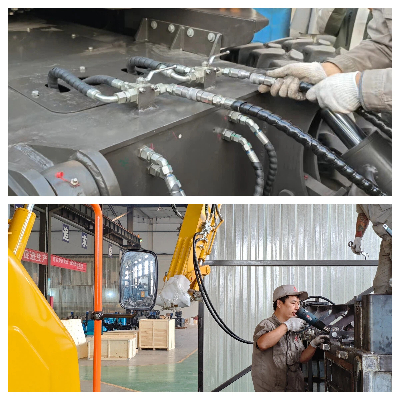

The ballast transport car features an innovative hydraulic system with quick-connect couplings that link directly to the excavator's hydraulic circuit, enabling smooth and responsive ballast door operations . This design eliminates the need for separate power sources and simplifies integration with your existing equipment.
Two control options are available to suit your operational setup:
Direct Excavator Connection: Connect the oil pipes directly to the excavator's hydraulic hammer circuit for straightforward control.
Railway Undercarriage Integration: For operations requiring the excavator to travel on rails, the car can be connected to a modified railway walking drive chassis, with an optional ballast car controller for precise regulation.
The car offers two unloading configurations to meet different job site requirements:
Hydraulic Bottom Unloading: Efficiently discharges ballast directly beneath the car for rapid distribution.
Side Manual Unloading: Provides flexibility for targeted ballast placement in specific areas.
Technical Specifications – TNXZC75 Series
Below are the detailed specifications of our ballast transport car. The TNXZC75 model is engineered for reliable performance in demanding railway environments.
| Item / Model | Unit | TNXZC75 |
|---|---|---|
| (Length) | mm | 3300 |
| (Width) | mm | 1850 |
| (Height) | mm | 1550 |
| (Weight) | kg | 1580 |
| (Capacity) | m³ | 5.5 |
| (Applicable Track Gauge) | mm | 1435 |
| (Applicable Machine) | - | Excavator |
| (Unloading Ballast Type) | - | Bottom Hydraulic / Side Manual |
| (Hydraulic Power Origin) | - | From Excavator |
| (Packing Size) | mm | 3440 * 1950 * 1680 |
Key Advantages for Railway Operations
High Efficiency: The 5.5m³ capacity allows for substantial ballast transport per trip, reducing the frequency of reloading cycles.
Durable Construction: Built with robust materials to withstand the rigors of railway maintenance work, ensuring long-term reliability.
Easy Integration: The quick-connect hydraulic system simplifies attachment and detachment, minimizing downtime between tasks.
Adaptable Unloading: The combination of bottom hydraulic and side manual unloading options provides flexibility for various ballast distribution scenarios.
