Excavator Arm VS Boom
When it comes to excavators, the arm and boom are two crucial components that work in tandem to perform various tasks. The excavator arm, also known as the dipper or stick, is the part that connects the bucket to the boom. It plays a vital role in determining the machine's reach and digging capability. On the other hand, the boom is the long, angled arm that extends from the excavator's main body. Together, these two elements form the heart of an excavator's functionality, each serving distinct purposes in construction, mining, and demolition operations.
Boom: Vertical Lift, Arm: Horizontal Reach
Excavator boom and arm functions
To fully grasp the differences between an excavator's arm and boom, it's essential to understand their unique functions. The boom, being the primary lifting mechanism, is responsible for providing vertical movement and power. It allows the excavator to lift heavy loads and reach considerable heights. This vertical capability is crucial in various applications, such as loading trucks, stacking materials, or demolishing tall structures.
In contrast, the excavator arm focuses on horizontal reach and maneuverability. It extends and retracts, allowing the operator to adjust the bucket's position precisely. This horizontal movement is invaluable for digging trenches, creating slopes, or reaching into tight spaces. The arm's design also influences the machine's digging depth, making it a critical factor in excavation projects.
Comparing the vertical lift capacity of booms vs arms
When it comes to vertical lift capacity, the boom takes center stage. Its robust construction and powerful hydraulic cylinders enable it to handle substantial loads. The boom's length and angle directly affect the excavator's maximum lift height and capacity. Longer booms can reach greater heights but may sacrifice some stability and lifting power.
While the arm contributes to the overall lifting process, its primary role is not vertical lift. Instead, it complements the boom's lifting action by providing fine control and positioning. The arm's strength comes into play when pulling material towards the machine or when additional force is needed during digging operations.
Maximizing reach with strategic arm positioning

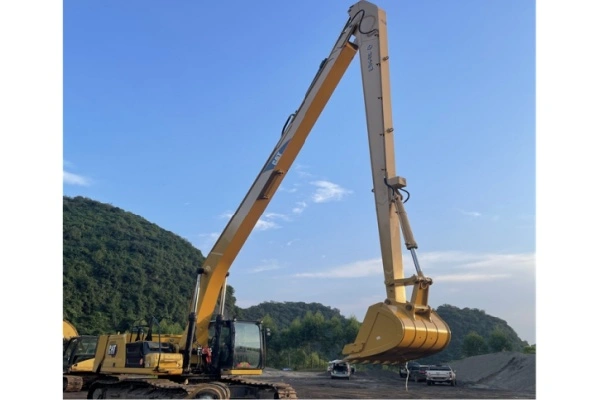

The true power of an excavator lies in the synergy between its boom and arm. By strategically positioning the arm, operators can maximize the machine's reach and efficiency. For instance, extending the arm while keeping the boom relatively stationary allows for long, shallow digging, perfect for creating drainage ditches or laying pipelines.
Conversely, retracting the arm while raising the boom enables the excavator to reach higher points or dump material into tall trucks. This versatility in positioning makes excavators indispensable in various construction and earthmoving projects, allowing operators to adapt to different terrain and job requirements with ease.
Boom: Attached To The Upper Body, Arm: Secondary Extension
Boom design: Foundation of excavator's lifting power
The boom's design is fundamental to an excavator's overall performance and capabilities. As the primary structure attached to the upper body, it bears the brunt of the machine's lifting and swinging forces. Boom designs vary depending on the excavator's size and intended use, but they all share the common goal of providing a stable foundation for the arm and bucket.

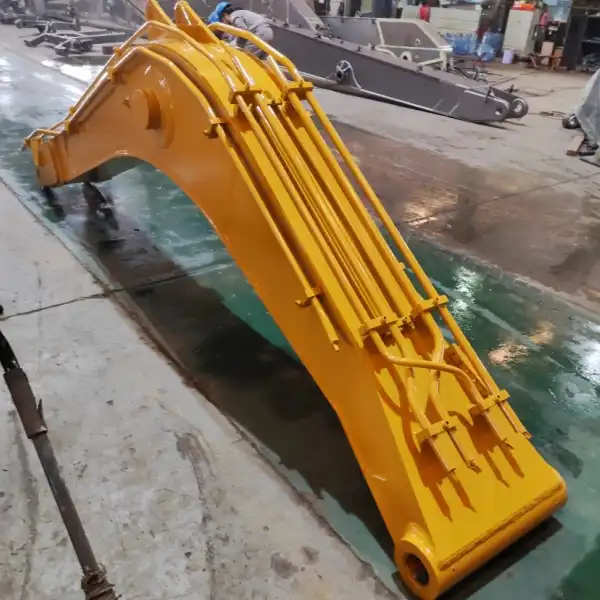

Manufacturers often use high-strength steel in excavator boom construction to ensure durability and longevity. The boom's shape, typically a box-section design, offers optimal strength-to-weight ratio, allowing for maximum lifting capacity without excessive machine weight. Some booms feature reinforced pivot points and wear-resistant bushings to withstand the constant stress of daily operations.
Arm versatility: Adapting to various excavation tasks
While the boom provides the primary structure, the excavator arm offers versatility and adaptability to various excavation tasks. As a secondary extension, the arm can be easily changed or modified to suit specific job requirements. This flexibility allows excavator operators to tackle a wide range of projects without the need for multiple specialized machines.

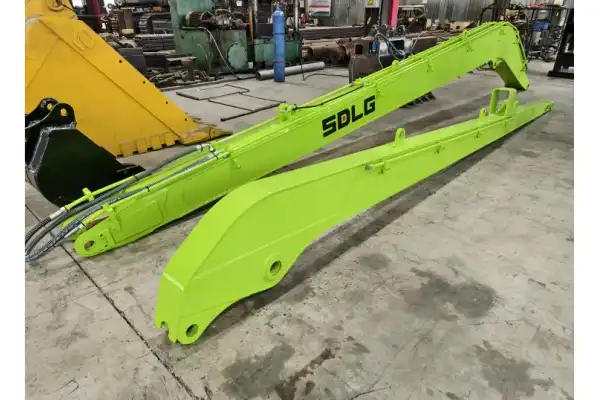

Excavator arm designs come in various lengths and configurations. Short arms provide greater digging force and are ideal for heavy-duty excavation in hard soil or rock. Long arms, on the other hand, offer extended reach, making them perfect for deep trenching or working in areas with limited access. Some specialized arms even feature additional joints or extensions for enhanced maneuverability in complex environments.
Synergy between boom and arm for optimal performance
The true power of an excavator lies in the harmonious interaction between its boom and arm. When working in tandem, these components create a system capable of precise movements and impressive lifting capacities. The boom provides the necessary height and stability, while the arm offers the reach and flexibility needed for intricate operations.
This synergy is particularly evident in tasks that require both power and precision, such as placing large pipes in a trench or carefully demolishing structures near sensitive areas. By coordinating the movements of the boom and arm, skilled operators can achieve a level of control and efficiency that would be impossible with either component alone.
Boom: Height And Lifting Power, Arm: Depth And Reach
Boom height advantages in construction and demolition
In construction and demolition projects, the excavator boom's height capabilities play a crucial role. Tall booms allow excavators to reach upper floors of buildings for selective demolition or to lift materials to elevated work areas. This vertical reach is invaluable when working on multi-story structures or in situations where overhead obstacles limit the use of cranes.
The boom's lifting power also comes into play when handling heavy construction materials or debris. Whether it's placing precast concrete elements or removing large sections of demolished buildings, a robust boom ensures that the excavator can handle substantial loads safely and efficiently. This combination of height and power makes boom-equipped excavators indispensable in modern construction and demolition operations.
Arm reach benefits for precise digging and trenching
While the boom excels in vertical operations, the arm shines in horizontal tasks, particularly in digging and trenching. The arm's ability to extend and retract with precision allows operators to create accurate slopes, trenches, and foundations. This level of control is essential in projects that require specific depths or contours, such as road construction or utility installation.
The excavator arm's reach also proves beneficial when working in confined spaces or areas with limited access. By extending the arm while keeping the excavator's body stationary, operators can perform tasks in tight quarters or reach across obstacles with ease. This flexibility reduces the need for frequent repositioning of the machine, ultimately improving efficiency and reducing site disturbance.
Balancing boom and arm specs for project efficiency
Achieving optimal excavator performance requires careful consideration of both the excavator boom and arm specifications. The ideal balance depends on the nature of the project and the specific tasks at hand. For general construction work, a standard boom and arm configuration often suffices. However, specialized projects may benefit from custom setups.
For instance, in deep excavation projects, a longer boom paired with a shorter arm might be preferred to maintain stability while reaching greater depths. Conversely, in projects requiring extensive reach, such as riverbank restoration or slope stabilization, a shorter boom with an extended arm could be more suitable. By carefully selecting the right combination of boom and arm lengths, project managers can significantly enhance efficiency and productivity on the job site.
Understanding the distinct roles and capabilities of excavator arms and booms is crucial for maximizing efficiency in construction, mining, and demolition projects. While the boom provides the necessary height and lifting power, the arm offers the precision and reach required for intricate tasks. By carefully considering the specific needs of each project and selecting the appropriate boom and arm configuration, operators and project managers can significantly enhance their excavator's performance and versatility. As technology continues to advance, we can expect even more innovative designs that further improve the synergy between these essential components, ultimately leading to more productive and cost-effective operations in the construction industry.
FAQ
①How does bucket capacity affect the choice between boom and arm configurations?
Bucket capacity influences the overall weight and balance of the excavator. Larger buckets may require shorter arms and more robust booms to maintain stability and lifting power.
②Can the boom and arm be customized for specific construction site efficiency?
Yes, many manufacturers offer customizable boom and arm configurations to meet specific project requirements, enhancing on-site efficiency.
③How do hydraulic cylinders impact the performance of excavator booms and arms?
Hydraulic cylinders are crucial for the movement and power of both booms and arms. Their size and placement significantly affect lifting capacity and precision.
④What role does operator ergonomics play in boom and arm design?
Ergonomic designs in boom and arm controls improve operator comfort and precision, leading to increased productivity and reduced fatigue during long work hours.
⑤How do harsh conditions affect the durability of excavator booms and arms?
Booms and arms are engineered to withstand harsh conditions, but extreme environments may require special materials or protective coatings to ensure longevity and performance.
China Excavator Arm Manufacturers
TianNuo Machinery stands out as a leading excavator arm manufacturer in China, specializing in a wide range of excavator components and modifications. Their product line includes various types of arms for excavators, such as extended arms, three-section arms, pile driving arms, and tunnel arms. These arms are designed to enhance the versatility and efficiency of excavators in different applications, from railway maintenance to mining and demolition.
In addition to arms, TianNuo Machinery offers a comprehensive range of excavator accessories and modifications. These include specialized buckets, rotating scrapers, and various attachments designed for specific tasks in construction, forestry, and waste management. Their expertise extends to engineering vehicle auxiliary equipment, ensuring that customers can find solutions for a wide array of heavy machinery needs.
For those interested in customized arms or other specialized equipment, TianNuo Machinery provides competitive pricing and professional consultation. To learn more about their products or to request a quote, you can contact us at raymiao@stnd-machinery.com. With their commitment to quality and innovation, TianNuo Machinery continues to be a trusted partner for businesses in the construction and earthmoving industries.
