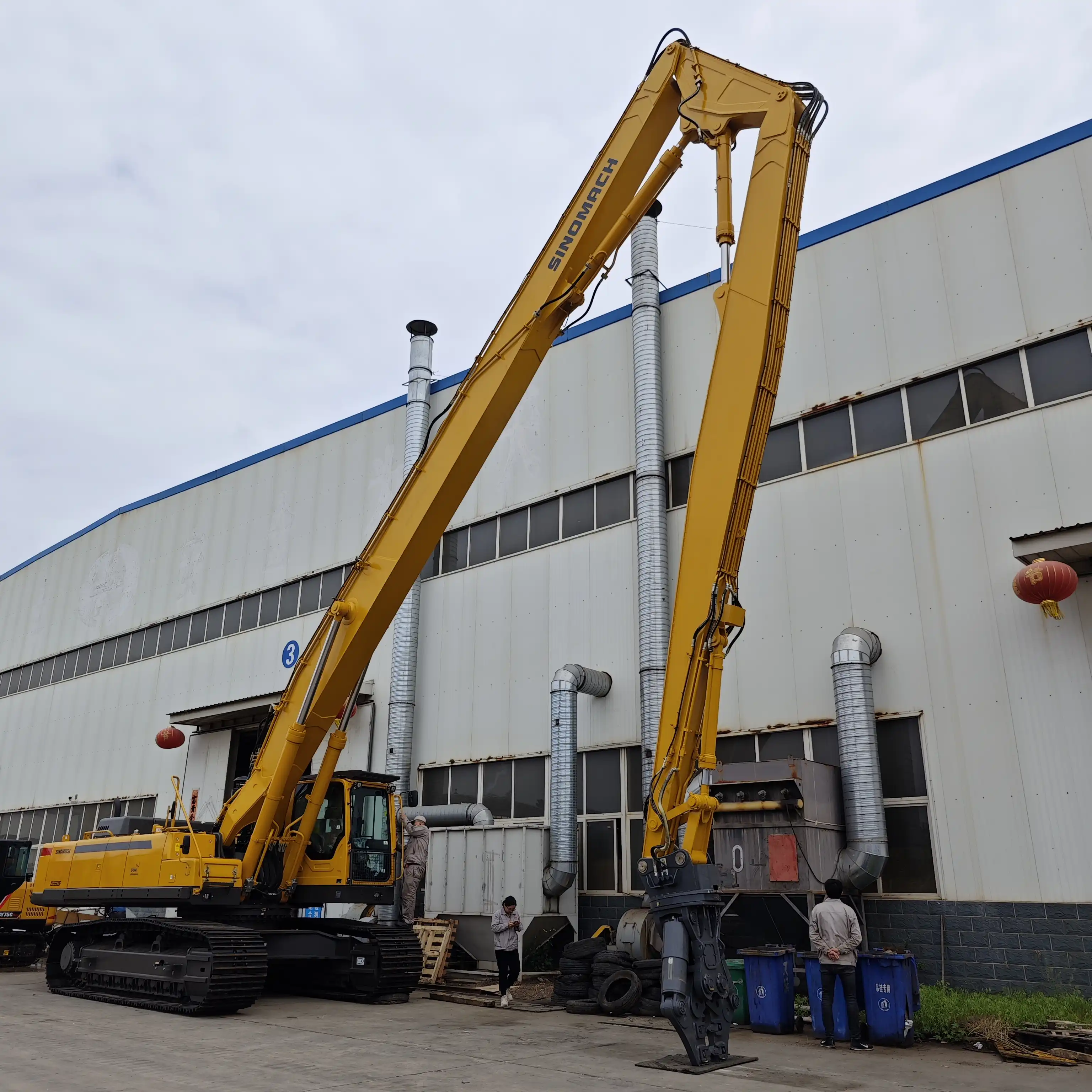

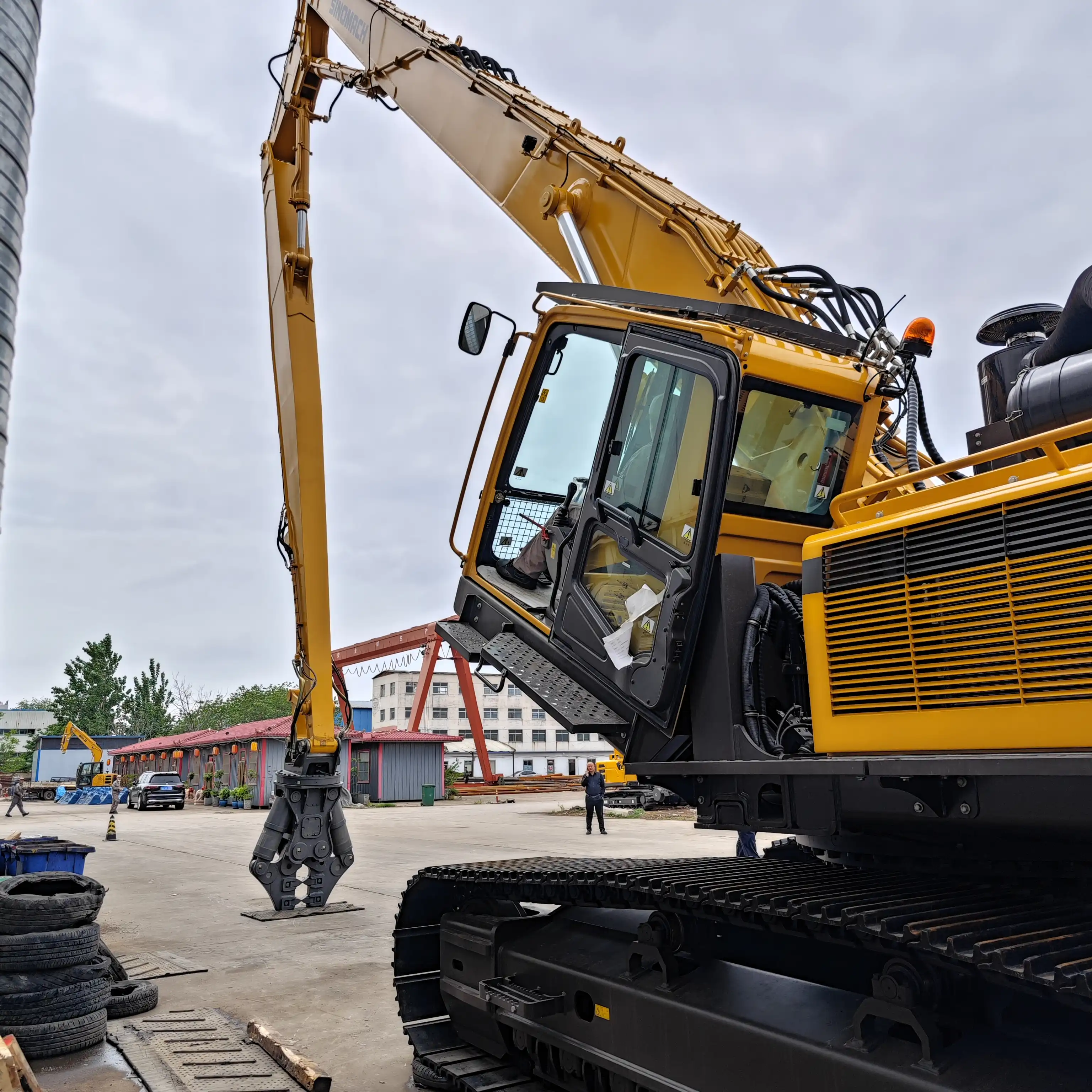

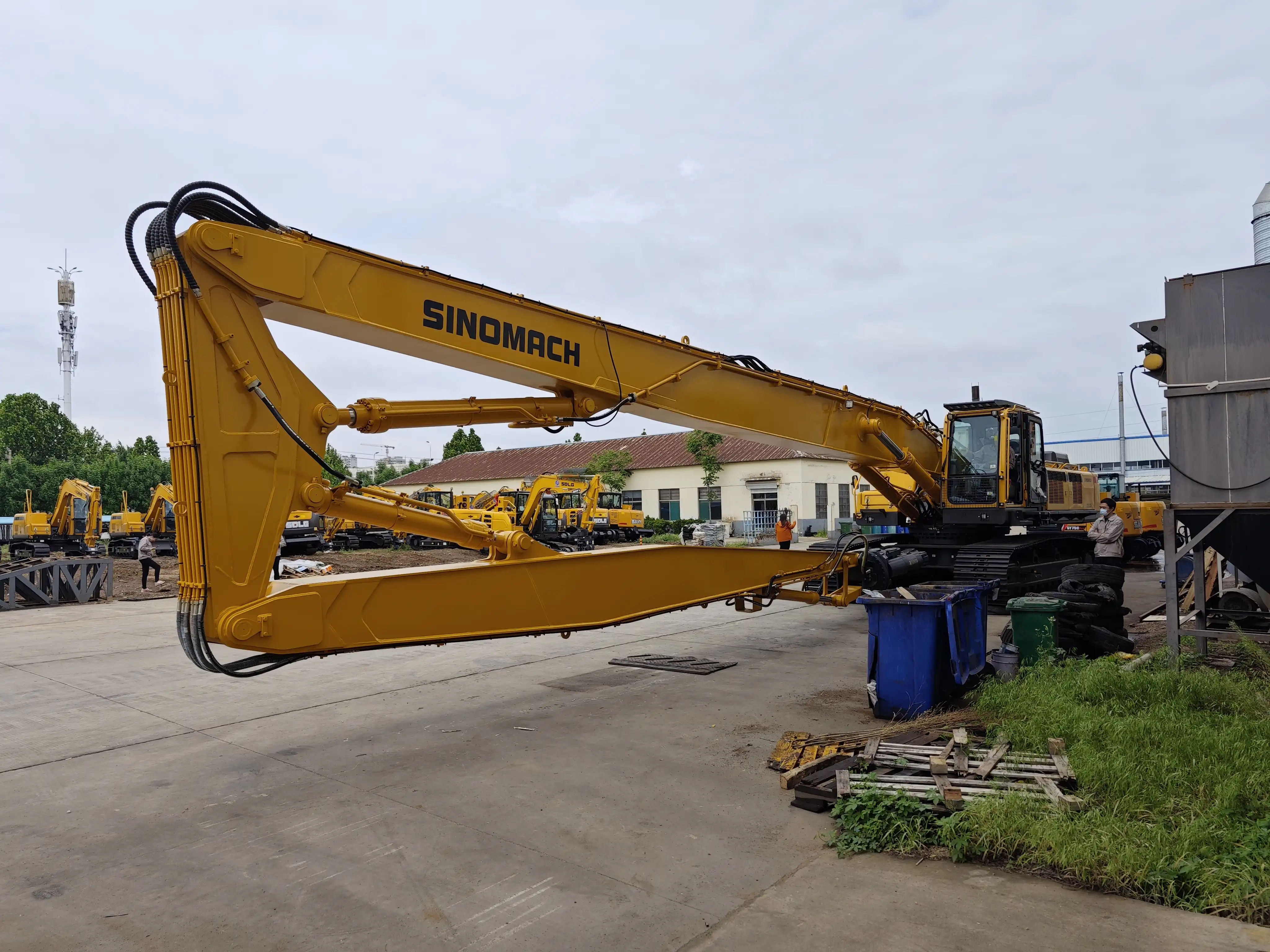

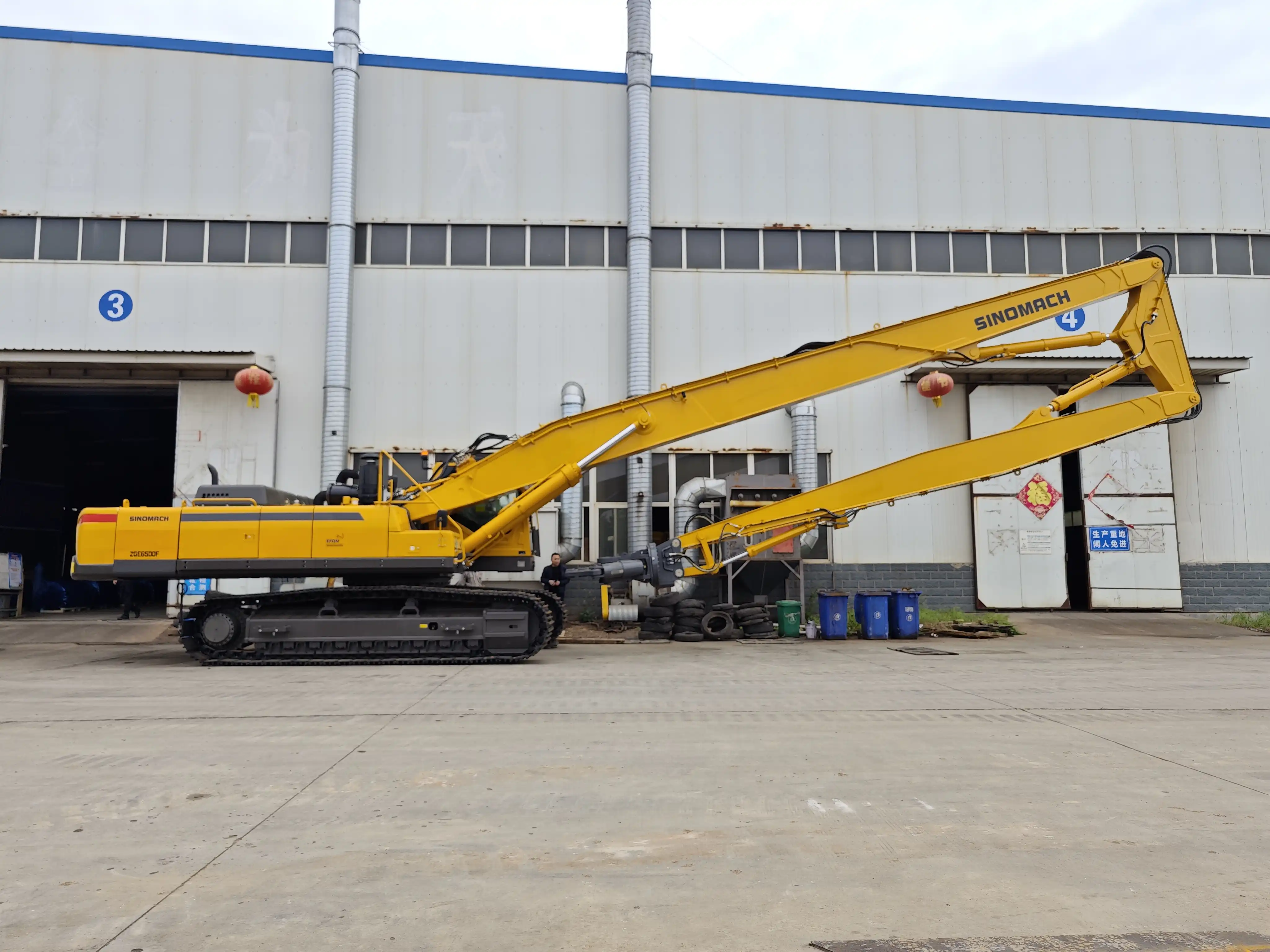

Excavator High Reach Demolition Long Boom And Arm Configuration
The excavator high reach demolition long boom and arm configuration represents a specialized engineering marvel designed specifically for high-altitude demolition projects. When configured properly, these specialized attachments can transform standard excavators into powerful demolition machines capable of reaching heights up to 15 meters while maintaining impressive stability and control. The configuration typically consists of several crucial components, including reinforced boom cylinders, specialized arm cylinders, high-pressure hydraulic hoses, counterweights, and advanced safety systems. These components work in harmony to extend the excavator's reach while providing the necessary strength and precision for controlled demolition operations. Unlike standard excavator attachments, the high reach demolition configuration requires precise engineering calculations to balance the extended reach with safe lifting capacity, typically supporting up to 30 tons, depending on the base machine specifications and the specific application requirements.
Boom Cylinders
The boom cylinders form the foundational component of any excavator high reach demolition long boom and arm setup, serving as the primary hydraulic muscle that enables the heavy lifting capabilities essential for demolition work. Unlike standard excavator configurations, demolition boom cylinders must be engineered with significantly greater pressure tolerances and reinforced seals to handle the unique stress patterns of extended reach operations.
Reinforced Cylinder Design
Demolition-grade boom cylinders feature specialized chrome-plated rods with increased diameter specifications compared to standard models. This reinforcement isn't merely for show; the increased surface area distributes hydraulic pressure more evenly, reducing wear patterns even during sustained operation. The cylinder barrels themselves typically incorporate thicker walls manufactured from high-molybdenum steel alloys, providing superior resistance to the torsional forces generated during demolition work.
Most premium demolition boom cylinders now incorporate advanced cushioning systems at both extension and retraction endpoints. These hydraulic dampeners prevent the jarring impact that would otherwise accelerate component fatigue and potentially damage sensitive hydraulic seals. The cushioning effect becomes particularly valuable when operators are working with precision to selectively demolish specific building elements while preserving others.
Pressure Capacity Specifications
The hydraulic pressure requirements for demolition boom cylinders significantly exceed those of standard excavation operations. While conventional excavator systems typically operate at pressure ranges between 4,500-5,000 psi, high-reach demolition configurations often push these limits to 6,000-7,000 psi during peak operation. This increased pressure capacity enables the boom to maintain stability even when fully extended with excavator attachments engaged.
Modern demolition boom cylinders integrate pressure-monitoring systems that continuously sample hydraulic pressure across multiple points throughout the cylinder body. These sensors relay real-time data to the machine's central control system, allowing for automatic pressure adjustments that optimize performance while preventing catastrophic system failures that could occur from undetected pressure spikes.
Maintenance Considerations
Maintaining boom cylinders on high-reach demolition equipment requires specialized attention beyond standard excavator service protocols. The increased operational stresses demand more frequent inspection intervals, typically every 200-250 operational hours, rather than the 400-500 hours common for standard excavation equipment.
Seal integrity becomes particularly crucial in demolition environments where airborne concrete dust and debris can infiltrate even minor breaches in cylinder integrity. Advanced wiper seals with multi-stage dust exclusion properties have become the industry standard, often incorporating specialized silicone compounds that maintain flexibility even in extreme temperature conditions. Progressive maintenance teams now employ ultrasonic testing to detect microscopic cylinder wall thinning before visible wear patterns emerge.
Arm Cylinders
The arm cylinders in an excavator high reach demolition long boom and arm configuration serve as the secondary hydraulic system responsible for precise articulation and positioning during demolition operations. These cylinders face unique challenges due to their extended leverage position and must compensate for the increased moment forces generated during operation.
Specialized Seal Technology
Demolition arm cylinders employ advanced multi-lip seal designs that significantly outperform conventional excavator specifications. These seals typically incorporate PTFE (polytetrafluoroethylene) bearing rings combined with specialized polyurethane compounds that maintain integrity even under extreme pressure fluctuations. The latest generation of demolition-grade arm cylinders features self-adjusting seal systems that automatically compensate for normal wear, extending service intervals while maintaining optimal performance.
Beyond the seals themselves, the cylinder rod surface finish receives special attention during manufacturing. High-precision chrome plating with surface roughness measurements below 0.2 Ra provides an exceptionally smooth contact surface for seals, dramatically reducing friction and heat generation during operation. This refined surface finish directly contributes to extended component lifespan, with premium demolition arm cylinders often achieving 5,000+ operational hours before requiring major overhaul.
Stroke Length Optimization
The arm cylinder stroke length represents a critical engineering consideration in high-reach demolition applications. Unlike standard excavator configurations where cylinders operate within relatively consistent ranges, demolition arm cylinders must function efficiently across their entire extension range. The engineering challenge lies in balancing the hydraulic fluid volume required for rapid extension with the pressure retention necessary for precise control.
Modern demolition arm cylinders incorporate variable-displacement technologies that adjust the effective cylinder volume based on operational demands. During initial positioning movements, the system allows for increased fluid flow rates to achieve rapid extension. As the cylinder approaches its target position, the system automatically transitions to a high-pressure, low-volume configuration that prioritizes stability and control over speed. This adaptive capability proves invaluable during precise demolition tasks where controlled movement prevents dangerous structural collapses.
Load-Holding Capabilities
Perhaps the most demanding aspect of demolition arm cylinder design involves their load-holding capabilities during extended reach operations. The counterforce generated by demolition attachments creates sustained pressure that would quickly overwhelm standard cylinder designs. Demolition-grade arm cylinders incorporate specialized pilot-operated check valves directly integrated into the cylinder heads rather than in separate hydraulic blocks.
This integrated design eliminates potential failure points in hydraulic lines while providing instantaneous pressure regulation. The check valves engage automatically when hydraulic pressure drops below predetermined thresholds, effectively locking the cylinder position regardless of external forces. This safety feature prevents uncontrolled arm movement even in the event of catastrophic hydraulic line failure, providing critical protection for both equipment and operators.
High-Pressure Hoses
The high-pressure hose system forms the circulatory network of any excavator high reach demolition long boom and arm configuration, delivering hydraulic power from the main pump system to the remotely positioned cylinders and actuators. Unlike standard excavator applications, demolition configurations demand specialized hose assemblies capable of withstanding extreme pressure cycles, abrasion, and flexing.
Reinforced Construction Materials
Premium demolition-grade hydraulic hoses feature multi-layer construction that significantly exceeds standard industry specifications. The innermost tube typically utilizes synthetic rubber compounds reinforced with specialized elastomers that resist hydraulic fluid degradation even at elevated temperatures. This inner core receives reinforcement from multiple layers of high-tensile steel or aramid fiber braiding that provides burst resistance while maintaining flexibility.
The outer cover deserves particular attention in demolition applications, as it represents the primary defense against external damage. Modern high-reach demolition setups employ abrasion-resistant polyurethane covers that provide up to 300% greater abrasion resistance compared to standard hydraulic hoses. This enhanced protection becomes particularly valuable when hoses must route through areas exposed to falling debris or contact with abrasive surfaces during operation.
Pressure Rating Requirements
Hydraulic hoses for demolition applications must meet exceptional pressure ratings that account for both sustained operational pressures and momentary pressure spikes. While standard excavator applications typically utilize hoses rated for 5,000-6,000 psi working pressure, high-reach demolition configurations demand hoses rated for 8,000-10,000 psi working pressure with burst ratings exceeding 30,000 psi.
This substantial safety margin addresses the unique pressure characteristics of demolition operations, where sudden resistance changes can generate momentary pressure spikes that would rupture lesser hoses. The specialized hose construction incorporates reinforced crimp fittings designed specifically for high-impulse applications, often utilizing interlocking serration patterns that distribute clamping force more evenly across the hose end.
Routing and Protection Systems
Proper hose routing represents a critical design element in high-reach demolition configurations. The extended boom structure creates significantly longer hydraulic circuits compared to standard excavators, introducing challenges related to pressure drop, fluid heating, and mechanical strain on hose assemblies.
Advanced demolition boom designs incorporate dedicated hose channels that protect lines from external damage while providing sufficient space for natural hose flexing during operation. These channels typically feature rounded edges and wear-resistant liners that prevent abrasion damage at contact points. Strategic placement of hydraulic accumulators throughout the system helps dampen pressure spikes while reducing overall strain on hose assemblies.
Specialized abrasion sleeves provide additional protection at critical wear points, particularly where hoses must transition between fixed and moving components. These sleeves incorporate spiral-wound construction that permits flexibility while maintaining protective coverage regardless of boom position. The latest designs utilize high-visibility materials that simplify visual inspection while providing early indication of developing wear patterns before catastrophic failure occurs.
FAQ
①What is the maximum reach height for high-reach demolition excavator configurations?
Most commercial excavator high reach demolition long boom and arm configurations provide effective working heights between 12-15 meters, though specialized ultra-high reach models can achieve heights up to 30 meters with appropriate counterweight systems and stabilizing outriggers.
②How does the lifting capacity compare to standard excavator configurations?
High-reach demolition configurations typically offer reduced lifting capacity compared to standard excavators of equivalent size, usually 30-40% less due to the extended leverage forces. A 30-ton excavator with high-reach configuration might provide effective lifting capacity around 18-20 tons at maximum extension.
③What special maintenance is required for high-reach demolition equipment?
These specialized attachments require more frequent inspection of hydraulic components, particularly focusing on cylinder seals, hose integrity, and mounting pin wear. Most manufacturers recommend comprehensive inspections every 100-150 operational hours, with particular attention to boom pivot points that experience maximum stress during demolition operations.
Contact TianNuo
The excavator high reach demolition long boom and arm configuration represents a specialized adaptation of conventional excavator technology designed to meet the unique challenges of high-altitude demolition work. Through careful engineering of boom cylinders, arm cylinders, and high-pressure hydraulic systems, these attachments extend both the reach and capabilities of standard excavator platforms. The specialized components work in concert to provide controlled demolition capabilities at heights previously requiring dedicated equipment or manual labor.
As demolition requirements continue to evolve, particularly in congested urban environments where controlled disassembly replaces explosive demolition, the demand for high-reach configurations continues to grow. Modern designs balance extended reach with operational stability, providing contractors with versatile equipment capable of precision work at elevation. For those interested in exploring high-reach demolition equipment options for specific project requirements, TianNuo's engineering team can provide detailed consultation on appropriate configurations. Contact us at rich@stnd-machinery.com for personalized equipment specifications tailored to your operational requirements.
