Excavator Lift Cab Modification: A Clearer View of High-Level Work

September 30, 2026

When a truck body, scrap pile, rail wagon or processing line blocks the operator’s view, attachment control becomes more difficult. The problem is not always the excavator’s reach—it is the operator’s viewing position. An Excavator Lift Cab Modification raises the cab when a higher sight line is needed and lowers it when the elevated position is no longer required.

STND Machinery develops project-matched cab-lifting systems for excavators, integrating the hydraulic lifting structure with the carrier, required observation height and operating environment.

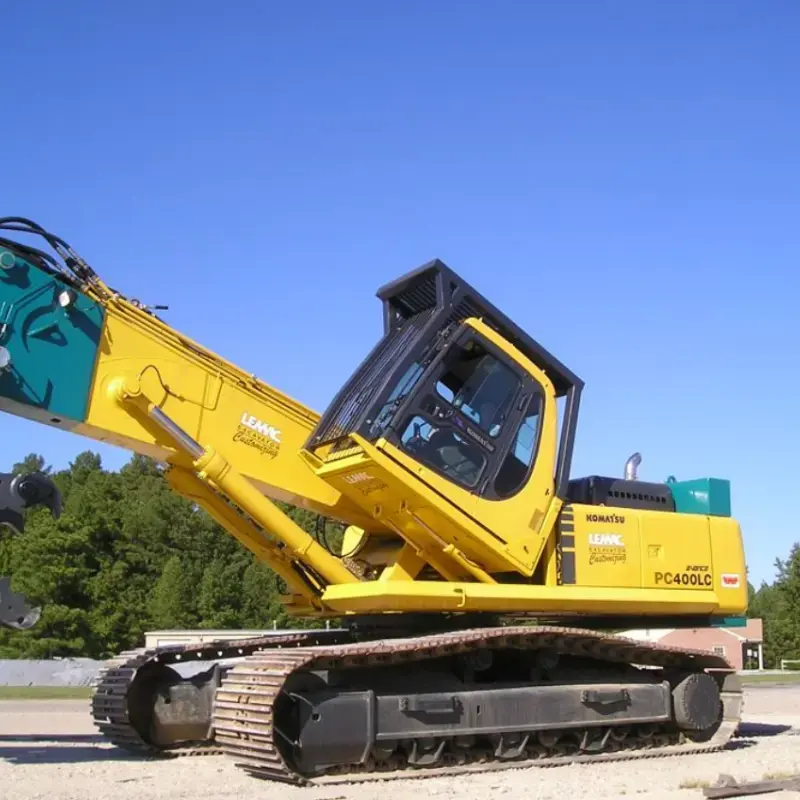

Elevating cab

What Is an Excavator Lift Cab Modification?

An Excavator Lift Cab Modification is a hydraulic retrofit that changes the operator’s viewing height. The published STND design connects the cab to an auxiliary frame through a hydraulic cylinder, while the auxiliary frame interfaces with the excavator upper structure through a rotating connection mechanism.

During work, the hydraulic cylinder extends to raise the cab and improve the operator’s line of sight over nearby obstacles. When elevated observation is not required, the cylinder retracts and lowers the cab, helping return the machine to a lower center-of-gravity configuration. Operating procedures, permissible travel position and site restrictions must be defined for the completed machine.

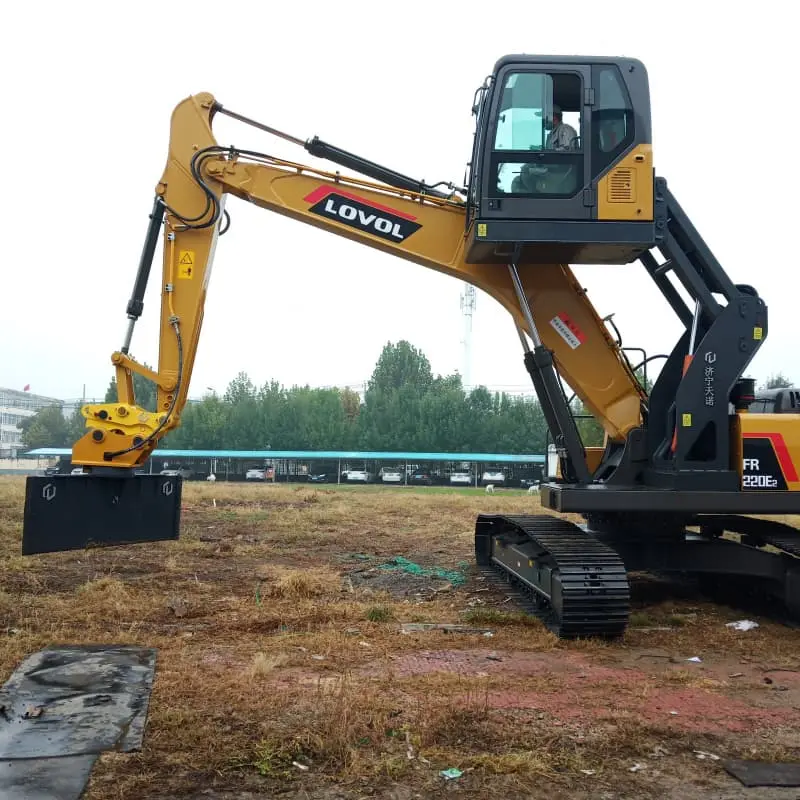

Elevating cab

Key Advantages of the STND Excavator Lift Cab Modification

1. Higher Observation Position When the Job Requires It

The published system provides 2500 mm of cab lift and an operator sight-line height of 5000–5300 mm. This can give the operator a clearer view into elevated containers, wagons, material piles and loading zones, subject to the geometry of the actual jobsite.

2. Hydraulic Height Adjustment

Hydraulic operation allows the cab position to be adjusted from the machine’s control system. The lifting speed is adjustable and should be set during hydraulic matching and commissioning for the specific carrier.

3. Lowered Position for Center-of-Gravity Management

The cab can be lowered after the high viewing position is no longer needed. This design principle is important because an elevated cab changes the machine’s center of gravity, clearance envelope and operating boundary. The approved work and travel procedures must reflect those changes.

4. Project-Based Structural Integration

A lift-cab conversion is not a universal bolt-on accessory. The auxiliary frame, hydraulic circuit, rotating interface, cab base and upper-structure connection must be designed around the exact excavator and the required working height.

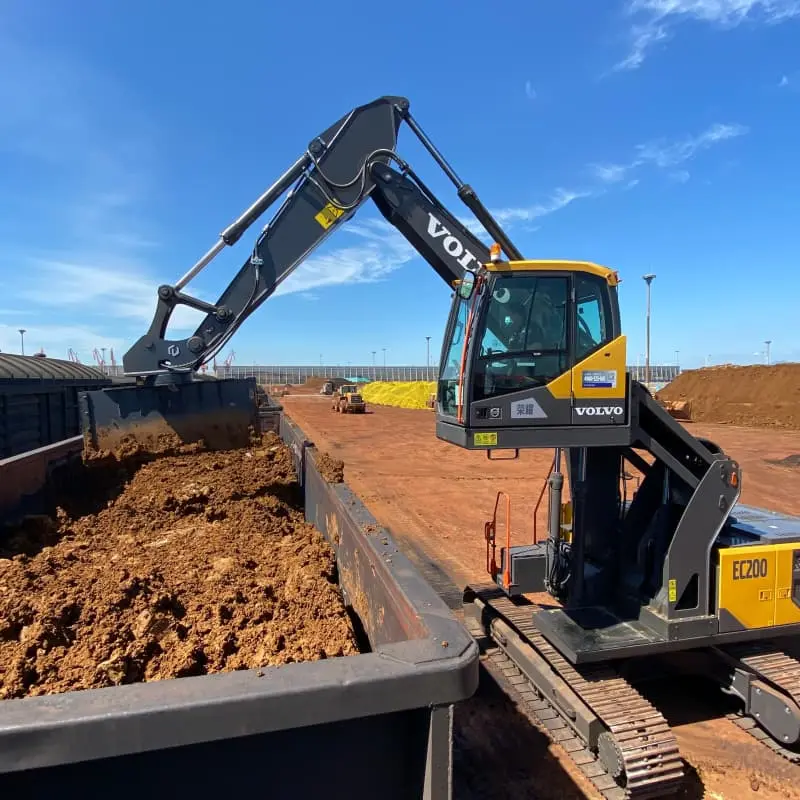

Elevating cab

Published Technical Reference

Specification

Published Value

Project Note

Applicable Excavator Class

13–50 tons

Confirm exact carrier model and structure

Cab Lifting Height

2500 mm

Final integration depends on carrier layout

Cab Ground Clearance

3800 mm

Verify transport and jobsite restrictions

Forward Offset

800 mm

Check working envelope and counterbalance

Operator Sight-Line Height

5000–5300 mm

Actual visibility depends on site geometry

Lifting Speed

Adjustable

Set during hydraulic matching and commissioning

These values are the published product references. Final dimensions, structural design, hydraulic configuration, stability limits and operating procedures must be confirmed for the exact carrier and application before production.

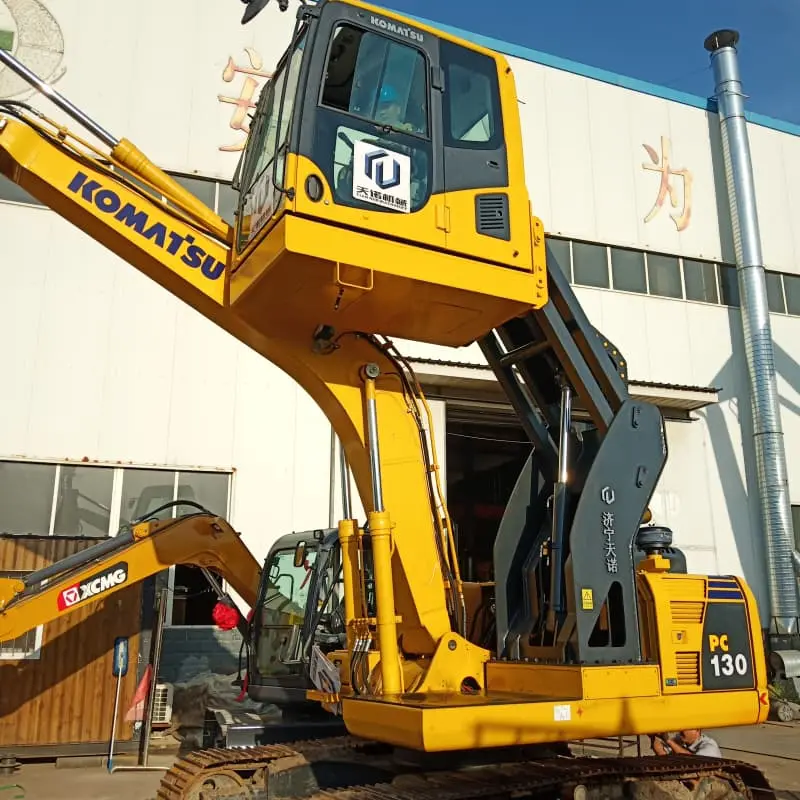

Elevating cab

Main Application Scenarios

Scrap and recycling yards: Observe material piles, grapples and truck bodies from a higher working position.

Port and terminal handling: Improve the viewing angle during high-sided loading and unloading operations.

Rail freight operations: Support visibility into wagons and around trackside handling areas.

Demolition and sorting sites: See over debris piles and nearby obstructions during controlled material handling.

Mining and bulk-material yards: Monitor elevated stockpiles, hoppers and loading zones more clearly.

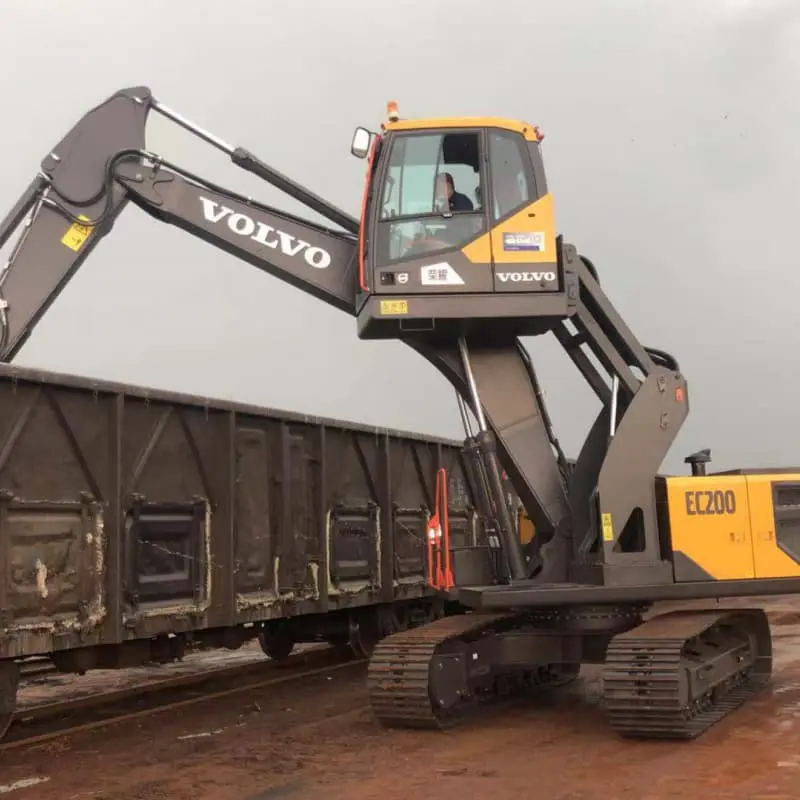

Elevating cab

How to Plan an Excavator Lift Cab Modification

Do not select a cab-lifting system from excavator tonnage alone. The modification changes the operator position, structural load path, center of gravity and machine envelope. A technical review should cover the following information:

Information to Provide

Why It Matters

Typical Details

Carrier Data

Defines the modification interface

Brand, model, operating weight, serial details

Cab and Upper-Frame Data

Supports structural integration

Cab base, upper frame, photos, dimensions

Hydraulic Data

Supports lifting control and speed setting

Flow, pressure, available circuit

Required Viewpoint

Determines target geometry

Obstacle height, load height, sight-line target

Operating and Travel Plan

Supports stability and clearance review

Raised work mode, lowered travel mode, terrain

Site Constraints

Prevents clearance conflicts

Overhead lines, buildings, transport height, ground slope

A completed proposal should define the raised working position, lowered position, hydraulic settings, structural interface, inspection points, permissible operating conditions and any restrictions on travel or slope. Operators must follow the final machine-specific instructions.

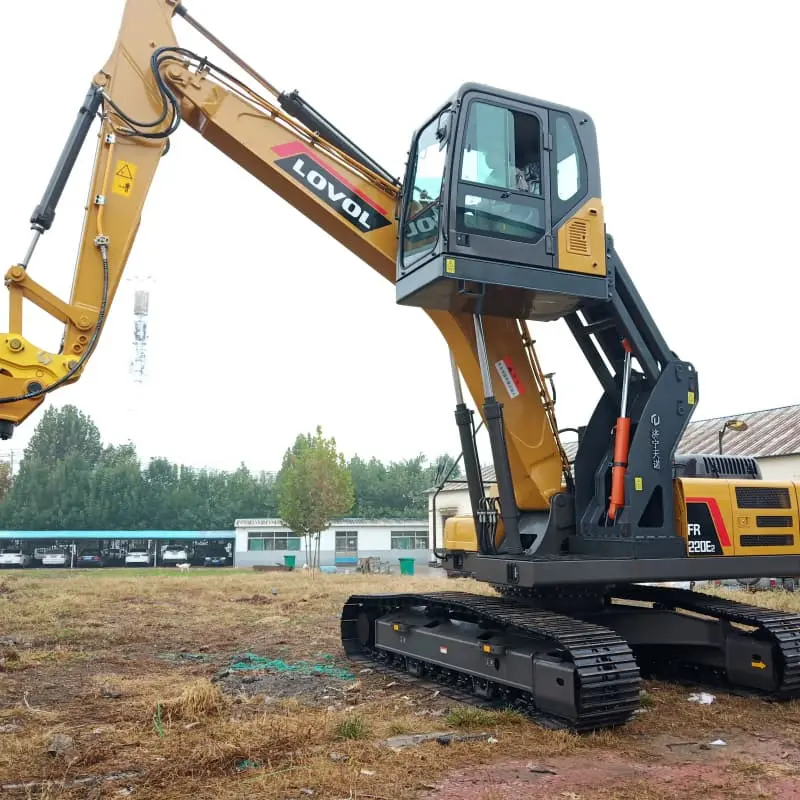

Elevating cab

Why Choose STND Machinery?

STND Machinery is a source manufacturer in Jining, China, with more than 10 years of experience in excavator retrofitting and customized engineering equipment. Its services cover project assessment, structural design, material selection, manufacturing, installation guidance and technical support. Learn more about our company capabilities, review the one-to-one customization process, or browse other excavator modification solutions. The original Excavator Lift Cab Modification product page provides the published reference values.

For a technical proposal, send the excavator make and model, operating weight, cab and upper-frame photos, key dimensions, hydraulic data, required observation height, site conditions and intended operating procedure.

Elevating cab
