Excavator Rock Arm VS Standard Arm

When it comes to heavy-duty excavation, the choice between an excavator rock arm and a standard arm can significantly impact your project's success. The rock arm, a specialized attachment designed for tackling tough terrains, offers unique advantages over its standard counterpart. This robust tool excels in breaking through weathered rocks, shale, and red sandstone, providing superior efficiency and cost-effectiveness compared to traditional breaker operations or blasting techniques. With its shortened overall length and heavier internal filling, the rock arm dramatically enhances the excavator's digging strength, enabling it to overcome challenging work environments that standard arms might struggle with.

Design Purpose

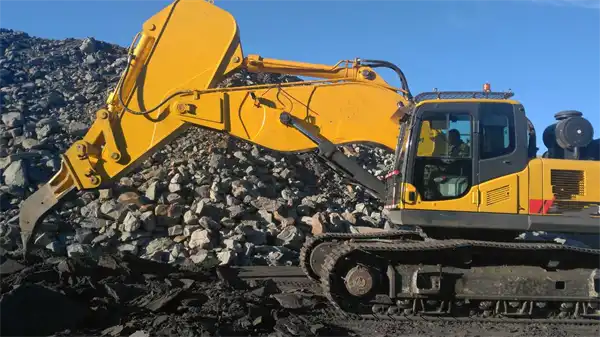

Rock Arm: Engineered for Extreme Excavation Tasks

The excavator rock arm is a marvel of engineering, specifically crafted to handle the most demanding excavation tasks. Its design prioritizes raw power and durability, making it the go-to choice for projects involving hard rock, dense soil, or heavily compacted materials. The rock arm's reinforced structure allows it to withstand immense pressure and resist wear and tear, even in the harshest conditions.

One of the key features that sets the rock arm apart is its optimized geometry. The arm's shape and angle are carefully calculated to maximize breakout force, allowing operators to chip away at stubborn rock formations with ease. This specialized design also contributes to improved fuel efficiency, as less energy is wasted on ineffective strikes.

Moreover, the rock arm's design incorporates advanced stress distribution techniques. This ensures that the force generated by the excavator is evenly spread across the arm, reducing the risk of structural failure and extending the equipment's lifespan. For industries like mining and quarrying, where productivity is paramount, the rock arm's ability to maintain high performance over extended periods is invaluable.

Standard Arm: Versatile for General Digging Operations

While the excavator rock arm shines in extreme conditions, the standard excavator arm is the jack-of-all-trades in the construction world. Its design focuses on versatility, allowing it to handle a wide range of tasks efficiently. From digging trenches and foundations to loading trucks and general earthmoving, the standard arm is the backbone of many construction projects.

The standard arm's design prioritizes balance and reach. Its proportions are carefully calculated to provide optimal digging depth and dump height, making it suitable for various applications. The arm's flexibility allows for precise control, which is crucial in urban construction sites or areas with underground utilities where accuracy is essential.

Additionally, the standard arm's design often incorporates quick-coupler systems, enabling rapid attachment changes. This feature significantly enhances job site productivity by allowing operators to switch between buckets, grapples, or other tools without lengthy downtime.

Customization Options for Industry-Specific Needs

Both excavator rock arms and standard arms can be further customized to meet specific industry requirements. For instance, in the railway construction sector, arms can be modified to accommodate specialized attachments for track maintenance or ballast handling. Similarly, in the forestry industry, arms might be equipped with reinforced protection against falling debris or extended reach capabilities for selective logging.

Customization options often include reinforced pivot points, additional wear plates, or specialized coatings to enhance durability in corrosive environments. Some manufacturers even offer modular arm designs, allowing users to adjust the arm's configuration based on the project's needs, providing a level of adaptability that can be crucial in multi-faceted operations.

Structural Features

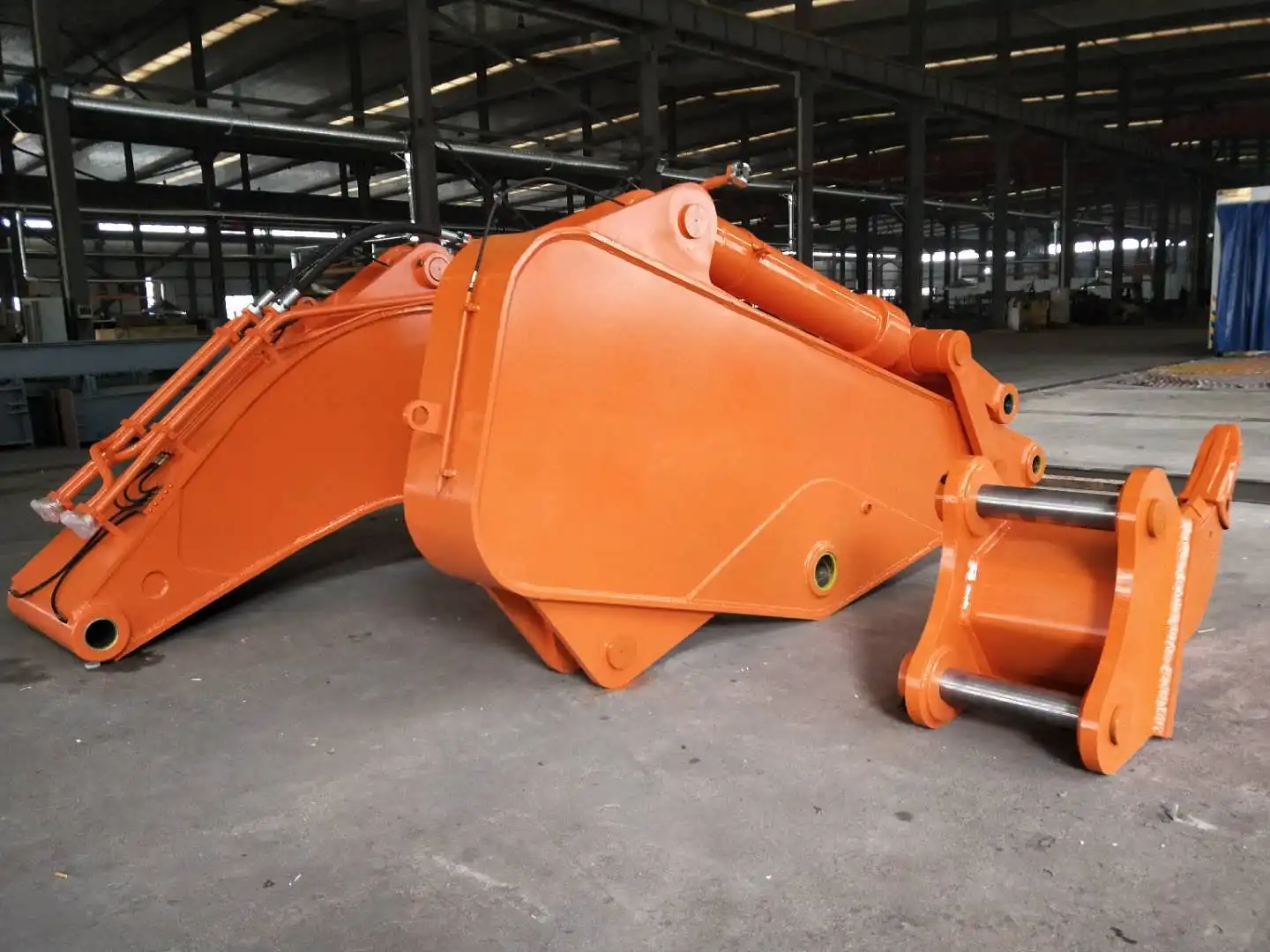

Rock Arm: Reinforced Construction for Durability

The structural integrity of an excavator rock arm is its defining characteristic. Built to withstand extreme forces, these arms feature several key reinforcements that set them apart from standard models. High-strength steel alloys form the backbone of the rock arm, providing an unparalleled level of durability and resistance to deformation under stress.

One of the most notable features is the increased wall thickness throughout the arm's length. This additional material not only adds weight, which is beneficial for breaking operations, but also significantly enhances the arm's ability to absorb and distribute shock loads. Strategically placed gussets and reinforcement plates further strengthen critical stress points, preventing fatigue cracks and extending the arm's operational life.

The rock arm's pin joints and bushings are engineered to withstand higher loads and more frequent impact. Oversized pins and hardened bushings reduce wear and maintain tight tolerances even after prolonged use in abrasive environments. Some advanced models incorporate self-lubricating bushings or automated greasing systems to ensure consistent performance and minimize maintenance downtime.

Standard Arm: Balance of Strength and Flexibility

While not as heavily reinforced as excavator rock arms, standard excavator arms are far from fragile. Their design strikes a careful balance between strength and weight, optimizing the excavator's overall performance across various tasks. The use of high-grade steel ensures durability, while strategic weight reduction in non-critical areas enhances fuel efficiency and reduces strain on the machine's hydraulic system.

Standard arms often feature a tapered design, with thicker sections near the boom connection and gradually thinning towards the bucket linkage. This design philosophy distributes stress efficiently while maintaining the arm's versatility. Many standard arms incorporate box-section construction, providing excellent resistance to torsional forces without excessive weight gain.

Flexibility is a key attribute of standard arms, achieved through carefully designed pivot points and linkages. This allows for a greater range of motion, essential for tasks requiring precise control or reaching into tight spaces. The arm's geometry is optimized to provide a balance between breakout force and lifting capacity, making it suitable for a wide range of attachments beyond just buckets.

Hydraulic Systems: Power Distribution Differences

The hydraulic systems supporting excavator rock arms and standard arms differ significantly in their power distribution and control mechanisms. Rock arms typically feature reinforced hydraulic cylinders with larger bore sizes and thicker rod diameters to handle increased pressures. The hydraulic circuits are often equipped with additional pressure relief valves to protect against sudden spikes during breaking operations.

In contrast, standard arm hydraulic systems prioritize smooth operation and precise control. They often incorporate more sophisticated flow control valves and may feature regenerative circuits to improve cycle times and efficiency. Some advanced systems include adaptive control algorithms that adjust hydraulic pressure and flow based on the task at hand, optimizing performance and fuel consumption.

Both types of arms benefit from recent advancements in hydraulic technology, such as electronic load-sensing systems and intelligent power management. These innovations allow for more efficient use of the excavator's engine power, translating to improved productivity and reduced operating costs regardless of the arm type chosen.

Performance in Hard Environments

Rock Arm: Superior Breaking Force in Tough Terrains

In challenging environments dominated by hard rock and compacted materials, the excavator rock arm truly comes into its own. Its robust construction and optimized geometry allow it to exert tremendous breaking forces, making short work of tasks that would stall or damage standard equipment. The rock arm's ability to concentrate force at the point of impact results in more efficient fracturing of rock formations, significantly reducing the time and energy required to clear an area.

One of the key advantages of the excavator rock arm in tough terrains is its resistance to shock and vibration. The reinforced structure absorbs and dissipates the energy from repeated impacts, protecting both the arm itself and the excavator's main components from excessive wear. This resilience translates to longer operating hours with less downtime for repairs or maintenance, a crucial factor in high-pressure projects with tight deadlines.

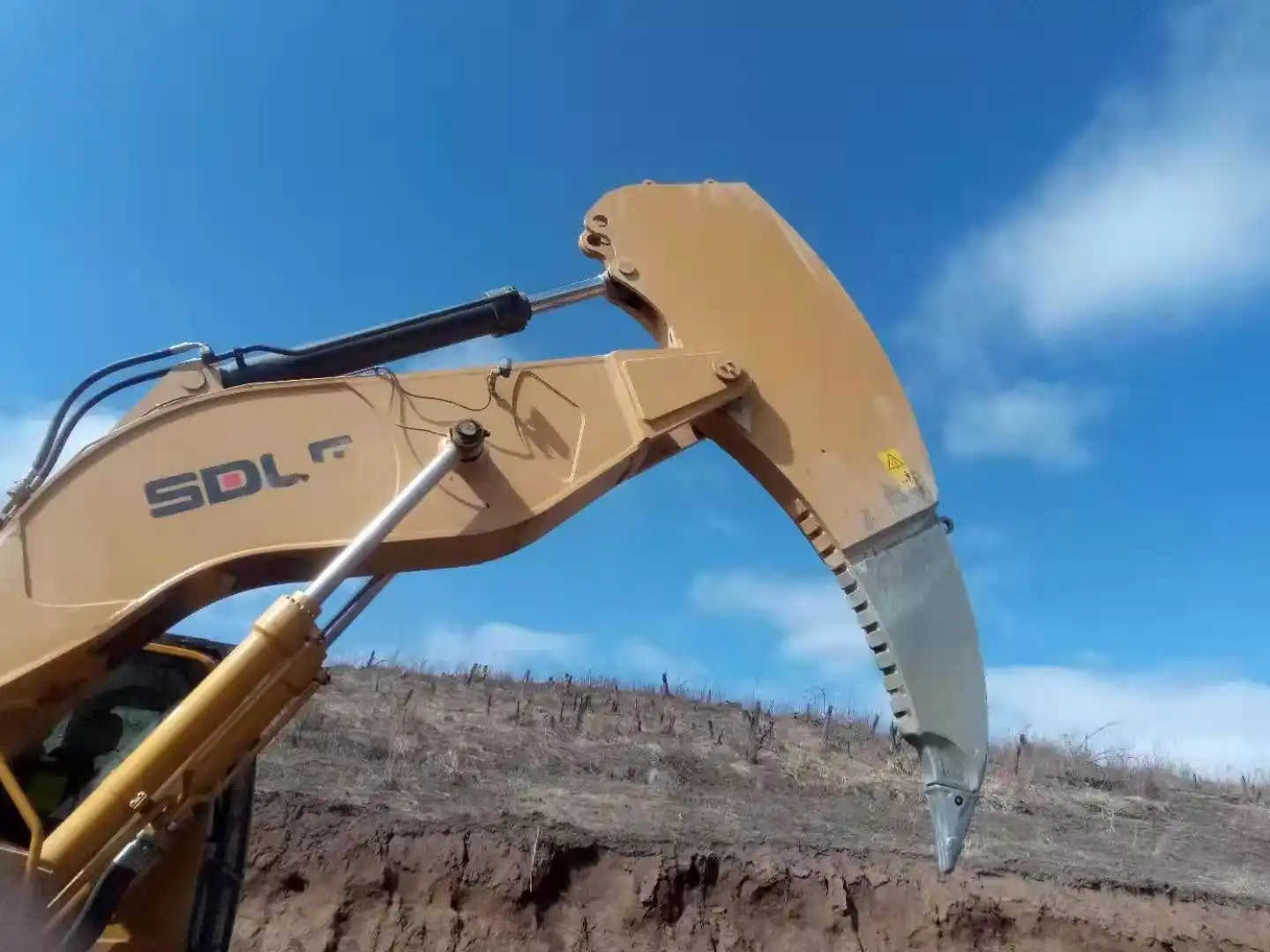

Moreover, the rock arm's design often incorporates specialized teeth or ripper attachments that enhance its penetration capabilities. These features allow operators to tackle even the most unyielding surfaces, breaking through layers of frost-hardened ground or dense rock strata that would typically require explosives or specialized equipment. In quarrying operations, this can lead to a significant reduction in the need for secondary breaking, streamlining the entire extraction process.

Standard Arm: Efficiency in Varied Soil Conditions

While the standard arm may not match the raw breaking power of its rock counterpart, it excels in versatility across a wide range of soil conditions. In environments where soil composition varies frequently, the standard arm's balanced design allows for quick adaptation without the need for equipment changes. This flexibility is particularly valuable in large-scale earthmoving projects or in areas with unpredictable ground conditions.

The standard arm's efficiency shines in tasks requiring a combination of digging, lifting, and precise placement. Its optimized hydraulics and control systems allow for smooth, controlled movements, essential when working around existing structures or utilities. In softer soils or mixed terrain, the standard arm's ability to switch quickly between digging and grading operations can significantly enhance overall project efficiency.

Additionally, the standard arm's compatibility with a wide range of attachments makes it an invaluable tool in diverse environments. From trenching in clay soils to handling loose gravel or organic materials, the ability to quickly switch between specialized buckets or tools allows operators to maintain high productivity levels across varying ground conditions.

Productivity Comparison: Rock vs. Standard Arm

When comparing the productivity of excavator rock arms and standard arms, context is key. In environments dominated by hard rock or extremely compacted soil, the rock arm's specialized design can lead to productivity gains of up to 30-50% over standard arms. This advantage is particularly pronounced in quarrying or large-scale excavation projects where the primary task is breaking and removing solid rock.

However, in more varied environments or projects requiring a diverse range of tasks, the standard arm's versatility can result in higher overall productivity. Its ability to switch quickly between digging, grading, and material handling tasks without changing attachments can lead to significant time savings over the course of a project. In urban construction sites or areas with mixed soil conditions, the standard arm's flexibility often translates to more consistent productivity across all phases of work.

Fuel efficiency is another factor to consider in productivity comparisons. While rock arms may consume more fuel during intense breaking operations, their efficiency in completing these tasks quickly can result in lower overall fuel consumption for the project. Standard arms, with their lighter weight and more balanced operation, typically offer better fuel economy in general earthmoving and construction tasks.

Choosing between an excavator rock arm and a standard arm depends largely on the specific demands of your project and the operating environment. Rock arms excel in tough, rocky terrains, offering unparalleled breaking power and durability for intensive excavation tasks. Their specialized design can significantly boost productivity in challenging conditions, making them invaluable in quarrying, mining, and heavy construction projects. On the other hand, standard arms shine in their versatility, providing efficient performance across a wide range of tasks and soil types. Their balanced design and compatibility with various attachments make them the preferred choice for general construction, earthmoving, and projects with diverse requirements.

FAQ

1. What is the main difference between a rock arm and a standard arm for excavators?

The main difference lies in their design and purpose. Rock arms are specifically engineered for breaking through tough materials like rock and compacted soil, featuring reinforced construction and optimized geometry for maximum breaking force. Standard arms are more versatile, designed for general digging operations and a wide range of tasks across various soil conditions.

2. How does the choice between a rock arm and a standard arm affect fuel consumption?

Rock arms may consume more fuel during intense breaking operations due to their heavier construction and the demanding nature of the work. However, their efficiency in completing tough tasks quickly can result in lower overall fuel consumption for a project. Standard arms typically offer better fuel economy in general earthmoving and construction tasks due to their lighter weight and more balanced operation.

3. Can a standard arm be used for rock breaking tasks?

While a standard arm can handle some light rock breaking tasks, it is not designed for sustained heavy-duty rock breaking operations. Using a standard arm for intensive rock breaking can lead to premature wear, reduced efficiency, and potential damage to the excavator.

4. How does the maintenance differ between rock arms and standard arms?

Rock arms often require more frequent inspections and maintenance due to the high-stress nature of their work. Key areas of focus include pin joints, bushings, and hydraulic components. Standard arms generally have lower maintenance requirements but benefit from regular servicing to maintain their versatility and efficiency across various tasks.

5. Is it possible to convert a standard arm to a rock arm?

While some reinforcement modifications can be made to standard arms, a true conversion to a rock arm is not typically feasible or recommended. The structural differences between the two are significant, and a proper rock arm requires specific design considerations from the ground up to ensure safety and performance in extreme conditions.

Excavator Rock Arm Supplier

For those in need of high-quality excavator rock arms and other specialized equipment, Tiannuo Machinery stands as a leading supplier in the industry. With a comprehensive range of products including excavator extended arms, pile driving arms, and rock arms, Tiannuo Machinery caters to the diverse needs of the construction, mining, and demolition sectors. Their expertise extends to excavator modification equipment and a wide array of accessories, ensuring that clients find the perfect solution for their specific project requirements. For more information on their rock arms and other products, contact us at arm@stnd-machinery.com. Tiannuo Machinery's commitment to quality and innovation makes it a trusted partner in enhancing your excavation capabilities.
