Excavator Sleeper Clamp for Controlled Railway Tie Handling
Replacing or positioning railway sleepers is not simply a lifting job. The attachment must grip the sleeper securely, control its orientation and place it accurately within a restricted track work zone. Repeated manual handling slows the maintenance cycle and increases dependence on ground crews. An excavator-mounted sleeper clamp turns the carrier into a more practical sleeper handling machine for railway construction and maintenance.
As a source manufacturer of railway maintenance equipment and excavator modification solutions, STND Machinery supplies the TNHZJ75 Excavator Sleeper Clamp with dual gripping points, full rotation and project-specific carrier matching.
What Is an Excavator Sleeper Clamp?

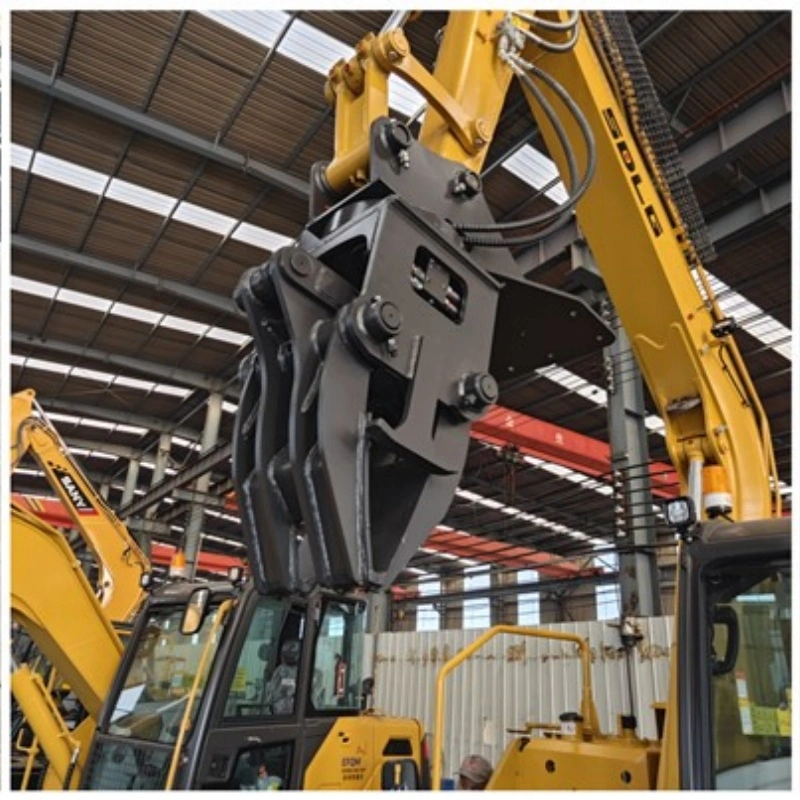

An Excavator Sleeper Clamp is a hydraulic attachment designed to grip, lift, rotate and position railway sleepers. Mounted on an excavator, it uses two clamp points to hold the sleeper during handling. The 360° rotating structure allows the operator to adjust orientation without repeatedly repositioning the carrier, supporting controlled placement during track construction, renewal and maintenance work.
Key Advantages of the STND Excavator Sleeper Clamp
The TNHZJ75 focuses on secure handling, positioning flexibility and compatibility with different railway projects.
1. Dual-Clamp Sleeper Handling
Two sleeper clamps create two controlled gripping points along the sleeper. This arrangement supports steadier lifting and positioning than a single contact point, helping the operator manage the sleeper during removal, transfer and placement.
2. 360° Rotation for Precise Orientation
Full 360° rotation lets the operator align the sleeper with the track direction and installation position from the cab. This reduces unnecessary carrier movement and makes orientation adjustments more practical in confined maintenance areas.
3. 650 mm Clamp Opening
The published clamp opening is 650 mm. Actual sleeper shape and gripping position should still be confirmed before production so that the clamp geometry matches the project’s sleeper dimensions and handling method.
4. Multi-Gauge Railway Project Coverage
The product page lists 1000 mm, 1067 mm, 1435 mm and 1520 mm track gauges. This gives contractors a clear basis for projects across meter gauge, Cape gauge, standard gauge and broad-gauge railway systems, while the final machine configuration remains subject to project and carrier data.
Published Excavator Sleeper Clamp Specifications
Item | Published / Required Information |
Model | TNHZJ75 |
Sleeper Clamps | 2 |
Clamp Opening | 650 mm |
Rotation Angle | 360° |
Applicable Track Gauges | 1000 / 1067 / 1435 / 1520 mm |
Carrier Matching | Confirm by excavator model and hydraulic data |
Carrier compatibility is confirmed by the excavator model, operating weight, mounting dimensions, hydraulic flow and pressure. This project-based matching approach is more reliable than selecting the clamp from tonnage alone.
Main Applications of an Excavator Sleeper Clamp
The attachment is designed for sleeper handling tasks within railway construction and maintenance workflows:
Track construction: Lift and orient sleepers before controlled placement along a prepared track bed.
Sleeper replacement: Remove old sleepers and position replacements during renewal or spot maintenance.
Maintenance yards: Load, unload and organize sleepers for preparation and dispatch.
Track rehabilitation: Support sleeper handling during broader ballast, rail and track-structure work.
Multi-gauge projects: Configure the sleeper handling solution around the specified railway gauge and site requirements.
Tips for Choosing the Right Sleeper Clamp
Start with the exact excavator brand, model, operating weight and attachment dimensions. Then provide the track gauge, sleeper material, sleeper cross-section, length, weight and preferred gripping position. Hydraulic flow, pressure, auxiliary circuit arrangement and required rotation control must also be confirmed. Finally, describe whether the clamp will mainly unload sleepers, remove installed sleepers or place new sleepers.
These details determine whether the clamp opening, jaw profile, mounting bracket and hydraulic configuration are appropriate. STND can prepare a one-to-one matching proposal after reviewing the carrier and sleeper information.
Why Choose STND Machinery for Railway Attachments?
Shandong Tiannuo Construction Machinery Co., Ltd. was founded in 2014 and specializes in railway maintenance equipment, excavator modifications, custom engineering arms and hydraulic attachments. Its core technical team has more than ten years of excavator retrofitting experience.
The Excavator Sleeper Clamp is supported by project matching, manufacturing inspection and technical service. Buyers can review STND’s verified railway maintenance equipment range, company profile and one-to-one customization process before requesting a configuration.
The Excavator Sleeper Clamp is now available for sale, with matching based on excavator model, track gauge, sleeper dimensions, sleeper weight, mounting interface and hydraulic conditions. Please contact us for the latest catalog, quotation, matching proposal and product video. Shandong Tiannuo Construction Machinery Co., Ltd. is located at No.369, Hard Innovation Industrial Park, Deyuan Road, Yanzhou District, Jining City, Shandong Province. Visit www.stnd-machinery.com or contact us by email at arm@stnd-machinery.com for more information about the Excavator Sleeper Clamp.
