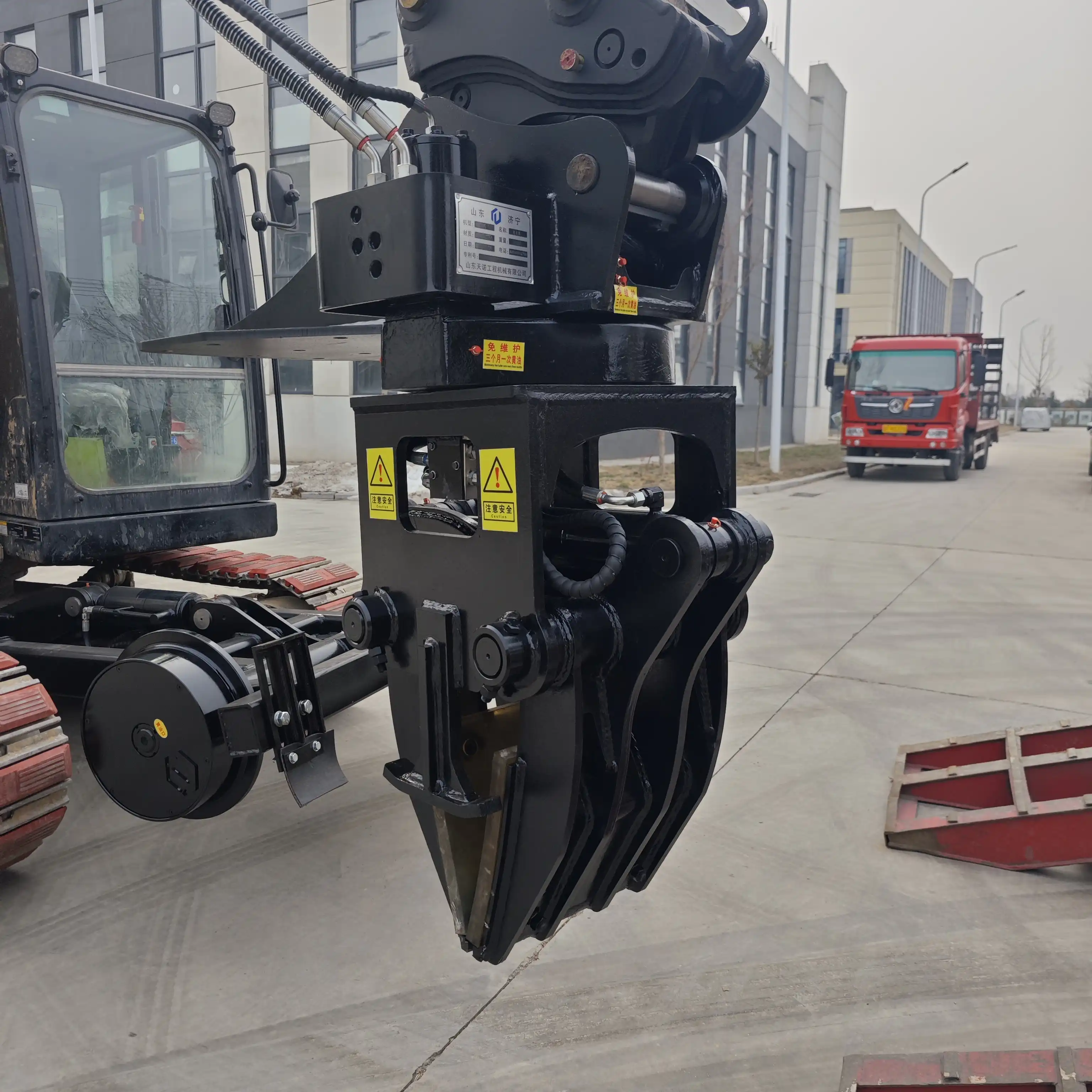

Excavator Sleeper Clamp with 360-degree Rotation
The excavator sleeper clamp with 360-degree rotation capability is transforming railway construction and maintenance operations worldwide. This specialized attachment converts standard excavators into versatile railway maintenance machines, offering unprecedented flexibility and efficiency. Designed by industry leaders like Tiannuo Machinery, these robust clamps securely grip and manipulate railway sleepers (also known as railroad ties) with precision while allowing full rotational movement. This 360-degree rotation feature enables operators to position sleepers at any angle required, significantly reducing manual labor and improving installation accuracy. The TNHZJ75 model is compatible with excavators ranging from 20 to 60 tons and can handle multiple track gauges, including 1000mm, 1067mm, 1435mm, and 1520mm, making it an incredibly versatile solution for railway projects of all sizes.
Clamp And Place Sleepers At Different Angles
Versatile 360-Degree Rotation System
The defining feature of Tiannuo's advanced excavator sleeper clamp is its complete 360-degree rotation capability. This engineering breakthrough allows operators to grip and place railway sleepers at virtually any angle required by the track layout. Traditional railway maintenance often required repositioning the entire excavator or performing awkward maneuvers to achieve proper sleeper placement. With the rotating clamp system, operators can simply adjust the attachment's angle while maintaining the excavator's stable position. This flexibility is particularly valuable when working on curved sections of track or in confined spaces where excavator movement is restricted.
Adapting to Complex Track Geometries
Railway tracks seldom follow perfectly straight paths. They curve, climb grades, and navigate complex terrain—all requiring precise sleeper positioning at various angles. The 360-degree rotation feature provides unmatched adaptability when installing sleepers on curved track sections, where each sleeper must be placed at a slightly different angle than the adjacent ones. The TNHZJ75 model excels in these challenging scenarios, allowing for fine adjustments that ensure perfect alignment with the track curvature. Furthermore, the rotation capability proves invaluable when working on railway switches, crossings, and other specialized track components that demand unique sleeper configurations.
Multiple Track Gauge Compatibility
Railway systems worldwide utilize different track gauges, presenting a significant challenge for maintenance equipment. Tiannuo's sleeper clamp brilliantly addresses this issue with its multi-gauge compatibility, supporting standard measurements including 1000mm, 1067mm, 1435mm, and 1520mm gauges. This versatility eliminates the need for railway operators to maintain separate equipment for different track types. The clamp's 650mm opening width accommodates various sleeper sizes, from narrow-gauge wooden ties to wider concrete sleepers used in high-speed rail applications. Combined with the 360-degree rotation, this gauge flexibility makes the attachment an extraordinarily adaptable tool for international railway contractors and maintenance teams.
Improve Efficiency
Accelerating Installation Timeframes
The implementation of excavator sleeper clamps with 360-degree rotation capabilities has revolutionized railway construction timelines. Traditional sleeper installation methods often require multiple pieces of specialized equipment and significant manual labor, resulting in slow progress and increased project costs. With Tiannuo's sleeper clamp attachment, a single excavator can perform the entire sequence of operations—lifting, transporting, rotating, and placing sleepers—without the need for additional machinery or excessive manual intervention. This streamlined approach dramatically reduces installation time, allowing crews to lay more track per day while minimizing labor requirements.
Reducing Crew Size Requirements
Labor costs represent a substantial portion of railway construction and maintenance budgets. The TNHZJ75 sleeper clamp significantly reduces the number of workers needed on site by mechanizing what was previously labor-intensive work. Where traditional methods might require a team of 6-8 workers to manually position and align sleepers, an excavator equipped with Tiannuo's rotating clamp can accomplish the same tasks with just 1-2 operators. This workforce reduction not only lowers project costs but also mitigates safety risks by minimizing the number of personnel working around heavy materials and machinery. The precision of the mechanical clamp further reduces the need for manual adjustments, allowing crews to work more efficiently.
Enhancing Operation in Restricted Areas
Railway maintenance often occurs in challenging environments with limited access and space constraints. The 360-degree rotation feature proves invaluable in these restricted workspaces, allowing the excavator to remain in a stable position while the clamp rotates to access difficult angles. This capability is particularly beneficial when working on existing railway corridors where adjacent tracks remain operational, under overhead electrification systems, or near structures that limit equipment movement. By enabling precise sleeper placement from various approach angles, the rotating clamp maximizes operational efficiency even in the most confined work zones, reducing the need for track possession time and minimizing disruption to railway services.
Protect Sleepers
Preventing Material Damage During Handling
Railway sleepers represent a significant investment, particularly modern concrete versions designed for high-speed rail applications. The specially designed excavator sleeper clamp incorporates protective features that preserve sleeper integrity during the handling process. Unlike conventional excavator attachments that might damage sleepers through improper gripping pressure or contact points, Tiannuo's TNHZJ75 model utilizes carefully engineered clamping surfaces that distribute pressure evenly across the sleeper's structure. This thoughtful design prevents chipping, cracking, or structural weakening that could compromise the sleeper's longevity or performance once installed. The clamp's precision control system allows operators to apply just enough pressure to secure the sleeper without risking damage.
Ensuring Precise Placement Accuracy
Proper track geometry depends on exact sleeper positioning. The 360-degree rotation capability enables operators to achieve placement precision that would be difficult or impossible with fixed attachments. The clamp maintains a secure grip throughout the rotation process, preventing sleepers from shifting during positioning. This stability ensures that each sleeper is placed precisely where needed, maintaining proper spacing and alignment critical to track integrity. The TNHZJ75's design allows operators to make micro-adjustments to sleeper positioning without releasing and re-gripping, further protecting sleepers from the potential damage that could occur during repeated handling attempts.
Extended Service Life Through Careful Handling
Railway infrastructure represents a long-term investment, with sleepers expected to provide decades of reliable service. By enabling gentle yet secure handling, Tiannuo's rotating sleeper clamp contributes to maximizing the service life of these critical components. The reduced physical stress during installation helps preserve the sleeper's structural integrity and protective coatings or treatments. This careful handling is particularly important for concrete sleepers with embedded fastening systems or pre-stressed internal reinforcement that could be compromised by rough handling. By protecting sleepers from installation damage, railway operators benefit from reduced replacement frequency and lower lifecycle maintenance costs—a significant advantage considering the substantial expense and disruption associated with sleeper replacement operations.
FAQ
①What excavator sizes are compatible with Tiannuo's sleeper clamp?
Tiannuo's TNHZJ75 sleeper clamp is designed to work with excavators ranging from 20 to 60 tons, making it suitable for both medium and large railway construction projects.
②Can the sleeper clamp handle different types of railway sleepers?
Yes, the clamp's 650mm opening width accommodates various sleeper types, including wooden, concrete, and composite sleepers used in different railway applications.
③What maintenance is required for the 360-degree rotation system?
Regular lubrication of the rotation mechanism and inspection of hydraulic components are recommended. Tiannuo provides comprehensive maintenance guidelines and technical support to ensure optimal performance.
④How does weather affect the sleeper clamp's performance?
The clamp is engineered with high-quality materials designed to withstand harsh environmental conditions. It performs reliably in various weather scenarios, though extremely low temperatures may require preheating of hydraulic systems.
Are you looking to enhance the efficiency and versatility of your excavator? Look no further than Tiannuo Machinery's top-of-the-line excavator sleeper clamp, the TNHZJ75 model! This cutting-edge attachment is designed to seamlessly integrate with a wide range of excavators, specifically those with a capacity of 60-20T. Whether you're working on railway construction, maintenance projects, or any heavy-duty excavation tasks, our sleeper clamp is the perfect solution.
Our TNHZJ75 model boasts a versatile design compatible with various track gauges, including 1000 mm, 1067 mm, 1435 mm, and 1520 mm. This adaptability ensures that you can tackle different job sites with ease, without the need for multiple attachments. The clamp features a robust construction with a sleeper clamp opening of 650 mm, providing ample space to securely grip sleepers of different sizes.
One of the standout features of our sleeper clamp is its 360° rotation angle. This allows for unparalleled flexibility and precision in your operations, enabling you to maneuver and position sleepers with ease, even in the most challenging environments. And with two sleeper clamps included, you can significantly boost your productivity and efficiency.
At Tiannuo Machinery, we are committed to delivering high-quality products that meet the demands of the toughest construction projects. Our product is no exception. It is built to withstand the rigors of daily use, ensuring long-lasting performance and reliability.
Don't miss out on the opportunity to elevate your excavator's capabilities. Contact us today at tn@stnd-machinery.com to learn more about our TNHZJ75 sleeper clamp and how it can transform your operations.
References
Journal of Railway Engineering and Maintenance, "Advancements in Sleeper Installation Technologies," Volume 42, Issue 3, 2023.
International Railway Technical Review, "Comparative Analysis of Modern Sleeper Handling Equipment," September 2024.
Railway Track Construction Handbook, Fifth Edition, "Mechanical Installation Methods for Concrete Sleepers," Chapter 7, 2022.
Infrastructure Maintenance Quarterly, "Efficiency Gains Through Specialized Excavator Attachments," Winter Issue, 2023.
Journal of Construction Equipment Innovation, "Rotational Attachments in Heavy Railway Applications," Volume 15, 2024.
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company.
