Extend Your Reach: High-Performance Long Arms for Excavators
Extended Arm Capacity, Precise Extension: Exploring How High-Performance Excavator Long Arms Improve River Dredging and Slope Protection EfficiencyExcavator Long Arms: The "Extended Hand" of Engineering, Making the Impossible Possible
In complex engineering environments, especially in river dredging, slope repair, and deep pit excavation, traditional excavators are often limited by their working radius. At this time, a well-designed excavator long arm becomes a "savior" for engineering projects. It is not merely a simple extension of machinery, but a high-tech product combining advanced materials science, structural mechanics, and fluid dynamics, capable of expanding the excavator's working range by more than 40%, significantly improving engineering efficiency while ensuring safety.
Customized: Scientifically Matching Excavator Tonnage for Optimal PerformanceExcavator long arms are not "one-size-fits-all" but require professional customization based on the excavator's tonnage, operational needs, and working environment. Small excavators (e.g., 15-30 tons) are suitable for 10-15 meter medium-length booms, balancing flexibility and extension capability; medium-sized excavators (30-50 tons) can be equipped with 15-22 meter long booms, suitable for most river channel and slope protection projects; large excavators (over 50 tons) can be customized with ultra-long booms exceeding 22 meters to handle special deep pits and large-scale water conservancy projects. This precise matching ensures the overall stability of the mechanical system, avoiding the waste of resources due to "undersized engines pulling large loads" or redundant performance.Material Innovation: A Robust Frame Constructed from High-Strength Plates Our excavator boom's main structure uses Q355, Q460, and Q550 series high-strength steel.
These special steel plates possess exceptional tensile and yield strength:Q355 steel: Excellent overall performance, with good plasticity and weldability, providing a solid foundation for the boom.
Q460 steel: Approximately 30% stronger than Q355, suitable for critical load-bearing components.Q550 steel: Ultra-high strength material, used in high-stress areas, ensuring the reliability of the boom under extreme working conditions.This material combination allows the boom to be lightweight while increasing its load-bearing capacity by more than 50% compared to ordinary structural steel, significantly extending its service life.
Precision Design: Engineering Wisdom in Sleek Lines Modern excavator booms utilize computer-aided design and finite element analysis. The overall smooth lines are not only for aesthetics but also a reflection of optimized mechanics. The curved design more rationally distributes stress, reducing localized stress concentration; the gradually changing cross-section structure ensures smooth force transmission from the base to the boom tip. This design reduces end-cap sinking by 30% when the boom is fully extended, improving operational accuracy and maneuverability.
Core Components: High-Pressure Piping and Reinforced Pin System
The hydraulic system is the "lifeline" of the excavator's boom. We use multi-layered steel wire braided high-pressure hydraulic piping, capable of working pressures exceeding 35MPa, equipped with an explosion-proof design to minimize pressure loss during long-distance transport. The piping is covered with a wear-resistant and weather-resistant protective sleeve to withstand various harsh environments.
The pins, as key components connecting the boom sections, are made of 40Cr alloy steel, heat-treated to achieve a surface hardness of HRC45-50 while maintaining core toughness. This "hard outside, tough inside" characteristic increases its shear resistance by 60% and its durability by more than 3 times compared to ordinary pins.
Details Determine Success: The Silent and Wear-Resistant Solution of Copper Bushing Inlay Technology
During prolonged swinging operations, wear at the joints is an unavoidable challenge. Our innovative solution is to inlay high-tin bronze bushings at key friction points on the boom base. This copper sleeve features:
Extremely low coefficient of friction (only 1/3 of steel-to-steel friction)
Excellent self-lubricating properties
Good embedding and conformability, absorbing minute impurities
Corrosion resistance, adaptable to humid conditions
This technology extends the maintenance cycle of the connection to 5 times that of conventional designs, while significantly reducing noise and improving operating comfort.
Application Scenarios: The Multi-Area Value of Excavator Long Arms
* River Dredging and Water Conservancy Projects: Long-arm excavators can perform dredging operations in the middle of river channels from the bank, eliminating the need for temporary platforms or boats, reducing construction costs by 40% and increasing efficiency by 60%. They can quickly clear river channels before the rainy season, becoming a powerful tool in flood control projects.
Extended Arm Capacity, Precise Extension: Exploring How High-Performance Excavator Long Arms Improve River Dredging and Slope Protection Efficiency
Excavator Long Arms: The "Extended Hand" of Engineering, Making the Impossible Possible
In complex engineering environments, especially in river dredging, slope repair, and deep pit excavation, traditional excavators are often limited by their working radius. At this time, a well-designed excavator long arm becomes a "savior" for engineering projects. It is not merely a simple extension of machinery, but a high-tech product combining advanced materials science, structural mechanics, and fluid dynamics, capable of expanding the excavator's working range by more than 40%, significantly improving engineering efficiency while ensuring safety.
Customized: Scientifically Matching Excavator Tonnage for Optimal Performance
Excavator long arms are not "one-size-fits-all" but require professional customization based on the excavator's tonnage, operational needs, and working environment. Small excavators (e.g., 15-30 tons) are suitable for 10-15 meter medium-length booms, balancing flexibility and extension capability; medium-sized excavators (30-50 tons) can be equipped with 15-22 meter long booms, suitable for most river channel and slope protection projects; large excavators (over 50 tons) can be customized with ultra-long booms exceeding 22 meters to handle special deep pits and large-scale water conservancy projects. This precise matching ensures the overall stability of the mechanical system, avoiding the waste of resources due to "undersized engines pulling large loads" or redundant performance.
Material Innovation: A Robust Frame Constructed from High-Strength Plates Our excavator boom's main structure uses Q355, Q460, and Q550 series high-strength steel. These special steel plates possess exceptional tensile and yield strength:
Q355 steel: Excellent overall performance, with good plasticity and weldability, providing a solid foundation for the boom.
Q460 steel: Approximately 30% stronger than Q355, suitable for critical load-bearing components.
Q550 steel: Ultra-high strength material, used in high-stress areas, ensuring the reliability of the boom under extreme working conditions.
This material combination allows the boom to be lightweight while increasing its load-bearing capacity by more than 50% compared to ordinary structural steel, significantly extending its service life.
Precision Design: Engineering Wisdom in Sleek Lines Modern excavator booms utilize computer-aided design and finite element analysis. The overall smooth lines are not only for aesthetics but also a reflection of optimized mechanics. The curved design more rationally distributes stress, reducing localized stress concentration; the gradually changing cross-section structure ensures smooth force transmission from the base to the boom tip. This design reduces end-cap sinking by 30% when the boom is fully extended, improving operational accuracy and maneuverability.
Core Components: High-Pressure Piping and Reinforced Pin System
The hydraulic system is the "lifeline" of the excavator's boom. We use multi-layered steel wire braided high-pressure hydraulic piping, capable of working pressures exceeding 35MPa, equipped with an explosion-proof design to minimize pressure loss during long-distance transport. The piping is covered with a wear-resistant and weather-resistant protective sleeve to withstand various harsh environments.
The pins, as key components connecting the boom sections, are made of 40Cr alloy steel, heat-treated to achieve a surface hardness of HRC45-50 while maintaining core toughness. This "hard outside, tough inside" characteristic increases its shear resistance by 60% and its durability by more than 3 times compared to ordinary pins.
Details Determine Success: The Silent and Wear-Resistant Solution of Copper Bushing Inlay Technology
During prolonged swinging operations, wear at the joints is an unavoidable challenge. Our innovative solution is to inlay high-tin bronze bushings at key friction points on the boom base. This copper sleeve features:
Extremely low coefficient of friction (only 1/3 of steel-to-steel friction)
Excellent self-lubricating properties
Good embedding and conformability, absorbing minute impurities
Corrosion resistance, adaptable to humid conditions
This technology extends the maintenance cycle of the connection to 5 times that of conventional designs, while significantly reducing noise and improving operating comfort.

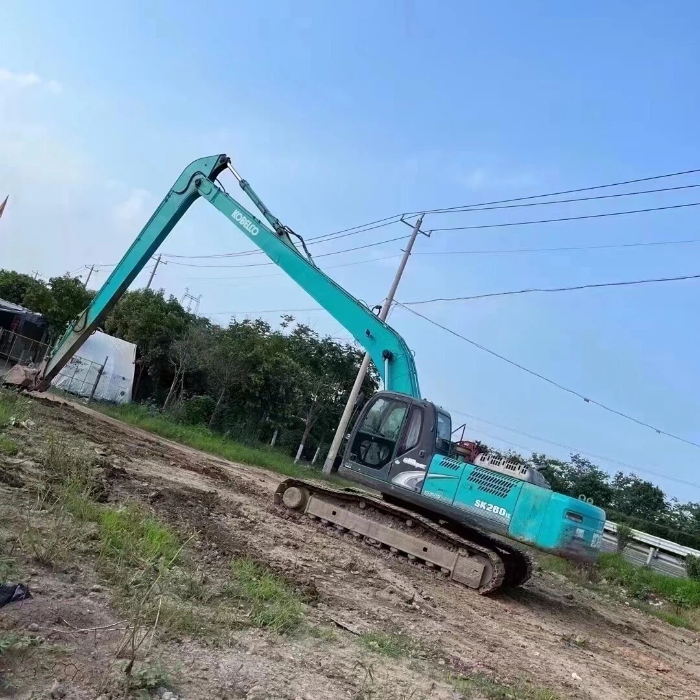

Application Scenarios: The Multi-Area Value of Excavator Long Arms
* River Dredging and Water Conservancy Projects: Long-arm excavators can perform dredging operations in the middle of river channels from the bank, eliminating the need for temporary platforms or boats, reducing construction costs by 40% and increasing efficiency by 60%. They can quickly clear river channels before the rainy season, becoming a powerful tool in flood control projects.
* Slope Repair and Ecological Restoration: On steep slopes, long-arm excavators can safely perform slope repair and vegetation trench excavation, avoiding personnel and equipment entering dangerous areas. With various attachments, they can also complete comprehensive slope protection tasks such as piling and installing protective netting.
Deep Pit Operations and Disaster Rescue
In deep foundation excavation, mining operations, or disaster relief, long-arm excavators can operate at safe distances, reducing the risk of collapse and providing safe and efficient solutions for complex working conditions.
Choose Professional: Your Engineering Extension Partner
In the field of construction machinery, every centimeter of extension carries a heavy responsibility for safety and a commitment to efficiency. Our excavator long arms are not merely combinations of steel and hydraulic components, but engineering solutions tailored to specific working conditions. From material selection to meticulous attention to detail, from structural design to performance testing, we adhere to the highest standards to ensure that every long arm becomes a reliable and efficient "extended hand" in your engineering projects.
When your project requires breaking through spatial limitations, when traditional equipment cannot meet operational needs, a professional excavator long arm may be your best answer. It not only extends the machine's operating range but also expands the boundaries of engineering possibilities.
Extending the limits of machinery, creating engineering possibilities—let professional long-arm technology empower your projects.
