High-Vibration Hydraulic Ballast Tamping Machine Clamping Standardized Operation Procedures
High-vibration hydraulic ballast tamping machines are essential tools in railway maintenance, offering unparalleled efficiency in track stabilization. These advanced devices utilize powerful vibration and hydraulic clamping mechanisms to compact ballast effectively, ensuring optimal track support and alignment. By following standardized operation procedures, railway maintenance teams can maximize the performance and longevity of these machines while maintaining the highest safety standards. This guide delves into the crucial steps for proper installation, parameter settings, and operation execution of high-vibration hydraulic ballast tampers.
Installation and Commissioning

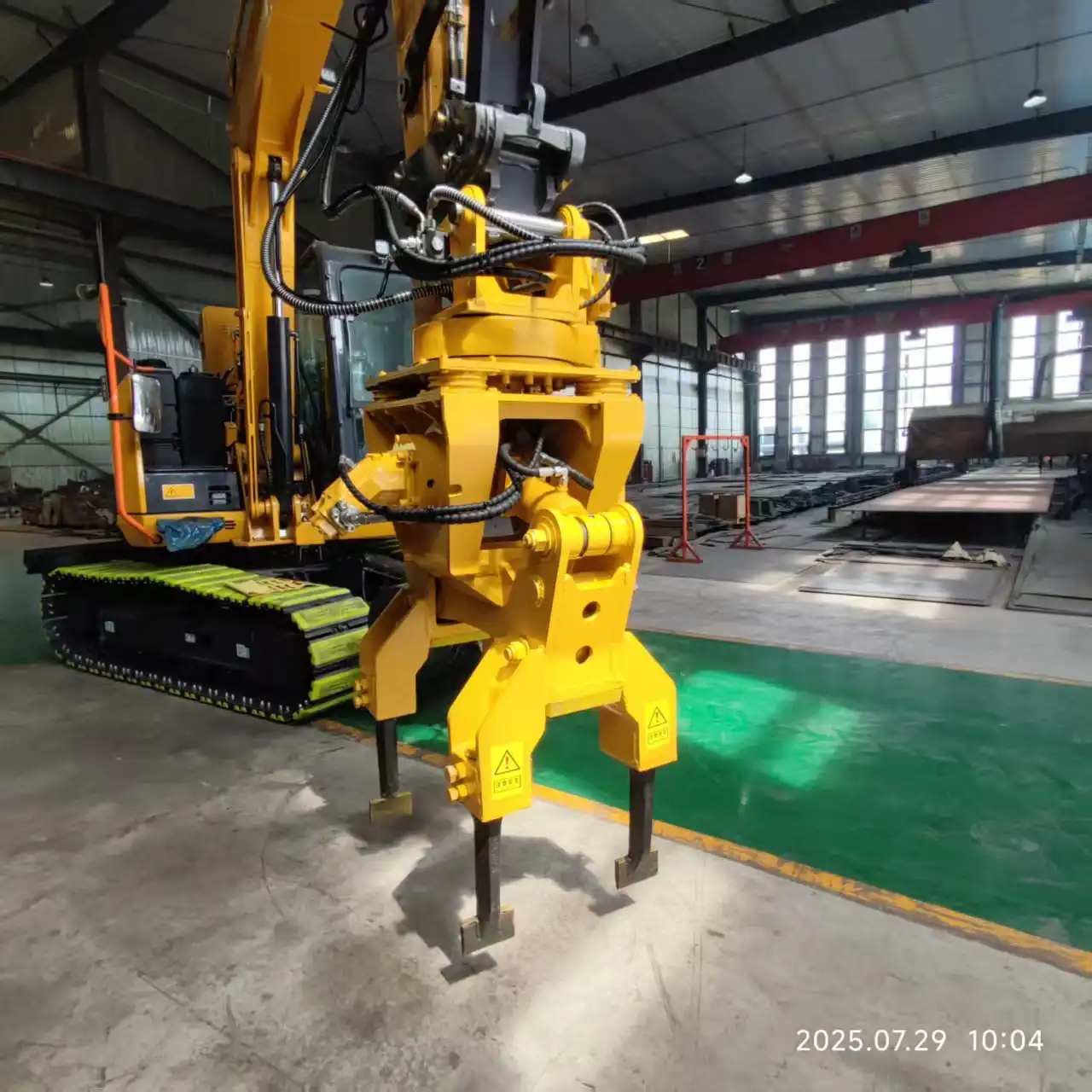

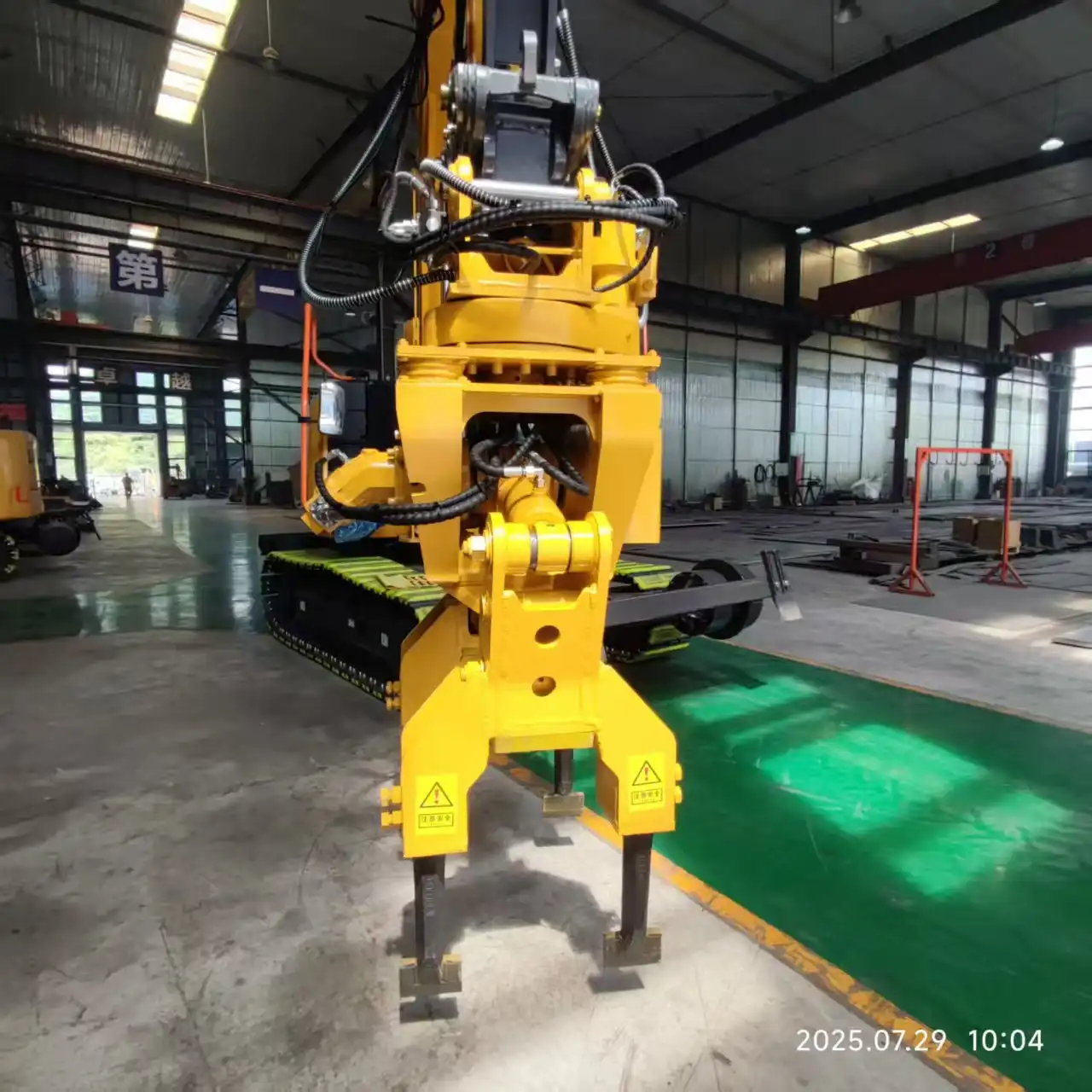

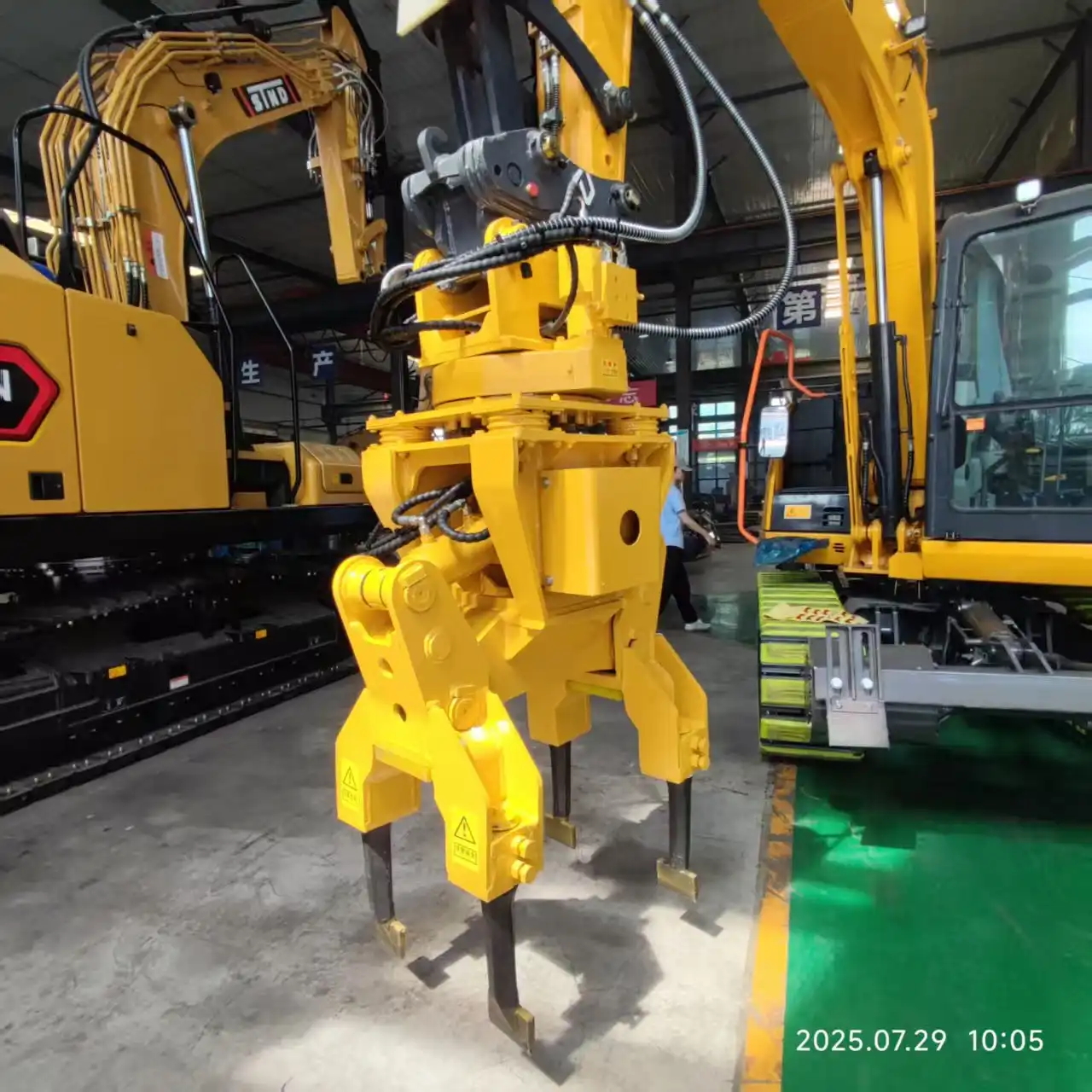

Proper Mounting of Tamping Machine on Excavator
The first step in utilizing a high-vibration hydraulic ballast tamping machine is its correct installation on the excavator. This process requires precision and attention to detail to ensure optimal performance and safety. Begin by thoroughly inspecting the excavator's attachment points and the tamping machine's mounting brackets. Any signs of wear or damage should be addressed before proceeding.
Carefully align the tamping machine with the excavator's boom, ensuring all connection points match perfectly. Use the appropriate grade of bolts and fasteners as specified by the manufacturer. Tighten all connections to the recommended torque specifications, but be cautious not to over-tighten, as this could lead to premature wear or failure.
Once mounted, perform a series of slow movements to check for any interference or misalignment. The tamping machine should move smoothly through its full range of motion without any binding or unusual noises.
Hydraulic System Connectivity and Pressure Testing
With the tamping machine securely mounted, the next critical step is connecting and testing the hydraulic system. This stage is crucial for ensuring the machine operates at peak efficiency and prevents potential damage due to incorrect pressure settings.
Start by inspecting all hydraulic hoses and fittings for any signs of wear, cracks, or leaks. Replace any questionable components before proceeding. Connect the hydraulic lines according to the manufacturer's specifications, ensuring each connection is secure and properly seated.
Once connected, slowly pressurize the system and perform a thorough leak check. Pay close attention to all connection points and seals. If any leaks are detected, depressurize the system immediately and address the issue before continuing.
With the system leak-free, conduct a pressure test to verify that the hydraulic system is operating within the specified parameters. Use calibrated pressure gauges to measure the system pressure at various points, comparing the readings to the manufacturer's recommendations. Adjust the pressure relief valves as necessary to achieve the correct operating pressure.
Calibration of Vibration Frequency and Amplitude
The final step in the installation process is calibrating the vibration frequency and amplitude. This calibration is critical for achieving optimal ballast compaction without causing damage to the track structure or surrounding components.
Begin by referring to the manufacturer's guidelines for the recommended vibration settings based on the specific ballast type and track conditions. Using the machine's control panel, adjust the vibration frequency to the specified range. Start at the lower end of the recommended spectrum and gradually increase as needed.
To calibrate the amplitude, use a vibration meter to measure the actual output of the tamping machine. Place the meter at various points along the tamping claws to ensure uniform vibration distribution. Fine-tune the amplitude settings until the desired level is achieved consistently across all measurement points.
Perform several test runs on a section of track, carefully observing the ballast compaction results. Make minor adjustments to both frequency and amplitude as needed to achieve optimal performance without causing ballast degradation or track component stress.
Parameter Settings
Optimizing Clamping Force for Various Ballast Types
The effectiveness of a high-vibration hydraulic ballast tamping machine largely depends on its ability to apply the right amount of clamping force to different ballast materials. Proper clamping ensures that the vibration energy is efficiently transferred to the ballast, resulting in uniform compaction without damaging the track components.
Start by identifying the specific type of ballast you're working with. Common varieties include granite, limestone, and slag, each with unique characteristics that influence their compaction behavior. Consult the tamping machine's manual for recommended clamping force ranges for different ballast types.
Begin with a conservative clamping force setting and perform a test run on a small section of track. Observe how the ballast responds to the tamping action. If the ballast particles are not adequately compacting, gradually increase the clamping force. Conversely, if you notice excessive ballast crushing or displacement, reduce the force.
Remember that optimal clamping force may vary along the track due to changes in ballast condition or composition. Be prepared to make adjustments as you progress, always prioritizing effective compaction without compromising ballast integrity.
Adjusting Vibration Intensity for Effective Compaction
Vibration intensity plays a crucial role in achieving thorough ballast compaction. The goal is to find the sweet spot where the vibration is strong enough to settle the ballast particles efficiently but not so intense that it causes ballast degradation or track component damage.
Start by setting the vibration intensity to the lower end of the manufacturer's recommended range. Perform a test run and assess the compaction results. Look for signs of proper settlement, such as a slight surface lowering of the ballast bed and a more uniform appearance of the ballast profile.
If the compaction seems insufficient, incrementally increase the vibration intensity. After each adjustment, perform another test run and evaluate the results. Pay close attention to any signs of ballast breakage or excessive movement of track components.
Keep in mind that different sections of the track may require varying vibration intensities due to factors like ballast age, moisture content, or previous maintenance history. Be prepared to fine-tune the settings as you move along the track to ensure consistent compaction quality.
Setting Track-Specific Operation Speeds and Cycles
The speed at which the tamping machine moves along the track and the number of compaction cycles per section significantly impact the overall efficiency and effectiveness of the ballast tamping process. These parameters need to be carefully calibrated to match the specific track conditions and maintenance requirements.
Begin by consulting any available track maintenance records or specifications to understand the particular needs of the section you're working on. Factors like track age, traffic load, and previous maintenance interventions can influence the optimal operation speed and number of cycles needed.
Start with a conservative operation speed, typically on the slower end of the machine's capability. This allows for thorough compaction and gives you time to observe the process closely. Perform a test run over a short distance, evaluating the quality of compaction achieved.
If the compaction results are satisfactory and time constraints allow, maintain this speed. However, if you need to increase efficiency without compromising quality, gradually increase the speed while closely monitoring the results.
For the number of compaction cycles, begin with the manufacturer's recommended baseline, usually two to three passes per section. After completing these cycles, assess the ballast condition. If additional compaction is needed, add extra cycles until the desired level of consolidation is achieved.
Operation Execution
Maintaining Constant Speed Along Railway Tracks
Consistent speed is crucial when operating a high-vibration hydraulic ballast tamping machine. It ensures uniform compaction along the entire length of the track, preventing areas of over or under-compaction that could lead to future track instability.
Begin by setting the machine to the predetermined optimal speed established during the parameter setting phase. Use the excavator's controls to maintain this speed as steadily as possible. Many modern tamping machines come equipped with speed control systems that can help maintain a constant pace.
Pay close attention to the machine's movement, especially when transitioning between different track sections or navigating curves. These areas often require slight speed adjustments to maintain consistent compaction quality. Be prepared to make minor speed corrections as needed, always aiming for smooth, gradual changes rather than abrupt adjustments.
Regularly monitor the compaction results as you progress. If you notice any inconsistencies in ballast density or settlement, reassess your speed and make necessary adjustments. Remember, it's better to operate at a slightly slower speed that ensures thorough compaction than to rush and compromise the quality of the work.
Automatic Cycle: Lower, Clamp, Vibrate, and Lift
The efficiency of a high-vibration hydraulic ballast tamping machine lies in its ability to perform a consistent, automated cycle of operations. This cycle typically consists of four main steps: lowering the tamping unit, clamping the ballast, applying vibration, and lifting the unit.
Start by positioning the tamping machine at the beginning of the section to be compacted. Activate the automatic cycle feature, which will initiate the sequence. As the cycle begins, observe the lowering of the tamping unit. It should descend smoothly and position itself correctly between the sleepers.
Next, watch as the machine clamps the ballast. The clamping action should be firm but not excessive, ensuring a good grip on the ballast material without crushing it. Once clamped, the vibration will begin. During this phase, you should see slight movement of the ballast as it settles and compacts.
After the preset vibration duration, the tamping unit will automatically lift clear of the ballast. This lifting action should be smooth and controlled to avoid disturbing the freshly compacted material.
As the machine progresses, keep a close eye on each cycle. Look for any irregularities in the process, such as uneven lowering, inadequate clamping, or premature lifting. If you notice any issues, be prepared to pause the operation and make necessary adjustments to the machine's settings or programming.
Efficient Coverage: Tamping 3-5 Sleepers per Operation
To maximize efficiency while ensuring thorough ballast compaction, most high-vibration hydraulic ballast tamping machines are designed to compact the ballast around 3-5 sleepers in a single operation. This approach strikes a balance between speed and quality of work.
Begin by aligning the tamping machine so that its working area covers the targeted number of sleepers. This usually means positioning the machine slightly ahead of the first sleeper in the set. As you initiate the tamping cycle, observe how the machine interacts with each sleeper in the group.
Pay attention to the compaction quality across all sleepers in the set. The ballast around the central sleepers should receive adequate compaction, but it's crucial to ensure that the outer sleepers are not neglected. If you notice inconsistent compaction, you may need to adjust the machine's positioning or consider reducing the number of sleepers treated in each operation.
As you progress along the track, maintain a consistent overlap between each set of tamped sleepers. This overlap helps ensure there are no gaps in compaction and provides a smooth transition between tamped sections. Typically, an overlap of one sleeper is sufficient, but this may vary depending on track conditions and maintenance requirements.
Mastering the operation of high-vibration hydraulic ballast tamping machines is crucial for maintaining safe and efficient railway systems. By following these standardized procedures for installation, parameter settings, and operation execution, maintenance teams can significantly enhance track stability and longevity. Remember, the key to success lies in careful calibration, consistent monitoring, and adapting to varying track conditions. As railway technology continues to evolve, staying informed about the latest advancements in ballast tamping techniques will ensure your maintenance practices remain at the cutting edge of industry standards.
FAQ
1. How often should a high-vibration hydraulic ballast tamping machine be serviced?
Regular maintenance is crucial for optimal performance. Generally, these machines should undergo a thorough inspection and service every 500 operating hours or at least once a year, whichever comes first. However, daily checks of hydraulic fluid levels, hose conditions, and critical components are essential for safe operation.
2. Can high-vibration hydraulic ballast tamping machines be used in all weather conditions?
While these machines are designed to withstand various environmental conditions, extreme weather can affect their performance. Operating in heavy rain or when the ballast is saturated can reduce compaction efficiency and potentially damage the track structure. It's best to avoid tamping in freezing conditions as it can lead to ice formation within the ballast, compromising its stability.
3. How does the type of ballast affect the tamping process?
Different ballast materials have varying characteristics that influence the tamping process. For instance, granite ballast typically requires higher vibration frequencies due to its hardness, while softer materials like limestone may need lower frequencies to prevent excessive breakage. Always adjust your machine's settings based on the specific ballast type you're working with.
4. What safety precautions should be taken when operating a high-vibration hydraulic ballast tamping machine?
Safety is paramount when operating these powerful machines. Always wear appropriate personal protective equipment, including hard hats, safety glasses, and hearing protection. Ensure all personnel are clear of the working area before starting the tamping process. Regularly inspect the machine for any signs of wear or damage, and never operate it if any safety features are compromised.
5. How can I determine if the ballast has been sufficiently compacted?
Properly compacted ballast should appear uniform and tightly packed. You can use a dynamic cone penetrometer to measure the density and strength of the compacted ballast. Additionally, track geometry measurements before and after tamping can indicate the effectiveness of the compaction process. If you're unsure, consult with a track maintenance expert or the tamping machine manufacturer for guidance on assessing compaction quality.
