How are railroad tracks maintained?

Railroad tracks are the lifelines of our transportation network, requiring meticulous care and attention to ensure safe and efficient rail operations. railway track maintenance equipment plays a crucial role in this process, encompassing a wide range of specialized tools and machinery. From regular inspections to large-scale overhauls, maintaining railroad tracks involves a comprehensive approach that combines cutting-edge technology with time-tested techniques. Let's dive into the world of railway track maintenance and explore the methods and equipment used to keep our rail networks running smoothly.

Regular Inspection Techniques for Tracks

The foundation of effective railroad track maintenance lies in regular, thorough inspections. These inspections help identify potential issues before they escalate into major problems, ensuring the safety and reliability of rail transportation. Let's explore the key inspection techniques used in modern railway maintenance:

Visual inspections: Detecting visible track defects

Visual inspections remain a cornerstone of track maintenance. Trained inspectors walk the tracks, looking for visible signs of wear, damage, or misalignment. They check for issues such as cracked or broken rails, loose fasteners, and worn rail joints. These inspections often utilize high-resolution cameras and digital recording systems to document findings and track changes over time.

Ultrasonic testing: Identifying internal rail flaws

While visual inspections are crucial, they can't detect internal flaws within the rails. That's where ultrasonic testing comes in. Specialized ultrasonic testing vehicles move along the tracks, emitting high-frequency sound waves that penetrate the rail. Any internal defects or cracks reflect these waves differently, allowing technicians to identify and locate potential problems that are invisible to the naked eye.

Track geometry cars: Measuring alignment and gauge

Track geometry is critical for smooth and safe rail operations. Track geometry cars are sophisticated vehicles equipped with an array of sensors and measurement tools. As they travel along the tracks, these cars collect data on various parameters, including track alignment, gauge (the distance between rails), cross-level (the difference in elevation between rails), and curve geometry. This data helps maintenance teams identify areas that require attention and plan targeted maintenance activities.

The use of these inspection techniques ensures that potential issues are caught early, allowing for proactive maintenance. This approach not only enhances safety but also helps optimize maintenance schedules and reduce costs associated with emergency repairs. As we move forward, let's explore how the information gathered during these inspections translates into targeted maintenance activities.

Basic Maintenance: Targeted Work on Rails, Sleepers, & Ballast

Building upon the insights gained from regular inspections, railway maintenance teams execute targeted interventions to address specific issues and maintain the overall integrity of the track system. This basic maintenance work focuses on three key components: rails, sleepers, and ballast. Let's delve into the essential maintenance activities for each:

Rail grinding: Restoring rail profile and removing defects

Rail grinding is a critical maintenance process that helps extend the life of rails and improve track performance. Specialized rail grinding machines use abrasive wheels to remove a thin layer of metal from the rail surface. This process serves multiple purposes:

• Restoring the optimal rail profile for smooth wheel-rail interaction
• Removing surface defects and corrugations that can lead to noise and vibration
• Preventing the development of rolling contact fatigue cracks
• Redistributing the wheel load more evenly across the rail head

By maintaining the correct rail profile, grinding helps reduce wear on both rails and train wheels, leading to improved fuel efficiency and a smoother ride for passengers.

Sleeper replacement: Ensuring proper track support

Sleepers, also known as ties, are the transverse supports that hold the rails in place and distribute the load to the ballast below. Over time, sleepers can deteriorate due to environmental factors, mechanical stress, or age. Replacing worn or damaged sleepers is essential for maintaining track stability and alignment.

Modern sleeper replacement machines can efficiently remove old sleepers and insert new ones without disrupting the entire track structure. This process often involves:

• Lifting the rails to create space for removal and insertion
• Extracting the old sleeper and preparing the bed
• Inserting the new sleeper and securing it to the rails
• Tamping the surrounding ballast to ensure proper support

Timely sleeper replacement helps prevent track misalignment, reduces the risk of derailments, and ensures that the track can withstand the forces exerted by passing trains.

Ballast cleaning: Improving drainage and track stability

Ballast, the crushed stone or gravel bed that supports the track structure, plays a crucial role in drainage and load distribution. Over time, ballast can become contaminated with fine particles, reducing its ability to drain water and support the track effectively. Ballast cleaning is a vital maintenance activity that restores these essential functions.

Ballast cleaning machines use vibrating screens to separate contaminated material from reusable ballast. The process typically involves:

• Excavating the existing ballast from beneath the track
• Screening the material to remove fines and contaminants
• Returning clean ballast to the track bed
• Adding new ballast as needed to maintain proper levels

Clean ballast ensures proper drainage, prevents track settling, and maintains the correct track geometry. This, in turn, leads to a smoother ride, reduced wear on rolling stock, and improved overall track performance.

As we can see, these basic maintenance activities form the backbone of railway track upkeep. However, there are times when more intensive interventions are necessary. In the next section, we'll explore large-scale maintenance operations that involve comprehensive track renewal and rehabilitation.

Large-Scale Maintenance: Intensive Overhauls with Integrated Equipment

While regular inspections and targeted maintenance keep railway tracks in good condition, there comes a time when more comprehensive interventions are necessary. Large-scale maintenance operations involve the use of sophisticated, integrated equipment to perform extensive track renewal and rehabilitation. These operations are typically carried out when sections of track have reached the end of their service life or require significant upgrades to meet modern standards. Let's explore three key aspects of large-scale track maintenance:

Track renewal trains: Efficient full-scale track replacement

Track renewal trains represent the pinnacle of railway maintenance technology. These impressive machines are capable of completely replacing old track with new components in a single, continuous operation. A typical track renewal train consists of several specialized units working in concert:

• Rail lifting and removal units
• Old sleeper extraction equipment
• Ballast excavation and screening systems
• New sleeper placement machinery
• Rail laying and fastening units
• Ballast profiling and tamping equipment

The beauty of track renewal trains lies in their efficiency. They can replace hundreds of meters of track in a single shift, minimizing disruption to rail traffic. This speed is crucial for busy rail corridors where extended closures are not feasible. Moreover, the integrated nature of these machines ensures consistent quality and precision throughout the renewal process.

Ballast undercutters: Deep cleaning of track bed materials

While regular ballast cleaning addresses surface contamination, ballast undercutters take this process to a deeper level. These machines are designed to excavate and clean the entire ballast bed, including the material beneath the sleepers. The process typically involves:

• Lifting the track structure slightly
• Excavating the full depth of ballast using a chain cutter
• Screening the excavated material to separate reusable ballast from waste
• Returning clean ballast and adding new material as needed
• Recontouring the ballast profile

Ballast undercutting is particularly important in areas with poor drainage or where the ballast has become severely contaminated over time. By restoring the entire ballast bed, this process significantly improves track stability, drainage, and overall performance.

High-output tamping: Restoring track geometry at scale

Tamping is the process of compacting the ballast around and beneath railway sleepers to ensure proper support and alignment. High-output tamping machines take this essential maintenance task to an industrial scale. These machines can quickly and accurately adjust track geometry over long distances, addressing issues such as:

• Vertical alignment (smoothing out dips and humps)
• Horizontal alignment (correcting curves and straightaways)
• Cross-level (ensuring both rails are at the correct relative height)
• Superelevation (banking on curves for higher speeds)

Modern high-output tampers use sophisticated measurement systems and computer control to achieve precise adjustments. They can work at speeds of several kilometers per hour, making them ideal for maintaining long stretches of track efficiently.

The use of these large-scale maintenance techniques and equipment allows railway networks to undertake major upgrades and renewals with minimal disruption to services. By combining multiple operations into integrated systems, these machines not only improve efficiency but also ensure consistent, high-quality results across extensive track sections.

As we wrap up our exploration of railway track maintenance, it's clear that the process involves a complex interplay of regular inspections, targeted interventions, and large-scale renewals. This comprehensive approach, supported by advanced railway track maintenance equipment, is essential for keeping our rail networks safe, efficient, and ready for the challenges of modern transportation.

Maintaining railroad tracks is a complex and ongoing process that requires a combination of regular inspections, targeted interventions, and large-scale renewals. From visual checks and ultrasonic testing to sophisticated track renewal trains and high-output tampers, railway track maintenance equipment plays a crucial role in keeping our rail networks safe and efficient. As technology continues to advance, we can expect even more innovative solutions to emerge, further enhancing our ability to maintain and improve this vital infrastructure. By investing in proper maintenance and leveraging cutting-edge equipment, we ensure that our railways continue to serve as the backbone of transportation for generations to come.

FAQ

1. How often are railway tracks typically inspected?

Railway tracks are usually inspected at least once a week, with high-traffic or critical areas sometimes receiving daily inspections. However, the frequency can vary depending on factors such as track usage, weather conditions, and regulatory requirements.

2. What is the average lifespan of railway tracks?

The lifespan of railway tracks can vary significantly based on factors like traffic volume, maintenance practices, and environmental conditions. On average, well-maintained tracks can last 30-50 years before requiring complete replacement, though individual components may need replacement more frequently.

3. How do extreme weather conditions affect track maintenance?

Extreme weather can significantly impact track maintenance needs. Heat can cause rail expansion and buckling, while cold can lead to rail contraction and brittleness. Heavy rain or flooding can erode ballast and undermine track stability. These conditions often require more frequent inspections and targeted maintenance interventions.

4. Are there any new technologies being developed for track maintenance?

Yes, several new technologies are emerging in the field of track maintenance. These include the use of drones for aerial inspections, AI-powered image analysis for defect detection, and predictive maintenance systems that use IoT sensors to monitor track conditions in real-time.

5. How does track maintenance impact train speed and safety?

Proper track maintenance is crucial for both speed and safety. Well-maintained tracks allow trains to operate at their designed speeds, reducing travel times and improving efficiency. From a safety perspective, regular maintenance helps prevent derailments, reduces wear on rolling stock, and ensures smoother rides for passengers.

China Railway Track Maintenance Equipment Supplier

When it comes to sourcing high-quality railway track maintenance equipment, Tiannuo Machinery stands out as a leading manufacturer and supplier in China. With a comprehensive range of products tailored to meet the diverse needs of the railway industry, Tiannuo Machinery offers solutions for every aspect of track maintenance.

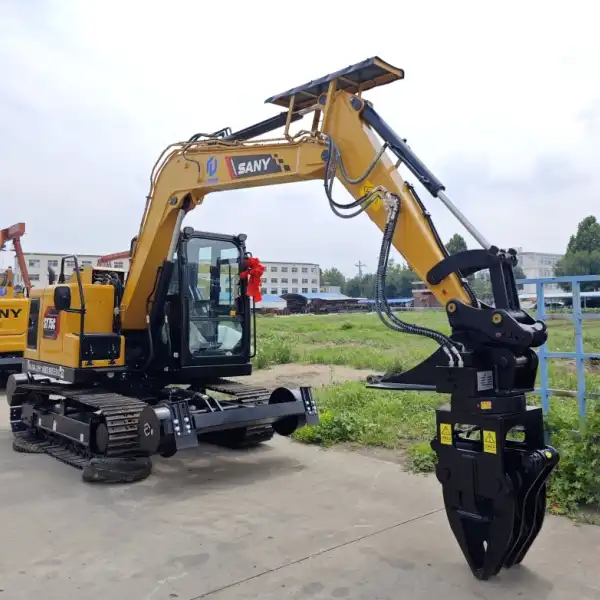

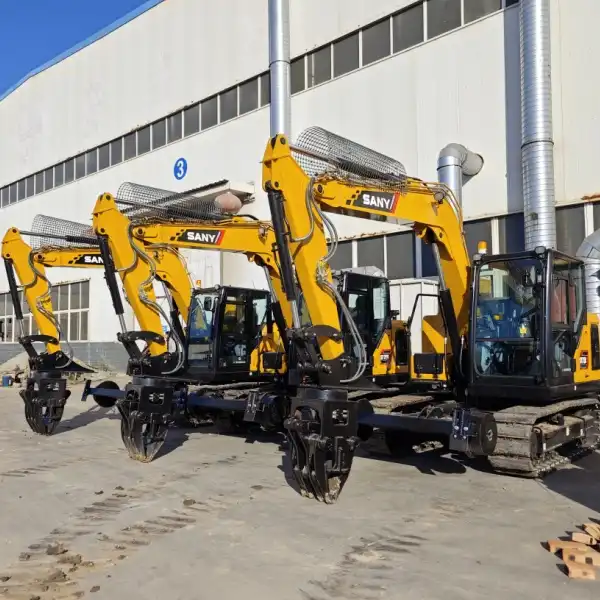

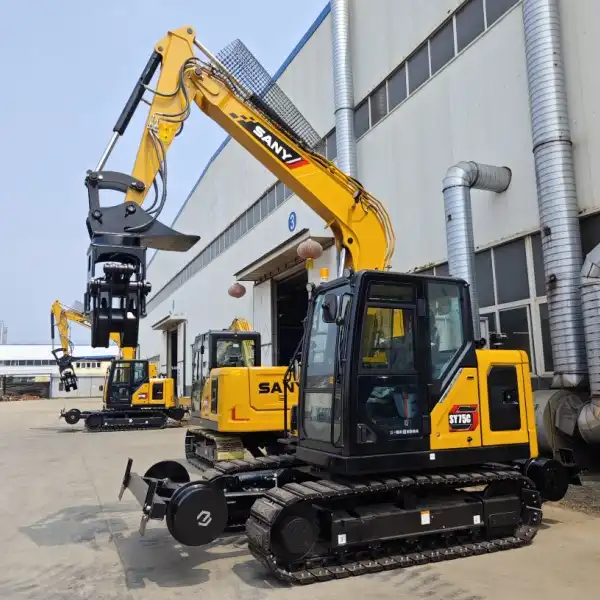

Our product line includes essential equipment such as railway sleeper changing machines, ballast screening machines, and tamping machines. We also provide specialized tools like sleeper clamps and rail clamps for precise maintenance work. For larger projects, our rotating tilting bucket ballast screening buckets offer efficient material handling capabilities.

Beyond traditional railway equipment, Tiannuo Machinery excels in excavator modifications, offering solutions like lifting cabs and extended arms that enhance versatility in maintenance operations. Our range of excavator accessories, including various bucket types and attachments, ensures that maintenance teams have the right tool for every job.

At Tiannuo Machinery, we understand the critical nature of railway maintenance and the importance of reliable, high-performance equipment. Our commitment to quality, competitive pricing, and customization capabilities makes us an ideal partner for railway maintenance projects of all scales.

Interested in learning more about our railway maintenance equipment or need a customized solution? We're here to help. Contact us at raymiao@stnd-machinery.com to discuss your specific requirements and receive a tailored quotation.

References

1. Federal Railroad Administration. (2021). Track and Rail and Infrastructure Integrity Compliance Manual.
2. International Union of Railways. (2020). Best Practices in Track Maintenance and Renewal.
3. American Railway Engineering and Maintenance-of-Way Association. (2019). Manual for Railway Engineering.
4. Network Rail. (2022). Track Maintenance Handbook.
5. Journal of Rail and Rapid Transit. (2021). Advances in Railway Track Inspection Technologies.
6. Transportation Research Board. (2020). Guidebook for Railway Asset Management.
