How deep can a long reach excavator dig?
Long reach excavators, also known as long boom excavators, are capable of digging depths that far exceed standard excavator models. These specialized machines can reach depths of up to 100 feet or more, depending on various factors such as arm configuration and soil conditions. The impressive digging capabilities of long boom excavators make them invaluable assets in construction, mining, and dredging operations where deep excavation is required.
Factors Determining Digging Depth
The maximum digging depth of a long reach excavator is influenced by several key factors. Understanding these elements is crucial for project managers and operators to maximize the efficiency and effectiveness of their excavation operations.
Excavator Arm Length and Configuration
The primary factor determining how deep a long reach excavator can dig is the length and configuration of its arm. Long boom excavators are designed with extended arms that can be customized to reach greater depths. These arms typically consist of a main boom, stick, and bucket, with some models featuring additional sections for increased reach.
Manufacturers offer various arm configurations, allowing for customization based on specific project requirements. Some long-reach excavators can be equipped with telescopic booms, providing even greater flexibility in reaching deep excavation points.
Soil Conditions and Ground Stability
The type of soil and ground stability significantly impact the digging depth of a long reach excavator. Loose or unstable soil can limit the maximum depth due to safety concerns and the risk of cave-ins. In contrast, compact and stable soil conditions allow for deeper excavation.
Operators must carefully assess the soil composition and stability before determining the safe digging depth. In some cases, additional measures such as shoring or benching may be necessary to ensure safe deep excavation operations.
Machine Power and Hydraulic Capacity
The power output of the excavator's engine and the capacity of its hydraulic system play crucial roles in determining digging depth. More powerful machines can generate the necessary force to dig deeper and handle heavier loads at extended reaches.
Advanced hydraulic systems in modern long-reach excavators provide precise control and enhanced lifting capacities, allowing operators to work efficiently at greater depths. The hydraulic pressure and flow rates must be optimized to maintain performance as the arm extends to its maximum reach.
Typical Digging Depth Ranges
Standard Long Reach Excavators: 30-60 Feet
Most standard long reach excavators available in the market can achieve digging depths between 30 to 60 feet. These machines are commonly used in construction projects, land reclamation, and general earthmoving operations where extended reach is required.
The exact digging depth within this range depends on the specific model and configuration. For instance, a 30-ton class long reach excavator might offer a digging depth of around 40 feet, while a larger 50-ton model could reach depths of up to 55 feet or more.
Specialized Models: Reaching 70-100+ Feet
For projects that demand even greater digging depths, specialized long-reach excavators are available that can reach depths of 70 feet to over 100 feet. These machines are often custom-built or heavily modified to achieve such extreme depths.
These ultra-long reach excavators are typically employed in specialized applications such as deep foundation work, underwater excavation, or large-scale mining operations. Their extended reach capabilities make them invaluable for projects where standard equipment falls short.
Comparing Long Reach to Standard Excavators
To put the digging capabilities of long reach excavators into perspective, it's helpful to compare them with standard excavator models. A typical standard excavator might have a maximum digging depth of 15 to 25 feet, depending on its size class.
Long-reach excavators can easily double or triple this depth, offering significant advantages in projects requiring deep excavation. This extended reach not only allows for deeper digging but also provides greater flexibility in positioning the machine, potentially reducing the need for multiple setups or additional equipment.
Customization Supports Special Needs
The versatility of long reach excavators extends beyond their standard configurations. Customization options allow these machines to be adapted for specific project requirements, further enhancing their digging capabilities and overall utility.

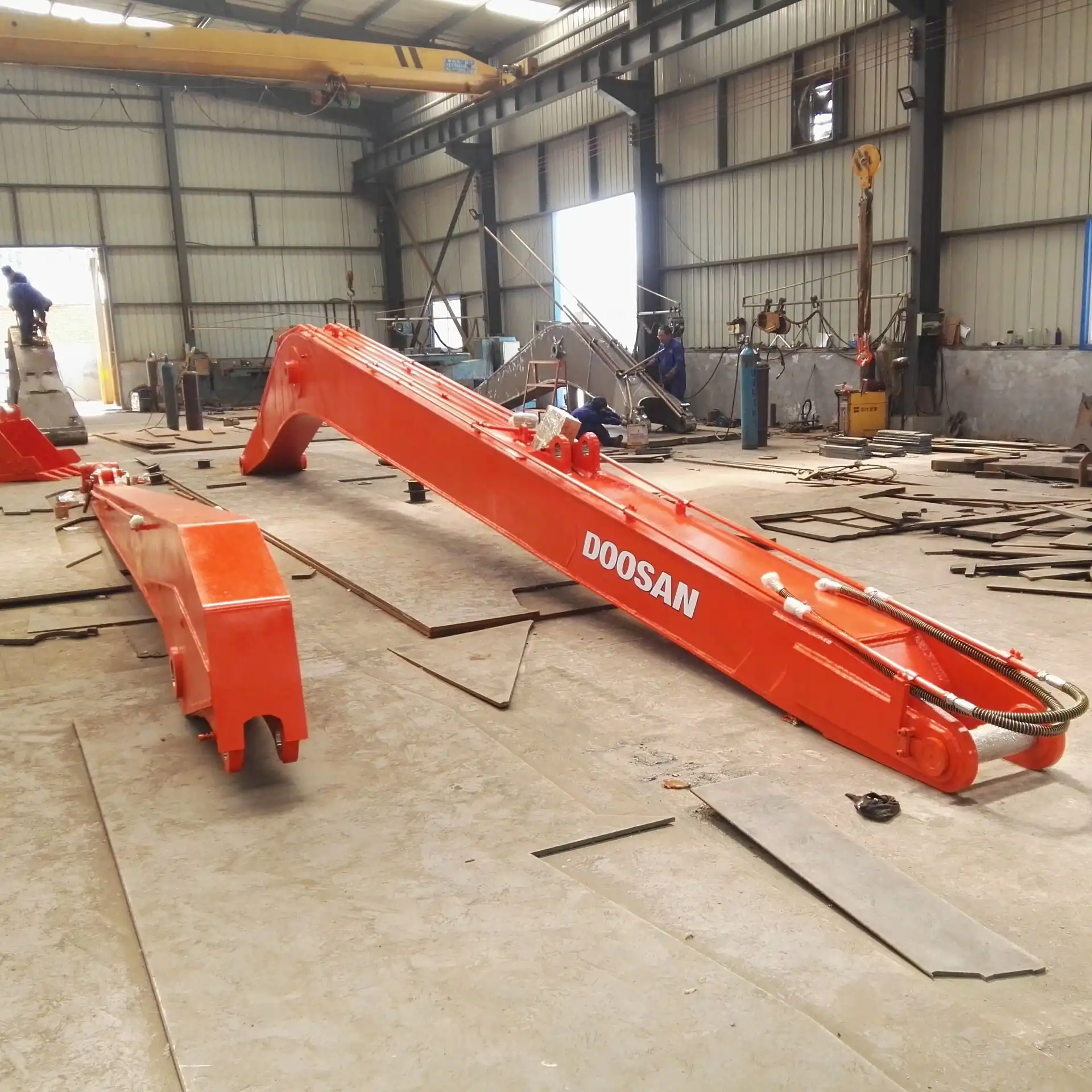

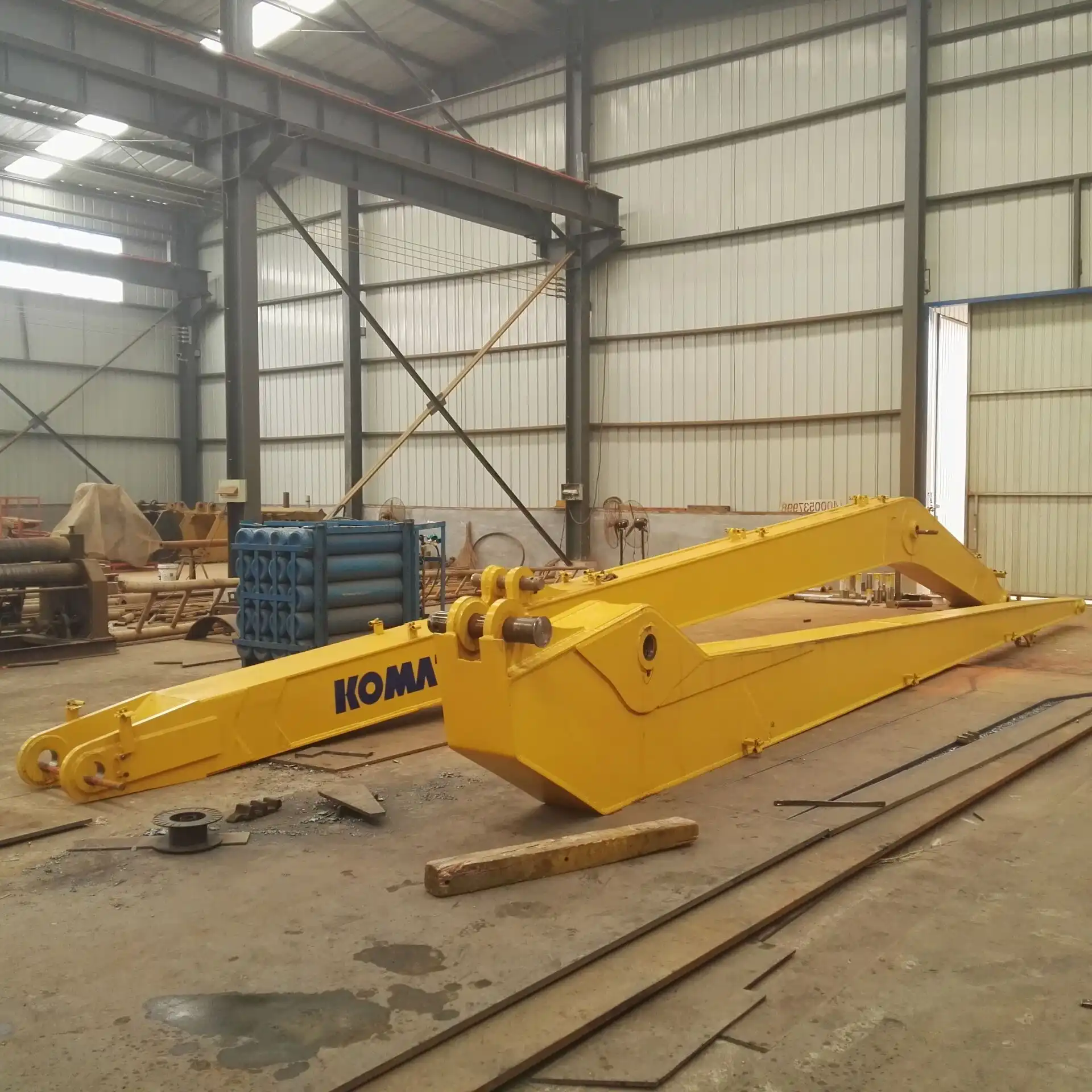

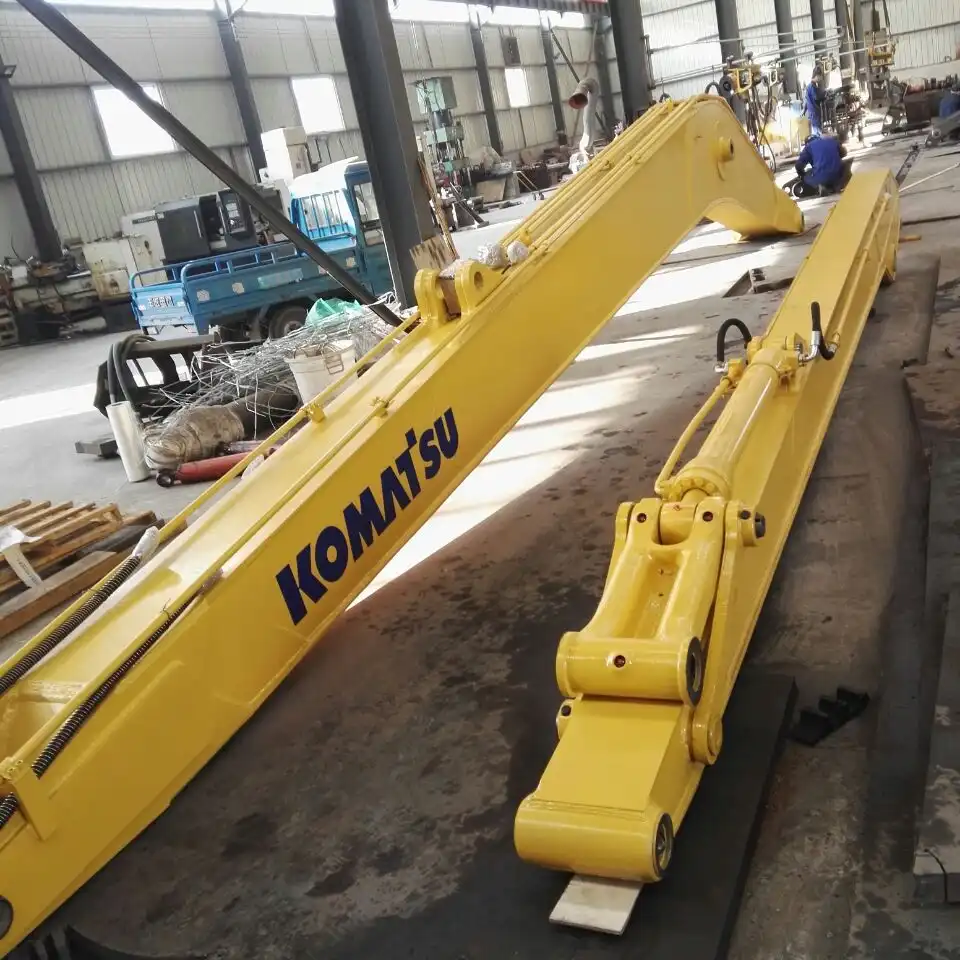

Extended Booms for Increased Reach and Depth
For projects that require even greater reach and depth than standard long-reach excavators can provide, extended booms offer a solution. These custom-designed attachments can significantly increase the machine's digging depth and horizontal reach.
Extended booms are engineered to maintain stability and lifting capacity while maximizing reach. They often incorporate additional counterweights or stability systems to ensure safe operation at extreme depths.
Adapting Excavators for Underwater Operations
Long reach excavators can be modified for underwater excavation, a specialized application that demands unique adaptations. These modifications may include sealed electrical systems, extended exhaust systems, and specialized hydraulic components designed to operate in submerged conditions.
Underwater-capable long-reach excavators are invaluable in dredging operations, underwater construction, and marine salvage projects. They can reach depths that would be impossible or impractical for divers or other underwater equipment.
Industry-Specific Modifications for Optimal Digging
Different industries often require specific modifications to long reach excavators to optimize their performance for particular tasks. For example, in the mining industry, excavators might be equipped with reinforced buckets and arms to handle abrasive materials.
In demolition work, long reach excavators can be fitted with specialized attachments such as crushers or shears, allowing them to reach and dismantle tall structures safely. These industry-specific modifications ensure that long-reach excavators can perform efficiently across a wide range of applications.
Long reach excavators have revolutionized deep excavation capabilities in various industries. With the ability to dig depths ranging from 30 to over 100 feet, these machines offer unparalleled versatility and efficiency. The exact digging depth depends on factors such as arm configuration, soil conditions, and machine specifications. As technology advances, we can expect even greater digging depths and improved performance from these remarkable machines, further expanding their applications in complex construction and earthmoving projects.
FAQ
1. What is the maximum reach of a long boom excavator?
The maximum reach of a long boom excavator can vary significantly depending on the model and configuration. Standard long reach excavators typically have a maximum horizontal reach of 40 to 80 feet, while specialized models can extend beyond 100 feet.
2. How does soil type affect the digging depth of a long reach excavator?
Soil type greatly influences digging depth. Loose or sandy soils may limit depth due to stability concerns, while compact, stable soils allow for deeper excavation. Operators must assess soil conditions to determine safe digging depths.
3. Can long reach excavators be used for underwater operations?
Yes, long-reach excavators can be adapted for underwater operations with appropriate modifications. These include sealed electrical systems, extended exhaust systems, and specialized hydraulic components designed to function in submerged conditions.
4. How do long reach excavators maintain stability at maximum depth?
Long-reach excavators maintain stability through a combination of counterweights, wider tracks, and advanced hydraulic systems. Some models also use outriggers or stability control systems to ensure safe operation at extreme depths.
5. What industries benefit most from long reach excavators?
Long reach excavators are particularly valuable in construction, mining, dredging, demolition, and land reclamation industries. They excel in projects requiring deep excavation, extended reach, or work in challenging environments where standard excavators are insufficient.
Long Arm Excavator For Sale
Tiannuo Machinery offers a comprehensive range of long arm excavators designed to meet the diverse needs of the construction, mining, and demolition industries. Our product line includes specialized equipment for railway maintenance, excavator modifications, and engineering arms. We provide long boom excavators with extended reach capabilities, perfect for deep excavation and precise operations in confined spaces.
Our long arm excavators feature arm lengths of up to 18000mm, with maximum reach distances of 17300mm and digging depths of 12200mm. These machines are equipped with bucket capacities ranging from 0.4m³ to 0.5m³, ensuring optimal performance for various applications. For detailed specifications and customization options, contact us at raymiao@stnd-machinery.com. Tiannuo Machinery is committed to delivering high-quality, efficient, and reliable long reach excavators to meet your project requirements.
