How do the dimensions of the railway excavator ballast plow affect clearing coverage?
The dimensions of a railway excavator ballast plow play a crucial role in determining its clearing coverage and overall efficiency. A well-designed ballast plow attached to an excavator can significantly improve track maintenance operations by effectively redistributing ballast material. The plow's width, height, and depth directly impact its ability to clear and shape ballast along the rail corridor. Wider plows can cover more area in a single pass, while taller designs may offer better material containment. The depth of the plow affects how thoroughly it can penetrate and move ballast. By optimizing these dimensional aspects, railway maintenance teams can enhance their productivity and ensure proper track support and drainage.
Balancing size and maneuverability in plow design
Optimal plow width for efficient ballast clearing
When it comes to railway excavator ballast plows, finding the right balance between size and maneuverability is essential for maximizing clearing efficiency. The width of the plow is a critical factor in determining how much area can be covered in a single pass. Wider plows can clear larger sections of ballast quickly, reducing the number of passes required to complete a maintenance task. However, it's important to consider the constraints of the railway environment.
Typically, ballast plows range from 2 to 3 meters in width, depending on the specific application and track gauge. A wider plow can be advantageous on straight sections of track, where maneuverability is less of a concern. For instance, a 2.8-meter wide plow can efficiently clear ballast across the entire track bed and shoulder areas in one sweep. This increased coverage can lead to significant time savings during maintenance operations.
Impact of plow height on excavator stability
The height of a ballast plow is another crucial dimension that affects both its clearing capacity and the stability of the excavator it's attached to. A taller plow can move larger volumes of ballast and provide better containment of material during clearing operations. However, excessive height can lead to stability issues, especially when working on uneven terrain or around curves.
Most railway excavator ballast plows have heights ranging from 0.8 to 1.2 meters. This range allows for effective ballast movement while maintaining a low center of gravity for the excavator. A well-designed plow with a height of around 1 meter can offer an optimal balance between clearing capacity and machine stability, ensuring safe and efficient operations along the rail corridor.
Weight considerations for railway excavator plows
The weight of a ballast plow is closely tied to its dimensions and has a significant impact on the excavator's performance and fuel efficiency. Heavier plows can provide more downward force for better penetration into compacted ballast, but they also increase the overall weight of the excavator, potentially reducing its mobility and increasing fuel consumption.
Manufacturers often use high-strength alloy materials to create plows that are both durable and relatively lightweight. A well-designed plow for a 10-15 ton excavator might weigh between 800 to 1200 kg, depending on its dimensions and features. This weight range allows for effective ballast manipulation without overly burdening the host machine.
Width vs. depth: Optimizing clearing dimensions
Maximizing ballast removal with wider plow designs
As we delve deeper into the relationship between width and depth in railway excavator ballast plow design, it's clear that wider plows offer distinct advantages in terms of clearing coverage. A wider plow can effectively redistribute larger volumes of ballast material in a single pass, which is particularly beneficial during major track maintenance or renewal projects. For example, a plow with a width of 2.8 meters can easily span the entire track bed, including both rails and the areas immediately adjacent to them.
However, it's important to note that increasing the width of a ballast plow isn't always the best solution. Wider plows may encounter challenges when working in areas with limited clearance, such as tunnels or sections with nearby structures. Additionally, excessively wide plows can be more difficult to transport between work sites and may require special permits for road travel.
Deep plowing techniques for thorough track maintenance
While width is crucial for coverage, the depth of a railway excavator ballast plow plays an equally important role in ensuring thorough track maintenance. Deep plowing techniques allow for more comprehensive ballast redistribution and can help address issues like drainage problems and vegetation growth. A plow designed for deep penetration can reach lower layers of ballast that may have become contaminated or compacted over time.
Typically, ballast plows are designed to reach depths of 15 to 30 centimeters below the track surface. This range allows for effective clearing and reshaping of the ballast profile without disturbing the underlying subgrade. Some advanced plow designs incorporate adjustable depth settings, enabling operators to tailor the plowing depth to specific maintenance requirements or track conditions.
Adjustable plow dimensions for versatile operations
To address the varying needs of different railway maintenance scenarios, many modern railway excavator ballast plows feature adjustable dimensions. These versatile designs allow operators to modify the plow's width, height, or working angle to suit specific tasks or track conditions. For instance, a plow with hydraulically adjustable wings can expand its width for open areas and retract for tighter spaces, providing optimal clearing coverage in diverse environments.
Adjustable plows also offer benefits in terms of transportation and storage. By allowing the plow to be compacted to smaller dimensions when not in use, these designs simplify logistics and reduce the need for specialized transport equipment. This flexibility can lead to significant cost savings and improved operational efficiency for railway maintenance teams.
Customizing plow dimensions for specific track types
Tailoring plows for standard and high-speed rail lines
The dimensional requirements for railway excavator ballast plows can vary significantly between standard and high-speed rail lines. High-speed tracks often demand more precise ballast profiling and stricter maintenance standards to ensure safe operation at elevated speeds. As a result, plows designed for high-speed rail maintenance may feature more refined dimensional adjustments and greater precision in their clearing capabilities.
For standard rail lines, plows with widths around 2.5 to 2.8 meters are often sufficient to cover the entire track bed. However, high-speed rail maintenance might require plows with even greater width to address the wider shoulder areas typical of these tracks. Additionally, the depth settings on plows for high-speed lines may need to be more finely tunable to achieve the exact ballast profile required for optimal track performance.
Specialized dimensions for tight curves and switches
Tight curves and switch areas present unique challenges for ballast maintenance, often requiring plows with specialized dimensions. In these situations, a narrower plow with enhanced maneuverability may be necessary to navigate the complex geometry of the track. Some manufacturers offer plows with articulated or segmented designs that can adapt to the curvature of the track, ensuring effective clearing even in tight radius turns.
For switch areas, plows may need to be designed with variable width settings or removable sections to work around the additional rail components. These specialized designs allow maintenance crews to effectively clear and shape ballast in these critical areas without damaging sensitive switch mechanisms or compromising the track structure.
Adapting plow sizes for various ballast compositions
Different types of ballast material can require adjustments to plow dimensions for optimal clearing performance. Coarser ballast, typically used on mainline tracks, may allow for wider and deeper plowing operations. In contrast, finer ballast often used in yard tracks or areas with poor drainage might necessitate shallower plowing depths to prevent excessive disturbance of the track bed.
Some advanced railway excavator ballast plows feature interchangeable blades or adjustable cutting edges to accommodate various ballast compositions. These adaptable designs allow maintenance teams to optimize their equipment for specific track sections or seasonal conditions, ensuring efficient and effective ballast management across diverse railway environments.
The dimensions of railway excavator ballast plows significantly impact clearing coverage and overall maintenance efficiency. By carefully balancing width, height, and depth, manufacturers can create plows that offer optimal performance across various track types and maintenance scenarios. The trend towards adjustable and customizable plow designs reflects the diverse needs of modern railway systems. As track maintenance technology continues to evolve, we can expect further refinements in ballast plow dimensions, leading to even more effective and efficient rail corridor management. Ultimately, the right plow dimensions contribute to safer, more reliable, and cost-effective railway operations.
FAQ
1. How often should ballast plowing be performed on railway tracks?
The frequency of ballast plowing depends on various factors such as track usage, weather conditions, and ballast type. Generally, main lines may require plowing every 3-5 years, while less-used tracks might need attention every 5-7 years. Regular inspections help determine when plowing is necessary.
2. Can ballast plows be used on electrified railway lines?
Yes, ballast plows can be used on electrified lines, but special precautions must be taken. Operators need to ensure that the plow and excavator maintain a safe distance from overhead wires. Some plows are specifically designed with insulated components for use in electrified environments.
3. What is the average lifespan of a railway excavator ballast plow?
With proper maintenance, a high-quality ballast plow can last 10-15 years. However, the actual lifespan depends on factors like usage frequency, operating conditions, and the quality of materials used in construction. Regular inspections and timely repairs can significantly extend a plow's service life.
4. How does ballast plowing compare to other methods of track bed maintenance?
Ballast plowing is generally more efficient for large-scale maintenance compared to manual methods. It's faster than individual ballast tamping but less precise than ballast cleaning machines. Plowing is ideal for redistributing ballast and improving drainage, while other methods might be better for removing contaminated ballast or precise profile adjustments.
5. Are there environmental considerations when using ballast plows?
Yes, there are environmental aspects to consider. Ballast plowing can help reduce the need for new ballast material, conserving resources. However, care must be taken to prevent excessive dust generation and to avoid disturbing sensitive ecosystems along rail corridors. Some modern plows incorporate dust suppression systems to minimize environmental impact.
Railway Excavator Ballast Plow Supplier
Tiannuo Machinery stands at the forefront of railway maintenance equipment manufacturing, offering a comprehensive range of solutions. Our product line extends beyond plows to include sleeper changing machines, screening equipment, and tamping machines, all designed to meet the diverse needs of the railway construction and maintenance sector. We pride ourselves on delivering innovative excavator modifications and accessories that enhance operational efficiency and safety.

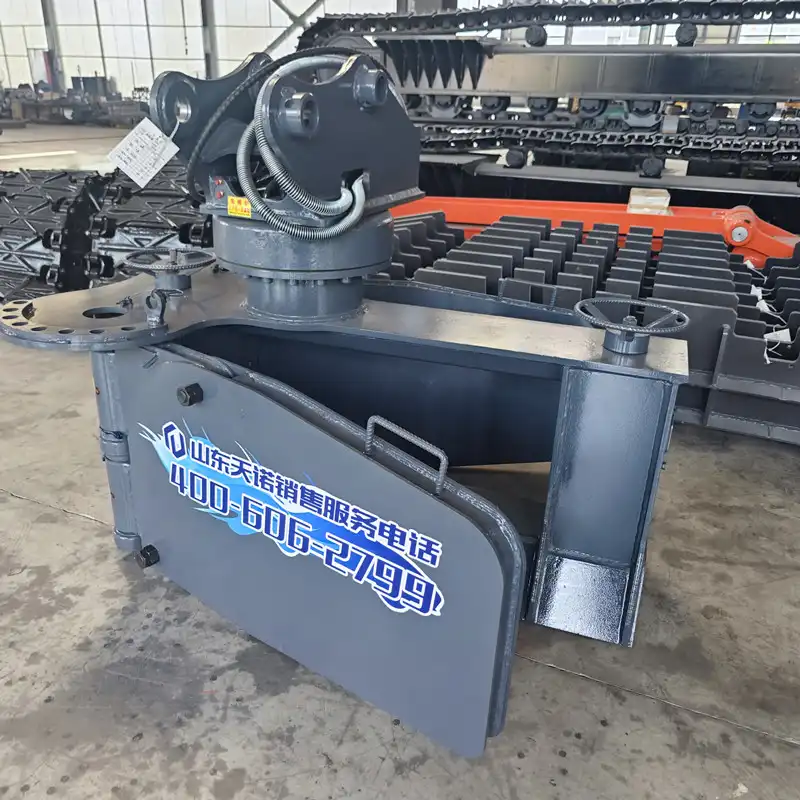

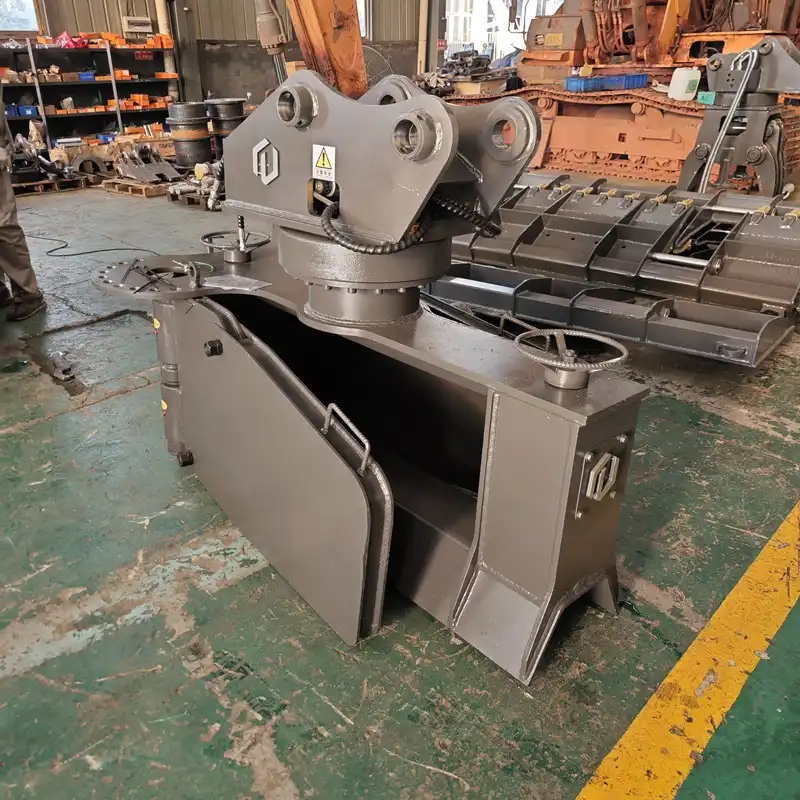

Our railway excavator ballast plows are engineered for peak performance, suitable for 7-15 ton excavators and capable of clearing and shaping ballast both between tracks and alongside rails. With a maximum width of 2814mm and a height of 1096mm, these plows offer exceptional coverage while maintaining maneuverability. The 360° rotation capability and adjustable working angle provide versatility in various track maintenance scenarios. Constructed from high-strength alloy plates and operated via hydraulic control, our plows ensure durability and precise manipulation of ballast material.
At Tiannuo Machinery, we understand the critical nature of railway maintenance and the importance of reliable equipment. That's why we offer not just products, but comprehensive solutions tailored to your specific needs. For more information about our ballast plows or to discuss your track maintenance requirements, contact us at boom@stnd-machinery.com. Our team of experts is ready to help you optimize your railway maintenance operations with our cutting-edge equipment.
References
- Mundrey, J.S. (2017). Railway Track Engineering. New Delhi: Tata McGraw-Hill Education.
- Esveld, C. (2001). Modern Railway Track (2nd ed.). MRT-Productions.
- Selig, E.T., & Waters, J.M. (1994). Track Geotechnology and Substructure Management. Thomas Telford.
- Ackerman, F.J. (2018). Railway Maintenance Equipment: Evolution and Application. Transportation Research Board.
- International Railway Journal. (2022). Advances in Ballast Maintenance Technology. IRJ, 62(5), 45-48.
- Railway Track and Structures Magazine. (2021). Optimizing Ballast Plow Design for Modern Rail Networks. RT&S, 117(3), 22-26.
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company.
