How does an excavator ballast cleaning hopper work?
An excavator ballast cleaning hopper operates through a sophisticated three-stage process that transforms contaminated railway ballast into clean, reusable material. This specialized attachment connects to rail-capable excavators and works by excavating ballast from beneath railway tracks, separating clean stones from debris through internal screening mechanisms, and discharging the cleaned material back onto the track bed. The hopper utilizes hydraulic power from the excavator's system to drive rotating screens or vibrating sieves that effectively remove fines, dirt, vegetation, and other contaminants while preserving the angular geometry of quality ballast stones. Throughout the operation, contaminated material gets expelled through designated discharge ports while clean ballast returns to strengthen the track foundation. This continuous process ensures railway lines maintain proper drainage, structural integrity, and operational safety standards essential for modern rail transportation systems.
Installation And Adaptation Stage
The initial phase of deploying an excavator ballast cleaning hopper involves precise mounting and system integration with the host excavator. Rail maintenance crews begin by securing the hopper attachment to the excavator's quick-coupler system, ensuring proper hydraulic connections that will power the screening mechanisms throughout the cleaning operation.
Hydraulic System Integration
Modern ballast cleaning hoppers require direct connection to the excavator's hydraulic circuit to operate their internal screening components. The attachment draws hydraulic fluid through dedicated lines that power rotating drums, vibrating screens, or mechanical separators depending on the hopper design. Operators must verify proper hydraulic pressure levels and flow rates before beginning work, as insufficient power can compromise screening efficiency and reduce the quality of cleaned ballast output.
Quick-Coupler Compatibility Assessment
Railway maintenance teams evaluate the compatibility between their excavator's quick-coupler system and the ballast cleaning hopper's mounting bracket. Most professional-grade hoppers feature universal mounting systems that accommodate various excavator models, but proper fit verification prevents operational delays and safety hazards. The mounting process involves aligning hydraulic couplers, securing mechanical locks, and testing the attachment's stability under working loads.
Operational Parameter Configuration
Before commencing ballast cleaning operations, operators configure the hopper's screening parameters based on the specific ballast conditions and contamination levels encountered. This includes adjusting screen mesh sizes, setting discharge gate positions, and calibrating hydraulic flow rates to optimize separation efficiency. Different railway environments may require unique parameter settings - heavily contaminated ballast needs more aggressive screening while lightly fouled material benefits from gentler processing to preserve ballast integrity.
Material Collection And Separation Stage
The material collection and separation stage represents the core operational phase where contaminated ballast undergoes transformation into clean, reusable railway foundation material. During this critical process, the hopper's screening mechanism separates valuable ballast stones from unwanted debris through mechanical and hydraulic forces.
Ballast Excavation and Intake Process
Railway ballast enters the cleaning hopper through controlled excavation actions that target specific track sections requiring maintenance. The excavator operator maneuvers the hopper to scoop contaminated ballast from beneath railway sleepers, collecting material that has accumulated fines, organic matter, and other contaminants over time. This excavation process requires precision to avoid damaging track infrastructure while gathering sufficient material for efficient processing cycles.
Internal Screening Mechanisms
Once ballast material enters the excavator ballast cleaning hopper, internal screening components begin separating clean stones from contaminants through size-based filtration. The ballast material is excavated, the material is screened to separate ballast from spoil, the cleaned ballast is returned to the track and the spoil is taken away. Rotating drum screens or vibrating sieves create controlled agitation that allows clean ballast to pass through while retaining oversized debris and allowing fine particles to fall through smaller openings. The screening action depends on hydraulic power that maintains consistent separation forces throughout the cleaning cycle.
Contamination Removal Technology
Advanced separation technology within the hopper targets specific types of contamination commonly found in railway ballast beds. Ballast screening machines are equipped to effectively remove contaminants from the ballast. These contaminants, such as debris, dirt, and vegetation, are efficiently separated and disposed of aside from the track or into designated rolling stock. The screening process removes fine particles, vegetation, mud, and other materials that reduce ballast effectiveness while preserving the angular characteristics of quality stones that provide track stability and drainage.
Clean Ballast Discharge And Circulation Operation Stage
The final operational stage involves precise discharge of cleaned ballast material and establishment of continuous circulation patterns that maximize cleaning efficiency. This stage determines the overall effectiveness of the ballast cleaning operation and directly impacts track quality improvements.
Controlled Discharge Mechanisms
Clean ballast exits the hopper through carefully designed discharge mechanisms that control material flow and placement accuracy. Hydraulic or gravity-fed discharge systems release cleaned stones at predetermined rates, allowing operators to distribute material evenly across track sections. The discharge process can be adjusted based on track geometry requirements and the volume of cleaned material available for redistribution.
Spoil Material Management
Contaminated material removed during the screening process requires proper disposal to prevent recontamination of cleaned ballast. The excavator ballast cleaning hopper separates spoil material into designated collection areas or directs it away from active track zones through dedicated discharge ports. Shoulder ballast cleaning consists of removing ballast at the end of the ties, screening the ballast and discarding fines and fouling material and restoring the good ballast to the shoulder. Effective spoil management ensures that removed contaminants don't return to the track bed and compromise cleaning results.
Continuous Operation Optimization
Railway maintenance crews optimize the cleaning cycle by establishing efficient material circulation patterns that minimize downtime and maximize productivity. This involves coordinating excavation, screening, and discharge activities to maintain steady material flow through the hopper system. Operators monitor screening efficiency, adjust hydraulic parameters, and modify working patterns based on ballast conditions and cleaning requirements. The continuous operation approach allows maintenance teams to process large volumes of ballast while maintaining consistent cleaning quality standards.
FAQ
①What types of excavators can use ballast cleaning hoppers?
Rail-wheel excavators and dual-mode machines compatible with quick-coupler systems work best with ballast cleaning hoppers. The excavator must provide adequate hydraulic power to operate the screening mechanisms effectively.
②How much ballast can be processed per hour?
Processing capacity depends on contamination levels and hopper design, but typical units handle 50-150 cubic meters per hour under normal operating conditions.
③What screen sizes are available for different ballast types?
Screen mesh sizes range from 20mm to 65mm depending on ballast specifications and contamination types. Adjustable screens allow operators to customize separation based on specific cleaning requirements.
④Can the hopper work on curved track sections?
Yes, modern ballast cleaning hoppers are designed to work on curved track sections with proper operator technique and excavator positioning.
⑤What maintenance is required for ballast cleaning hoppers?
Regular maintenance includes screen cleaning, hydraulic system inspection, wear plate replacement, and lubrication of moving components to ensure optimal performance.
Choose TianNuo for Your Railway Maintenance Equipment Needs

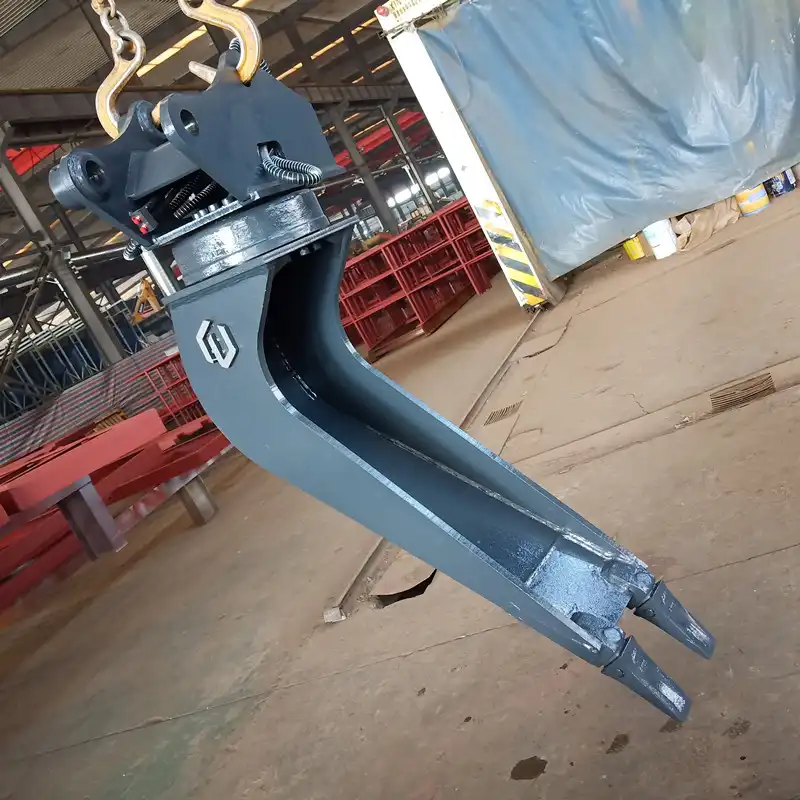

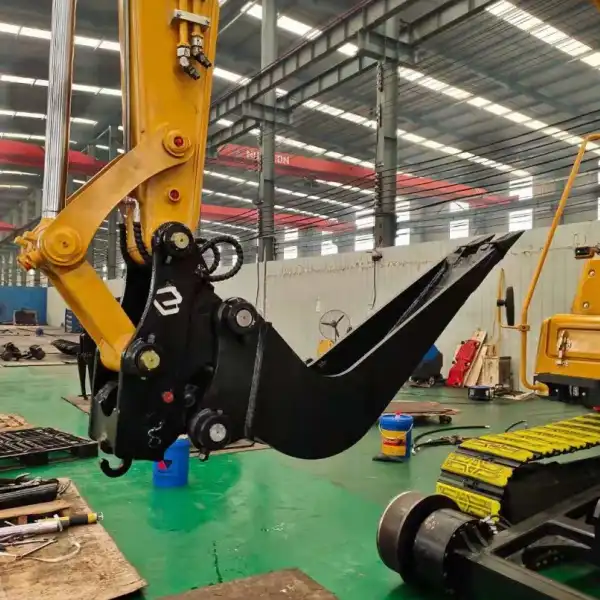

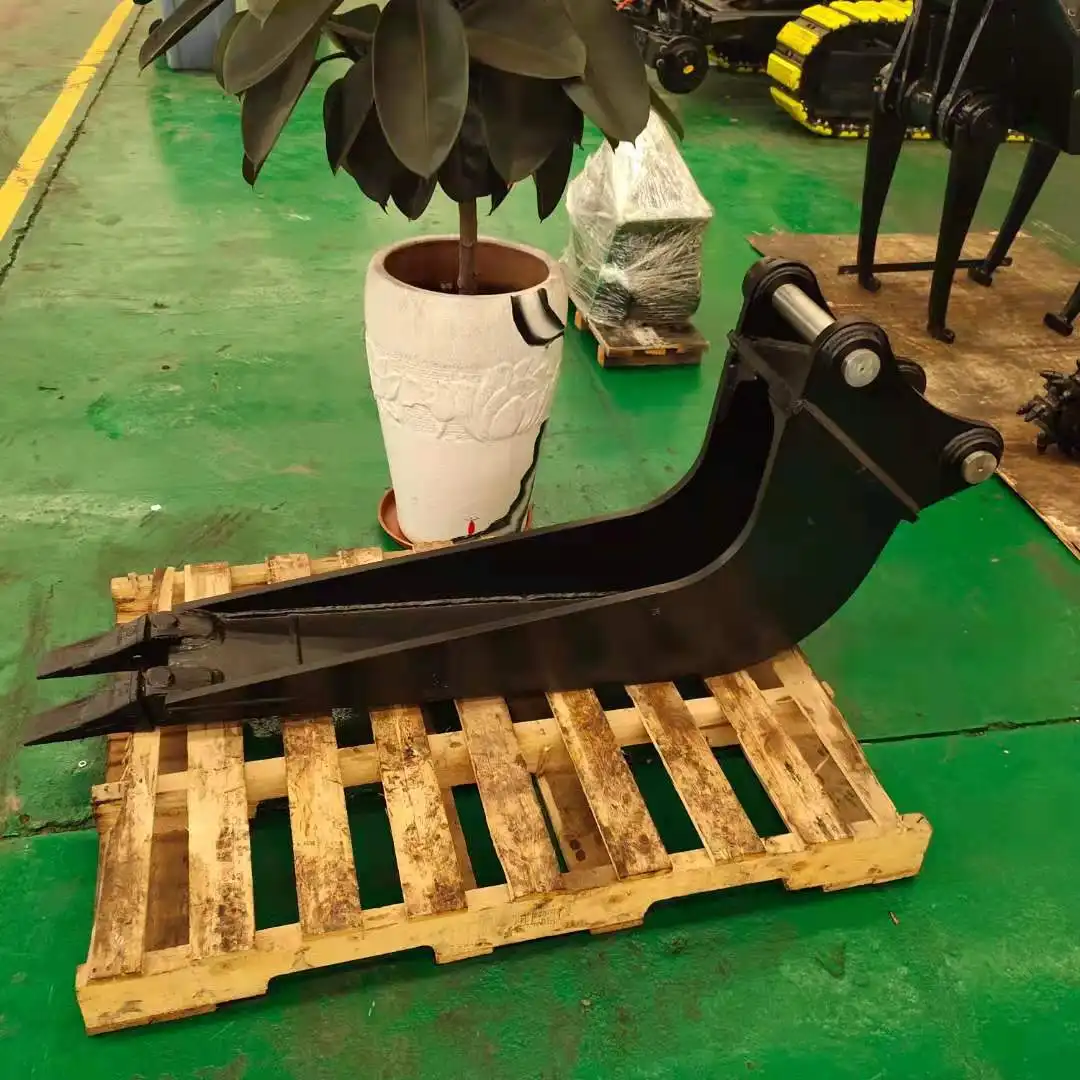

TianNuo's excavator ballast cleaning hopper offers superior performance through innovative design and robust construction. Our hoppers feature two distinct types - rotary and mechanical - each engineered to clean ballast between sleepers and quickly remove contaminated material from beneath steel rail slabs.
Built with wear-resistant steel and reinforced structure, TianNuo hoppers deliver exceptional durability in demanding railway environments. The quick-coupler compatibility ensures seamless integration with most rail excavators, while adjustable ballast output sizes accommodate various project requirements. Our hydraulic or gravity discharge systems provide operators with flexible control over material placement and flow rates.
The removable mesh or rotating shaft screen design allows for easy maintenance and customization based on specific ballast conditions. With hydraulic control systems that integrate with excavator power sources, TianNuo hoppers optimize operational efficiency while minimizing fuel consumption and maintenance costs.
Our custom design support ensures that each hopper meets specific project requirements, while anti-corrosion and weatherproof coating treatments protect your investment in harsh operating conditions. TianNuo's commitment to quality and customer satisfaction makes us the preferred choice for railway maintenance professionals worldwide.
TianNuo Construction Machinery Co., Ltd specializes in producing high-quality railway maintenance equipment and excavator attachments suitable for large, medium, and small excavators. Our comprehensive product range and expert engineering support help maintenance teams achieve superior results in railway ballast cleaning operations.
Ready to enhance your railway maintenance capabilities with professional-grade ballast cleaning equipment? Contact our technical team to discuss your specific requirements and discover how TianNuo's innovative solutions can improve your operational efficiency. For detailed product specifications and customization options, reach out to us at raymiao@stnd-machinery.com.
