How does an excavator high frequency screening bucket work?

February 26, 2025

Excavator high frequency screening buckets have revolutionized the construction and mining industries by significantly improving material processing efficiency. These innovative attachments combine the functionality of traditional excavator buckets with advanced screening technology, allowing operators to sort and separate materials directly on-site.

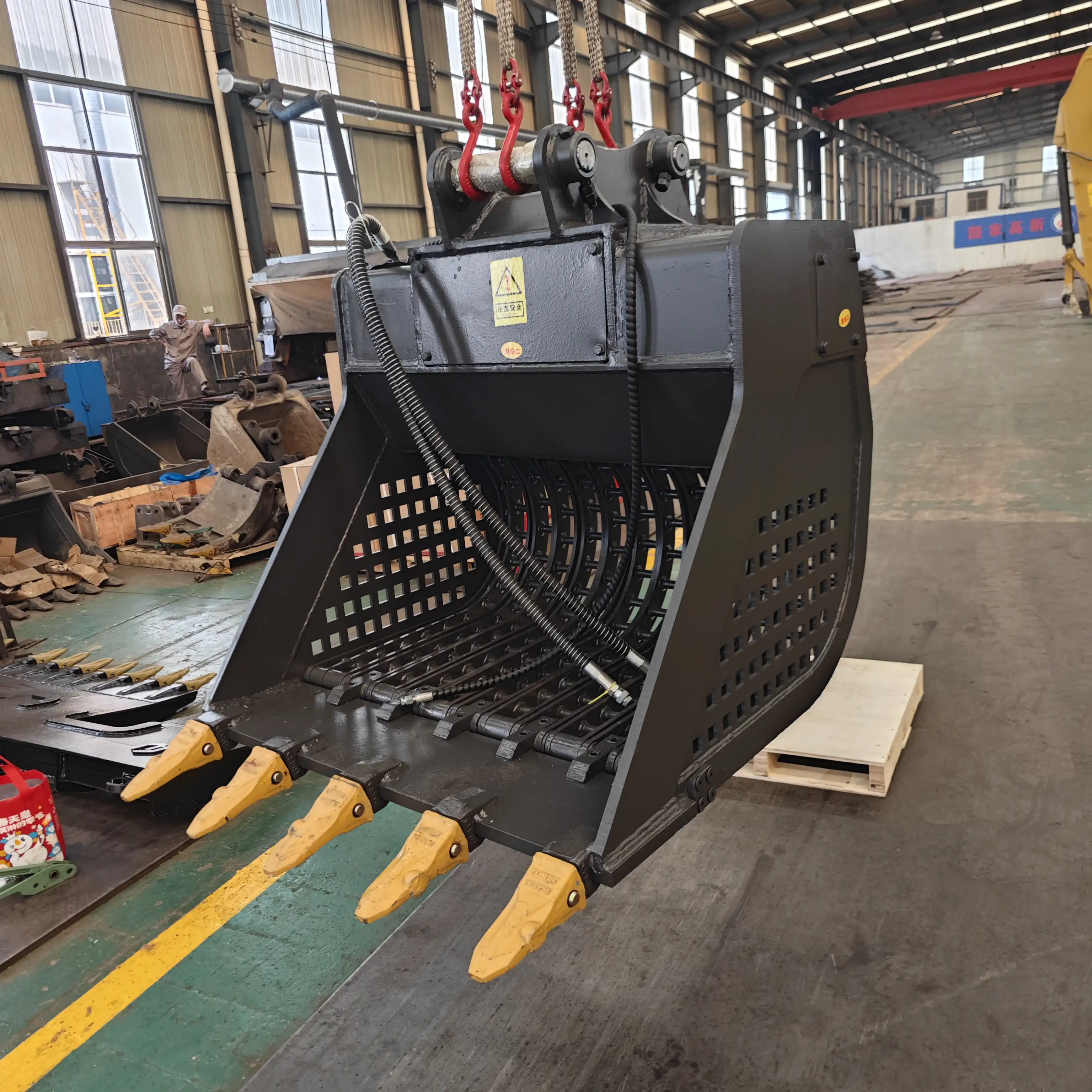

blog-3072-3072

High Frequency Vibration: The Core of Screening Efficiency

At the heart of an excavator high frequency screening bucket's operation is its vibration mechanism. Unlike conventional screening methods, these buckets utilize high-frequency vibrations to effectively separate materials. The vibration is typically generated by a hydraulic motor, which powers an eccentric shaft or a similar mechanism within the bucket.

The high-frequency vibrations, often exceeding 24 Hz (cycles per second), create rapid, small-amplitude movements in the screening mesh. This vibration causes the material to "dance" on the screen surface, effectively separating smaller particles from larger ones. The amplitude of these vibrations usually ranges from 1.0 to 2.5 mm, striking a balance between effective screening and material flow.

The combination of high frequency and controlled amplitude is crucial for efficient screening. It allows for the processing of a wide range of materials, from fine sand to larger aggregates, without clogging or damaging the screen. This versatility makes excavator high frequency screening buckets valuable assets in various applications, from construction site preparation to recycling operations.

High Efficiency Screening: Maximizing Productivity

Excavator high frequency screening buckets are designed to maximize screening efficiency, offering several advantages over traditional screening methods. The high-frequency vibrations enable rapid material separation, significantly reducing the time required to process large volumes of material.

One of the key features contributing to the high efficiency of these buckets is the interchangeable screen design. Operators can easily swap out screens with different aperture sizes to accommodate various material requirements. This flexibility allows for quick adaptation to different job specifications without the need for additional equipment or time-consuming setup changes.

The bucket's design also incorporates advanced features to prevent clogging and ensure continuous operation. Many models include self-cleaning mechanisms, such as cross-line rubbing and tooth vibration, which help to dislodge stubborn materials and maintain optimal screening performance. This self-cleaning capability is particularly useful when dealing with wet or sticky materials that might otherwise impede the screening process.

Furthermore, the integration of high-performance materials in the bucket's construction contributes to its efficiency and durability. Many manufacturers use high-strength steel plates welded with mortise and tenon joints, ensuring structural integrity even under demanding conditions. The use of maintenance-free shafts and bearings extends the operational lifespan of the bucket, reducing downtime and maintenance costs.

How does a high frequency screening bucket improve excavation operations?

The integration of high frequency screening buckets into excavation operations brings about numerous improvements in efficiency, cost-effectiveness, and environmental impact. Here's how these innovative attachments enhance the overall excavation process:

1. On-site material processing: One of the most significant advantages of using a high frequency screening bucket is the ability to process materials directly on-site. This eliminates the need for separate screening equipment and reduces transportation costs associated with moving materials to and from processing facilities. By enabling immediate sorting and grading of excavated materials, these buckets streamline the entire operation, saving both time and resources.

2. Increased productivity: The high-speed vibration mechanism allows for rapid material separation, significantly boosting productivity compared to traditional methods. Operators can quickly sort through large volumes of material, separating usable aggregates from waste or fines. This increased efficiency translates to faster project completion times and improved resource utilization.

3. Versatility in material handling: Excavator high frequency screening buckets are capable of handling a wide range of materials, from fine sand to larger aggregates. The ability to easily change screen sizes allows operators to adapt to different material requirements without switching equipment. This versatility makes these buckets invaluable in diverse applications, including construction, landscaping, and recycling.

4. Reduced equipment and labor costs: By combining excavation and screening functions in a single attachment, high frequency screening buckets reduce the need for additional machinery on-site. This consolidation of equipment not only lowers initial investment costs but also decreases ongoing operational expenses, including fuel consumption and maintenance. Additionally, the efficiency of these buckets can potentially reduce labor requirements, further contributing to cost savings.

5. Enhanced material quality control: The precise screening capabilities of high frequency buckets allow for better control over material quality. Operators can ensure that only appropriately sized materials are used in specific applications, improving the overall quality of construction or landscaping projects. This level of control can be particularly beneficial in projects with strict material specifications.

6. Environmental benefits: By enabling on-site material processing and recycling, high frequency screening buckets contribute to reduced waste and more sustainable construction practices. They allow for the reuse of materials that might otherwise be discarded, minimizing the environmental impact of excavation operations. Additionally, the reduced need for material transportation leads to lower carbon emissions associated with the project.

7. Improved site management: The ability to process and sort materials on-site helps in better management of excavation areas. It allows for more efficient use of space, as sorted materials can be immediately stockpiled or used as needed. This improved organization can lead to safer work environments and more streamlined project workflows.

8. Adaptability to various excavator sizes: High frequency screening buckets are available for a wide range of excavator sizes, from compact machines to larger models. This adaptability ensures that contractors of all scales can benefit from this technology, improving efficiency across various project types and sizes.

Excavator High Frequency Screening Bucket For Sale

The high frequency screening bucket represents a significant advancement in material processing technology for construction and excavation operations. Its ability to efficiently screen materials through high-frequency vibration, coupled with its versatility and on-site processing capabilities, makes it an invaluable tool for modern construction projects.

The screen cleaning machine rapidly removes impurities from ballast stone through cross-line rubbing and tooth vibration. The excavator's high-frequency bucket screens materials efficiently using a hydraulic motor for high-speed shaking. It offers significantly higher production efficiency compared to standard grid buckets. Interchangeable screens with varying apertures cater to different requirements. The machine is made of high-performance steel plates welded with mortise and tenon joints for strength. High-strength, maintenance-free shafts and bearings extend the maintenance cycle. Designed for high efficiency, small amplitude, and high screening frequency, suitable for fine material screening. Vibration frequency exceeds 24 Hz with a 1.0 to 2.5 mm amplitude for efficient material screening.

If you are choosing your excavator high frequency screening bucket manufacturer, please feel free to reach out to our manager at arm@stnd-machinery.com and the team at rich@stnd-machinery.com and tn@stnd-machinery.com. Our experienced team is ready to assist you in finding the perfect high frequency screening bucket solution for your specific needs, ensuring optimal performance and efficiency in your excavation projects.

References

  1. Zhang, L., & Wang, H. (2019). Research on vibration characteristics of high-frequency screen. IOP Conference Series: Earth and Environmental Science, 252(5), 052051.
  2. Wang, G., & Tong, X. (2020). Screening efficiency and mechanism of a linear high-frequency screen. Powder Technology, 363, 280-293.
  3. Li, Y., Liu, C., & Liu, J. (2018). Vibration analysis and optimization of screening efficiency for a linear vibrating screen. Journal of Sound and Vibration, 411, 129-147.
  4. Xiao, J., & Tong, X. (2020). Particle flow and screening characteristics of a linear high-frequency screen. Powder Technology, 360, 462-475.
  5. Dong, K. J., Yu, A. B., & Brake, I. (2009). DEM simulation of particle flow on a multi-deck banana screen. Minerals Engineering, 22(11), 910-920.
