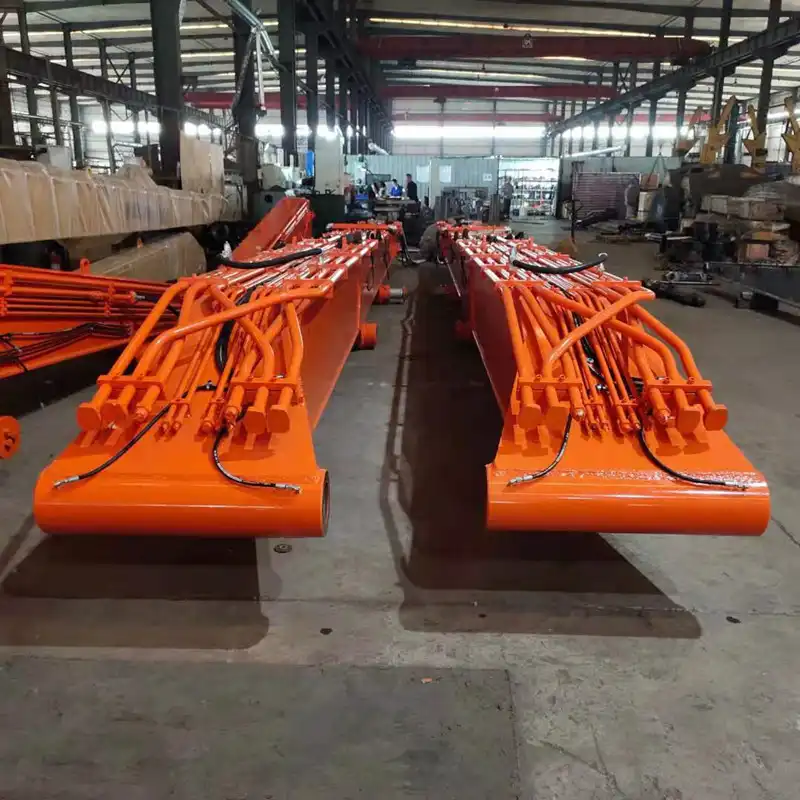

How does welding technology affect the durability of a piling arm?
Welding technology plays a crucial role in determining the durability of an excavator piling arm. The quality and precision of welding directly impact the strength, longevity, and performance of these vital components. Advanced welding techniques ensure that piling arms can withstand the extreme forces and harsh conditions encountered during deep foundation construction and soil stabilization projects. By enhancing joint integrity, reducing stress concentrations, and minimizing heat-affected zones, modern welding methods significantly extend the service life of piling arms, ultimately improving the efficiency and reliability of hydraulic excavator attachments in urban projects and other demanding applications.

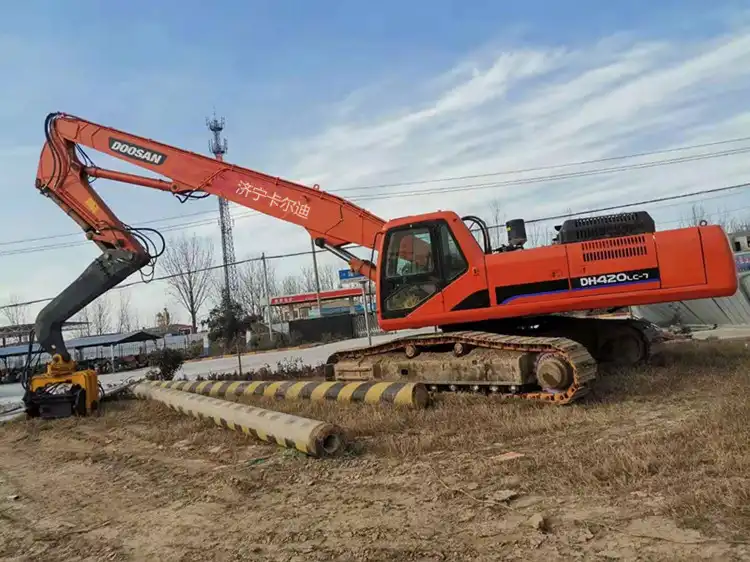

Advanced welding techniques for piling arms
Friction stir welding: Enhancing strength of piling arm seams
Friction stir welding (FSW) is an innovative solid-state joining process that has gained traction in the fabrication of excavator piling arms. Unlike traditional fusion welding methods, FSW uses frictional heat to join materials without melting them. This technique results in stronger, more durable seams that are less prone to defects.
The FSW process involves a rotating tool that generates heat through friction, softening the material at the joint interface. As the tool moves along the seam, it mechanically intermixes the materials, creating a solid-state bond. This method is particularly effective for joining high-strength alloys commonly used in piling arms, as it avoids many of the issues associated with fusion welding, such as porosity and hot cracking.
The enhanced strength of FSW joints significantly improves the overall durability of piling arms. These joints exhibit superior fatigue resistance, crucial for components subjected to repetitive stress cycles during piling operations. Additionally, the reduced heat input of FSW minimizes distortion and residual stresses, maintaining the arm's dimensional accuracy and structural integrity.
Laser welding: Minimizing heat-affected zones in arm structures
Laser welding technology offers a highly focused and controlled heat input, making it an excellent choice for fabricating piling arm components. The precision of laser welding allows for narrow, deep welds with minimal heat-affected zones (HAZ), preserving the material properties of the base metal.
The reduced HAZ is particularly beneficial for piling arms, as it helps maintain the strength and ductility of the material near the weld. This preservation of material properties is crucial in areas subject to high stress concentrations, such as connection points and load-bearing sections of the arm.
Furthermore, laser welding enables the joining of dissimilar materials and thin sections, offering design flexibility and weight reduction possibilities for piling arms. The ability to create precise, high-quality welds in various configurations contributes to the overall structural integrity and longevity of the equipment.
By implementing these advanced welding techniques, manufacturers can significantly enhance the durability and performance of excavator piling arms. The combination of robotic precision, friction stir welding strength, and laser welding's minimal heat impact results in components that can withstand the rigorous demands of deep foundation construction and soil stabilization projects.
Weld quality control: Ensuring long-term reliability
Non-destructive testing methods for piling arm weld inspection
Implementing rigorous non-destructive testing (NDT) methods is essential for ensuring the long-term reliability of piling arm welds. These techniques allow for thorough inspection without compromising the integrity of the welded components. Common NDT methods used in the piling arm industry include:
Ultrasonic Testing (UT): This method uses high-frequency sound waves to detect internal flaws, such as cracks or voids, within the weld and surrounding material. UT is particularly effective for examining thick sections and can provide detailed information about the size and location of defects.
Radiographic Testing (RT): X-rays or gamma rays are used to create images of the weld's internal structure, revealing defects like porosity or incomplete fusion. RT is valuable for inspecting complex geometries and detecting volumetric flaws.
Magnetic Particle Inspection (MPI): This technique is used to detect surface and near-surface defects in ferromagnetic materials. It's particularly useful for identifying fine cracks that might be invisible to the naked eye.
By employing these NDT methods, manufacturers can identify and address potential weld defects before the piling arms enter service, significantly reducing the risk of in-field failures and enhancing overall durability.
Stress relief techniques to prevent weld failures in piling arms
Welding processes introduce residual stresses into piling arm structures, which can lead to premature failures if not properly addressed. Stress relief techniques are crucial for mitigating these internal stresses and improving the long-term reliability of the components. Common stress relief methods include:
Post-Weld Heat Treatment (PWHT): This process involves heating the welded structure to a specific temperature and holding it for a predetermined time, followed by controlled cooling. PWHT helps redistribute residual stresses and can improve the material's microstructure, enhancing its mechanical properties.
Vibratory Stress Relief (VSR): This non-thermal method uses controlled vibrations to induce stress relaxation in the welded structure. VSR is particularly useful for large piling arms that may be challenging to heat treat conventionally.
Shot Peening: This technique involves bombarding the weld surface with small spherical media, inducing compressive stresses that can counteract tensile residual stresses from welding. Shot peening can significantly improve fatigue resistance in critical areas of piling arms.
By incorporating these stress relief techniques into the manufacturing process, producers can greatly enhance the durability and service life of excavator piling arms, reducing the likelihood of stress-related failures during operation.
Implementing weld procedure specifications for consistent quality
Developing and adhering to comprehensive Weld Procedure Specifications (WPS) is fundamental to achieving consistent weld quality in piling arm production. A well-crafted WPS outlines all critical parameters and techniques required to produce high-quality welds, ensuring repeatability across production runs. Key elements of an effective WPS for piling arms include:
Material specifications: Detailing the types and grades of materials to be welded, including any specific preparation requirements.
Welding process parameters: Specifying welding current, voltage, travel speed, and other process-specific variables for each joint configuration.
Filler material selection: Identifying the appropriate filler metals or electrodes to be used, considering compatibility with base materials and required mechanical properties.
Pre- and post-weld heat treatment requirements: Outlining any necessary preheating or post-weld heat treatment procedures to manage material properties and residual stresses.
By rigorously implementing and following these weld procedure specifications, manufacturers can ensure consistent weld quality across all piling arms, contributing to improved reliability and durability in the field.
Proper welding minimizes deformation, ensuring precise alignment of parts
Controlling heat input to reduce warping in piling arm components
Managing heat input during the welding process is crucial for minimizing deformation and maintaining the precise alignment of piling arm components. Excessive heat can lead to thermal expansion and contraction, resulting in distortion that compromises the arm's structural integrity and functionality. To mitigate these issues, welders employ several techniques:
Pulsed welding: This method alternates between high and low current pulses, reducing overall heat input while maintaining penetration. It's particularly effective for thin sections or heat-sensitive materials used in piling arm construction.
Proper sequencing: Welders follow a specific order when joining components, balancing heat distribution across the structure. This approach helps prevent cumulative distortion that can occur when welding in a single direction.
Intermittent welding: By alternating between different areas of the piling arm during welding, heat buildup in any one section is minimized, reducing the risk of warping.
By carefully controlling heat input, manufacturers can ensure that piling arms maintain their designed geometry, crucial for optimal performance in deep foundation projects.
Jig and fixture design for maintaining arm geometry during welding
Well-designed jigs and fixtures play a vital role in preserving the intended geometry of piling arms throughout the welding process. These tools secure components in their correct positions, counteracting forces that could cause misalignment or distortion. Key considerations in jig and fixture design for piling arms include:
Rigidity: Fixtures must be sturdy enough to withstand the heat and forces generated during welding without flexing or shifting.
Accessibility: The design should allow welders to reach all joint areas without obstruction, ensuring complete and quality welds.
Adjustability: Incorporating adjustable elements in the fixture design allows for fine-tuning of component positioning, accommodating slight variations in parts.
Heat dissipation: Fixtures made from materials with good thermal conductivity can help dissipate heat more evenly, reducing localized thermal stresses.
By utilizing properly designed jigs and fixtures, manufacturers can maintain tight tolerances and ensure consistent geometry across all produced piling arms, contributing to their overall durability and performance.
Post-weld machining: Achieving tight tolerances in piling arms
Even with careful control of the welding process, some degree of distortion or misalignment may occur. Post-weld machining is often necessary to achieve the tight tolerances required for optimal piling arm performance. This final step in the manufacturing process involves:
Surface grinding: To ensure flatness and proper mating of components, particularly at critical interface points.
Precision boring: For achieving exact dimensions in holes and cylindrical features, crucial for pin joints and hydraulic connections.
CNC milling: To create precise contours and features that may have been affected by weld-induced distortion.
By incorporating post-weld machining operations, manufacturers can rectify any minor deviations from design specifications, ensuring that each piling arm meets the exacting standards required for reliable performance in challenging construction environments.
The combination of heat input control, proper fixturing, and post-weld machining forms a comprehensive approach to maintaining the precise alignment and geometry of piling arm components. This attention to detail throughout the manufacturing process is essential for producing durable, high-performance excavator attachments capable of withstanding the rigors of deep foundation work and soil stabilization projects.
Welding technology significantly influences the durability of piling arms, playing a pivotal role in their performance and longevity. By employing advanced techniques like robotic welding, friction stir welding, and laser welding, manufacturers can create stronger, more precise joints that withstand the rigors of deep foundation work. Rigorous quality control measures, including non-destructive testing and stress relief techniques, further ensure the reliability of these critical components. Proper welding practices, combined with careful attention to heat input control and post-weld machining, result in piling arms that maintain precise alignment and structural integrity throughout their service life. As welding technology continues to evolve, we can expect even more durable and efficient piling arms, driving innovation in the construction and excavation industries.
FAQ
1. How often should piling arm welds be inspected?
Piling arm welds should be inspected regularly, typically before each major project and annually as part of routine maintenance. However, the frequency may increase based on usage intensity and operating conditions. Visual inspections should be performed before each use, with more thorough NDT methods applied periodically or when there's suspicion of damage.
2. Can damaged piling arm welds be repaired in the field?
While minor repairs might be possible on-site, significant weld damage usually requires the piling arm to be returned to a specialized facility. Field repairs are often temporary solutions and may not restore the arm to its original strength. It's crucial to have any field repairs thoroughly inspected and potentially re-done by qualified professionals to ensure safety and performance.
3. What role does material selection play in piling arm weld durability?
Material selection is critical for weld durability. High-strength, low-alloy steels are commonly used for their excellent weldability and mechanical properties. The chosen materials must be compatible with the welding process and filler metals, and able to withstand the cyclic loads and environmental conditions encountered in piling operations. Proper material selection ensures that welds maintain their integrity throughout the piling arm's service life.
4. How do environmental factors affect piling arm weld longevity?
Environmental factors such as moisture, temperature fluctuations, and corrosive agents can significantly impact weld longevity. Exposure to saltwater in coastal projects, for example, can accelerate corrosion. Extreme temperature variations can induce thermal stresses. To combat these effects, manufacturers often apply protective coatings and may use corrosion-resistant materials in vulnerable areas to enhance the durability of piling arm welds in harsh environments.
5. What advancements in welding technology are improving piling arm performance?
Recent advancements include the use of hybrid laser-arc welding, which combines the benefits of laser welding with traditional arc processes for improved speed and penetration. Additionally, the integration of real-time monitoring systems in welding equipment allows for immediate detection and correction of weld defects during production. These technologies contribute to producing stronger, more reliable welds, ultimately enhancing piling arm performance and longevity.

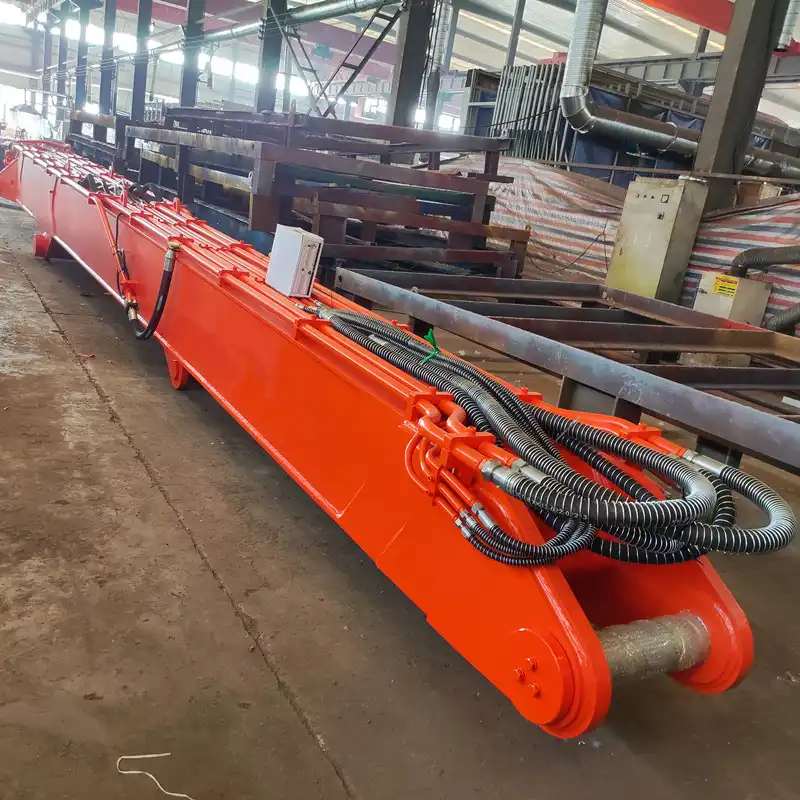

Where to Buy Excavator Piling Arms?
When it comes to acquiring high-quality excavator piling arms, Tiannuo Machinery stands out as a leading manufacturer and supplier. Our range of products includes not only piling arms but also a comprehensive selection of railway maintenance equipment, excavator modification equipment, and various engineering arms and accessories. We specialize in crafting durable, high-performance piling arms designed to meet the demands of deep foundation construction, soil stabilization, and urban development projects.
Our piling arms are engineered for optimal performance, featuring straight arm designs for efficient lifting and compatibility with various piling hammers. Constructed from high-strength alloy plates and national standard cold-drawn seamless pipes, these arms offer exceptional durability and precision. Available in lengths of 13000mm, 15000mm, and 18000mm, our piling arms cater to excavators in the 36 and 45-ton range, providing piling depths of up to 17500mm.
For more information on our piling arms and other specialized equipment, contact us at boom@stnd-machinery.com. Our team is ready to assist you in finding the right solutions for your construction and engineering needs, ensuring you have the tools to tackle even the most challenging projects with confidence.
