How to change bucket on front end loader?

Changing a front loader bucket requires proper technique, safety awareness, and understanding of your equipment's attachment system. Whether you're working in construction, landscaping, or material handling, knowing how to efficiently swap buckets maximizes productivity and ensures operator safety. The process typically involves securing the machine, identifying your attachment type, releasing the current bucket, and properly installing the replacement. Modern loader systems feature either pin-on configurations or quick-attach mechanisms, each requiring specific procedures. This comprehensive guide walks you through each essential step, from initial safety preparations through final operational checks, ensuring you can confidently perform bucket changes while maintaining workplace safety standards and equipment integrity.

Safety Preparations

Pre-Operation Safety Assessment

Before attempting any bucket replacement, conducting a thorough safety assessment prevents accidents and equipment damage. Operators should ensure the work area remains clear of bystanders and maintain stable positioning throughout the process. Inspect your loader for hydraulic leaks, damaged pins, or worn attachment points that could compromise safety during the changeover procedure.

Weather conditions significantly impact front loader bucket replacement safety. Avoid performing changes during inclement weather, strong winds, or when visibility becomes compromised. Wet or icy surfaces create additional hazards, particularly when maneuvering around heavy equipment and attachments.

Personal Protective Equipment Requirements

Proper personal protective equipment forms the foundation of safe front loader bucket replacement operations. Steel-toed boots protect against crushing injuries from heavy buckets or dropped pins. High-visibility clothing ensures you remain visible to other equipment operators in busy work environments. Safety glasses shield your eyes from hydraulic fluid spray or debris during attachment procedures.

Work gloves provide essential grip when handling pins, latches, or hydraulic controls, while hard hats protect against overhead hazards. Consider wearing hearing protection when operating in noisy environments where communication becomes difficult. Never compromise on safety equipment - the few minutes saved aren't worth potential injury risks.

Machine Positioning and Stabilization

Proper machine positioning creates a stable platform for safe bucket replacement. Position your loader on level, firm ground whenever possible, avoiding slopes or soft surfaces that could cause instability. Front-end loaders change the center of gravity and stability characteristics, requiring careful attention to positioning to prevent tipping hazards.

Engage the parking brake and lower the existing bucket completely to the ground before beginning replacement procedures. This positioning reduces hydraulic pressure on attachment points and provides additional stability. Shut off the engine and remove the key to prevent accidental hydraulic activation during the changeover process.

Identify Bucket Attachment Type

Pin-On Attachment Systems

Traditional pin-on systems remain common on older loaders and heavy-duty applications requiring maximum strength. These systems utilize large diameter pins that pass through mounting brackets on both the bucket and loader arms. Pin-on attachments offer exceptional durability and can handle extreme loads without failure, making them ideal for demanding construction and mining applications.

Identifying pin-on systems involves locating the retaining pins, typically secured with cotter pins, clips, or threaded fasteners. The pins usually measure between 1 to 2 inches in diameter and extend completely through the attachment points. Some systems feature grease fittings for lubrication, indicating heavy-duty construction designed for extended service life.

Quick-Attach Coupler Systems

Quick attach systems allow rapid front loader bucket changes through mechanical latching mechanisms, with manual, semi-automatic, and automatic operation types available. These systems dramatically reduce changeover time, often allowing bucket swaps in minutes rather than the extended time required for pin-on systems.

Universal quick-attach systems follow standardized dimensions, enabling compatibility between different manufacturers' attachments. However, proprietary systems exist that only accept specific brand attachments. Quick-attach converters can enhance versatility by allowing tractors to switch between different attachments without manual tools, significantly improving operational efficiency.

Hydraulic Quick-Coupler Systems

Advanced hydraulic quick-couplers represent the pinnacle of attachment technology, allowing complete front loader bucket changes from the operator's seat. These systems utilize hydraulic cylinders to engage and release attachment points, eliminating manual intervention entirely. While more expensive initially, hydraulic couplers maximize productivity in applications requiring frequent attachment changes.

Hydraulic systems require additional maintenance attention, including regular fluid checks and seal inspections. The complexity of these systems demands proper training for safe operation, as improper use can result in dropped attachments or hydraulic system damage. Always verify proper engagement before lifting or moving attachments with hydraulic couplers.

Step-by-Step Bucket Replacement Process

Removing the Current Bucket

Begin bucket removal by positioning the loader arms at their lowest point, ensuring the current front loader bucket rests firmly on the ground. This positioning relieves hydraulic pressure on attachment points and provides stability throughout the removal process. Activate the parking brake and shut off the engine to prevent accidental movement.

For pin-on systems, locate and remove retaining devices such as cotter pins or safety clips. Using appropriate tools, drive out the main attachment pins, working systematically from one side to the other. Heavy pins may require hydraulic or mechanical pullers for removal. Keep track of all hardware and store it safely for installation on the replacement bucket.

Quick-attach systems typically require releasing spring-loaded latches or hydraulic locks. Follow manufacturer-specific procedures, as improper release can result in sudden bucket detachment. Some systems feature visual indicators showing proper engagement or release status - always verify these indicators before proceeding.

Preparing the Replacement Bucket

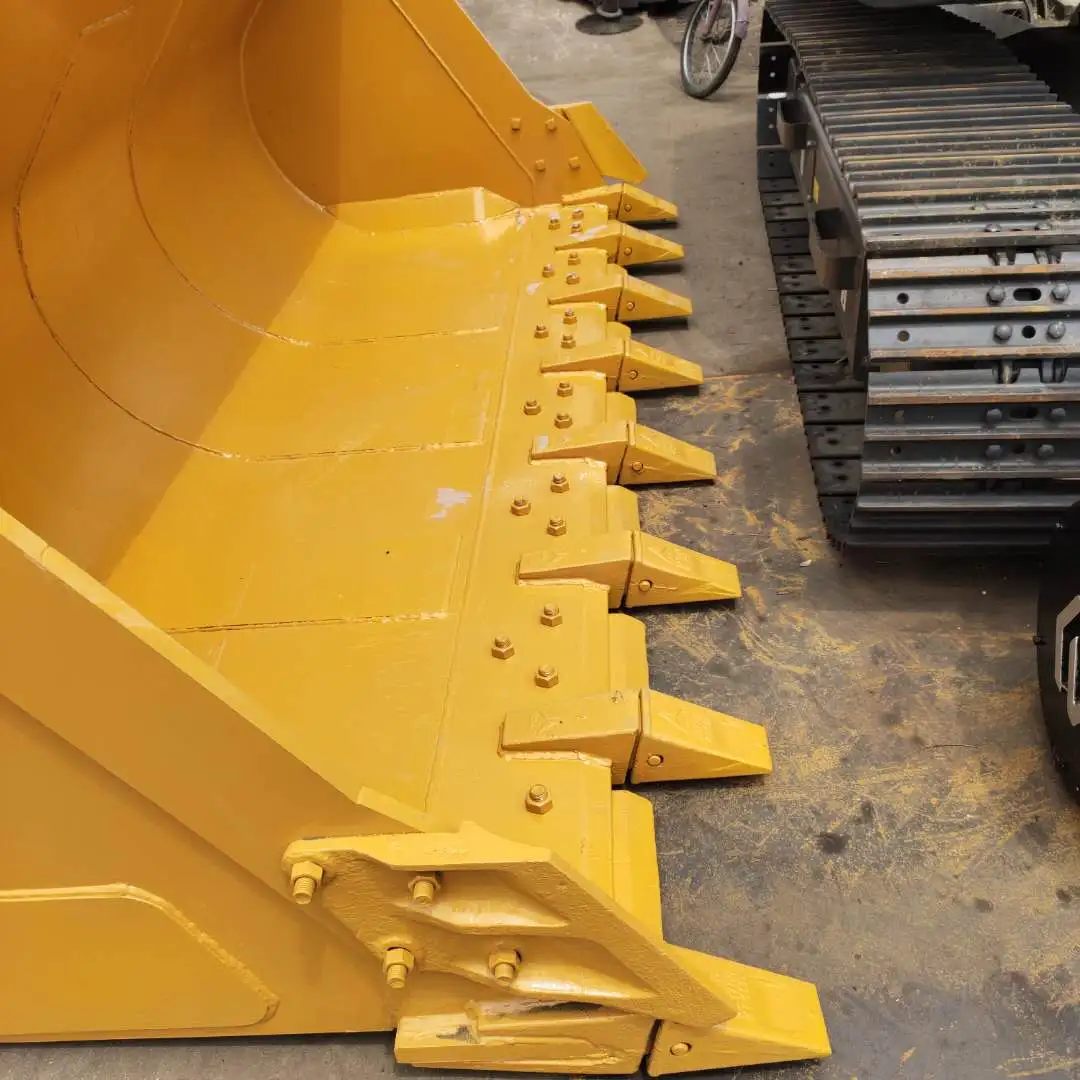

Inspect the replacement bucket thoroughly before installation, checking for cracks, excessive wear, or damaged attachment points. Verify that cutting edges remain sharp and properly secured, as loose cutting edges pose significant safety hazards during operation. Clean debris from attachment points to ensure proper fit and prevent premature wear.

For pin-on installations, ensure replacement pins match the original specifications exactly. Incorrect pin sizes can lead to catastrophic failure under load. Apply appropriate lubricant to pins and bushings to facilitate installation and reduce wear during operation. Replace worn bushings or pins as needed to maintain safe operating conditions.

Installing the New Bucket

Position the replacement bucket directly in front of the loader arms, ensuring proper alignment with attachment points. For heavy buckets, consider using additional equipment or personnel to assist with positioning, but maintain clear communication throughout the process. Front loader bucket installations require precision to avoid binding or damage to attachment hardware.

Slowly lower the loader arms onto the replacement bucket, checking alignment continuously. For pin-on systems, insert pins gradually, using appropriate driving tools to ensure complete seating. Install all retaining devices immediately after pin installation to prevent accidental removal. Quick-attach systems should engage with audible clicks or visual confirmation of proper latching.

After installation, perform operational checks by slowly raising and lowering the bucket while monitoring for unusual sounds, vibrations, or movement. Test all hydraulic functions including tilt and dump operations before putting the equipment into service. Any abnormalities require immediate investigation and correction before operation continues.

FAQ

①How often should I inspect my front loader bucket attachments?

Inspect attachment points daily before operation, checking for loose pins, worn bushings, or damaged latches. Weekly detailed inspections should include lubrication of grease fittings and examination of hydraulic connections for leaks.

②Can I use different brand buckets on my loader?

Compatibility depends on your attachment system. Universal quick-attach systems accept most manufacturers' attachments, while proprietary systems may require specific brand buckets or adapter plates for compatibility.

③What tools do I need for bucket replacement?

Pin-on systems typically require hammers, punches, pliers for removing cotter pins, and possibly hydraulic pullers for stubborn pins. Quick-attach systems usually require no tools beyond those for positioning the bucket.

④How do I know if my bucket attachment is properly secured?

Pin-on systems should have pins fully seated with proper retaining devices installed. Quick-attach systems feature visual indicators or audible confirmation of proper engagement. Always perform operational tests before working.

Maximize Your Loader Performance with Professional Equipment

Selecting the right loader bucket significantly impacts your operational efficiency and safety. Professional-grade buckets designed for specific applications deliver superior performance while reducing maintenance requirements. Understanding bucket capacity, width dimensions, and load specifications ensures optimal matching with your equipment capabilities.

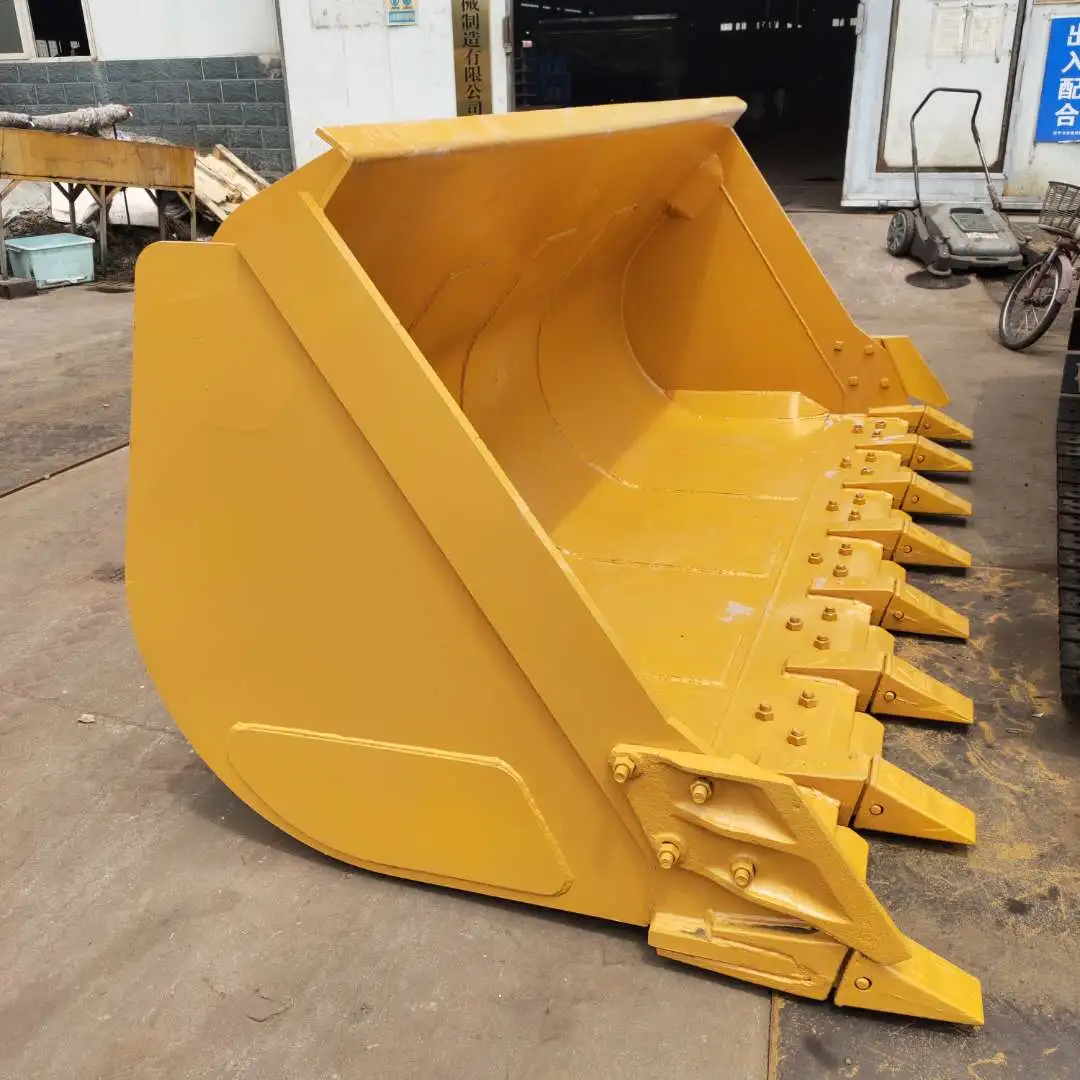

Tiannuo's front loader buckets deliver exceptional performance across diverse applications, from construction and mining to landscaping and waste management. With rated loads up to 5000 kg and maximum breakout forces reaching 170 kN, these buckets handle demanding tasks while maintaining operational safety. The comprehensive range includes various widths and capacities, ensuring perfect matching with your specific operational requirements.

Key technical specifications like bucket width (2.24 m), bottom width (0.5969 m), and depth measurements (0.025 m) directly influence loading efficiency and material handling capabilities. Proper parameter selection based on your working environment ensures optimal performance while maintaining safety margins throughout operations. Unloading heights reaching 3090 mm provide excellent reach for loading trucks or elevated storage applications.

Professional bucket selection considers multiple factors beyond basic capacity, including material types, operating conditions, and attachment compatibility. Working with experienced manufacturers ensures you receive equipment engineered for your specific applications, backed by comprehensive technical support and parts availability. Quality construction using premium materials delivers extended service life while reducing total ownership costs.

Whether you're replacing worn buckets or upgrading to improved designs, choosing the right equipment partner makes all the difference in your operational success. Professional guidance helps navigate the complex selection process, ensuring your investment delivers maximum value through enhanced productivity and reduced downtime. For detailed information about professional-grade loader bucket solutions and technical specifications, contact our equipment specialists at boom@stnd-machinery.com.
