How to install an excavator grab arm?

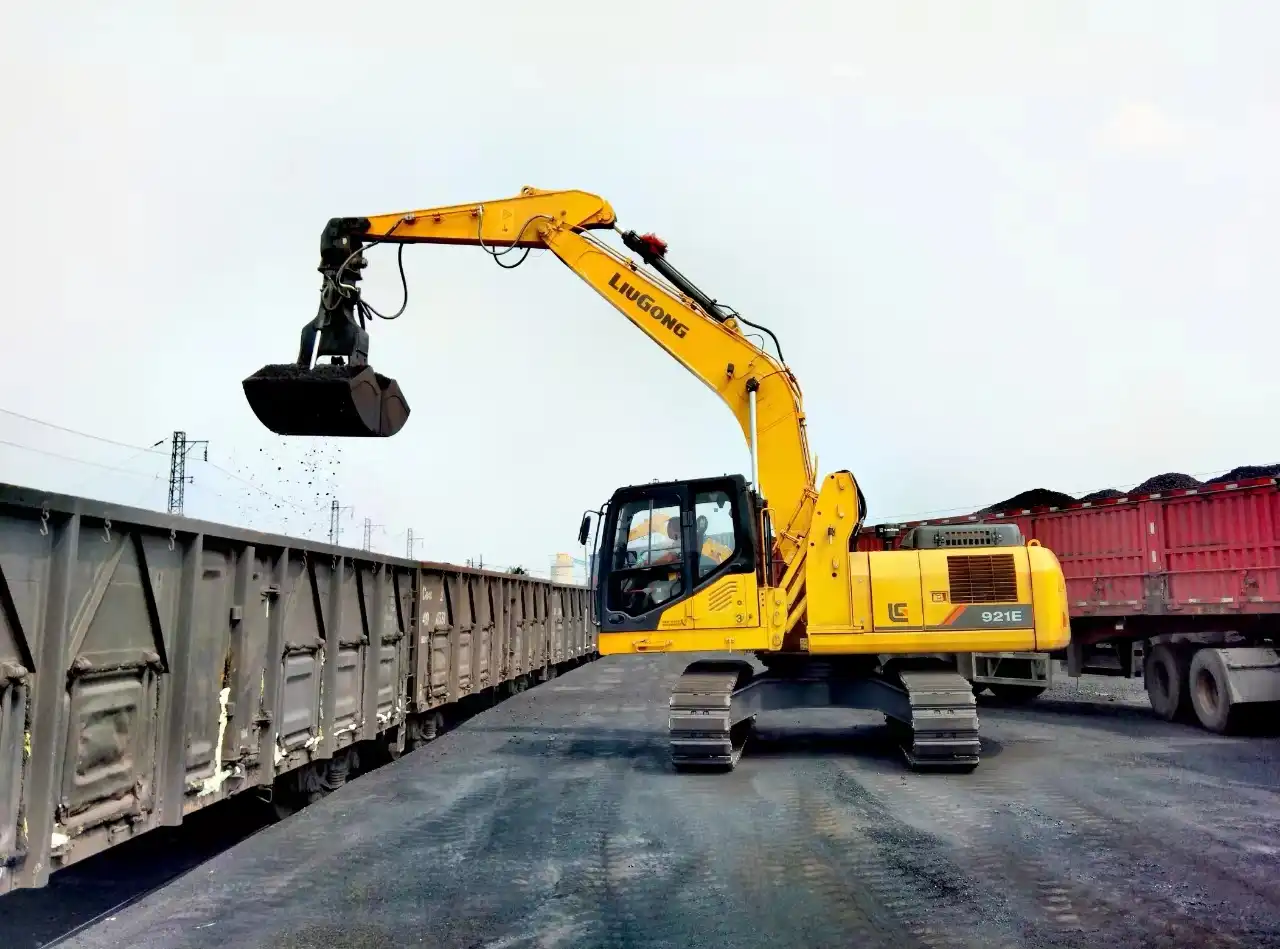

Installing an excavator grab arm properly is crucial for ensuring safe and efficient operations in various industrial applications. Whether you're working on railway construction, waste management, or forestry operations, a correctly installed grab arm maximizes productivity while minimizing downtime. The installation process requires careful attention to detail and a systematic approach to ensure the attachment functions properly and safely. This comprehensive guide walks you through the essential steps to successfully install a grab arm, from preparation to final testing.
Grab arm installation typically involves three main phases: disconnecting the bucket hydraulic line and securing the grab arm base with pin shafts, connecting the hydraulic quick-change connectors, and debugging the opening and closing functions. Each step requires precision and adherence to safety protocols to ensure optimal performance. By following proper installation procedures, you can extend the lifespan of your equipment, reduce maintenance costs, and improve operational efficiency across dock unloading, railway transportation, and waste steel handling applications.
Disconnect The Bucket Hydraulic Line And Fix The Grab Arm Base Through The Pin Shaft
Preparation for Installation
Before beginning the installation process, proper preparation is essential. Park your excavator on level ground and ensure the machine is completely powered off. Engage all safety locks and remove the key from the ignition to prevent accidental startup during installation. Place warning signs around the work area to alert others of the maintenance activity.
Gather all necessary tools before starting, including wrenches of appropriate sizes, hydraulic line caps, protective gloves, safety glasses, and the manufacturer's installation manual. Having everything ready beforehand minimizes interruptions during the installation process.
Inspect the new excavator grab arm for any damage that may have occurred during shipping or storage. Check all hydraulic connections, pins, and bushings for integrity. Verify that you have all required components, including the grab arm itself, pin shafts, bushings, and hydraulic connections.
Removing the Existing Bucket
The first step in installing a grab arm is removing the existing bucket attachment. Position the excavator arm so the bucket rests flat on the ground. This position provides stability and reduces the risk of unexpected movement during removal.
Release the hydraulic pressure in the system by toggling the controls back and forth several times with the engine off. This essential safety measure prevents hydraulic fluid from spraying when disconnecting lines.
Locate the hydraulic lines connecting to the bucket cylinder. Place a drain pan underneath to catch any hydraulic fluid that may leak during disconnection. Carefully disconnect the hydraulic lines, immediately capping both the lines and the ports to prevent contamination and excessive fluid loss. Label each line if necessary to ensure proper reconnection later.
Remove the pin retainers (typically cotter pins or bolts) that secure the bucket pins in place. Using appropriate tools, drive out the pins that connect the bucket to the excavator's stick and linkage. Depending on the model, you might need a hydraulic press or a hammer and a drift pin for this task.
Installing the Grab Arm Base
With the bucket removed, carefully position the grab arm base in alignment with the mounting points on the excavator stick. This precise alignment is crucial for proper installation and functionality. You may need assistance from a second person or the use of additional equipment to hold the attachment in the correct position.
Insert the pin shafts through the mounting holes, connecting the grab arm base to the excavator stick. The pin shafts should slide through the brass bushings in the arm base. These high-quality brass bushings, a feature of premium excavator grab arms like those manufactured by Tiannuo, reduce friction and extend the lifespan of the attachment.
Secure the pin shafts with the appropriate retaining devices, such as cotter pins, snap rings, or bolts as specified by the manufacturer. Double-check that all retainers are properly installed to prevent pins from working loose during operation. Apply recommended lubricant to the pin joints to ensure smooth operation and prevent premature wear.
Install the linkage connection that will control the grab arm's movement. This typically involves connecting the hydraulic cylinder rod end to the grab arm mechanism using another pin shaft. Ensure this connection is secure and properly lubricated as well.
Connect The Hydraulic Quick-Change Connector Hydraulic Components
Before connecting the hydraulic system, it's important to understand the components involved. The hydraulic system of an excavator grab arm typically consists of two main lines: one for opening and one for closing the grab. Some advanced models may have additional functions requiring extra hydraulic connections.
Familiarize yourself with the hydraulic schematic provided by the grab arm manufacturer. This schematic shows the correct configuration of hydraulic lines and helps prevent connection errors. Different grab arm models may have slightly different hydraulic requirements, so always refer to the specific documentation for your equipment.
Identify the auxiliary hydraulic circuit on your excavator that will power the grab arm. Most modern excavators come equipped with auxiliary hydraulic circuits specifically designed for attachments. If your machine doesn't have an appropriate circuit, you may need to install a hydraulic kit before proceeding.
Connecting the Hydraulic Lines
Ensure all hydraulic connections are clean before assembly. Even small particles of dirt can damage hydraulic components and cause system failures. Use clean cloths to wipe connection points and inspect for damage or debris.
Connect the hydraulic lines from the excavator to the grab arm using the quick-change connectors. These specialized connectors allow for rapid installation and removal while minimizing hydraulic fluid loss. Align the male and female connectors carefully to prevent damage to the O-rings or seals.
Push the connectors together firmly until you hear or feel them click into place. Many quick-change connectors have visual indicators or locking mechanisms that show when they're properly connected. Verify that each connection is secure by gently pulling on the hydraulic lines.
Secure the hydraulic hoses to the excavator arm using appropriate clamps or ties. This prevents the hoses from becoming pinched or damaged during operation. Leave enough slack to accommodate the full range of motion of the excavator arm and grab attachment, but not so much that the hoses hang loosely where they could catch on obstacles.
Debug The Opening And Closing Function
Initial Testing Procedures
Begin testing with slow, controlled movements to ensure the excavator grab arm functions correctly. Start by activating the hydraulic controls that operate the grab arm at low engine RPM. Observe how the arm responds to the controls, noting any delays, jerky movements, or unusual sounds.
Check that the opening and closing motions are smooth and complete. The grab arm should open fully and close completely without binding or hesitation. If you notice any irregularities in movement, stop the test immediately and investigate the cause before proceeding.
Verify that the control sequence matches the expected operation. In most systems, moving the auxiliary control in one direction should open the grab, while moving it in the opposite direction should close it. If the controls operate in reverse, you may need to swap the hydraulic connections.
Adjusting Hydraulic Pressure
Proper hydraulic pressure is critical for optimal grab arm performance. Too little pressure results in weak grabbing force, while excessive pressure can damage the attachment or hydraulic components. Consult the manufacturer's specifications for the recommended pressure settings for your specific grab arm model.
Locate the pressure adjustment valves for the auxiliary hydraulic circuit. These are typically found near the hydraulic pump or control valves. Using a hydraulic pressure gauge, measure the current pressure in the system when operating the grab arm.
Adjust the pressure relief valve settings as needed to match the manufacturer's specifications. Make small adjustments, testing after each change until the desired pressure is achieved. Some excavators have factory-set hydraulic pressures that cannot be easily adjusted; in these cases, ensure the existing pressure falls within the acceptable range for your grab arm.
Fine-Tuning Performance
Test the grab arm's closing speed and adjust if necessary. Most excavators have flow control valves that regulate the speed of hydraulic functions. Slower closing speeds provide more control but reduce productivity, while faster speeds increase efficiency but may reduce precision.
Evaluate the grabbing strength by lifting appropriate test materials. The arm should securely hold materials without slipping while also not causing damage through excessive pressure. Different materials may require different grabbing techniques or pressure settings.
Perform a full range of motion test with the excavator grab arm installed. Move the excavator boom, stick, and swing function through their complete ranges to ensure the grab arm doesn't interfere with any part of the machine. Check for clearance issues throughout the full operating envelope.
Make any necessary adjustments to the grab arm positioning or hydraulic settings based on your testing results. Document the final settings for future reference during maintenance or troubleshooting activities.
FAQ
①How long does it take to install an excavator grab arm?
Installation typically takes 2-4 hours for experienced technicians, depending on the excavator model and grab arm complexity. First-time installers should allocate additional time to ensure proper setup and testing.
②Do I need special tools to install an excavator grab arm?
Basic installation requires standard mechanical tools like wrenches and hammers, plus hydraulic pressure gauges for proper adjustment. Some specialized attachments may require model-specific tools provided by the manufacturer.
③How often should I lubricate the pin connections on my grab arm?
Pin connections should be lubricated at least weekly during regular operation. In high-dust or wet environments, more frequent lubrication may be necessary to prevent premature wear.
④Can I install a grab arm on any excavator model?
Most grab arms are designed for specific excavator weight classes and hydraulic specifications. Always verify compatibility between your excavator and the grab arm before purchase.
High-Quality Grab Arms For Sale
Installing a grab arm correctly is essential for safe and efficient operation in various industrial applications. By following the systematic approach outlined in this guide, from proper preparation and secure base installation to careful hydraulic connection and thorough function testing, you can ensure your attachment performs optimally for years to come.
Remember that quality matters when selecting an excavator grab arm. Premium materials like high-strength alloy plates, cold-drawn seamless pipes, 40Cr steel pin shafts, and brass bushings significantly impact performance and durability. Tiannuo's commitment to manufacturing excellence ensures that each component meets the rigorous demands of industrial applications from railway maintenance to waste steel handling.
For more information about high-quality grab arms or assistance with installation, please contact us at arm@stnd-machinery.com. Our team of experts is ready to help you find the right solution for your specific operational needs and ensure you get the most from your equipment investment.
