How to make excavator bucket?
Manufacturing an excavator bucket requires a combination of precise engineering, quality materials, and skilled craftsmanship. The process of creating these essential attachments involves multiple steps from initial design to final assembly. A bucket is one of the most crucial components of any excavation machine, directly impacting productivity, fuel efficiency, and overall performance across construction sites, mining operations, and railway maintenance projects. Creating a high-performance bucket requires understanding specific application requirements, soil conditions, and machine specifications to ensure optimal digging capability and durability in demanding environments. Modern manufacturing techniques have evolved to produce buckets that offer superior strength-to-weight ratios, extended service life, and reduced maintenance needs compared to traditional designs.
Design and Engineering
Bucket Requirements
The initial stage of excavator bucket production begins with comprehensive design engineering tailored to specific applications. Engineers analyze factors like soil conditions, material density, and machine compatibility to determine the optimal bucket geometry. Design considerations include capacity requirements, width specifications, and attachment mechanisms (pin-on vs. quick coupler systems). CAD (Computer-Aided Design) software creates three-dimensional models that allow engineers to visualize stress points, material distribution, and overall structural integrity before physical prototyping begins.
Advanced simulation tools enable manufacturers to conduct finite element analysis, predicting how the bucket will perform under various load conditions. This digital testing phase identifies potential weak points, allowing designers to reinforce critical areas before production. Bucket profiles are carefully engineered to optimize the cutting edge angle, floor design, and side profile for maximum penetration and filling efficiency. The correct balance between bucket weight and strength directly impacts excavator fuel efficiency and productivity.

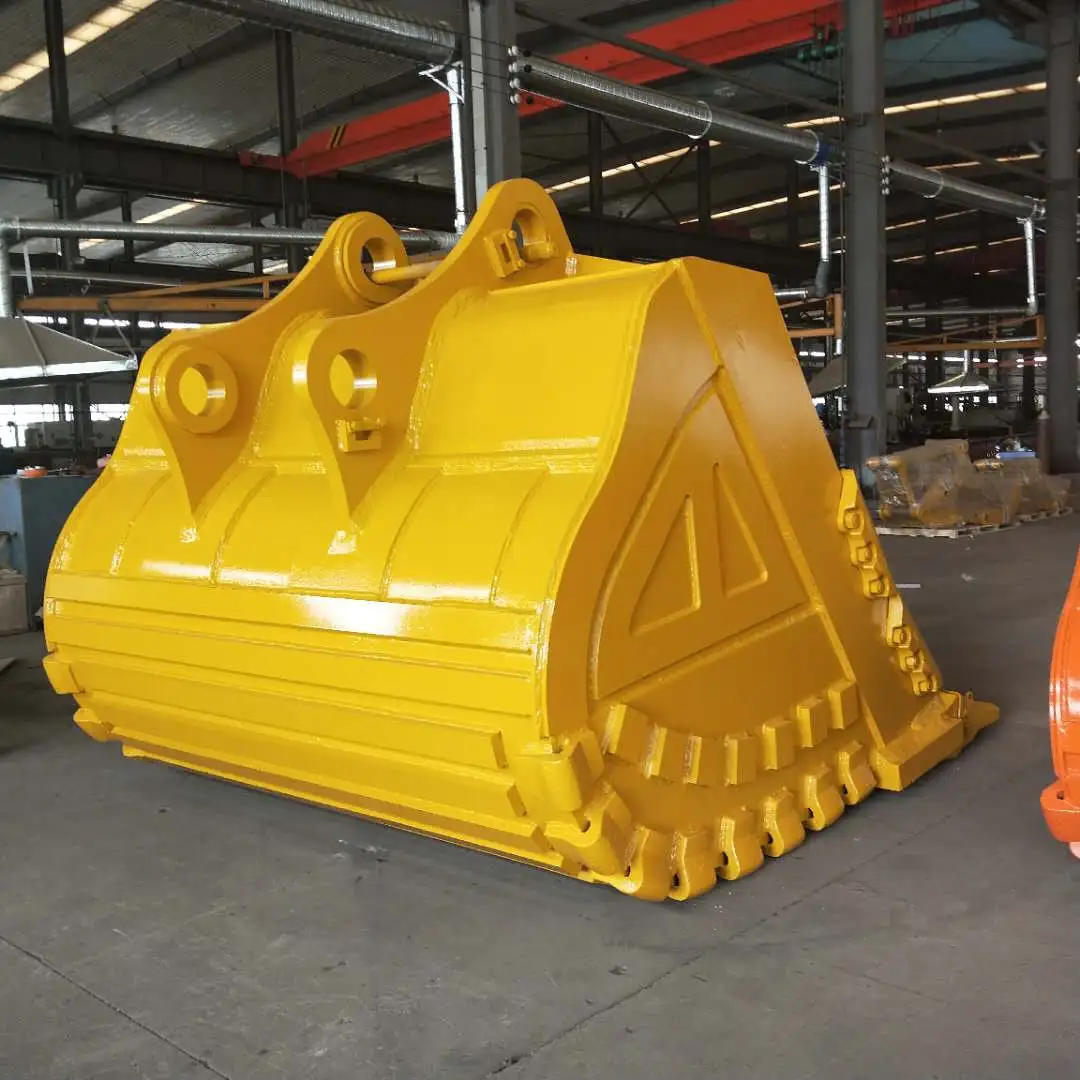

Structural Engineering Principles
Structural engineering for excavator attachments follows key principles that ensure buckets can withstand extreme forces while maintaining optimal performance. Load path analysis determines how forces transfer through the bucket structure during digging operations. Engineers must account for compression, tension, and torsional forces that occur during excavation cycles. Reinforcement placement is strategically designed to distribute stress evenly across the bucket body, preventing premature fatigue failure.
Side cutters require particular attention to engineering detail, as these components experience intense abrasion and impact forces. The bucket heel, where the bucket connects to the excavator arm, represents another critical stress concentration point requiring reinforced design. Modern buckets incorporate tapered side plates that reduce weight while maintaining structural integrity. Engineers must carefully balance material thickness throughout the bucket design, avoiding unnecessary weight while ensuring adequate strength in high-stress zones.
Customization Capabilities
Custom excavator bucket design has become increasingly important as contractors seek specialized solutions for unique applications. Modern manufacturing processes allow for significant customization in bucket geometry, capacity, and attachment systems. Engineers work closely with end-users to understand specific job requirements before creating customized designs. Specialized applications might require unique features like integrated hydraulic systems, specialized cutting edges, or modified profiles for particular materials.
Adaptability to various machine models requires precise engineering of mounting systems, ensuring perfect alignment with excavator arms and hydraulic systems. The boom-to-bucket relationship must maintain proper geometry throughout the digging cycle for maximum efficiency. Customization extends to wear protection systems, with designers selecting appropriate wear packages based on material characteristics and abrasion resistance requirements. Testing protocols for custom designs often include field trials under actual working conditions to validate performance before full production implementation.
Material Selection
High-Strength Wear-Resistant Steel
The backbone of quality excavator bucket construction is the selection of appropriate high-strength wear-resistant steel alloys. Modern buckets typically utilize specialized steel grades with Brinell hardness ratings between 400-500 HB for main structural components. These materials provide an optimal balance between hardness for wear resistance and sufficient ductility to absorb impact forces without cracking. Alloy composition typically includes carefully controlled percentages of carbon, manganese, chromium, and nickel to achieve desired mechanical properties.
Material thickness varies strategically throughout the bucket design, with higher-wear areas receiving thicker plate material. Side plates often use steel in the 8-16mm range, while high-wear areas like cutting edges may incorporate steel up to 25mm thick. Material certification and quality control processes ensure that all steel components meet rigorous standards before manufacturing begins. Advanced steel processing techniques like controlled cooling create microstructures that resist wear while maintaining the structural toughness necessary for excavation operations.

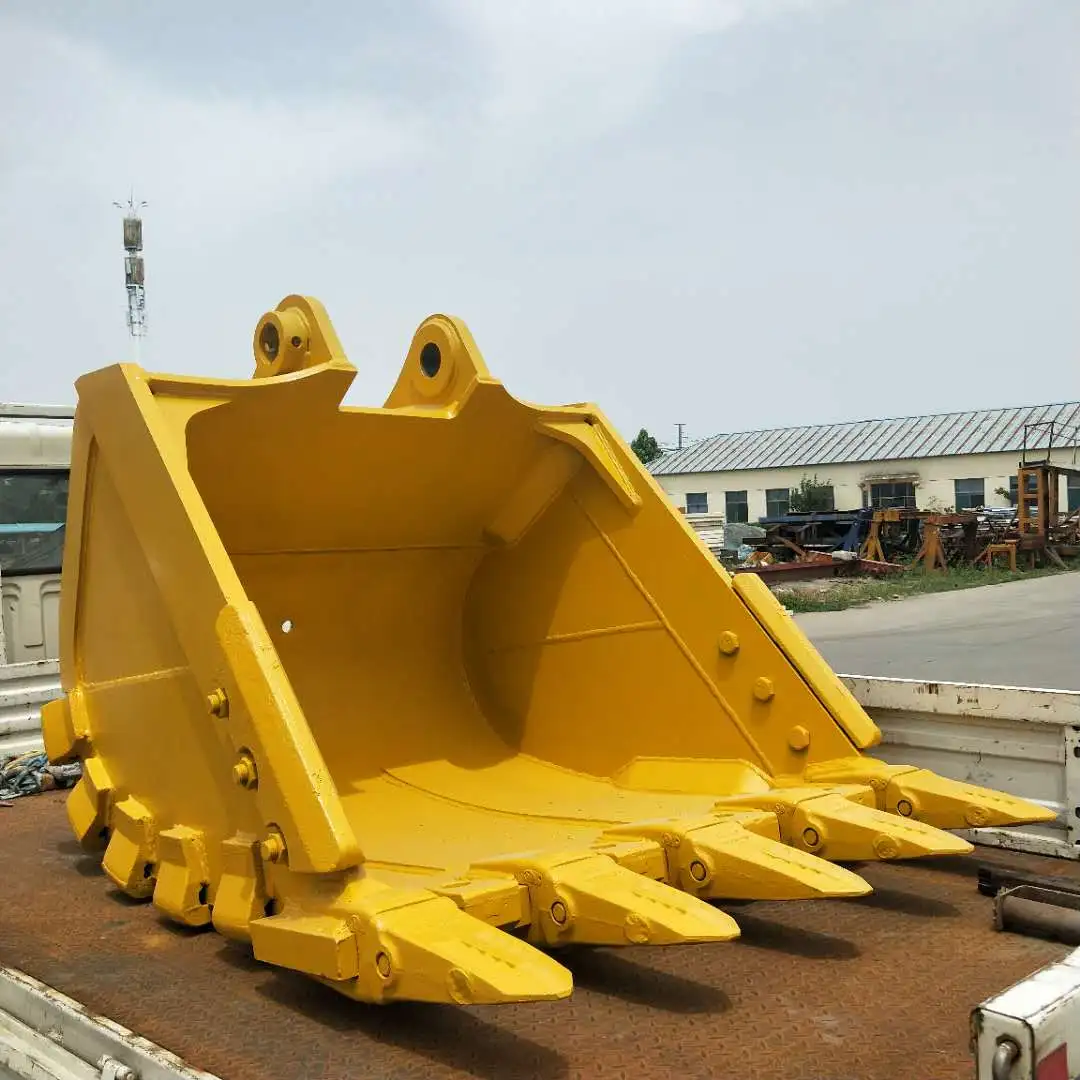

Wear Components and Teeth Systems
Beyond the main structural steel, specialized wear components dramatically extend excavator bucket service life. Cutting edges and wear strips utilize materials that may exceed 550 HB hardness for maximum abrasion resistance. These components are often designed as replaceable items, allowing cost-effective maintenance when wear occurs. Modern teeth systems employ sophisticated locking mechanisms that provide secure attachment while allowing quick field replacement when worn.
Adapters and tooth holders must balance extreme hardness with impact resistance to prevent catastrophic failure. Many systems incorporate mechanical locking devices rather than traditional pins to improve retention in demanding conditions. Overlay materials and hardfacing compounds provide additional protection for high-wear zones between major component replacements. Progressive manufacturers utilize composite materials for certain applications, combining the advantages of multiple materials in a single wear component system.
Material Testing and Quality Assurance
Rigorous material testing ensures that all components meet or exceed performance standards before incorporation into excavator bucket designs. Steel plate undergoes ultrasonic testing to identify internal defects before cutting operations begin. Chemical composition analysis verifies that alloy percentages fall within specified ranges for optimal performance. Mechanical testing protocols include hardness verification, tensile strength assessment, and impact resistance evaluation.
Quality assurance processes monitor material properties throughout the manufacturing process, ensuring consistency across production batches. Traceability systems maintain detailed records of material sources, heat treatments, and test results for each component. Non-destructive testing techniques like magnetic particle inspection identify potential defects in critical structural welds. Manufacturers maintain strict quality control standards to ensure that finished buckets will withstand the demands of continuous excavation operations across various challenging applications.
Manufacturing Processes
Cutting and Forming Operations
The physical manufacturing of an excavator bucket begins with precise cutting operations using advanced CNC (Computer Numerical Control) technology. Steel plates are cut to exact specifications using plasma, laser, or waterjet cutting systems that ensure dimensional accuracy within strict tolerances. Pattern nesting software optimizes material utilization to reduce waste during the cutting process. After initial cutting, forming operations create the three-dimensional shapes required for bucket assembly.
Hydraulic press brakes with computer-controlled backgauges bend steel plates to precise angles, creating the bucket's profile and structural components. Cold forming techniques preserve the steel's mechanical properties while achieving desired geometries. For complex curved surfaces, specialized rolling machines form plates to specific radii, creating smooth transitions between bucket sections. Pre-assembly fitting checks ensure all components align properly before welding operations begin, reducing the need for corrective measures later in the manufacturing process.
Welding and Assembly Techniques
Welding represents a critical manufacturing phase that directly impacts excavator bucket performance and durability. Manufacturers employ multiple welding processes depending on joint requirements and material thickness. Structural welds utilize techniques like flux-cored arc welding (FCAW) or metal active gas (MAG) processes that provide deep penetration and high deposition rates. Critical stress points receive particular attention, with reinforcement welds adding strength to areas prone to fatigue loading.
Assembly follows precise sequences to maintain dimensional accuracy throughout the process. Fixtures and positioning systems hold components in exact alignment during welding to prevent distortion. Weld sequencing controls heat input and minimizes internal stresses that could compromise structural integrity. Post-weld inspection includes visual assessment, dimensional verification, and non-destructive testing of critical joints. Some manufacturers employ robotic welding systems for consistent quality across production runs, particularly for standard bucket models with predictable weld geometries.

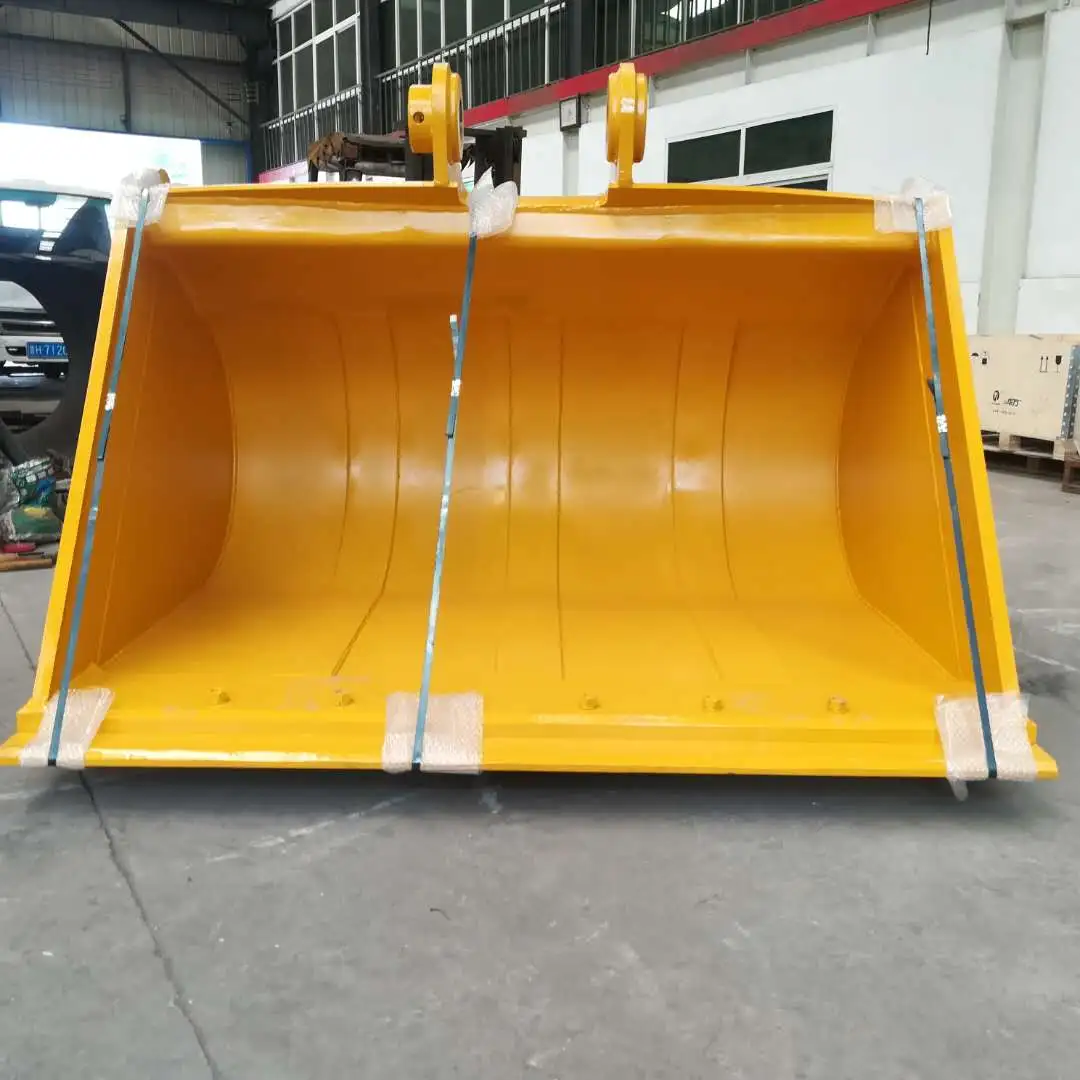

Heat Treatment and Finishing
After assembly, heat treatment processes enhance the mechanical properties of excavator bucket components. Stress relieving heat treatments reduce internal stresses created during welding operations, preventing premature fatigue failure. Some manufacturers perform selective hardening treatments on high-wear areas to improve abrasion resistance without affecting the ductility of structural zones. Controlled cooling protocols ensure consistent mechanical properties throughout the bucket structure.
Surface finishing operations prepare the bucket for harsh operating environments. Abrasive blasting removes scale, oxidation, and contaminants before surface treatment begins. High-performance coating systems provide corrosion protection and improve visual identification in work environments. Some manufacturers apply specialized ceramic-based coatings to high-wear surfaces for additional abrasion protection. Final assembly includes installation of wear components, teeth systems, and attachment hardware according to design specifications. Quality control inspections verify that all components are properly installed and secured before the bucket leaves the manufacturing facility.
FAQ
①What materials are used to make excavator buckets?
Excavator buckets are primarily manufactured using high-strength wear-resistant steel with Brinell hardness ratings between 400-500 HB. Critical wear components like cutting edges and teeth systems often utilize specialized alloys with hardness ratings exceeding 550 HB for maximum abrasion resistance.
②How long does it take to manufacture an excavator bucket?
Production time varies based on bucket size, complexity, and customization requirements. Standard buckets typically require 3-5 days for complete manufacturing, while custom or specialized designs may take 7-14 days to complete all manufacturing processes from initial cutting to final quality inspection.
③Can excavator buckets be customized for specific applications?
Yes, modern manufacturing processes allow for extensive customization, including specialized profiles, reinforcement patterns, wear protection systems, and attachment mechanisms tailored to specific material types and working conditions.
High-Performance Excavator Buckets
Creating a high-quality bucket requires extensive engineering expertise, premium materials, and precise manufacturing processes. From initial design conceptualization through material selection to final assembly, each step contributes to the bucket's performance, durability, and efficiency. Understanding the complex interplay between bucket design features and specific application requirements enables manufacturers to develop excavation tools that maximize productivity while minimizing operating costs.
For contractors and equipment managers, recognizing these manufacturing elements helps inform purchasing decisions when selecting attachments for specific applications. The investment in properly engineered and manufactured buckets pays dividends through improved excavation efficiency, reduced downtime, and extended service life compared to lower-quality alternatives.
Tiannuo Construction Machinery Co., Ltd specializes in producing high-performance excavator buckets and attachments suitable for various applications across construction, mining, railway maintenance, and infrastructure development sectors. With a commitment to quality manufacturing and customized solutions, Tiannuo offers buckets featuring premium wear-resistant materials, optimized designs, and compatibility with major equipment brands. For more information about our bucket manufacturing capabilities or to discuss custom requirements, please contact us at rich@stnd-machinery.com.
