How to make the excavator extension arm？
Crafting an excavator extension arm is a complex process that requires precision engineering and high-quality materials. These specialized attachments extend the reach of excavators, allowing for deeper digging and enhanced versatility in various applications. The manufacturing process involves selecting premium steel, employing advanced engineering techniques, and utilizing state-of-the-art machinery. By following industry standards and rigorous quality control measures, manufacturers ensure that each extension arm meets the demanding needs of construction, mining, and demolition industries.

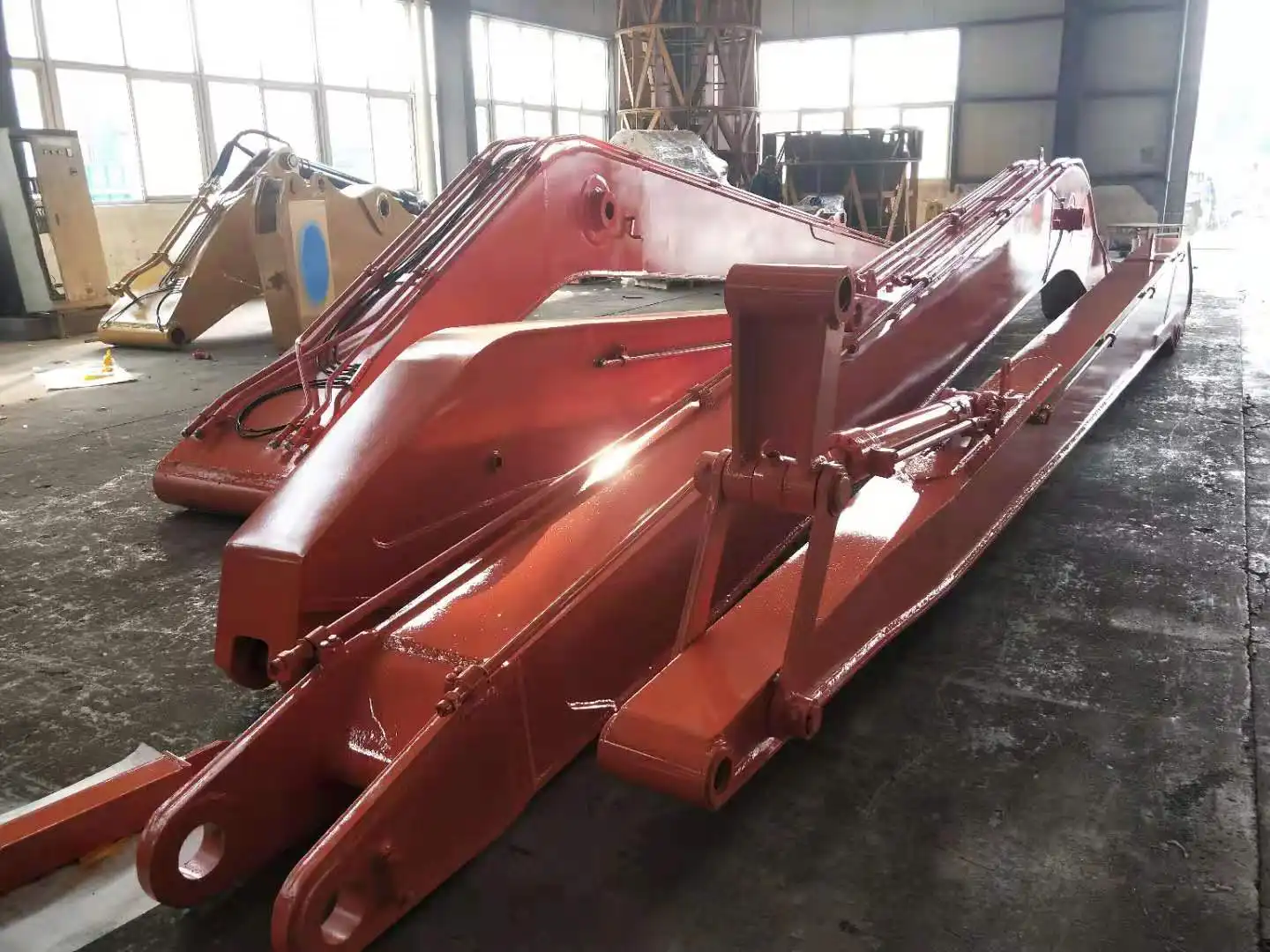

Constructed with high-strength steel
Selecting premium steel for excavator arm durability
The foundation of a robust excavator extension arm lies in the selection of premium steel. Manufacturers typically opt for high-strength, low-alloy (HSLA) steel grades, such as ASTM A572 or equivalent. These steels offer an optimal balance of strength, toughness, and weldability, crucial for withstanding the extreme forces and harsh conditions encountered in heavy-duty applications.
The steel selection process involves careful consideration of factors like yield strength, tensile strength, and impact resistance. For instance, a grade with a minimum yield strength of 50,000 psi (345 MPa) is often chosen to ensure the arm can handle substantial loads without deformation. Additionally, the steel's chemical composition is analyzed to guarantee excellent weldability and resistance to atmospheric corrosion.
Engineering design for maximum stress resistance
Once the appropriate steel is selected, engineers employ advanced computer-aided design (CAD) software to create a structural design that maximizes stress resistance. This process involves finite element analysis (FEA) to simulate various load conditions and identify potential stress concentrations. The arm's cross-sectional profile is carefully optimized to distribute stress evenly and minimize weight without compromising strength.
Engineers also incorporate strategic reinforcements at high-stress points, such as pivot joints and attachment points. These reinforcements may include additional plating or internal stiffeners to enhance the arm's overall rigidity and longevity. The design phase also considers factors like material fatigue, buckling resistance, and ease of maintenance to ensure the extension arm performs reliably throughout its service life.
Coating techniques for enhanced corrosion protection
To protect the excavator extension arm from corrosion and extend its lifespan, manufacturers apply sophisticated coating techniques. The process typically begins with thorough surface preparation, including shot blasting to remove any mill scale or impurities and create an optimal surface profile for coating adhesion.
A multi-layer coating system is then applied, often consisting of a zinc-rich primer, an epoxy intermediate coat, and a polyurethane topcoat. This combination provides excellent corrosion resistance, impact protection, and UV stability. Some manufacturers may opt for advanced coating technologies like thermal spraying or powder coating to achieve even greater durability in particularly harsh environments.

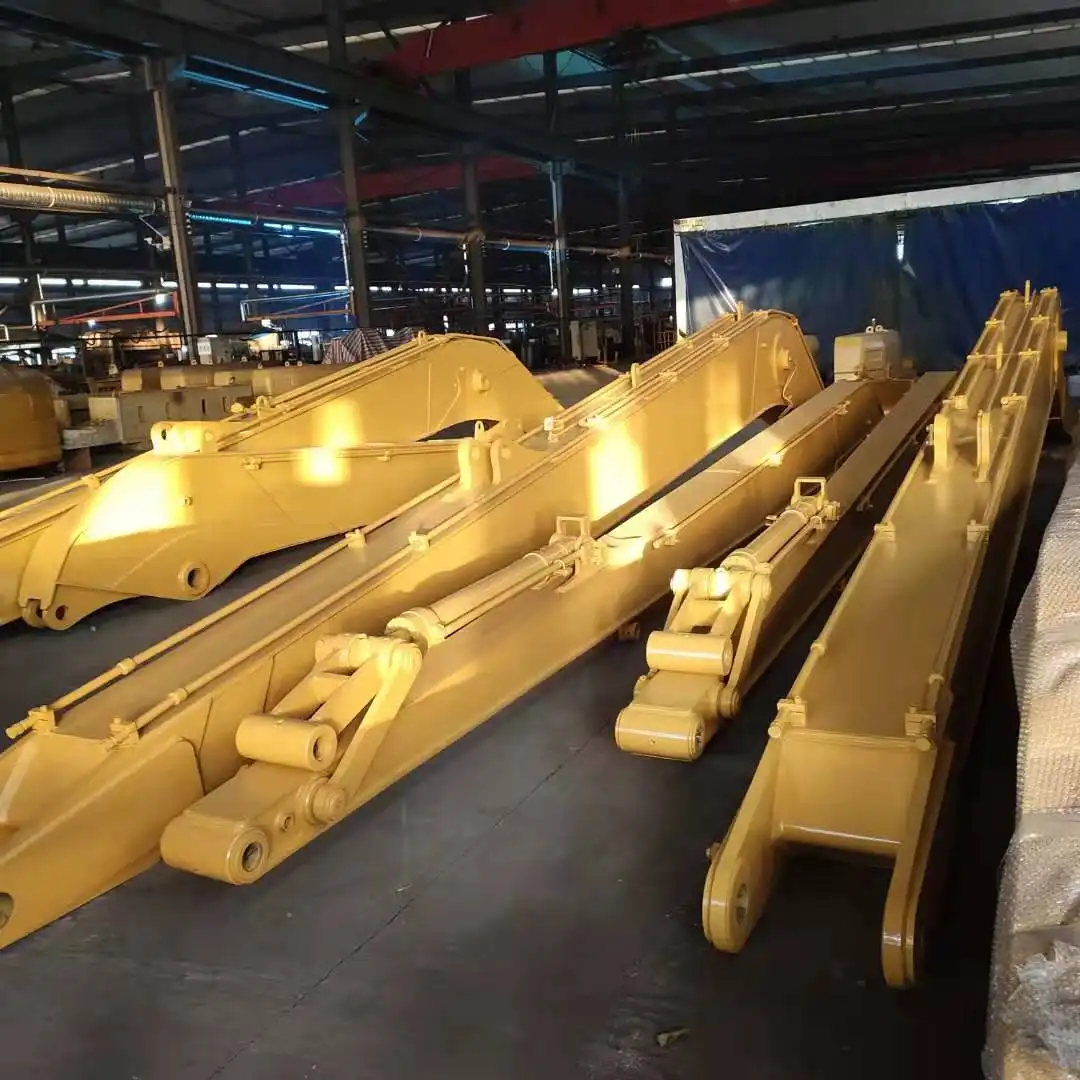

Manufactured in state-of-the-art workshops
Cutting-edge CNC machining for excavator arm precision
The manufacturing process of excavator extension arms relies heavily on cutting-edge Computer Numerical Control (CNC) machining technology. These advanced machines ensure unparalleled precision in cutting, drilling, and shaping the high-strength steel components. CNC machining centers, equipped with multi-axis capabilities, allow for complex geometries and tight tolerances to be achieved consistently.
Skilled operators program these machines using Computer-Aided Manufacturing (CAM) software, translating the engineering designs into precise tool paths. This level of automation not only enhances accuracy but also significantly improves production efficiency. For instance, a 5-axis CNC machine can create intricate pivot joint housings with tolerances as tight as ±0.002 inches, ensuring perfect fit and function in the final assembly.
Robotic welding ensures consistent high-quality joints
Welding is a critical process in the fabrication of excavator extension arms, and robotic welding systems have revolutionized this aspect of manufacturing. These automated systems deliver consistent, high-quality welds that are essential for the structural integrity of the arm. Robotic welders can maintain precise control over welding parameters such as arc length, travel speed, and heat input, resulting in strong, defect-free joints.
Advanced welding techniques like Gas Metal Arc Welding (GMAW) or Flux-Cored Arc Welding (FCAW) are typically employed, depending on the specific requirements of the joint and the material thickness. The use of robotic welding not only improves weld quality but also significantly increases production speed, allowing manufacturers to meet demanding production schedules without compromising on quality.
Expert engineers oversee production for optimal results
While advanced machinery plays a crucial role in manufacturing excavator extension arms, the expertise of skilled engineers remains indispensable. These professionals oversee every stage of the production process, from interpreting design specifications to conducting final quality checks. Their experience and knowledge are vital in addressing any unforeseen challenges that may arise during manufacturing.
Engineers work closely with machine operators to optimize production parameters, ensuring that each component meets or exceeds design specifications. They also play a key role in implementing continuous improvement initiatives, analyzing production data to identify opportunities for enhancing efficiency and quality. This combination of cutting-edge technology and human expertise results in excavator extension arms that consistently meet the highest standards of performance and reliability.

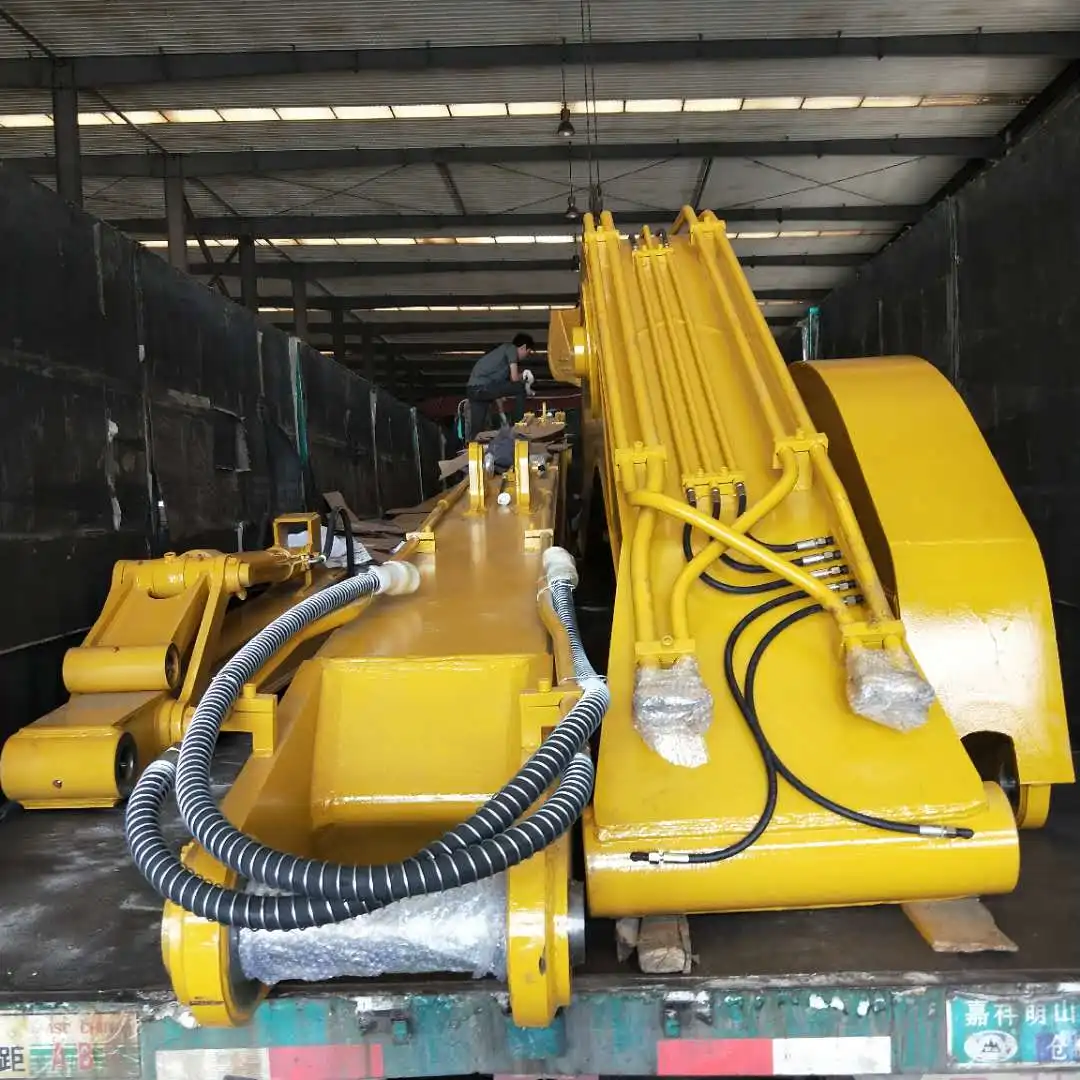

Undergoes strict quality control measures
Rigorous testing protocols for excavator arm strength
Quality control is paramount in the production of excavator extension arms, and rigorous testing protocols are implemented to ensure each arm meets or exceeds industry standards. One of the primary tests conducted is the static load test, where the arm is subjected to loads exceeding its rated capacity to verify its structural integrity. This test typically involves applying forces at various angles and positions to simulate real-world operating conditions.
Dynamic load testing is also performed, subjecting the arm to cyclic loading that mimics the repetitive stresses encountered during excavation work. These tests help identify any potential weaknesses in the design or manufacturing process. Additionally, non-destructive testing methods such as ultrasonic testing and magnetic particle inspection are employed to detect any internal flaws or surface defects that could compromise the arm's performance or safety.
3D scanning technology ensures dimensional accuracy
To maintain the highest level of precision in manufacturing, 3D scanning technology is utilized throughout the production process. This advanced imaging technique allows for rapid and accurate measurement of complex geometries, ensuring that each component of the excavator extension arm meets exact dimensional specifications.
3D scanners create detailed point clouds of the manufactured parts, which are then compared to the original CAD models. This comparison allows quality control engineers to identify any deviations from the design specifications, often with accuracies down to fractions of a millimeter. Any discrepancies can be quickly addressed, maintaining the tight tolerances required for optimal performance and compatibility with the excavator's existing systems.
Final load testing guarantees operational readiness
Before an excavator extension arm is approved for delivery, it undergoes a comprehensive final load test to guarantee its operational readiness. This test simulates real-world working conditions, often involving the attachment of the arm to an actual excavator or a specialized test rig. The arm is then put through a series of movements and load-bearing exercises that mirror typical job site operations.
During this final testing phase, engineers monitor various parameters such as hydraulic pressure, structural deflection, and joint stability. They also assess the arm's performance in terms of reach, lift capacity, and maneuverability. Any issues identified during this stage are addressed immediately, ensuring that only fully functional and safe extension arms are released for customer use. This meticulous approach to quality control helps maintain the reputation of manufacturers and ensures the reliability of excavator extension arms in the field.
The process of making an excavator extension arm is a testament to the fusion of advanced engineering, premium materials, and stringent quality control. From the initial selection of high-strength steel to the final load testing, each step is crucial in producing a reliable and durable attachment. As the construction and excavation industries continue to evolve, these precision-engineered components play a vital role in enhancing the capabilities of excavators across various applications. By adhering to rigorous manufacturing standards and embracing cutting-edge technologies, manufacturers ensure that excavator extension arms meet the demanding needs of modern construction and earthmoving projects.
FAQ
1. What is the typical lifespan of an excavator extension arm?
The lifespan of an extension arm can vary depending on usage and maintenance, but with proper care, it can last 5-10 years or more. Regular inspections and timely repairs are crucial for maximizing longevity.
2. Can excavator extension arms be customized for specific applications?
Yes, many manufacturers offer customization options to meet specific project requirements. This may include adjustments to length, strength, or specialized attachments for unique tasks.
3. How does an extension arm affect an excavator's stability?
An extension arm can impact an excavator's stability by altering its center of gravity. Proper counterweighting and adherence to load charts are essential for safe operation with extended reach.
4. What maintenance is required for extension arms?
Regular maintenance includes lubricating joints, inspecting welds and hydraulic connections, checking for wear or damage, and repainting to prevent corrosion. Following the manufacturer's maintenance schedule is crucial.
5. Are there safety considerations when using excavator extension arms?
Yes, operators must be trained in the proper use of extension arms, including understanding load limits, maintaining visibility, and avoiding overhead obstacles. Always follow safety guidelines and manufacturer recommendations.
China Excavator Extension Arm
Tiannuo Machinery specializes in manufacturing high-quality excavator arm extensions tailored to meet diverse industry needs. Our product range includes arms for 20-25 ton excavators that extend to 16 meters, 25-34 ton models reaching 20 meters, and heavy-duty options for 35-40 ton and 40-50 ton excavators extending to 22 and 26 meters respectively. Each arm is engineered with precision, featuring robust components like bucket cylinders, high-pressure hoses, and connecting rod assemblies. We also offer a comprehensive line of excavator accessories and engineering arms, including three-section arms, pile driving arms, and specialized attachments for various applications. For inquiries about our excavator extension arms or other products, contact us at tn@stnd-machinery.com.
