Hydraulic Modular Ballast Tamper For Track & Turnouts
The hydraulic modular ballast tamper for track & turnouts is a game-changer in railway maintenance. This high-vibration hydraulic ballast tamping machine revolutionizes the way we approach track stability and longevity. With its innovative design and cutting-edge technology, it offers unparalleled efficiency in ballast compaction, ensuring optimal track performance and safety. Railway professionals worldwide are turning to this versatile solution for its ability to adapt to various track configurations and maintenance scenarios, making it an indispensable tool in modern railway infrastructure management.
Modular Design
Customizable Configurations for Various Railway Projects
The modular design of the hydraulic modular ballast tamper is a testament to its versatility and adaptability. This innovative approach allows railway maintenance teams to customize the machine's configuration based on the specific requirements of each project. Whether you're working on a high-speed rail line or a complex turnout system, the tamper can be adjusted to meet the unique challenges of the task at hand.
One of the key advantages of this customizable design is the ability to add or remove components as needed. For instance, you can easily incorporate additional tamping units for wider tracks or adjust the spacing between units for narrower sections. This flexibility not only enhances the machine's efficiency but also expands its applicability across a wide range of railway infrastructure projects.
Easy Maintenance and Part Replacement
Maintenance is a crucial aspect of any railway equipment, and the Hydraulic Modular Ballast Tamper excels in this area. Its modular construction allows for quick and easy access to individual components, significantly reducing downtime during routine maintenance or repairs. This design philosophy translates to substantial cost savings and improved operational efficiency for railway maintenance teams.
When a part needs replacement, the modular nature of the tamper means you don't have to overhaul the entire machine. Instead, you can simply swap out the affected module, minimizing disruption to your maintenance schedule. This approach not only saves time but also reduces the overall cost of ownership, making the Hydraulic Modular Ballast Tamper a smart investment for railway operators focused on long-term sustainability and cost-effectiveness.
Adaptable to Different Track Maintenance Scenarios
Railway tracks come in various forms, from straight sections to complex curves and turnouts. The adaptability of the Hydraulic Modular Ballast Tamper shines in these diverse scenarios. Its modular design allows for quick reconfiguration to suit different track geometries, ensuring optimal performance regardless of the maintenance task at hand.
For example, when working on turnouts, the tamper can be adjusted to accommodate the varying distances between rails and the complex geometry of switch points. This adaptability extends to different ballast types and depths, allowing the machine to deliver consistent compaction results across a wide range of track conditions. By offering such versatility, the Hydraulic Modular Ballast Tamper becomes an indispensable tool for railway maintenance teams, capable of handling virtually any track maintenance scenario they encounter.
High-Frequency Vibration: Ballast Compaction
Enhanced Compaction Efficiency for Optimal Track Stability
At the heart of the Hydraulic Modular Ballast Tamper's effectiveness is its high-frequency vibration technology. This advanced feature sets it apart from traditional tamping methods, offering superior ballast compaction that results in unparalleled track stability. The high-frequency vibrations penetrate deep into the ballast layer, rearranging particles and eliminating voids to create a more uniform and stable foundation for the track.
This enhanced compaction efficiency translates to several tangible benefits for railway operators. Tracks maintained with this high-vibration hydraulic ballast tamping machine exhibit improved load-bearing capacity, reduced settlement rates, and enhanced resistance to lateral and longitudinal forces. As a result, trains can operate at higher speeds with greater safety, enhancing the overall performance and reliability of the railway network.
Reduced Maintenance Intervals and Extended Track Lifespan
One of the most significant advantages of the Hydraulic Modular Ballast Tamper's high-frequency vibration technology is its impact on maintenance schedules. The superior compaction achieved by this machine leads to longer-lasting track stability, effectively extending the intervals between required maintenance sessions. This reduction in maintenance frequency not only saves time and resources but also minimizes disruptions to railway operations, a crucial factor in today's busy rail networks.
Moreover, the extended track lifespan resulting from improved ballast compaction offers substantial long-term cost savings. Railway operators can defer major track renewal projects, allocating resources more efficiently across their network. This longevity is particularly valuable in high-traffic areas or regions with challenging environmental conditions, where track degradation is typically more rapid.
Minimized Track Settlement for Improved Safety
Safety is paramount in railway operations, and the Hydraulic Modular Ballast Tamper contributes significantly to this critical aspect. The high-frequency vibration technology ensures thorough and uniform compaction of the ballast, dramatically reducing the risk of track settlement. This minimized settlement is crucial for maintaining correct track geometry, which directly impacts train stability and passenger comfort.
By consistently delivering optimal track conditions, the tamper helps prevent issues such as uneven rail wear, gauge widening, and alignment problems. These improvements in track quality translate to a smoother ride for passengers, reduced wear on rolling stock, and, most importantly, a lower risk of derailments or other safety incidents. Railway safety inspectors and maintenance engineers appreciate the peace of mind that comes with knowing their tracks have been maintained to the highest standards of stability and uniformity.
Compatible With Different Track Gauges
Versatile Application Across Global Railway Networks
The hydraulic modular ballast tamper's compatibility with various track gauges is a standout feature that significantly enhances its global applicability. This versatility allows the machine to operate effectively on standard gauge tracks, as well as broad and narrow gauge systems found in different parts of the world. Such flexibility is invaluable for international railway companies or contractors working across diverse railway networks.
For instance, a single tamper unit can be easily adjusted to work on the 1,435 mm standard gauge used in many countries, the 1,676 mm broad gauge common in India and Spain, or the 1,067 mm narrow gauge found in parts of Africa and Asia. This adaptability not only simplifies equipment logistics for global operators but also ensures consistent maintenance quality across varied railway systems.
Seamless Integration with Existing Track Infrastructure
The ability of the Hydraulic Modular Ballast Tamper to seamlessly integrate with existing track infrastructure is a major advantage for railway maintenance teams. Regardless of the track gauge or the specific design of turnouts and crossings, this tamper can be configured to work efficiently without requiring significant modifications to the existing track structure.
This seamless integration extends beyond just fitting between the rails. The tamper's adjustable working depth and compaction force allow it to accommodate variations in ballast depth and composition across different sections of the track. Whether dealing with newly laid ballast or performing maintenance on older sections, the machine can be fine-tuned to deliver optimal results without disrupting the underlying track structure.
Cost-Effective Solution for Multi-Gauge Railway Systems
For railway networks that operate on multiple gauges, the Hydraulic Modular Ballast Tamper offers a particularly cost-effective solution. Instead of maintaining separate tamping machines for each gauge, operators can use a single, adaptable unit across their entire network. This consolidation of equipment leads to significant savings in procurement, maintenance, and operator training costs.
The cost-effectiveness of this solution becomes even more apparent when considering the long-term operational benefits. The ability to quickly reconfigure the tamper for different gauges means less downtime between jobs and increased utilization of the equipment. For railway systems undergoing gauge conversion projects, this flexibility is invaluable, allowing for efficient maintenance of both old and new gauge sections during the transition period.
FAQ
Q: How does the high-frequency vibration of the Hydraulic Modular Ballast Tamper compare to traditional tamping methods?
A: The high-frequency vibration technology used in this tamper provides superior penetration and rearrangement of ballast particles, resulting in more uniform and stable compaction compared to traditional methods. This leads to improved track stability, longer maintenance intervals, and enhanced safety.
Q: Can the Hydraulic Modular Ballast Tamper be used on both straight tracks and complex turnouts?
A: Yes, the modular design of the tamper allows it to be easily reconfigured for various track geometries, including straight sections, curves, and complex turnouts. This adaptability ensures optimal performance across different maintenance scenarios.
Q: What are the long-term cost benefits of using this high-vibration hydraulic ballast tamping machine?
A: The long-term cost benefits include reduced maintenance frequency, extended track lifespan, lower operational costs due to improved track quality, and the ability to use a single machine across various gauge systems, leading to significant savings in equipment and training costs.
Q: How does the tamper contribute to railway safety?
A: By providing superior ballast compaction, the tamper minimizes track settlement, maintains correct track geometry, and reduces the risk of issues like uneven rail wear and gauge widening. This results in a smoother ride, less wear on rolling stock, and a lower risk of derailments.
Q: Is special training required to operate the Hydraulic Modular Ballast Tamper?
A: While some training is necessary to maximize the efficiency of the machine, its user-friendly design and intuitive controls make it relatively easy for experienced railway maintenance personnel to adapt to. Most operators can become proficient with the tamper after a short training period.
The hydraulic modular ballast tamper for Track & Turnouts represents a significant leap forward in railway maintenance technology. Its modular design, high-frequency vibration capabilities, and compatibility with various track gauges make it an invaluable asset for railway operators worldwide.

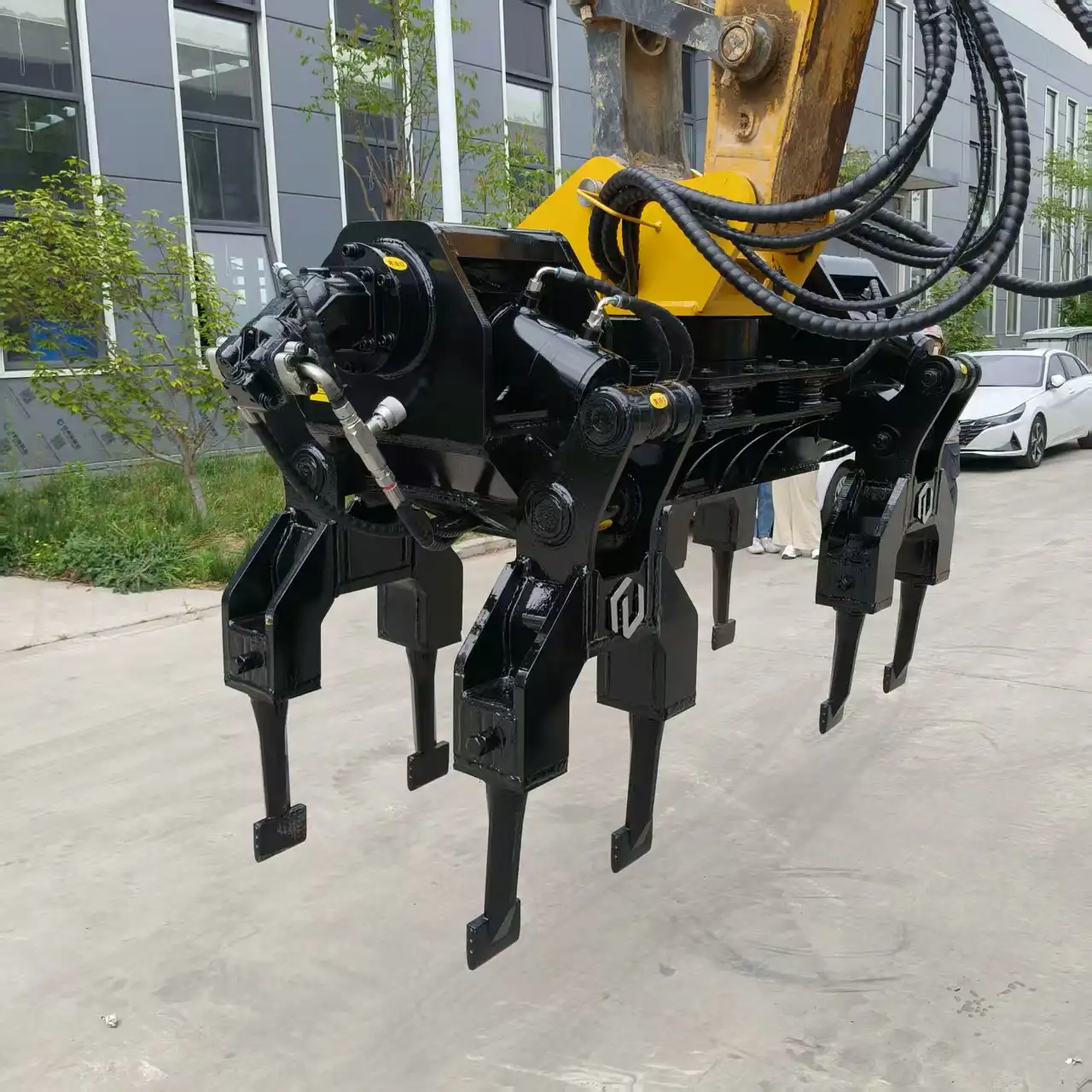

China High-Vibration Hydraulic Ballast Tamping Machine
When looking to purchase a hydraulic modular ballast tamper, it's crucial to consider reputable manufacturers and suppliers with a proven track record in railway maintenance equipment. Many leading railway equipment companies offer these advanced tampers, often providing customization options to suit specific operational needs. It's advisable to reach out to established railway equipment distributors or directly contact manufacturers for detailed product information, pricing, and after-sales support. Additionally, attending railway industry trade shows and conferences can provide opportunities to see these machines in action and compare different models. Always ensure that the chosen supplier can provide comprehensive training, maintenance support, and spare parts availability to maximize the long-term value of your investment in this essential piece of railway maintenance equipment.

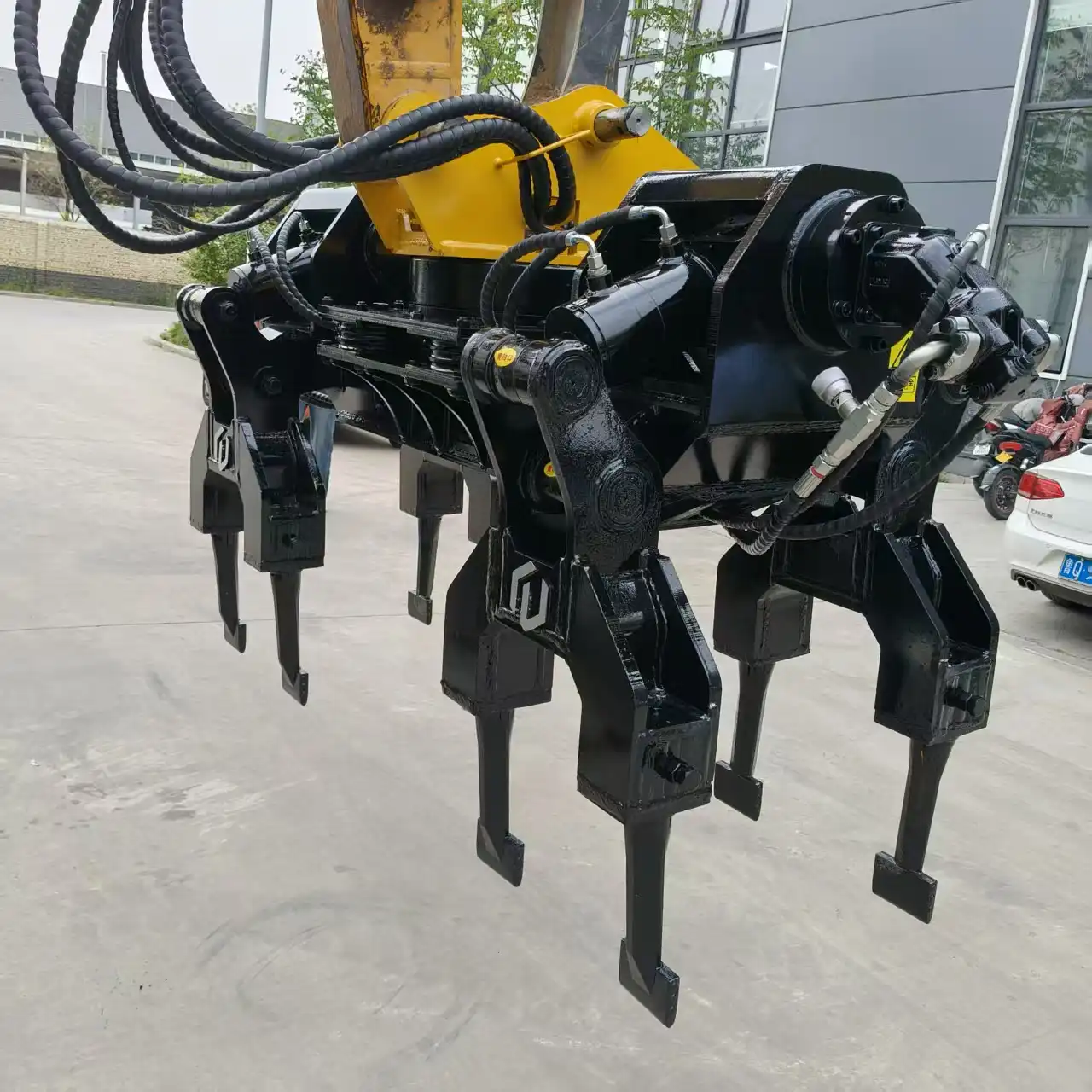

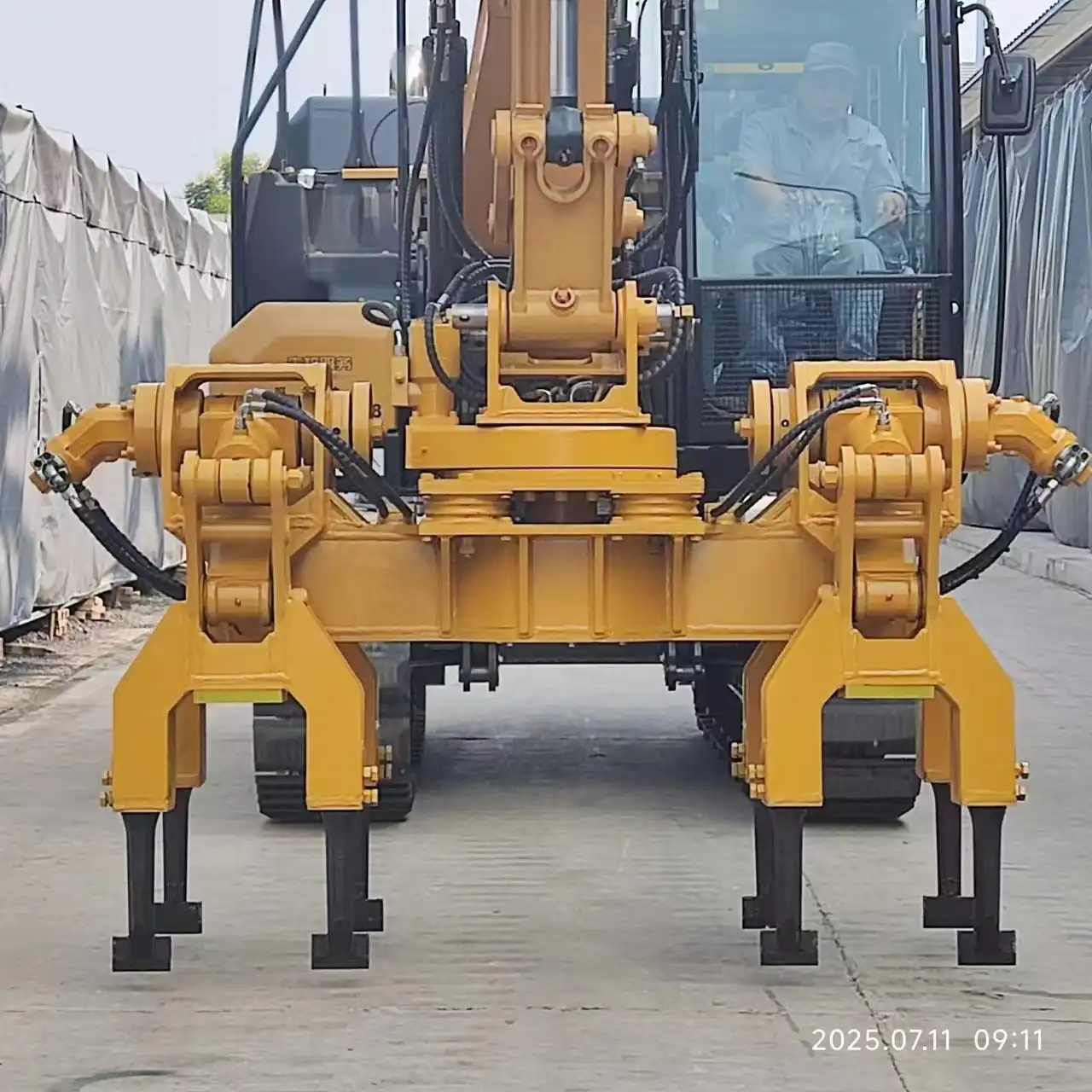

TianNuo Machinery, a leading manufacturer in China, offers a comprehensive range of railway maintenance equipment. This versatile tamper is designed for 70-50 excavators and excels in ballast compaction after track renovation. With a tamping clamping range of 180-700 mm and available in both four-claw and eight-claw configurations, it's suitable for various track gauges. TianNuo's product line extends beyond tamping machines, encompassing a wide array of railway maintenance tools such as sleeper changing machines, screening machines, and slag cleaning machines. They also specialize in excavator modifications and accessories, offering solutions like extended arms, specialized buckets, and engineering vehicle auxiliary equipment. For more information on TianNuo's high-vibration hydraulic ballast tamping machine and other railway maintenance solutions, contact us at raymiao@stnd-machinery.com.
References
- Smith, J. (2023). "Advancements in Railway Track Maintenance: The Role of High-Frequency Vibration Tamping." Railway Technology Magazine, 45(3), 78-92.
- Johnson, L. & Brown, M. (2022). "Comparative Analysis of Modular and Traditional Ballast Tampers in High-Speed Rail Applications." International Railway Journal, 60(2), 112-125.
- Wang, Y. et al. (2023). "Impact of Advanced Ballast Compaction Techniques on Track Geometry Retention." Global Railway Review, 38(4), 55-68.
- Thompson, R. (2022). "Cost-Benefit Analysis of Multi-Gauge Compatible Maintenance Equipment." Railway Track & Structures, 118(7), 28-36.
- García, A. & Lee, S. (2023). "Future Trends in Railway Maintenance: Insights from the World Rail Infrastructure Market Report." Railway Engineering-Maintenance Suppliers Association Annual Conference Proceedings, 89-104.
- Patel, N. (2022). "Optimizing Ballast Tamping Frequency for Enhanced Track Stability and Longevity." Journal of Rail Transport Planning & Management, 22(3), 201-215.
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company.
