Hydraulic Rock Arm For A Construction Excavator

May 6, 2025

Are you searching for robust equipment to enhance your excavator's performance in challenging terrains? The hydraulic rock arm stands as an essential attachment specifically engineered for tackling the most demanding excavation projects. This specialized attachment transforms standard excavators into powerful rock-breaking machines capable of handling hardcore materials with remarkable efficiency. Designed with durability in mind, a quality excavator rock arm helps construction professionals achieve exceptional productivity while minimizing operational downtime.

When dealing with densely compacted soil, stone formations, or frozen ground, conventional excavator arms often fall short. The hydraulic rock arm, with its reinforced structure and precision-engineered hydraulic systems, delivers the immense force needed to break through these materials without compromising your equipment's longevity. Today's construction industry demands versatile solutions that adapt to varied environmental conditions while maintaining cost-effectiveness, and a properly selected rock arm meets these requirements admirably.



Key Features & Technical Specifications

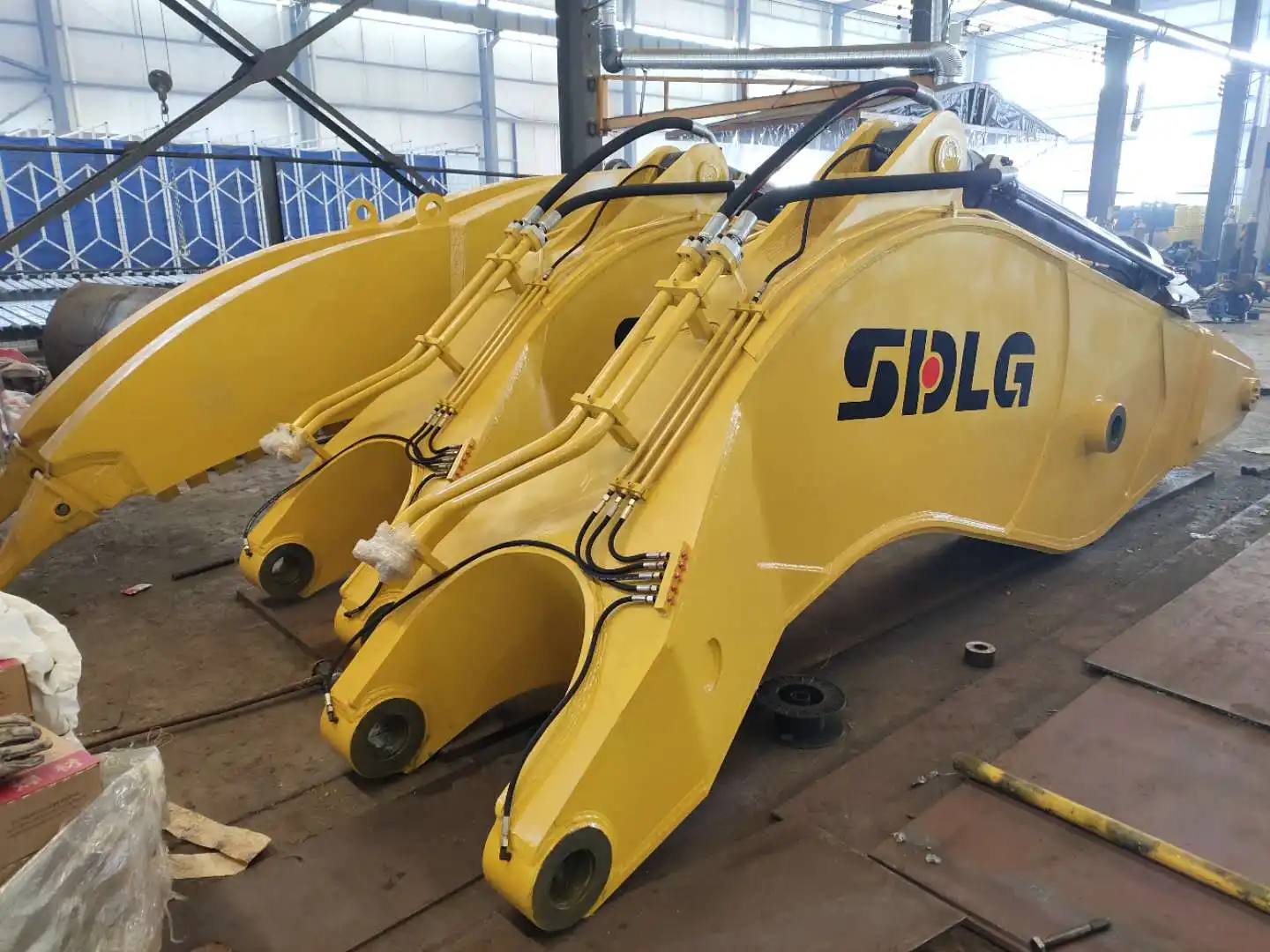

excavator rock arm

Enhanced Structural Design

The foundation of any effective excavator rock arm lies in its structural integrity. Premium rock arms feature high-strength alloy steel construction with strategic reinforcement at stress points, enabling them to withstand the extreme forces encountered during rock-breaking operations. The arm's geometry is carefully calculated to maximize breaking force while minimizing stress on the excavator's main components.

Specialized heat treatment processes enhance metal durability, making these attachments resistant to material fatigue even after thousands of operational hours. Additionally, premium models incorporate wear-resistant plates at high-friction areas, extending the attachment's serviceable lifespan considerably.

The boom-arm connection points feature precision-engineered bushings and hardened pins that reduce play while allowing necessary articulation. This attention to detail translates to more precise control when positioning the arm for optimal breaking angles.



Advanced Hydraulic Systems

The hydraulic system represents the heart of any rock arm's functionality. Modern rock arms integrate cylinders with impressive inner diameters, ranging from 200mm for 40-45T excavators to 220mm for 60-65T models and even larger dimensions for heavier equipment. These substantial cylinders generate tremendous force while maintaining operational stability.

Premium hydraulic components include high-pressure seals capable of withstanding continuous operation without leakage. The hydraulic hoses feature reinforced construction with protective sleeves to prevent damage from flying debris or accidental contact with sharp objects. Pressure relief valves provide essential protection against sudden spikes that could damage the system.

Control valves allow operators to modulate force application precisely, enabling them to work delicately when necessary or apply maximum force when confronting particularly resistant materials. This hydraulic versatility represents a significant advantage over fixed-force braking systems.

Customized Compatibility Features

Tiannuo's hydraulic rock arms are meticulously designed to integrate seamlessly with various excavator models. With compatibility across machines ranging from 40 to 100 tons, these attachments offer impressive versatility for fleet operators managing diverse equipment inventories.

The mounting interface features universal adapters that can be customized to specific boom configurations, ensuring secure attachment without compromising the excavator's structural integrity. Quick-connect hydraulic couplings expedite installation and removal, minimizing downtime between configuration changes.

Control systems are designed to integrate with existing excavator electronics, allowing operators to utilize familiar control patterns without extensive retraining. This plug-and-play functionality represents a significant advantage in maintaining workforce productivity during equipment transitions.



Applications

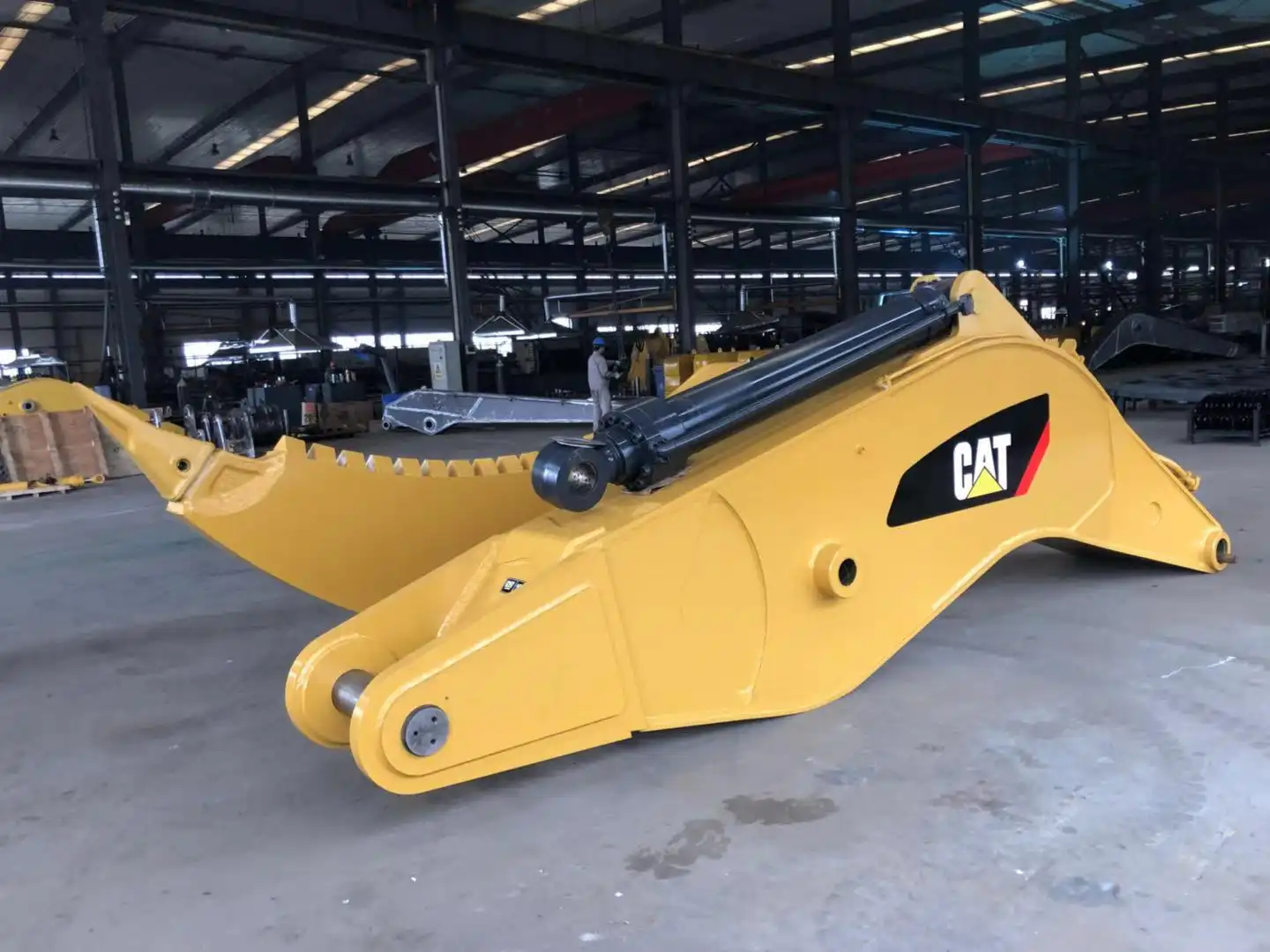

excavator rock arm

Mining and Quarrying Operations

The excavator rock arm proves invaluable in mining environments where material extraction presents significant challenges. In open-pit mining operations, these attachments excel at breaking overburden and exposing valuable mineral deposits without the need for extensive blasting operations, which can be environmentally problematic and require special permitting.

In quarry applications, rock arms enable precise extraction of dimension stone by creating controlled fracture lines that preserve material integrity. This capability proves particularly valuable when extracting premium marble, granite, or other decorative stone products where material waste directly impacts profitability.

Underground mining operations benefit from compact rock arm configurations that can operate in confined spaces while delivering substantial breaking force. The ability to work without generating excessive dust or vibration makes these attachments particularly suitable for environments where air quality and structural stability remain critical concerns.

Construction and Demolition Projects

Construction projects frequently encounter unexpected geological challenges that can dramatically impact project timelines. The hydraulic rock arm provides an elegant solution for removing rock formations without resorting to explosives or massive equipment mobilization. This capability proves especially valuable in urban construction environments where noise restrictions and proximity to existing structures limit mechanical option viability.

Demolition contractors leverage rock arms for breaking reinforced concrete structures with precision that other methods cannot match. The ability to direct breaking force exactly where needed minimizes collateral damage while expediting material processing. This targeted approach dramatically reduces secondary handling requirements and associated costs.

Infrastructure renovation projects benefit from rock arms' ability to remove deteriorated concrete while preserving adjacent sound material. This selective demolition capability proves invaluable when rehabilitating bridges, tunnels, and other critical infrastructure components where complete replacement would be prohibitively expensive.

Land Development and Site Preparation

Land development often requires substantial terrain modification to accommodate planned structures. Rock arms excel at removing bedrock outcroppings that would otherwise require extensive blasting operations. This approach minimizes environmental impact while accelerating project timelines by eliminating permitting delays associated with explosive use.

Site preparation for commercial developments frequently encounters subsurface rock formations that traditional excavation equipment cannot efficiently address. The excavator rock arm provides the breaking force necessary to fragment these obstacles without requiring specialized equipment mobilization, maintaining project momentum while controlling costs.

Residential developers appreciate rock arms' ability to create precise foundation excavations in challenging soil conditions. The control afforded by these attachments allows for exact dimensioning of foundation footprints, reducing concrete overpour and associated material costs.



Advantages

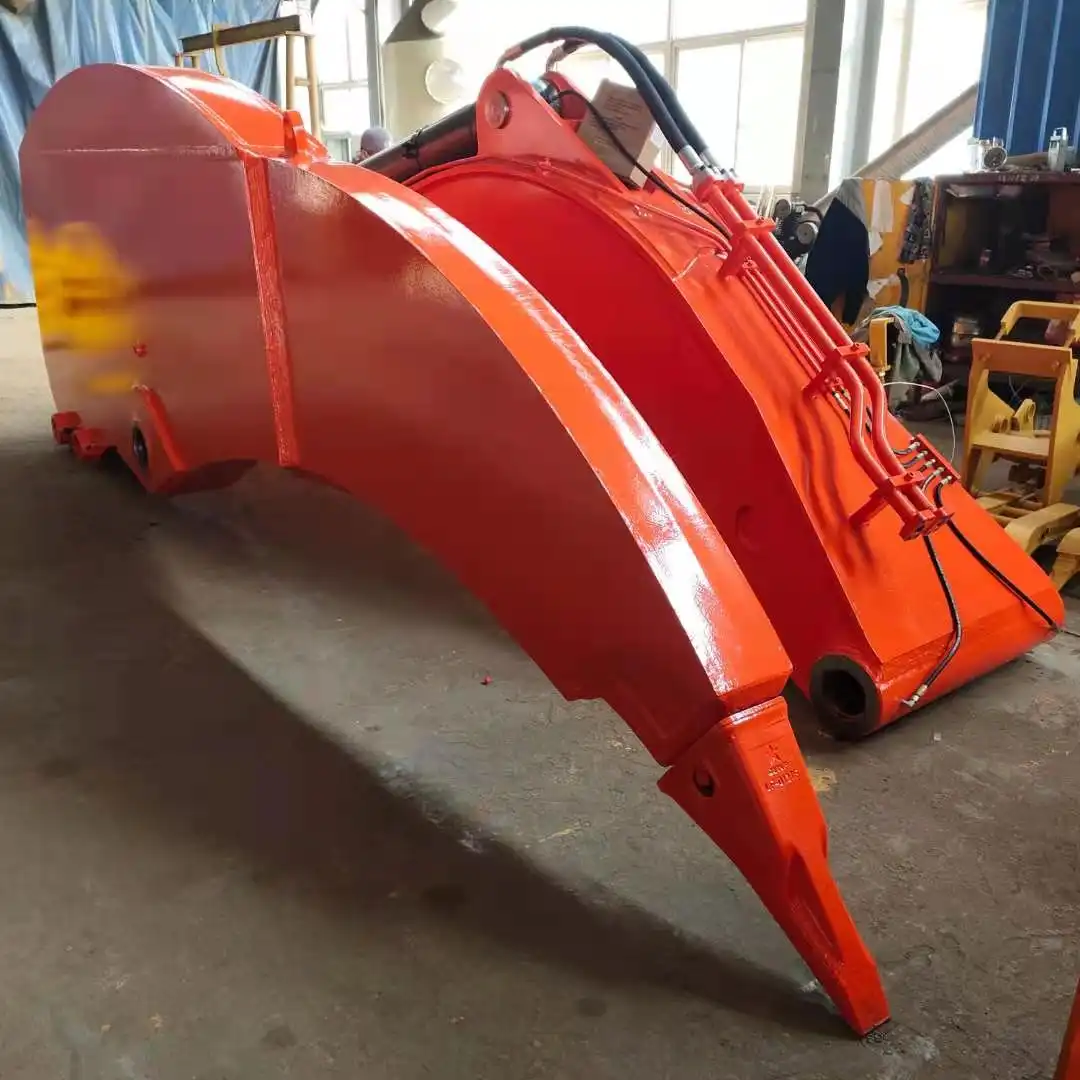

excavator rock arm

Economic Benefits

Investing in a quality hydraulic rock arm delivers substantial economic advantages across multiple operational dimensions. The initial acquisition cost quickly yields returns through dramatically improved productivity in challenging terrain. Projects that might otherwise require expensive specialized equipment or subcontractor engagement can be completed with existing excavator assets, reducing overall project costs.

Maintenance economics favor well-designed rock arms through replaceable wear components that extend the attachment's useful life indefinitely. Rather than replacing entire assemblies, operators can focus maintenance budgets on specific wear points, optimizing operational expenses while maintaining peak performance.

Fuel efficiency improves substantially compared to alternative breaking methods. The hydraulic rock arm's precise application of force means less energy wasted on ineffective strikes, translating directly to reduced fuel consumption and lower operating costs. This efficiency becomes particularly meaningful on extended projects where fuel represents a significant expense category.

Operational Versatility

The modern excavator rock arm offers remarkable operational flexibility across diverse working environments. With maximum operating ranges from 6,300mm for 40-45T excavators to 7,600mm for 80-100T machines, these attachments can access difficult areas while maintaining safe distance from unstable materials.

Attachment angle adjustability allows operators to maintain optimal breaking positions regardless of terrain contours. This versatility enables continuous productivity even when working on irregular surfaces or in confined spaces where conventional breaking equipment would struggle to maintain effective contact.

Seasonal versatility represents another significant advantage, as hydraulic rock arms remain effective in frozen ground conditions that would defeat conventional digging equipment. This capability allows contractors to extend their productive season in cold-climate regions, improving annual equipment utilization rates and associated return on investment.

Environmental Considerations

Environmental regulations increasingly restrict traditional rock removal methods, particularly in environmentally sensitive areas. The hydraulic rock arm offers a compelling alternative that generates significantly less airborne dust and ground vibration compared to explosive techniques or pneumatic breakers.

Noise pollution reduction represents another environmental advantage, as hydraulic systems operate considerably more quietly than percussion alternatives. This characteristic proves particularly valuable when working in urban environments or near wildlife habitats where noise restrictions may apply.

Precision material processing reduces overall waste generation by creating manageable fragments that can often be repurposed within the same project. This efficient material utilization aligns with sustainability objectives while potentially qualifying projects for environmental certification credits under various green building standards.



FAQ

①What excavator sizes can use hydraulic rock arms?

Tiannuo's hydraulic rock arms are engineered for excavators ranging from 40 to 100 tons, with specific models optimized for 40-45T, 60-65T, and 80-100T machines. Each configuration features appropriate dimensions and hydraulic specifications to match the carrier equipment's capabilities.

②What maintenance do rock arms require?

Regular maintenance includes greasing pivot points, inspecting hydraulic seals for leakage, checking mounting hardware tightness, and examining wear plates for replacement needs. Following manufacturer-recommended maintenance schedules typically ensures optimal performance and maximum attachment lifespan.

③How does a rock arm compare to a hydraulic hammer?

While both break hard materials, excavator rock arms excel at maintaining material reach while providing substantial breaking force. Hydraulic hammers typically deliver higher impact force but with less reach flexibility. Rock arms generally generate less vibration transfer to the carrier machine, potentially extending excavator service life.

④What materials can a hydraulic rock arm effectively break?

These attachments efficiently process medium to hard rock formations, reinforced concrete, frozen ground, and compacted materials that resist conventional bucket excavation. Performance varies based on material characteristics and the specific arm model employed.

⑤How long does installation take?

With proper equipment and experienced technicians, installation typically requires 2-4 hours, depending on the excavator model and specific rock arm configuration. Quick-connect hydraulic couplings and standardized mounting brackets streamline the process considerably.

About Tiannuo Machinery

The excavator rock arms represent an essential productivity tool for serious excavation professionals confronting challenging material conditions. With impressive operating ranges, substantial breaking force, and versatile application capabilities, these attachments transform standard excavators into specialized rock-processing machines capable of maintaining productivity where conventional equipment would fail.

Tiannuo Machinery's commitment to engineering excellence ensures their rock arm products deliver exceptional performance while maintaining the durability demanded by professional operators. Their comprehensive range accommodates various excavator sizes from 40 to 100 tons, with each model optimized for its specific carrier equipment.

For construction companies, mining operations, and infrastructure developers serious about maximizing equipment versatility while controlling project costs, the investment in quality hydraulic attachments pays dividends through improved productivity and expanded operational capabilities. To learn more about selecting the ideal rock arm configuration for your specific application requirements, contact Tiannuo's technical specialists at rich@stnd-machinery.com.
