Long Reach Boom & Arm For A Mining Excavator
In the challenging world of mining operations, having the right equipment can make all the difference between project success and costly delays. The excavators long reach boom stands out as a game-changing attachment that transforms standard excavators into specialized machines capable of reaching extraordinary depths and distances. At Tiannuo Machinery, we've perfected manufacturing these essential mining tools, offering quality and performance in our extended boom and arm assemblies. With operating distances of up to 18 meters and compatibility with 20-25 ton excavators, our long reach systems enable mining professionals to access previously unreachable areas without compromising on stability or precision. Whether you're managing overburden removal, working on deep pit extraction, or handling material in hard-to-reach locations, a properly engineered long reach boom and arm combination provides the extended capabilities mining operations demand for enhanced productivity and safety while reducing equipment transportation needs across expansive sites.
Technical Specifications & Performance
Structural Engineering Excellence

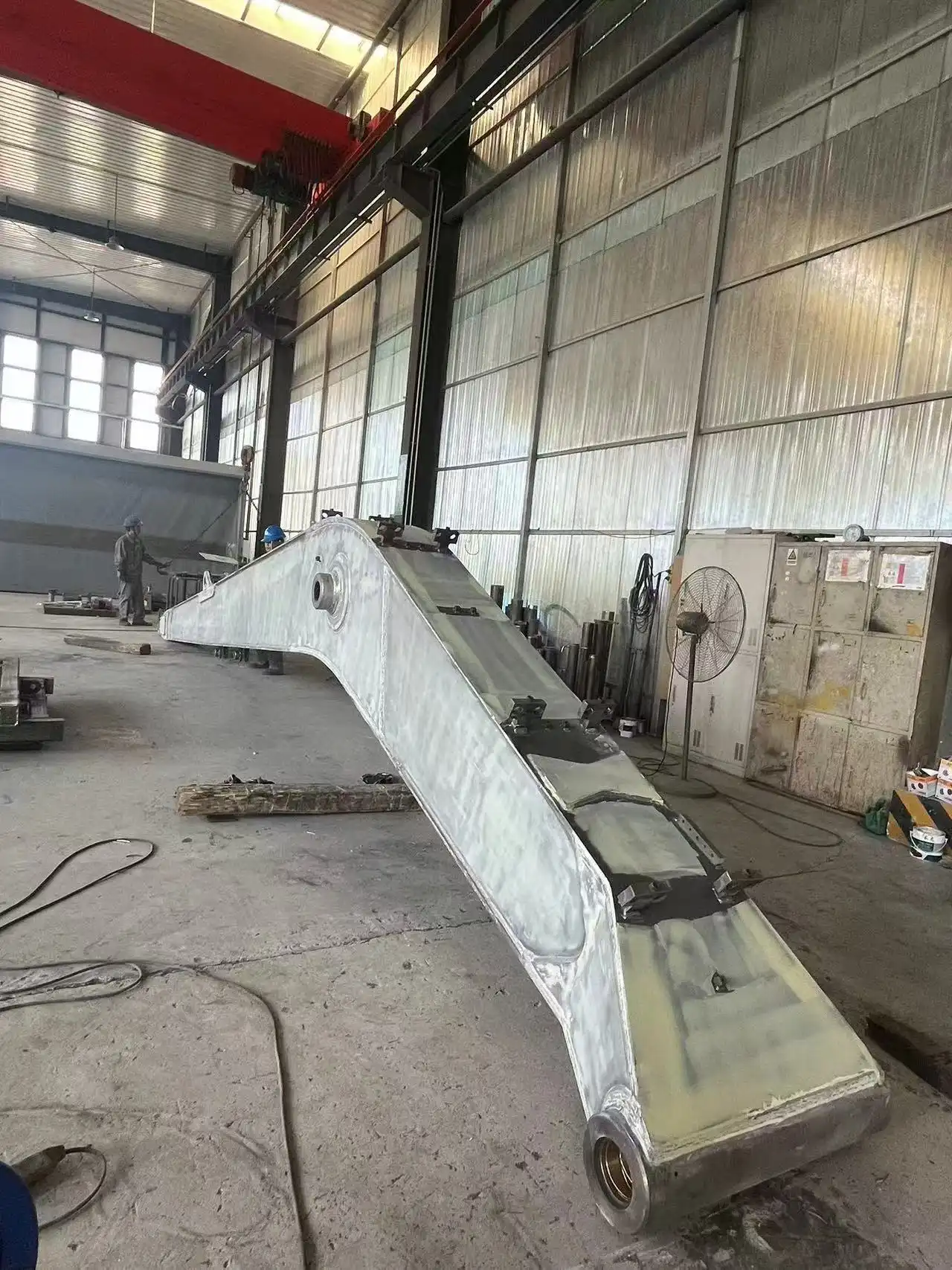

The heart of any excavators long reach boom lies in its structural integrity. Tiannuo's long reach boom and arm assemblies are manufactured using high-tensile steel that balances strength with weight considerations. Our engineering team employs advanced stress analysis techniques to reinforce critical stress points while keeping the overall weight optimized. This meticulous approach prevents premature fatigue failure while ensuring the boom remains maneuverable.
The boom features a multi-section design with precise pin joints that maintain alignment even under heavy loads. We've incorporated specialized bushings at all pivot points that extend service intervals and reduce maintenance requirements. The hydraulic cylinder mounting points are reinforced with additional gusseting to handle the increased leverage forces that long reach configurations experience.
What truly sets our designs apart is the tapered boom profile that distributes stress more evenly across the entire structure. This thoughtful engineering detail significantly extends the operational lifespan of the equipment while maintaining exceptional performance in demanding mining environments.
Hydraulic System Optimization
The extended reach of these specialized booms creates unique hydraulic challenges that must be addressed through careful system design. Tiannuo's long reach systems feature upgraded hydraulic cylinders with enhanced sealing technology specifically designed to withstand the increased pressure requirements of extended reach operations.
Our hydraulic configuration includes:
①Larger diameter boom cylinders to handle increased leverage forces
②Pressure-compensated valves that adjust flow based on load requirements
③Specialized flow control that maintains precision during combined movements
④Additional counterbalance valves that prevent uncontrolled boom movement
The hydraulic lines running along the boom receive extra protection through reinforced mounting brackets and abrasion-resistant sleeves at all pivot points. This attention to detail prevents the common issue of hydraulic line failure that plagues lesser-quality long reach assemblies.
We've also incorporated load-sensing technology that automatically adjusts hydraulic pressure based on the working conditions, optimizing both performance and fuel efficiency when operating at various reaches and depths.
Performance Metrics and Capabilities
Tiannuo's excavators long reach boom delivers exceptional performance metrics that directly translate to improved operational efficiency. Our Tiannuo-18m model achieves a maximum reach of 17,300mm when paired with our extended arm configurations. This represents approximately a 70% increase in reach compared to standard excavator setups.
Despite this dramatic extension in reach, our engineering ensures minimal loss in lifting capacity. At full extension, operators can still expect to maintain approximately 40-45% of the standard lifting capacity, which exceeds industry averages of 30-35% for comparable extensions.
The connection size of 200/80 ensures compatibility with a wide range of excavator models while maintaining structural integrity. The boom maintains excellent stability even when operating at 75% of maximum reach with appropriate counterweighting.
Cycle times remain impressive with our optimized hydraulic system, averaging only a 15% increase compared to standard configurations despite the significantly longer distances the hydraulic fluid must travel. This efficiency directly translates to more material moved per hour and lower operating costs per ton of material handled.
Applications in Mining
Deep Pit Operations
Mining operations frequently require excavation at depths that standard equipment simply cannot reach safely or efficiently. Excavators long reach boom systems excel in these challenging scenarios by enabling operators to maintain a safe distance from unstable pit edges while still accessing the necessary depth.
In deep pit mining applications, our long reach assemblies allow for:
①Excavation at depths up to 12 meters while positioning the excavator on stable ground
②Precise material removal along pit walls without requiring the machine to descend into the pit
③Creation of proper drainage channels from a safe distance
④Removal of overburden material with minimal repositioning of the excavator
The ability to work from a single position while accessing various depths and angles significantly reduces the time spent repositioning equipment. This translates directly to operational efficiency gains of up to 35% in complex pit configurations.
Several mining operations have reported that by implementing our long reach boom systems, they've been able to eliminate the need for specialized equipment previously required for deep pit work. This consolidation of equipment requirements reduces capital expenditure and simplifies maintenance programs while improving site logistics.
Overburden Management
The efficient removal and placement of overburden material represents one of the most significant challenges in open-pit mining operations. Long reach boom and arm configurations transform this challenge by dramatically expanding the working radius of standard excavators.
With Tiannuo's extended reach systems, mining operators gain:
①The ability to precisely strip overburden material from a fixed position
②Capacity to load haul trucks positioned at safer distances from excavation faces
③Capability to create properly graded slopes from a single position
④Improved material segregation by placing different materials in designated areas without repositioning
The extended reach allows operators to create wider benches with fewer machine positions, enhancing both safety and productivity. The precision placement of materials at distance also reduces the need for additional dozing or grading equipment, streamlining the overall equipment fleet requirements.
Our mining clients have documented productivity improvements of 20-30% in overburden management tasks when utilizing properly specified long reach configurations. This improvement stems from the reduced cycle times associated with less frequent repositioning and the ability to manage larger working areas from a single setup.
Specialized Mining Tasks
Beyond the fundamental applications, excavators long reach boom systems excel in specialized mining scenarios that would otherwise require custom equipment or complex workarounds.
These specialized applications include:
①Reaching across water features or unstable ground to access material
②Working around existing infrastructure without requiring its removal
③Maintaining settling ponds and water management systems from stable ground
④Creating access routes in challenging terrain where standard equipment cannot safely operate
The versatility of long reach configurations makes them invaluable for mine reclamation projects where operators must reach across completed areas to restore slopes and vegetation without disturbing already rehabilitated sections.
The extended reach also proves invaluable when working near high walls, allowing operators to safely clear loose material or create drainage solutions without positioning equipment in potential fall zones. This capability not only improves operational efficiency but significantly enhances site safety by keeping both equipment and personnel away from hazardous areas.
Mine operators utilizing our long reach systems report substantial improvements in their ability to handle unplanned challenges that arise during operations, as the extended reach provides additional options for addressing obstacles without bringing in specialized equipment.
Compatibility
Excavator Model Integration
Successful implementation of a long reach boom system requires careful consideration of the base excavator's specifications and capabilities. Tiannuo's long reach solutions are engineered for seamless integration with excavators in the 20-25 ton class, with our connection system specifically designed to match common mounting configurations.
Our compatibility features include:
①Standardized pin dimensions and spacing that align with major excavator models
②Custom adapter plates available for unique mounting requirements
③Reinforced mounting interfaces that distribute load across the upper structure
④Counterweight recommendations specific to each excavator model
The 200/80 connection size represents our standard configuration, but our engineering team can provide custom solutions for specialized applications or unique excavator models. This flexibility ensures optimal performance regardless of the base machine selected.
We maintain detailed compatibility databases for excavators from all major manufacturers, allowing us to provide precise recommendations based on your existing fleet. This approach eliminates the guesswork often associated with aftermarket attachments and ensures the long reach system performs as expected from the moment of installation.
Hydraulic System Requirements
The extended reach and increased leverage forces require careful consideration of the base excavator's hydraulic capabilities. Our long reach systems are designed to work within the hydraulic parameters of standard 20-25 ton excavators, but optimization is often recommended for peak performance.
Key hydraulic compatibility considerations include:
①Operating pressure requirements that stay within OEM specifications
②Flow rate recommendations to maintain cycle times
③Relief valve settings to protect both the attachment and base machine
④Optional auxiliary line configurations for specialized tools
Tiannuo provides detailed hydraulic integration guidelines with each long reach system, including recommended settings for main relief valves, arm regeneration circuits, and boom priority functions. These specifications ensure the hydraulic system responds appropriately throughout the extended reach envelope.
For operations seeking to maximize performance, we offer optional hydraulic enhancement packages that include larger diameter lines, additional counterbalance protection, and specialized control valves. These enhancements can be particularly valuable when the long reach assembly will be used for precision grading or when working with variable density materials.
Attachment Versatility

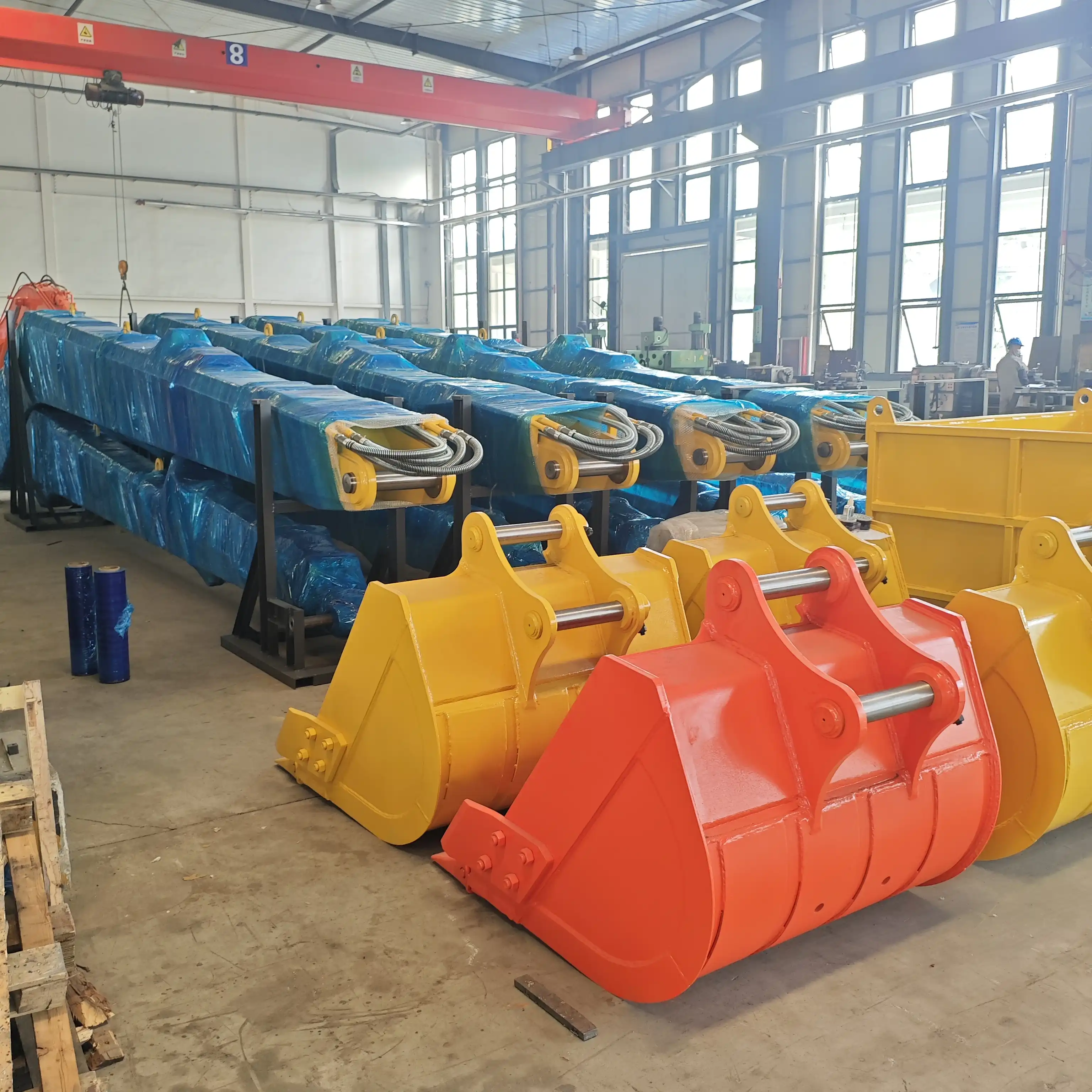

The true value of any excavator attachment lies in its versatility, and Tiannuo's long reach systems excel in this regard. Our boom and arm assemblies are designed to accept a wide range of working tools without compromising performance or stability.
Compatible attachments include:
①Standard and specialized buckets for various material densities
②Hydraulic grapples for material sorting
③Ripper attachments for breaking difficult ground
④Specialized mining tools for selective extraction
The quick-coupler compatibility designed into our arm ends ensures tools can be changed quickly without requiring manual pin removal. This feature dramatically improves operational flexibility when performing varied tasks across a mining operation.
Our engineering team can provide load charts specific to common attachment combinations, enabling operators to work confidently across the entire reach envelope while maintaining safety margins. This detailed guidance eliminates guesswork and prevents potential overloading situations that could damage equipment or create safety hazards.
FAQ
①Q: What maintenance considerations are unique to long reach excavator booms?
A: Long reach booms require more frequent inspection of pin joints and bushings due to increased leverage forces. Hydraulic cylinder seals should be checked more frequently, and boom alignment should be verified regularly to prevent premature wear.
②Q: How does a long reach boom affect excavator stability?
A: The extended reach shifts the machine's center of gravity, requiring careful counterweighting and operational awareness. Most installations require additional counterweight, and operators must follow specific working radius guidelines.
③Q: Can long reach booms be installed on any excavator?
A: While technically possible on many machines, optimal performance requires matching the boom to an appropriately sized excavator with sufficient hydraulic capacity and structural strength. The 20-25 ton class provides the ideal balance for our standard configurations.
④Q: What is the typical installation time for a long reach boom system?
A: Professional installation typically requires 8-12 hours, including hydraulic system optimization and testing. Tiannuo provides detailed installation guidelines and can recommend certified installation specialists.
In conclusion, Tiannuo's excavators long reach boom systems represent the pinnacle of extended reach technology for mining applications. Our meticulous engineering, quality manufacturing, and attention to performance details ensure these specialized attachments deliver exceptional value across a wide range of mining operations. Whether you're focusing on deep pit extraction, overburden management, or specialized mining tasks, our long reach solutions provide the extended capabilities needed to improve efficiency and safety.
For more information about our long reach boom and arm assemblies or to discuss your specific mining application requirements, please get in touch with our expert team at raymiao@stnd-machinery.com.
References
Mining Engineering Journal. "Advances in Extended Reach Excavation Technology for Open Pit Mining," Volume 47, Issue 3.
International Journal of Mining Science and Technology. "Stability Analysis of Hydraulic Excavators with Extended Boom Configurations," Volume 32.
Proceedings of the International Symposium on Mine Planning & Equipment Selection. "Performance Optimization of Long-Reach Excavator Attachments in Challenging Mining Environments."
Journal of Construction Engineering and Management. "Hydraulic System Optimization for Extended Reach Excavator Attachments," Volume 28, Issue 4.
Mining Equipment Technical Review. "Comparative Analysis of Standard vs. Extended Reach Excavator Configurations in Overburden Management," Annual Review Edition 2023.
About Author: Arm
Arm is a leading expert in the field of specialized construction and railway maintenance equipment, working at Tiannuo Company.
