Long Reach Excavator Boom Lengths and Specifications
Long boom excavators are specialized machines designed to tackle projects requiring extended reach and depth capabilities. These powerful tools offer impressive versatility across various industries, from construction and demolition to dredging and land reclamation. Understanding the different boom lengths and specifications is crucial for choosing the right equipment for your job.
Industry-standard boom length ranges explained
When it comes to excavator reach, there's no one-size-fits-all solution. The industry offers a range of boom lengths to suit different project requirements. Let's break down the standard categories and their capabilities:
Standard excavator reach: 20-30 feet capabilities
Standard excavators typically offer a reach of 20 to 30 feet. These machines are workhorses in the construction industry, handling everyday digging, trenching, and material handling tasks with ease. Their versatility makes them ideal for general construction work, utility installations, and landscaping projects.
While not classified as long reach excavators, these standard models provide a solid foundation for understanding the extended capabilities of their longer-armed counterparts. They strike a balance between reach and maneuverability, making them suitable for a wide range of applications on construction sites.
Long reach excavators: Extending from 30 to 60 feet
True long reach excavators take things up a notch, offering boom lengths ranging from 30 to 60 feet. This extended reach opens up new possibilities for tackling challenging projects. These machines excel in scenarios where standard excavators fall short, such as:
- Dredging operations in rivers and harbors
- Slope stabilization on steep embankments
- Demolition of tall structures
- Excavation in areas with limited access
The increased reach allows operators to work from a safe distance, reducing the need for repositioning and improving overall efficiency. Long reach excavators in this category often feature reinforced boom structures and advanced hydraulic systems to maintain stability and precision at extended distances.
Specialized long reach: Achieving 70-100+ foot spans
For the most demanding projects, specialized long reach excavators push the boundaries even further. These impressive machines can achieve boom lengths of 70 to 100 feet or more. Such extreme reach capabilities are invaluable in scenarios like:
- Deep underwater excavation for bridge construction
- Environmental cleanup of contaminated sites
- Mining operations in deep quarries
- Large-scale land reclamation projects
These specialized long reach excavators often incorporate cutting-edge technologies to maintain accuracy and control at such extreme distances. Advanced counterweight systems, computer-assisted operation, and specialized attachments are common features in this category.
Matching boom length to excavator size
Selecting the right boom length isn't just about reaching far; it's about finding the perfect balance between reach and machine stability. Let's explore how boom lengths correlate with different excavator sizes:
Mini excavators: Compact power for 12-20 foot reach
Mini excavators, typically weighing between 2,000 and 20,000 pounds, offer reach capabilities in the 12 to 20-foot range. While not considered long reach machines, these compact powerhouses excel in tight spaces and urban environments. Their shorter booms provide excellent maneuverability for tasks like:
- Residential landscaping and pool installations
- Utility work in confined areas
- Indoor demolition and renovation projects
The compact size of mini excavators makes them ideal for projects where space is at a premium, but deep digging or extended reach isn't a primary concern.
Medium-sized machines: Balancing reach and maneuverability
Medium-sized excavators, typically in the 20,000 to 50,000-pound range, offer a sweet spot between compact maneuverability and extended reach. These machines can often be equipped with long reach booms in the 30 to 45-foot range, providing versatility for a wide array of projects:
- General construction and earthmoving
- Road and bridge construction
- Commercial site preparation
- Municipal water and sewer projects
The balanced design of medium-sized long reach excavators allows them to maintain stability while offering significantly improved reach compared to standard models.
Heavy-duty long reach: Maximizing efficiency on big projects
When it comes to tackling the most demanding projects, heavy-duty long reach excavators shine. These machines, often weighing 50,000 pounds or more, can be equipped with boom lengths exceeding 60 feet. Their impressive capabilities make them indispensable for large-scale operations such as:
- Major infrastructure projects
- Large-scale demolition of high-rise buildings
- Deep excavation for foundations and tunnels
- Extensive dredging operations in ports and waterways
Heavy-duty long reach excavators often feature advanced hydraulic systems, reinforced structures, and specialized counterweights to maintain stability and precision at extreme distances.
Custom boom options: When and why?
While standard long reach excavators offer impressive capabilities, some projects demand even more specialized solutions. Custom boom options can provide the perfect answer to unique challenges. Let's explore when and why custom booms might be the ideal choice:
Tackling unique demolition and construction challenges
In the world of demolition and complex construction projects, one-size-fits-all solutions rarely suffice. Custom boom options allow contractors to tailor their equipment to specific job requirements. For instance:
- Multi-section booms for improved maneuverability around obstacles
- Extra-long booms for demolition of tall structures from a safe distance
- Reinforced booms designed to handle heavy-duty attachments like hydraulic hammers or shears
These custom solutions can significantly improve safety, efficiency, and project timelines in challenging demolition scenarios.
Amphibious excavation: Long booms for water-based projects
Water-based construction and dredging operations present unique challenges that standard excavators struggle to meet. Custom long reach booms designed for amphibious excavators offer solutions for projects like:
- Shoreline restoration and erosion control
- Underwater pipeline installation
- Harbor and canal maintenance
These specialized booms often feature corrosion-resistant materials and sealed components to withstand prolonged exposure to water and harsh marine environments.
High-precision work: Knuckle booms for enhanced flexibility
Some projects require not just reach, but also exceptional maneuverability and precision. Knuckle boom configurations offer an innovative solution, providing:
- Improved access in tight spaces
- Enhanced control for delicate operations
- The ability to work around obstacles with greater ease
These articulated booms are particularly valuable in urban construction, tunnel excavation, and precision demolition work where standard fixed booms might struggle to access key areas.
Long reach excavators have revolutionized the capabilities of construction and earthmoving equipment. From standard models extending to 30 feet to specialized machines reaching beyond 100 feet, these versatile tools offer solutions for a wide range of challenging projects. By understanding the various boom lengths, machine sizes, and custom options available, project managers and equipment operators can select the ideal long reach excavator to maximize efficiency, safety, and productivity on their job sites.
FAQ
1. What are the main advantages of using a long reach excavator?
Long reach excavators offer extended reach and depth capabilities, allowing work in areas inaccessible to standard machines. They improve safety by keeping operators at a distance from hazardous zones and increase efficiency by reducing the need for frequent repositioning.
2. How do I choose the right boom length for my project?
Consider factors like the maximum reach required, the depth of excavation needed, and any obstacles or safety concerns. Consult with equipment specialists to match the boom length to your specific project requirements and the size of the excavator base machine.
3. Are long reach excavators less stable than standard models?
While longer booms can affect stability, modern long reach excavators are designed with advanced counterweight systems and reinforced structures to maintain balance. Proper operator training and following manufacturer guidelines are crucial for safe operation.
4. Can long reach excavators be used for precision work?
Yes, many long reach excavators feature advanced hydraulic systems and controls that allow for precise movements, even at extended distances. For ultra-high precision, consider models with knuckle boom configurations or computer-assisted operation.
5. What types of attachments can be used with long reach excavators?
Long reach excavators can accommodate a wide range of attachments, including various bucket types, grapples, shears, and hammers. However, it's important to consider the weight and balance of attachments when working at extended reaches to maintain machine stability.

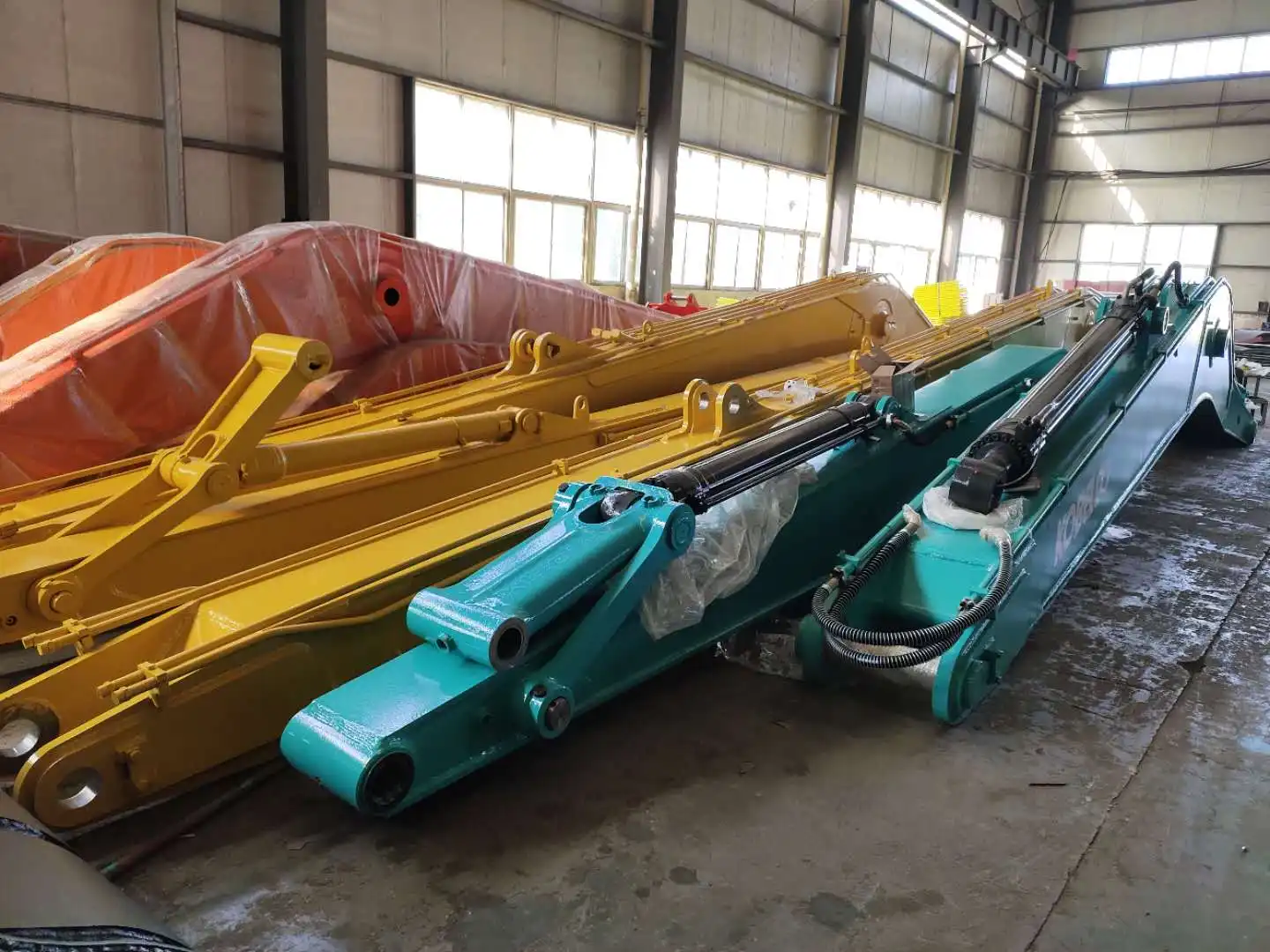

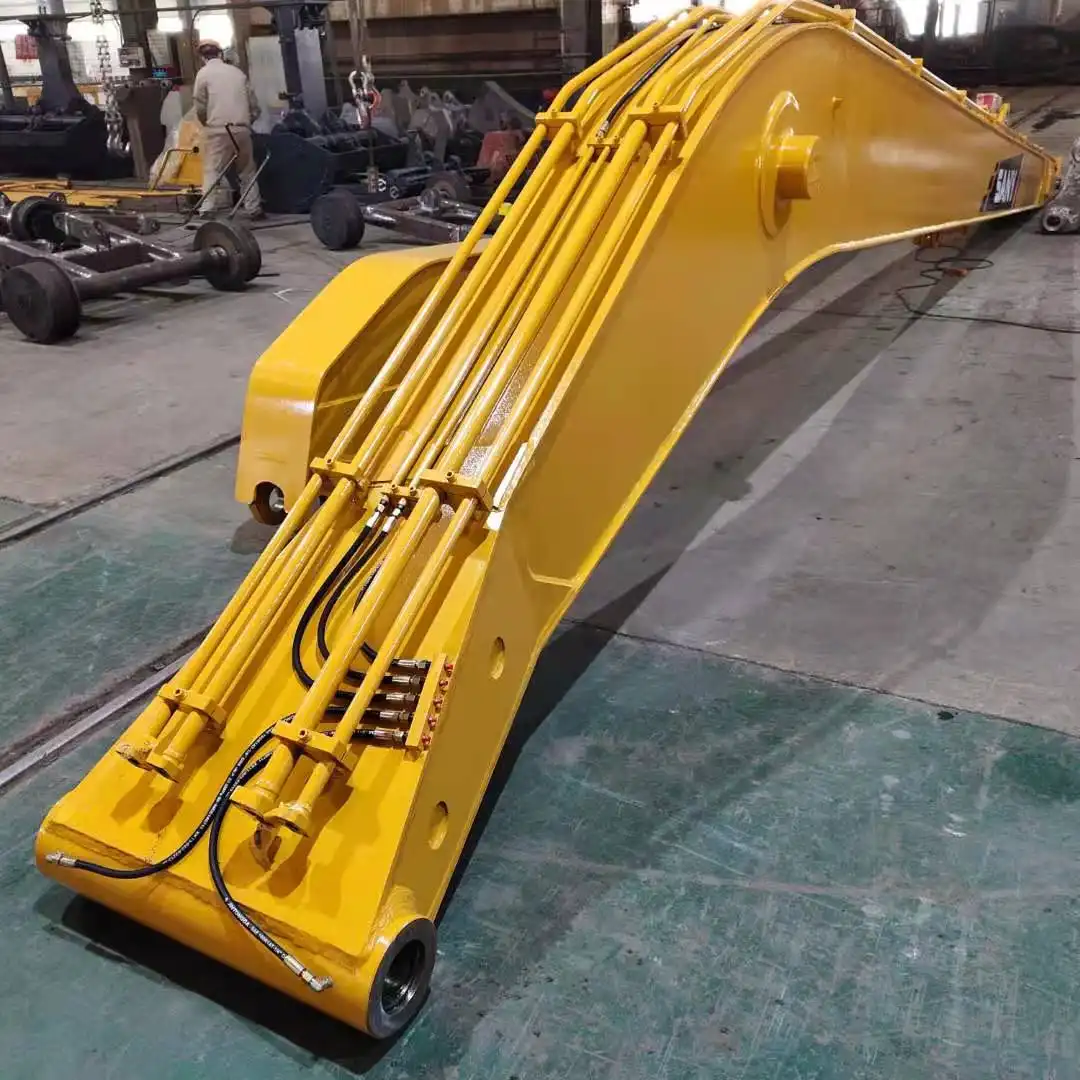

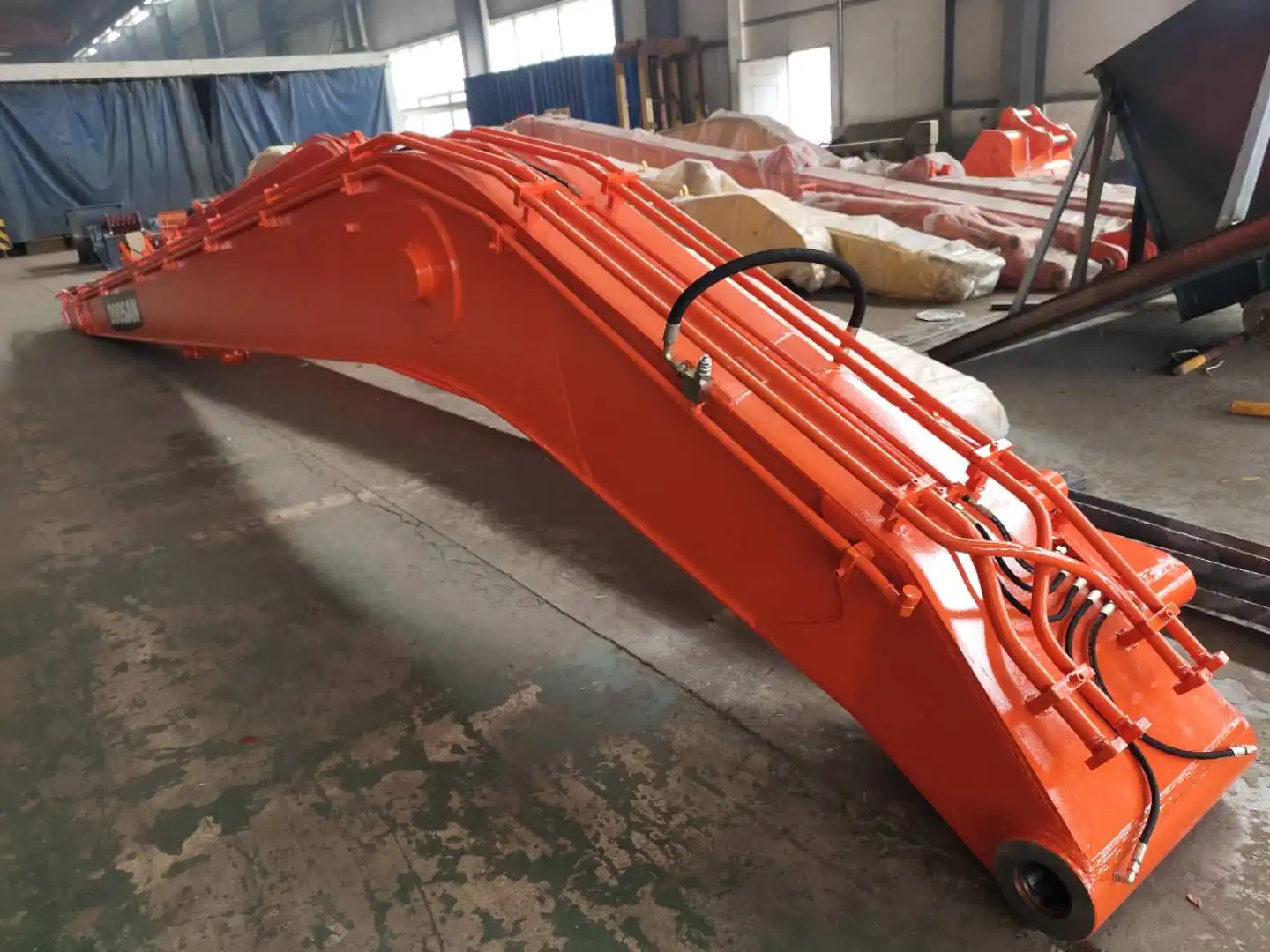

Long Arm Excavator For Sale
Tiannuo Machinery offers a comprehensive range of long reach excavator solutions tailored to your specific needs. Our product line includes excavator extended arms, three-section arms, and specialized attachments designed for railway maintenance, construction, and various industrial applications.
For those seeking exceptional reach and versatility, consider our 20-25t model featuring arm extensions of 16000mm or 18000mm. This powerful machine boasts impressive specifications:
- Maximum Reach: 15300/17300mm
- Maximum Digging Depth: 11200/12200mm
- Maximum Excavation Height: 13500/15300mm
- Bucket Capacity: 0.5 m³ or 0.4m³
- Minimum Front-end Turning Radius: 4750/5150mm
- Maximum Dumping Height: 11500/12200mm
Whether you're tackling challenging demolition projects, engaging in deep excavation, or require specialized equipment for railway maintenance, Tiannuo Machinery has the solution. To learn more about our products or discuss your specific needs, contact us at boom@stnd-machinery.com.
