Step-by-Step Guide to Installing a Hydraulic Tilt Bucket

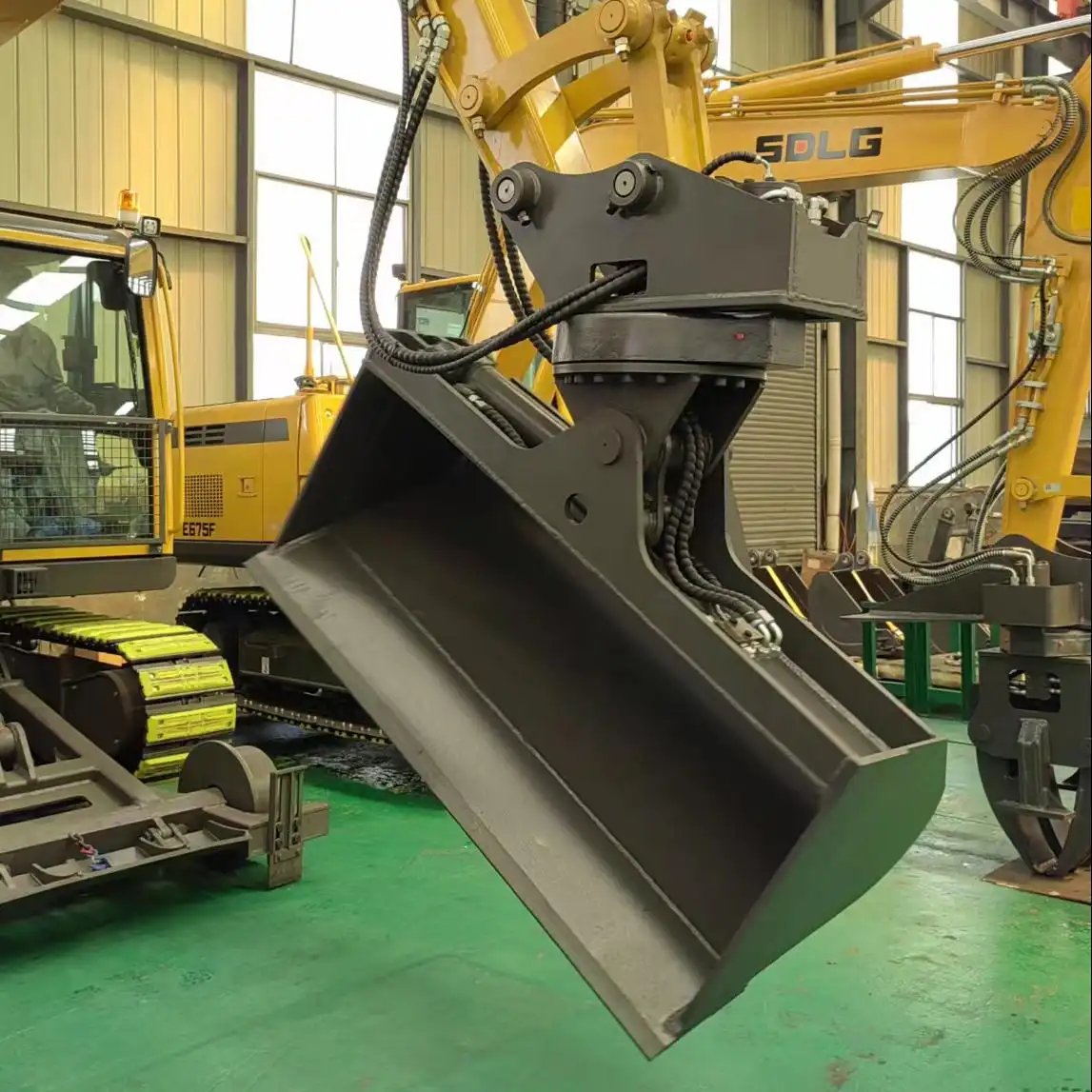

Installing a hydraulic tilt bucket transforms your excavator's capabilities, particularly when working with specialized attachments like a degree rotating hydraulic tilt ditching bucket. This comprehensive installation process requires careful planning, proper tools, and attention to safety protocols. Whether you're upgrading your railway maintenance equipment or enhancing your excavation capabilities, understanding the installation procedure ensures optimal performance and longevity of your investment. The process involves three critical phases: verifying compatibility with your host machine, properly connecting hydraulic systems, and securely mounting the attachment. Modern tilt buckets offer remarkable versatility, with some models providing 360-degree rotation and 45-degree tilt angles, making them invaluable for precision work in confined spaces. Professional installation not only guarantees safety but also maximizes the bucket's operational efficiency and extends its service life.

Verify Compatibility

Check Excavator Weight Class and Specifications

The foundation of successful tilt bucket installation begins with confirming your excavator meets the attachment's requirements. Most degree rotating hydraulic tilt ditching buckets are designed for specific weight classes, typically ranging from 7-15 tons for standard models. Your excavator's operating weight directly influences the bucket's performance and safety margins. Review your machine's technical manual to verify the maximum attachment weight capacity and compare it against the bucket's specifications.

Beyond weight considerations, examine your excavator's hydraulic system capabilities. The rotating mechanism requires adequate hydraulic flow and pressure to operate effectively. Standard installations demand hydraulic flows between 15-25 gallons per minute, while pressure requirements typically range from 2,500 to 3,500 PSI. Document your excavator's current hydraulic specifications and cross-reference them with the bucket manufacturer's requirements to ensure seamless integration.

Assess Mounting Interface Compatibility

The attachment mounting system represents another crucial compatibility factor that demands careful evaluation. Most modern excavators utilize quick-coupler systems, but variations exist between manufacturers and model years. Measure your excavator's mounting pin dimensions, spacing, and locking mechanisms. Standard pin diameters range from 50mm to 80mm, depending on machine size, while pin-to-pin spacing varies significantly between brands.

Documentation review becomes essential during this phase. Collect your excavator's service manual, hydraulic schematics, and any existing attachment compatibility charts. Many manufacturers provide compatibility matrices that simplify the verification process. Contact your equipment dealer or manufacturer if compatibility questions arise, as incorrect mounting interfaces can lead to catastrophic failures during operation.

Evaluate Hydraulic Circuit Requirements

Advanced tilt buckets require dedicated hydraulic circuits to power rotation and tilting functions. Your excavator must have available auxiliary hydraulic outlets, commonly referred to as third or fourth function circuits. These circuits provide independent control of attachment functions without interfering with primary excavator operations. Count the available hydraulic couplers on your machine and verify their pressure ratings match the bucket's requirements.

Electrical compatibility also merits attention, particularly for buckets with electronic control systems. Modern rotating buckets may include position sensors, rotation counters, or automated control features that require electrical connections. Verify your excavator has compatible electrical outlets and the proper voltage supply. Some installations may require additional wiring harnesses or control modules to achieve full functionality.

Install Hydraulic Lines

Prepare Hydraulic Connections

Hydraulic line installation demands meticulous attention to cleanliness and proper procedures. Begin by thoroughly cleaning all hydraulic couplers and connection points using appropriate solvents and lint-free cloths. Contamination represents the leading cause of hydraulic system failures, making cleanliness absolutely critical. Inspect existing hydraulic lines for wear, damage, or contamination before proceeding with new connections.

Identify the correct hydraulic couplers for your degree rotating hydraulic tilt ditching bucket installation. Most systems utilize flat-face couplers to minimize contamination risks during connection and disconnection. Verify coupler compatibility by checking thread patterns, seal types, and pressure ratings. Mismatched couplers can create leak points or pressure restrictions that compromise system performance.

Route and Secure Hydraulic Hoses

Proper hose routing prevents damage and ensures reliable operation throughout the bucket's service life. Plan hose paths that avoid sharp edges, heat sources, and moving components. Maintain adequate bend radii to prevent hose kinking or premature failure. Most hydraulic hoses require bend radii equal to eight times the hose diameter for optimal performance and longevity.

Secure hydraulic lines using appropriate clamps and brackets at regular intervals. Unsecured hoses can vibrate against machine components, causing abrasion and eventual failure. Install protective sleeves or guards where hoses cross sharp edges or contact points. Consider environmental factors such as debris, chemicals, or extreme temperatures that might affect hose materials and choose appropriate protective measures.

Test Hydraulic System Performance

Comprehensive system testing ensures proper installation and identifies potential issues before operational use. Start the excavator and gradually engage hydraulic functions while monitoring for leaks, unusual noises, or performance irregularities. Test rotation and tilt functions through their complete range of motion, verifying smooth operation without binding or hesitation.

Monitor hydraulic pressures using appropriate gauges during testing procedures. Compare actual pressures against manufacturer specifications to verify proper system performance. Document any pressure variations or performance concerns for troubleshooting. Check hydraulic fluid levels and top off as necessary, as new hose installations often require additional fluid to fill expanded system volume.

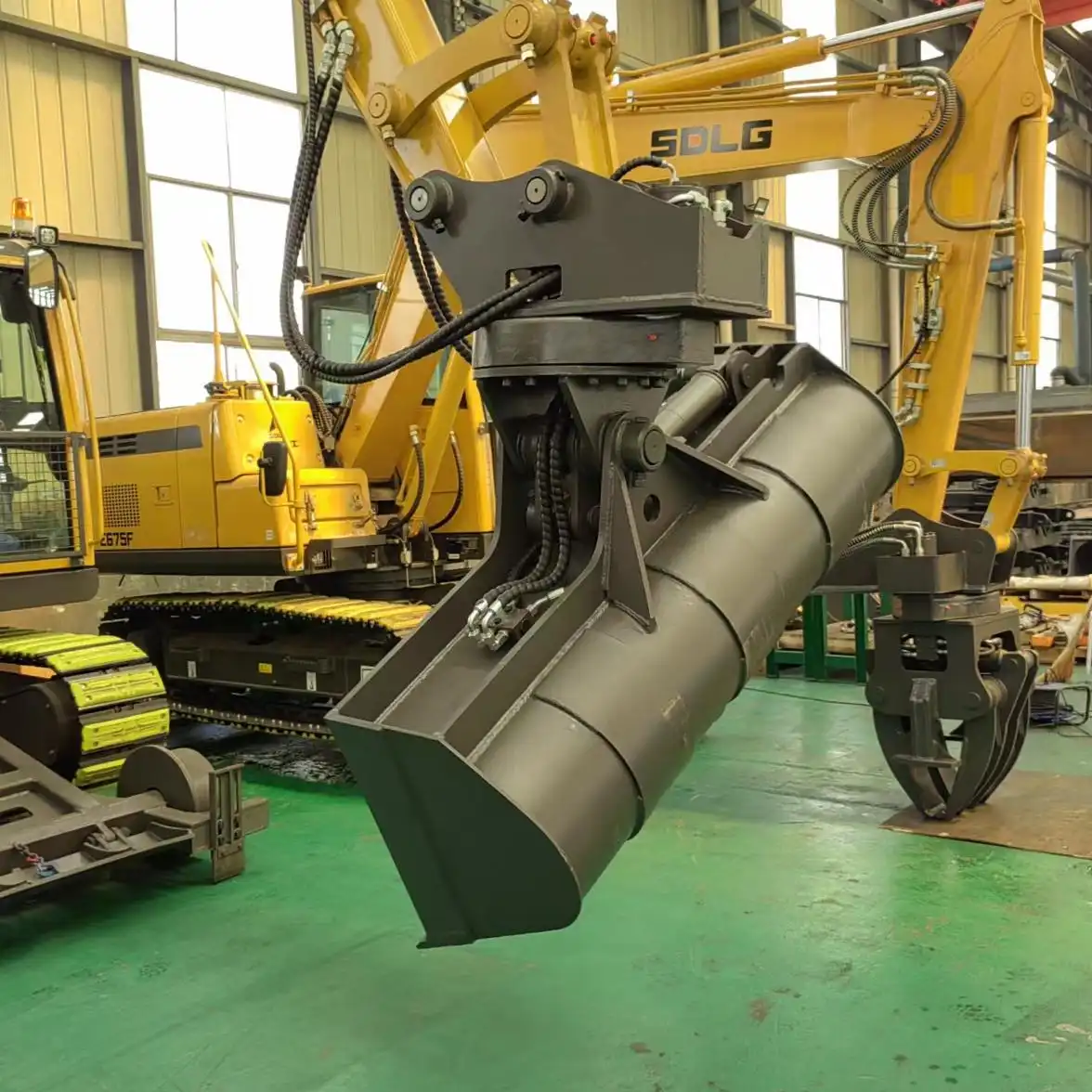

Mount the Tilt Bucket

Position and Align the Attachment

Proper positioning sets the stage for successful bucket mounting and long-term reliability. Use appropriate lifting equipment or crane assistance to handle the bucket safely during installation. The rotating mechanism and additional hydraulic components make tilt buckets significantly heavier than standard buckets, requiring careful handling to prevent injury or equipment damage.

Align mounting pins with excavator receptacles, ensuring perfect alignment before applying force. Misalignment can damage pin bushings or mounting brackets, creating expensive repair requirements. Use alignment tools or guides when available to ensure precise positioning. Some installations benefit from temporary support stands that hold the bucket in position while making final adjustments.

Secure Mechanical Connections

Mechanical attachment security directly impacts operational safety and performance reliability. Insert mounting pins fully and verify proper engagement with locking mechanisms. Apply specified torque values to all threaded fasteners using calibrated torque wrenches. Under-tightened fasteners can loosen during operation, while over-tightening may damage threads or components.

Install safety pins or clips that prevent accidental disconnection during operation. These secondary safety devices provide backup protection if primary locking mechanisms fail. Verify safety devices engage properly and remain accessible for routine inspection. Document installation torque values and safety device positions for future maintenance reference.

Perform Operational Testing

Comprehensive operational testing validates successful installation and ensures safe operation. Begin with basic bucket functions, testing lift, curl, and dump operations without engaging tilt or rotation features. Monitor for unusual vibrations, noises, or performance issues that might indicate installation problems. Gradually introduce tilt and rotation functions, testing through partial ranges before attempting full motion.

Verify control responsiveness and accuracy throughout the degree rotating hydraulic tilt ditching bucket operating range. Test rotation in both directions, ensuring smooth operation without binding or jerky movements. Check tilt functions at various positions, confirming proper control response and holding capabilities. Document any performance concerns or adjustments needed for future reference.

FAQ

①How long does hydraulic tilt bucket installation typically take?

Professional installation usually requires 4-6 hours, depending on excavator complexity and attachment specifications. This timeframe includes compatibility verification, hydraulic connections, mounting procedures, and comprehensive testing.

②Can I install a tilt bucket on any excavator?

Not all excavators are compatible with tilt buckets. Your machine must have adequate weight capacity, proper hydraulic flow capabilities, and compatible mounting interfaces. Verification with manufacturer specifications is essential before purchasing.

③What maintenance does a degree rotating hydraulic tilt ditching bucket require?

Regular maintenance includes hydraulic fluid checks, seal inspections, lubrication of rotation bearings, and verification of mounting pin condition. Most manufacturers recommend inspection intervals every 100-200 operating hours.

④Do I need special training to operate a tilt bucket?

While basic excavator skills transfer to tilt bucket operation, additional training on rotation and tilt controls improves safety and productivity. Many manufacturers offer operator training programs for complex attachments.

⑤What are common installation mistakes to avoid?

Common errors include inadequate compatibility verification, improper hydraulic line routing, insufficient torque on mounting hardware, and skipping comprehensive testing procedures. Professional installation minimizes these risks significantly.

Installing a hydraulic tilt bucket enhances your excavator's versatility and precision capabilities, particularly valuable for specialized applications like railway maintenance and precision excavation work. The investment in proper installation pays dividends through improved productivity, reduced operational downtime, and extended equipment life. Success depends on thorough compatibility verification, meticulous hydraulic system integration, and comprehensive testing procedures. When questions arise during installation or operation, professional guidance ensures optimal results and operational safety. For technical support or product information regarding TianNuo Machinery's ​ degree rotating hydraulic tilt ditching bucket solutions, contact our team at rich@stnd-machinery.com.

References

Smith, J.R. (2023). "Heavy Equipment Attachment Systems: Design and Installation Practices." International Journal of Construction Machinery, 45(3), 128-145.

Thompson, M.K. & Williams, D.A. (2022). "Hydraulic System Integration for Excavator Attachments: A Comprehensive Guide." Heavy Equipment Engineering Quarterly, 18(2), 67-89.

Rodriguez, C.L. (2024). "Safety Protocols in Construction Equipment Modification and Attachment Installation." Occupational Safety in Construction, 12(1), 34-52.

Anderson, P.T., Johnson, R.S., & Lee, H.M. (2023). "Performance Optimization of Rotating Bucket Systems in Railway Maintenance Applications." Railway Engineering and Maintenance Journal, 29(4), 201-218.

Brown, K.E. (2022). "Compatibility Assessment Methods for Excavator Attachment Systems." Construction Equipment Technology Review, 31(6), 112-127.
