The "Sculptor" of Railway Maintenance: Unveiling How the Ballast Plow Reshapes the Beauty of Tracks

In the major overhauls and routine maintenance of railway lines, while we focus on the roaring tamping machines and the shuttling material cars, we often overlook a low-key yet crucial role—the ballast plow.

It acts like a "sculptor" and "beautician" for the railway track bed, silently reshaping the ballast's form and laying the foundation for smooth train operation. Today, we will take you deeper into the core function of the ballast plow and, through several of our recently manufactured non-standard customized equipment, demonstrate the sophistication and flexibility of modern railway maintenance techniques.

The Ballast Plow: More Than Just "Bulling Soil," It's About Meticulous Sculpting

Many people's impression of the ballast plow is limited to "pushing aside ballast," but in reality, the modern ballast plow (or the working device of the ballast shaping car) undertakes extremely delicate tasks.

Its main functions can be summarized as follows:

Batter distribution and shaping: This is the core function of the ballast plow. During railway construction or major repairs, unloaded ballast often piles up unevenly. The ballast plow, through its central and side plowing, can distribute excess ballast from the center to the sides, or gather the ballast from the sides to the center, ensuring even ballast distribution and a shaped cross-section.

Straightening and resistance reduction: During railway track straightening (aligning the track position), the ballast at one end of the sleeper generates significant resistance. A specialized ballast plow can pre-plow out the ballast at the sleeper end, greatly reducing resistance during straightening, protecting equipment, and improving construction efficiency.

Batter shoulder leveling and shaping: Before replacing rails, the ballast shoulder on the outer side of the sleeper end needs to be precisely leveled, reducing its height below the sleeper surface to facilitate unloading from long rail cars. Compared to manual labor, using a ballast shoulder pusher (a modified version of a ballast plow) can save approximately two-thirds of the labor force and achieve higher work quality.

Battery Recycling and Conservation: In some complex ballast shaping cars, the ballast plow, in conjunction with a conveying mechanism, performs functions such as ballast collection, storage, and distribution, recycling valuable ballast resources and avoiding waste.

The Beauty of Customization: Our Three "Transformers"
Theory may be somewhat dry, but real-world examples best illustrate the point. As a manufacturer deeply rooted in the field of railway maintenance machinery, we not only produce standard equipment but also excel at one-to-one customized development based on the diverse working conditions of global clients. Below are three classic cases we recently delivered, perfectly illustrating the application of ballast plows under different track gauges, different carriers, and special structures.

Case 1: Spain's "Narrow-Gap Elf"—The 1000mm Gauge Ballast Plow

Spain's railway network has numerous narrow-gauge lines. Not long ago, we custom-designed a ballast plow for a Spanish client, specifically for 1000mm gauge tracks.

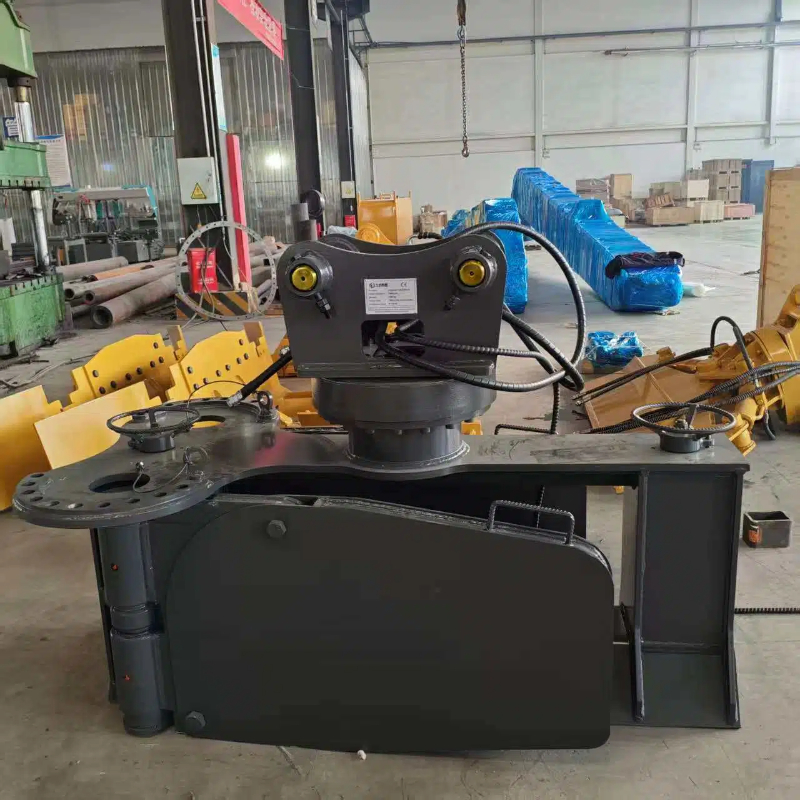

(Image recommended here: Actual image of the Spanish 1000mm gauge ballast plow, ideally showing the overall structure and its proportions to the track.)

While compact in size, this device doesn't compromise on functionality. It perfectly adapts to the local narrow-gauge subgrade, and its precisely hydrodynamically designed plow head ensures controllable ballast placement within limited space. This allows for efficient ballast preparation and track bed shaping on narrow-gauge lines, earning high praise from the client for its attention to detail.

Case Study Two: Poland's "Steel Partner"—A 1435mm Gauge Ballast Plow for the Liebherr 922 Excavator

With the popularity of multi-functional small maintenance equipment, mounting a ballast plow on an excavator has become an efficient and flexible solution. This ballast plow we designed and manufactured for our Polish client is specifically designed to match the renowned Liebherr 922 excavator.

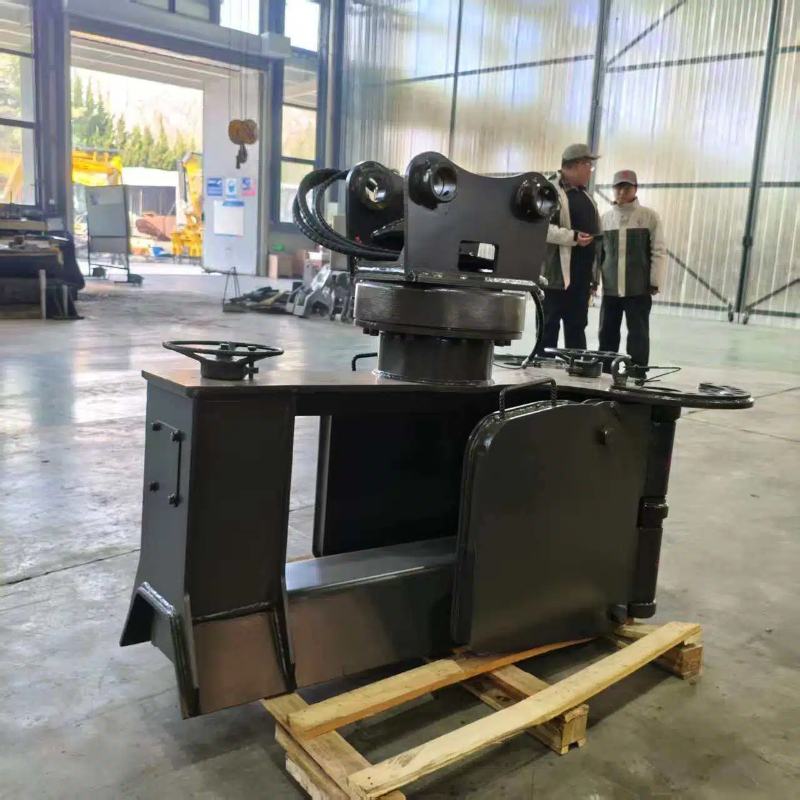

(Image recommended here: A photo of a Polish 1435mm gauge ballast plow installed on a Liebherr 922 excavator; this is the best evidence of our technological prowess.)

This equipment operates on a standard 1435mm gauge track. The biggest technical challenge lies in the coordinated control of the excavator's boom trajectory and the plow's entry angle and parallelism. Our engineers, through an optimized mounting structure and an adjustable plow head, ensured that the plow body remained parallel to the rail surface on both straight and curved sections, precisely distributing the ballast to the sleeper box and ballast shoulder, achieving the innovative combination of "excavator + ballast plow = mobile shaping station."

Case Study 3: Nordic "Minimalism"—Custom-Customized Earless Ballast Plow

Sometimes, the most complex requirements often appear in the form of "subtraction." A Nordic customer made a special customization request: an earless ballast plow.

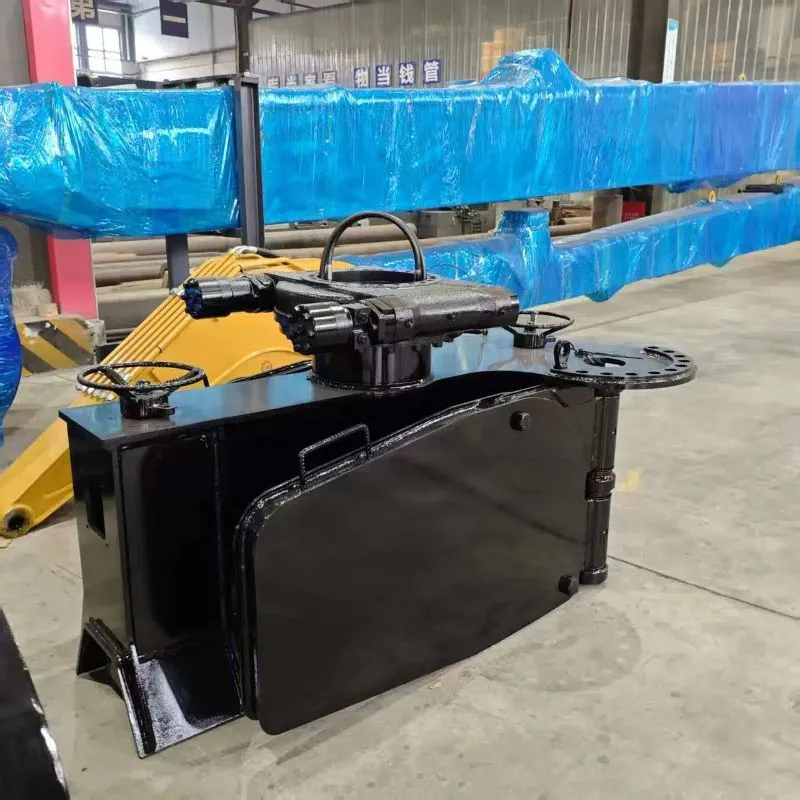

(Image suggested here: Close-up of the earless ballast plow, showcasing its clean, streamlined welding and reinforced structure)

While traditional ear-plate designs are convenient to install, they can easily become stress concentration points under extreme ballast impacts and low-temperature conditions. The customer's requirement for an earless design meant that the entire plowshare and base had to withstand impacts through a more scientifically streamlined design and stronger integral welding. We used high-strength, wear-resistant steel, employing CNC blanking and precision forming to create this smooth-surfaced, protruding-parts-free "earless" ballast plow. It not only reduces ballast adhesion and impact points but also provides better structural integrity in extremely cold environments.

Conclusion
Whether traversing the narrow gauge tracks of the Iberian Peninsula or serving as a steel weapon embodying Nordic minimalism, the ballast plow silently and steadfastly safeguards the smoothness of every rail.

We believe that every railway has its unique character. Therefore, we offer more than just standardized products; we look forward to communicating with you and tailoring a unique "ballast sculptor" just for you.

If you are interested in the above products, or need customized ballast plowing solutions for non-standard gauge tracks or special carriers, please feel free to contact us.
