Tilt And Rotate Excavator Bucket Functions & Mechanisms

Understanding the intricate functions and mechanisms behind tilt and rotate excavator buckets reveals the sophisticated engineering that revolutionizes modern earthmoving operations. These advanced attachments combine dual-axis movement capabilities, enabling operators to achieve unprecedented precision in material handling and placement tasks. The degree rotating hydraulic tilt ditching bucket represents the pinnacle of this technology, integrating 360-degree rotational freedom with precise 45-degree tilting capabilities through advanced hydraulic control systems. Unlike traditional fixed buckets that limit operators to basic digging motions, tilt and rotate mechanisms transform excavators into versatile multi-directional tools capable of working at complex angles and orientations. This technological advancement addresses the demanding requirements of railway maintenance, confined space construction, and precision grading applications where conventional equipment falls short. The seamless integration of rotational and tilting functions creates operational efficiencies that translate directly into reduced project costs, enhanced safety profiles, and improved work quality across diverse applications.

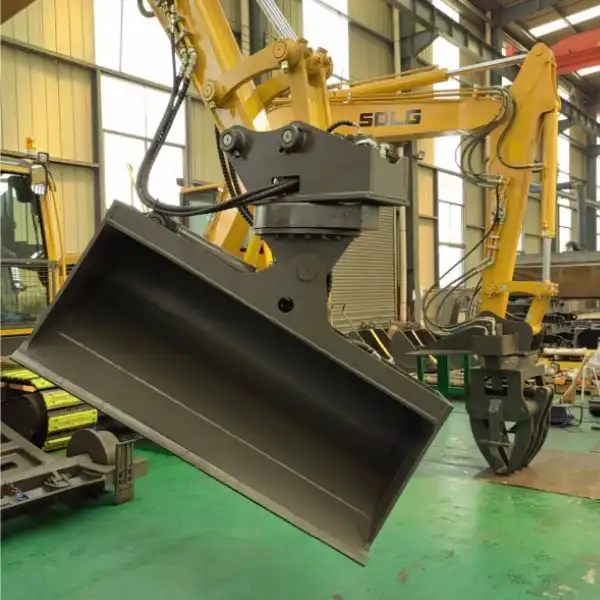

Rotation

The rotational mechanism forms the foundation of advanced degree rotating hydraulic tilt ditching bucket functionality, enabling complete 360-degree movement that eliminates the need for frequent machine repositioning. This revolutionary capability transforms how operators approach complex excavation tasks, particularly in confined spaces where traditional equipment limitations become apparent.

Rotary Actuator Engineering and Design Principles

The heart of bucket rotation lies within precision-engineered rotary actuators that convert hydraulic pressure into smooth, controlled rotational motion. These sophisticated components incorporate multi-stage planetary gear systems that provide exceptional torque multiplication while maintaining compact dimensions. The gear reduction ratios typically range from 50:1 to 100:1, ensuring adequate rotational force even when handling dense materials or working against resistance.

Internal sealing systems represent critical elements that prevent hydraulic fluid contamination while maintaining smooth operation throughout the rotation range. Advanced seal designs utilize multiple containment stages, including primary dynamic seals, secondary backup seals, and contamination exclusion systems. These sealing assemblies must withstand extreme pressure differentials while accommodating thermal expansion and contraction cycles inherent in heavy-duty operations.

Bearing assemblies within rotary actuators employ specialized materials and lubrication systems designed for extended service life under demanding conditions. High-capacity thrust bearings handle axial loads generated during aggressive digging operations, while radial bearings support lateral forces encountered when working on slopes or uneven terrain. The bearing selection process considers factors including load ratings, environmental exposure, and maintenance accessibility.

Hydraulic Power Transmission and Flow Management

Hydraulic power transmission to rotating components requires sophisticated swivel joint assemblies that maintain fluid connections while accommodating continuous rotation. These joints incorporate precision-machined passages that deliver pressurized fluid to actuator chambers without interruption or leakage. The engineering challenges include maintaining seal integrity across rotating interfaces while minimizing friction losses that could impact performance.

Flow management systems regulate hydraulic fluid delivery to rotation actuators, ensuring consistent performance across varying load conditions. Variable displacement pumps automatically adjust output based on demand, optimizing fuel efficiency while maintaining adequate power reserves for demanding applications. Pressure compensation valves prevent system overload while maintaining smooth rotation even when encountering unexpected resistance.

Advanced control algorithms coordinate hydraulic flow between rotation and host machine functions, preventing conflicts that could compromise performance or safety. Load-sensing technology monitors system demands and redistributes power accordingly, ensuring that rotation functions receive adequate hydraulic flow without affecting primary excavator operations. This intelligent power management becomes particularly important when operating multiple functions simultaneously.

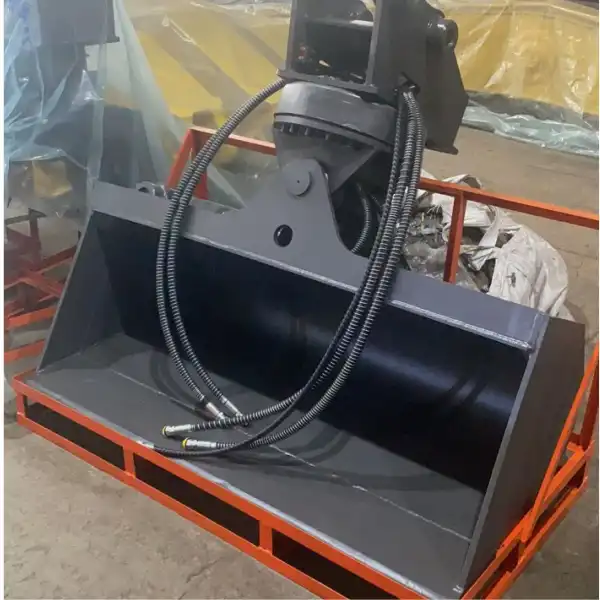

Tilting

Tilting mechanisms provide the vertical angle adjustment capabilities that complement rotational functions, creating truly three-dimensional bucket positioning possibilities. This functionality proves essential for applications requiring precise grade control, slope work, and material placement at specific angles.

Tilt Cylinder Design and Hydraulic Integration

Tilt cylinders represent specialized hydraulic actuators designed to provide controlled angular adjustment while withstanding the significant forces encountered during excavation operations. These cylinders typically feature oversized bore diameters and robust construction to handle both the weight of loaded buckets and the dynamic forces generated during aggressive digging cycles. Chrome-plated rod surfaces and specialized sealing systems ensure long-term reliability under demanding conditions.

Mounting arrangements for tilt cylinders require careful engineering to accommodate the range of motion while maintaining structural integrity. Spherical bearings at cylinder attachment points allow for the complex geometry changes that occur as the bucket tilts through its operating range. These bearing assemblies must withstand high loads while providing smooth operation throughout the tilt cycle.

Hydraulic circuit design for tilt functions incorporates safety features that prevent uncontrolled bucket movement if hydraulic pressure is lost. Counterbalance valves maintain bucket position even when hydraulic power is interrupted, preventing dangerous bucket drift that could damage equipment or endanger personnel. These safety systems become particularly important when working on slopes or in elevated positions.

Angular Range and Positioning Accuracy

The angular range of tilt mechanisms varies depending on application requirements, with most systems providing 35 to 45 degrees of adjustment from the neutral position. This range enables operators to achieve optimal bucket angles for various tasks, from aggressive digging with maximum penetration angles to gentle material placement with minimal spillage. The specific angle range is often customized based on the intended application and host machine characteristics.

Positioning accuracy depends on both hydraulic system precision and control system sophistication. Advanced systems incorporate position feedback sensors that provide real-time bucket angle information to the operator and control system. This feedback enables precise positioning and can trigger automated responses to maintain desired angles during operation.

Angle indicators provide operators with visual confirmation of bucket position, reducing guesswork and improving consistency across multiple work cycles. Digital displays show precise angle measurements, while some systems incorporate graphical representations that intuitively communicate bucket orientation. These displays often integrate with machine monitoring systems to provide comprehensive operational feedback.

Tilt Function Applications and Operational Benefits

Slope grading represents a primary application where tilt functionality demonstrates exceptional value. Operators can maintain optimal bucket angles while following terrain contours, creating consistent slope profiles that meet engineering specifications. This capability eliminates the need for manual finishing work while ensuring compliance with grade requirements across large areas.

Material placement applications benefit enormously from precise angle control, particularly when working with granular materials that must be placed at specific angles to achieve proper compaction and stability. The ability to adjust bucket angle during dumping cycles optimizes material flow while minimizing segregation and ensuring uniform placement characteristics.

Confined space operations showcase the versatility of tilt mechanisms, enabling work in areas where traditional bucket orientations would be impossible. Underground utilities, bridge work, and urban construction projects often require bucket angles that can only be achieved through sophisticated tilt systems. The degree rotating hydraulic tilt ditching bucket excels in these challenging environments through its comprehensive angle adjustment capabilities.

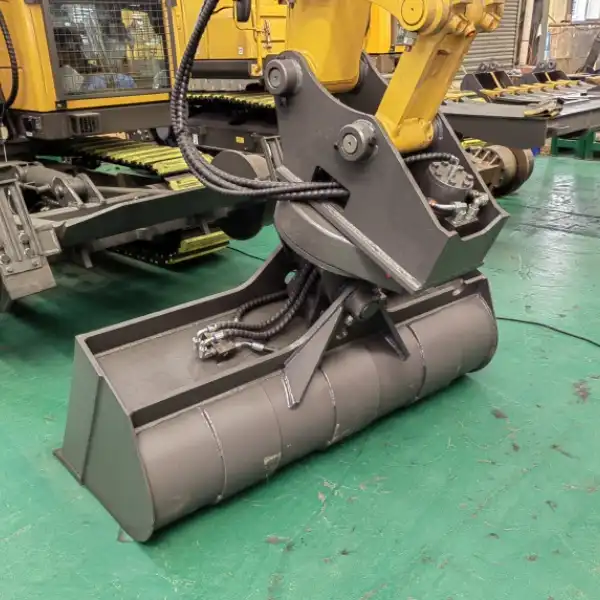

Hydraulic Control

Hydraulic control systems represent the neural network that coordinates all bucket functions, translating operator intentions into precise mechanical actions. These sophisticated systems manage power distribution, safety functions, and performance optimization across all operating conditions.

Control Valve Architecture and Flow Management

Modern hydraulic control systems employ sophisticated valve architectures that manage multiple functions simultaneously without interference or performance degradation. Pilot-operated control valves respond to electronic commands with exceptional precision, providing smooth transitions between operating modes and maintaining consistent performance across varying load conditions. These valves incorporate built-in pressure relief and anti-cavitation features that protect system components while ensuring reliable operation.

Flow divider systems ensure adequate hydraulic flow reaches all functions regardless of simultaneous operation demands. Priority valves direct flow to critical functions while maintaining adequate supply to secondary systems, preventing conflicts that could compromise safety or performance. Load-sensing technology automatically adjusts pump output to match system demands, optimizing fuel efficiency while maintaining responsive performance.

Accumulator systems store pressurized hydraulic fluid to provide instantaneous power during peak demand periods. These energy storage devices enable rapid response to operator commands while reducing pump size requirements and improving overall system efficiency. Accumulators prove particularly valuable when operating multiple functions simultaneously or when rapid cycle times are required.

Performance Optimization and Adaptive Control

Adaptive control algorithms automatically adjust system parameters based on operating conditions and performance requirements. These intelligent systems learn from operator behavior and environmental conditions to optimize power distribution, response characteristics, and fuel efficiency. Machine learning capabilities enable continuous improvement in system performance over time.

Work mode selection allows operators to optimize system performance for specific applications, from high-precision finishing work requiring smooth, controlled movements to high-production excavation demanding maximum power and speed. These modes adjust hydraulic flow rates, pressure settings, and response characteristics to match task requirements while maintaining safety margins.

Maintenance scheduling systems track operating hours, cycle counts, and system parameters to predict maintenance requirements and optimize service intervals. Predictive maintenance capabilities reduce unexpected downtime while ensuring optimal performance throughout the equipment lifecycle. The degree rotating hydraulic tilt ditching bucket benefits from these advanced control features through enhanced reliability and performance consistency.

FAQ

①What hydraulic flow rate is required for tilt and rotate functions?

Tilt and rotate functions typically require 20-40 GPM of hydraulic flow, depending on bucket size and performance requirements. Excavators must have adequate auxiliary hydraulic capacity to operate these functions effectively.

②How precise is the angle control on tilting buckets?

Modern tilting systems provide angle control accuracy within 1-2 degrees, with digital displays showing precise positioning. This accuracy enables consistent results across multiple work cycles and applications.

③Can rotation and tilt functions operate simultaneously?

Yes, advanced systems enable simultaneous rotation and tilt operation without performance degradation. Independent hydraulic circuits prevent interference between functions while maintaining smooth operation.

④What maintenance is required for rotating mechanisms?

Regular maintenance includes daily visual inspections, weekly lubrication of rotation points, monthly hydraulic fluid checks, and annual seal replacement. Proper maintenance ensures reliable operation and extends service life.

⑤Are there weight limitations for rotating buckets?

Weight limitations depend on host excavator capacity and attachment specifications. The degree rotating hydraulic tilt ditching bucket is designed for 7-15 ton excavators with appropriate lifting capacity and hydraulic flow.

The sophisticated functions and mechanisms behind tilt and rotate excavator buckets represent remarkable achievements in hydraulic engineering and control system integration. Understanding these technologies helps operators and managers appreciate the capabilities and limitations of advanced attachment systems while making informed decisions about equipment selection and application strategies. From the precision-engineered rotary actuators that enable 360-degree rotation to the sophisticated hydraulic control systems that coordinate multiple functions seamlessly, every component contributes to enhanced operational capability and efficiency. TianNuo Machinery​​​​​​'s degree rotating hydraulic tilt ditching bucket exemplifies this technological integration, combining advanced mechanical design with intelligent control systems to deliver exceptional performance across demanding applications. Modern hydraulic control systems continue evolving, incorporating artificial intelligence and machine learning capabilities that promise even greater efficiency and reliability in future generations. The investment in understanding these mechanisms pays dividends through improved equipment utilization, reduced operational costs, and enhanced safety profiles across diverse applications. As construction and maintenance operations become increasingly complex and demanding, the sophisticated functions enabled by tilt and rotate mechanisms provide competitive advantages that translate directly into improved project outcomes and profitability. For detailed technical specifications and application guidance regarding advanced bucket technologies, experienced professionals are available to assist at rich@stnd-machinery.com.
