Ultrasonic Test for Long Reach Boom for Hitachi Excavator
Ultrasonic testing (UT) plays a crucial role in maintaining the integrity and safety of long reach booms for Hitachi excavators. These specialized attachments extend the reach of excavators, allowing them to work in challenging environments and hard-to-access areas. Given the critical nature of their applications, regular UT inspections are essential to detect potential flaws, ensure structural soundness, and optimize performance.

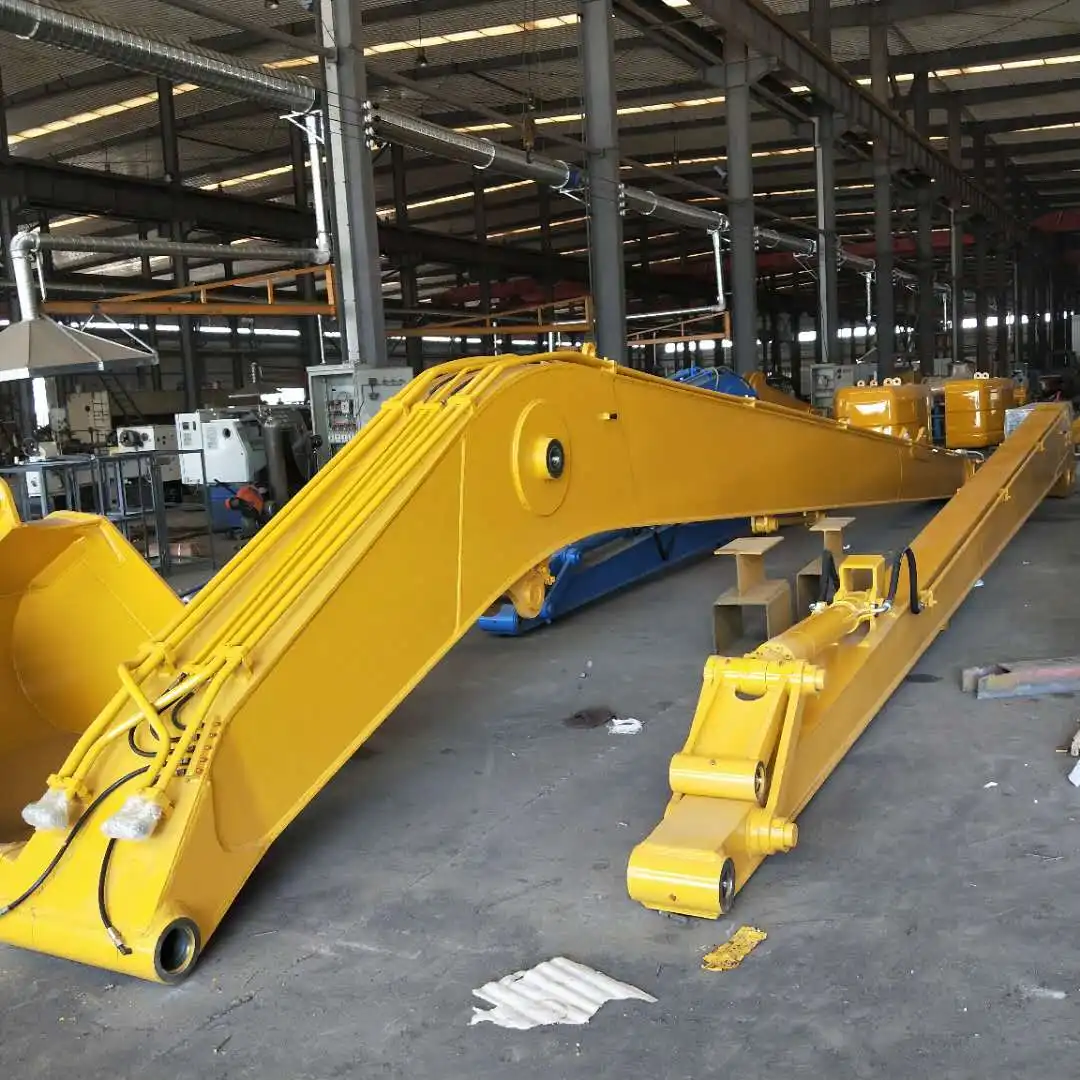

Objectives of UT for Long Reach Booms
Ensuring Structural Integrity of Long Reach Booms
The primary objective of ultrasonic testing for long reach booms is to ensure their structural integrity. These booms are subjected to immense stress and strain during operation, making them vulnerable to fatigue, cracks, and other forms of damage. UT allows technicians to examine the internal structure of the boom without causing any damage, identifying potential weaknesses before they lead to catastrophic failure.
By using high-frequency sound waves, UT can detect minute flaws in the metal structure, including hairline cracks, voids, and areas of material degradation. This non-destructive testing method is particularly valuable for long reach booms, as it can penetrate deep into the material, revealing issues that might be invisible to the naked eye or other inspection methods.
Detecting Hidden Flaws in Excavator Components
Long reach booms consist of various components, including hydraulic cylinders, pins, and welded joints. Each of these elements plays a critical role in the boom's functionality and safety. Ultrasonic testing excels at detecting hidden flaws in these components, such as:
- Weld defects: UT can identify incomplete fusion, porosity, or inclusions in welded joints.
- Material thickness variations: Changes in material thickness due to corrosion or wear can be accurately measured.
- Internal cracks: Stress-induced cracks that may not be visible on the surface can be detected and assessed.
By identifying these hidden flaws, maintenance teams can address potential issues before they escalate, significantly reducing the risk of equipment failure and improving overall safety.
Optimizing Safety and Performance of Long Reach Booms
Regular ultrasonic testing contributes to optimizing both the safety and performance of long reach booms. By maintaining the structural integrity of the boom, UT helps ensure that the equipment can operate at its full capacity without compromising safety. This is particularly important in industries such as construction and mining, where equipment failure can lead to serious accidents and costly downtime.
Moreover, UT data can be used to inform maintenance schedules and guide repair decisions. By tracking the development of flaws over time, operators can make informed decisions about when to perform maintenance or replace components, balancing safety considerations with operational efficiency.
Applicable Standards & Criteria
ASME BPVC Section V for Nondestructive Examination
The American Society of Mechanical Engineers (ASME) Boiler and Pressure Vessel Code (BPVC) Section V is a widely recognized standard for nondestructive examination, including ultrasonic testing. While primarily developed for pressure vessels, many of its principles and guidelines are applicable to the UT of long reach booms.
Section V provides detailed procedures for ultrasonic examination, including equipment requirements, calibration methods, and reporting standards. It also outlines acceptance criteria for various types of flaws, helping technicians interpret UT results and make informed decisions about the serviceability of components.
ISO 17640 for Ultrasonic Testing of Welded Joints
ISO 17640 is an international standard specifically focused on the ultrasonic testing of welded joints. Given the critical role of welds in long reach booms, this standard is particularly relevant to their inspection and maintenance.
The standard covers various aspects of UT for welds, including:
- Techniques for different weld geometries
- Equipment specifications and calibration procedures
- Scanning patterns and coverage requirements
- Evaluation and recording of indications
By adhering to ISO 17640, technicians can ensure that their UT procedures for long reach boom welds are consistent, reliable, and internationally recognized.
Proprietary UT Standards for Excavators
In addition to international standards, supplier has developed proprietary UT standards specifically for their excavators and attachments, including long reach booms. These standards take into account the unique design features, material properties, and operational stresses of equipment.
Proprietary standards may include:
- Specific acceptance criteria for different components of the long reach boom
- Recommended inspection intervals based on operational hours or working conditions
- Guidance on interpreting UT results in the context of its design and manufacturing processes
Adhering to these proprietary standards ensures that UT inspections are tailored to the specific requirements of long reach booms, maximizing the effectiveness of the testing process.

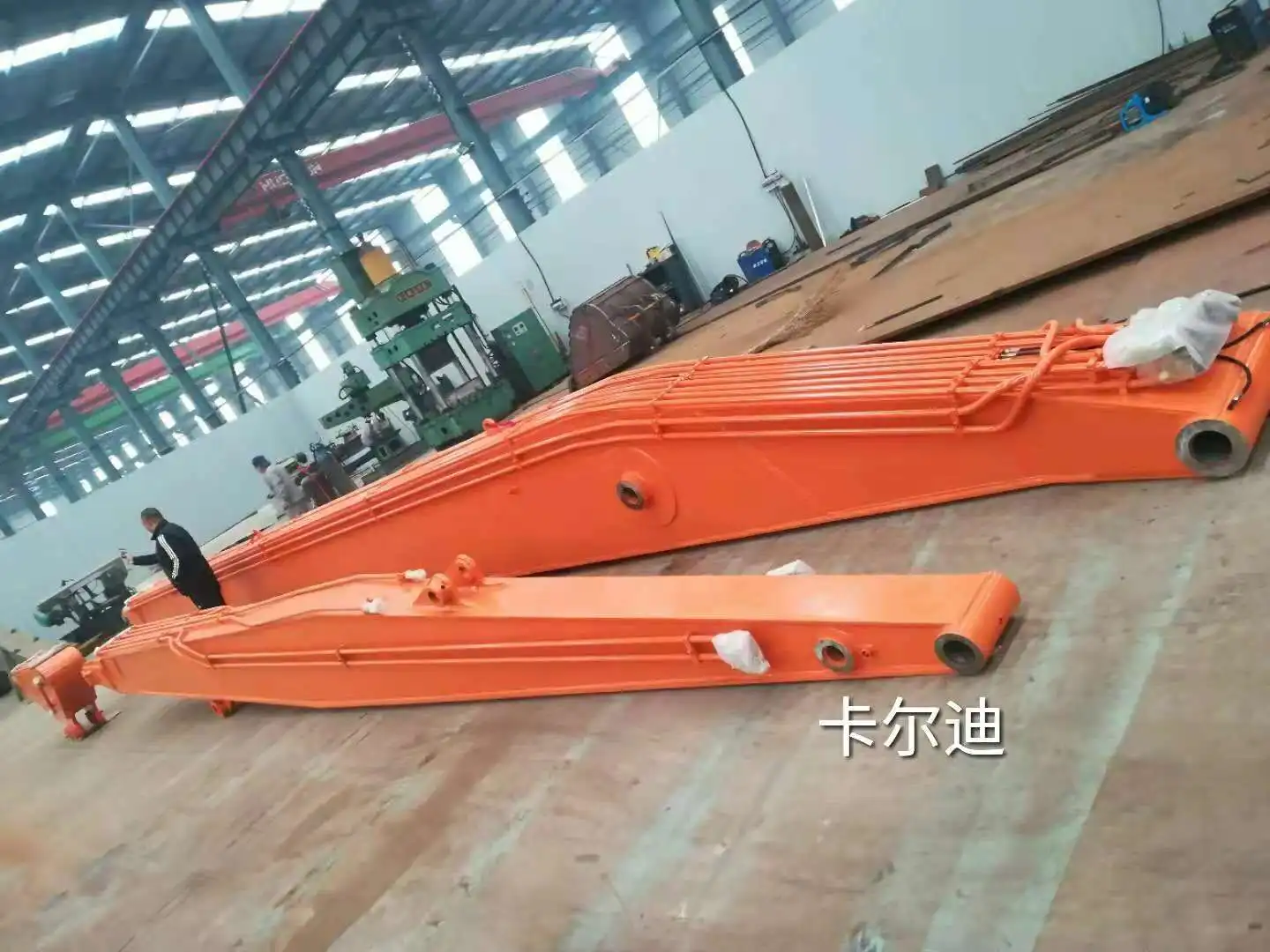

UT Procedure for Long Reach Booms
Surface Preparation and Equipment Calibration
Proper surface preparation is crucial for accurate ultrasonic testing of long reach booms. The surface area to be tested must be clean, free from dirt, rust, and any coatings that could interfere with the transmission of ultrasonic waves. Technicians typically use wire brushes, sandpaper, or chemical cleaners to prepare the surface, ensuring optimal contact between the UT probe and the boom material.
Equipment calibration is equally important to ensure reliable and consistent results. This involves:
- Verifying the accuracy of the UT instrument using calibration blocks
- Adjusting sensitivity and gain settings to detect relevant flaws
- Checking the condition of probes and cables
Calibration should be performed at the beginning of each inspection session and periodically throughout the testing process to account for any drift in equipment performance.
Scanning Techniques for Long Reach Boom Inspection
The scanning technique used for long reach boom inspection depends on the specific area being tested and the type of flaws being sought. Common techniques include:
- Straight beam scanning: Used for detecting laminar flaws and measuring material thickness
- Angle beam scanning: Employed for inspecting welds and detecting transverse cracks
- Phased array ultrasonic testing (PAUT): Advanced technique allowing for more comprehensive and faster inspections
Technicians typically follow a systematic scanning pattern to ensure complete coverage of the boom. This may involve grid patterns for large surface areas or specific movement sequences for weld inspections. The choice of transducer frequency and beam angle is crucial and depends on the material thickness and the type of flaws being investigated.
Interpretation and Reporting of UT Results
Interpreting UT results requires skill and experience. Technicians must be able to distinguish between genuine flaws and harmless indications caused by material properties or geometric features of the boom. Key aspects of result interpretation include:
- Analyzing signal amplitude and shape to determine the nature and severity of flaws
- Comparing detected indications against acceptance criteria
- Correlating UT findings with visual inspection results and known stress points
Comprehensive reporting is essential for documenting the inspection process and findings. A typical UT report for a long reach boom inspection should include:
- Details of the equipment and procedures used
- Calibration records
- A description of the areas inspected
- Detailed findings, including the location, size, and nature of any detected flaws
- Recommendations for repairs or further monitoring
These reports serve as valuable records for maintenance planning and can be crucial for regulatory compliance in industries where equipment safety is closely monitored.
Ultrasonic testing is an indispensable tool for maintaining the safety and reliability of long reach booms. By adhering to established standards and following proper procedures, operators can significantly enhance the longevity and performance of these critical attachments. Regular UT inspections not only prevent costly failures but also contribute to a safer work environment across various industries.
FAQ
①Q: How often should ultrasonic testing be performed on long reach booms?
A: The frequency of UT inspections depends on various factors, including operational hours, working conditions, and manufacturer recommendations. Generally, annual inspections are common, but more frequent testing may be necessary for booms used in harsh environments or high-stress applications.
②Q: Can ultrasonic testing detect all types of flaws in long reach booms?
A: While UT is highly effective, it may not detect all types of flaws. It's particularly good at finding internal defects, but surface cracks may be better detected by other methods like magnetic particle inspection. A comprehensive inspection program often combines multiple NDT techniques.
③Q: Is specialized training required to perform UT on long reach booms?
A: Yes, performing UT on complex structures like long reach booms requires specialized training. Technicians should be certified in ultrasonic testing and have specific experience with heavy equipment inspection. Familiarity with its proprietary standards is also beneficial.
④Q: How does ultrasonic testing compare to other inspection methods for long reach booms?
A: UT offers several advantages, including the ability to detect internal flaws without disassembly, precise thickness measurements, and the capability to inspect large areas quickly. However, it may be complemented by other methods like visual inspection or radiography for a comprehensive assessment.
⑤Q: What should be done if a flaw is detected during UT of a long reach boom?
A: If a flaw is detected, its severity should be assessed against acceptance criteria. Minor flaws may require monitoring, while more significant defects might necessitate immediate repair or component replacement. Always consult with the manufacturer or a qualified engineer to determine the appropriate course of action.

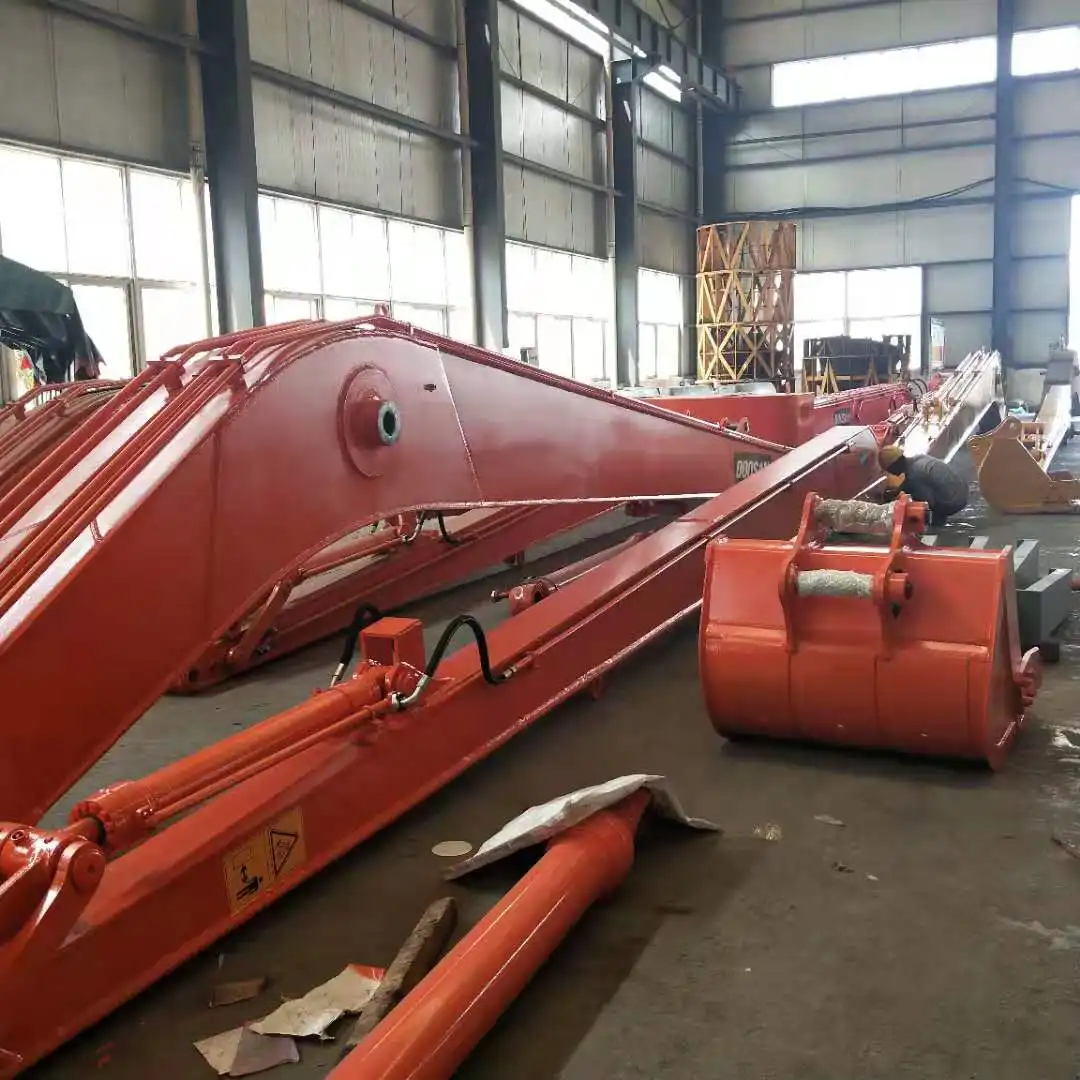

Long Reach Boom for Hitachi Excavator Manufacturer
Tiannuo Machinery specializes in manufacturing high-quality long reach booms for Hitachi excavators, catering to the diverse needs of the construction, mining, and demolition industries. Our expertise extends beyond long-reach booms to a wide range of excavator modifications and attachments, including extended arms, pile driving arms, and specialized buckets. We offer customization for various Hitachi models, such as ZX130, ZX200, ZX210, ZX250, ZX260, ZX300, ZX330, ZX370, ZX520, ZX600, and ZX1200. Our products are designed to enhance the versatility and efficiency of your equipment, allowing you to tackle challenging projects with confidence. For inquiries about our excavator attachments, please contact us at boom@stnd-machinery.com.
References
- ASME Boiler and Pressure Vessel Code, Section V: Nondestructive Examination. American Society of Mechanical Engineers, New York, NY.
- ISO 17640:2018 Non-destructive testing of welds - Ultrasonic testing - Techniques, testing levels, and assessment. International Organization for Standardization, Geneva, Switzerland.
- Hitachi Construction Machinery Co., Ltd. (2022). Technical Manual: Ultrasonic Testing Procedures for Excavator Attachments. Tokyo, Japan.
- Journal of Nondestructive Evaluation, Volume 41. Springer Nature, 2022.
- American Society for Nondestructive Testing (2021). Handbook of Nondestructive Evaluation, 4th Edition. Columbus, OH: ASNT.
- Tiannuo Machinery (2023). Excavator Attachment Catalog and Specifications. Shandong, China.
