What are the different parts of an excavator called?
Excavators are complex machines with numerous parts working in harmony to perform heavy-duty tasks. Understanding the different excavator parts is crucial for operators, maintenance crews, and project managers alike. From the excavator boom to the bucket, each component plays a vital role in the excavator's functionality. In this comprehensive guide, we'll explore the essential parts of an excavator, its functions, and how they contribute to the machine's overall performance.
Essential Components: From Boom To Bucket
Excavator boom: The arm's foundation

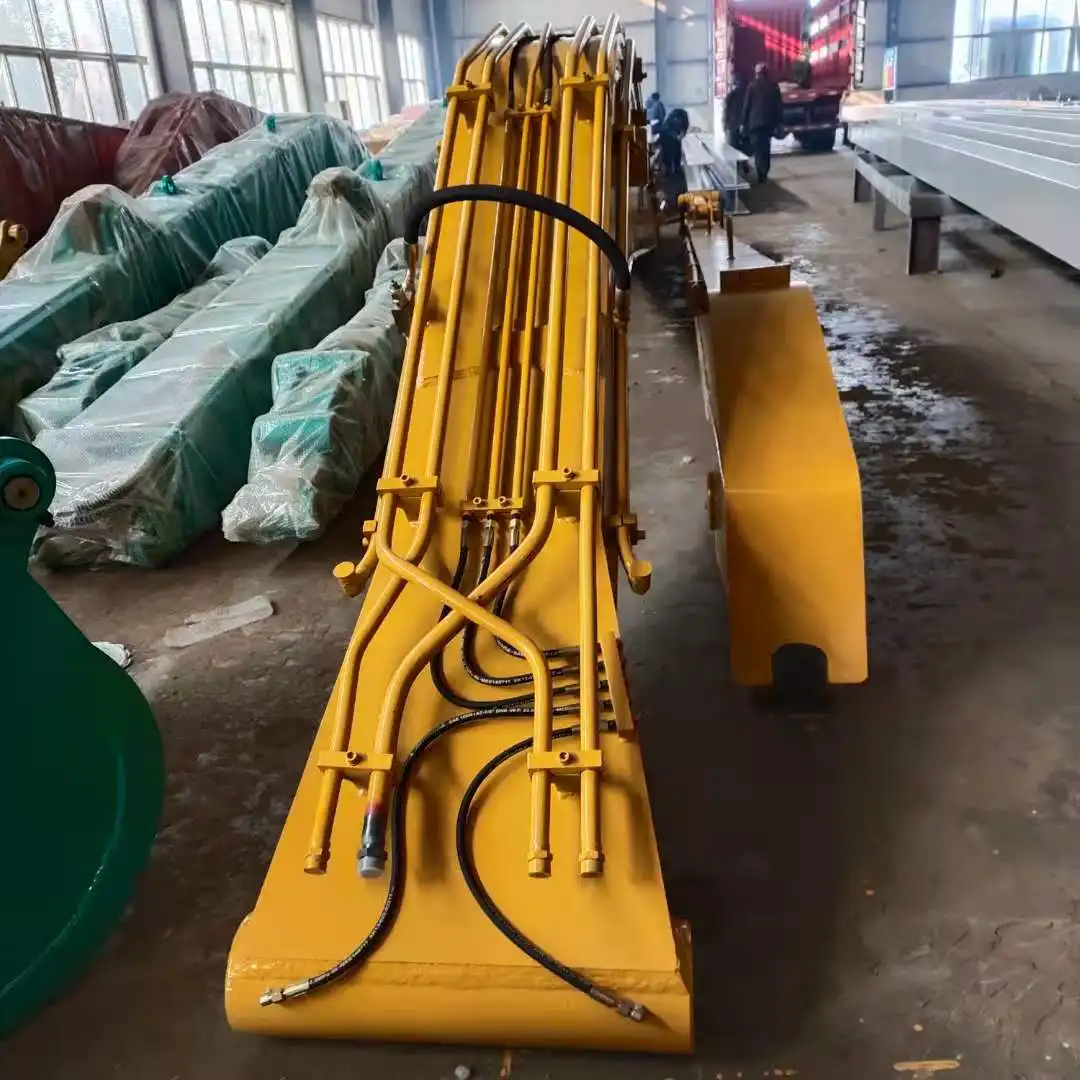

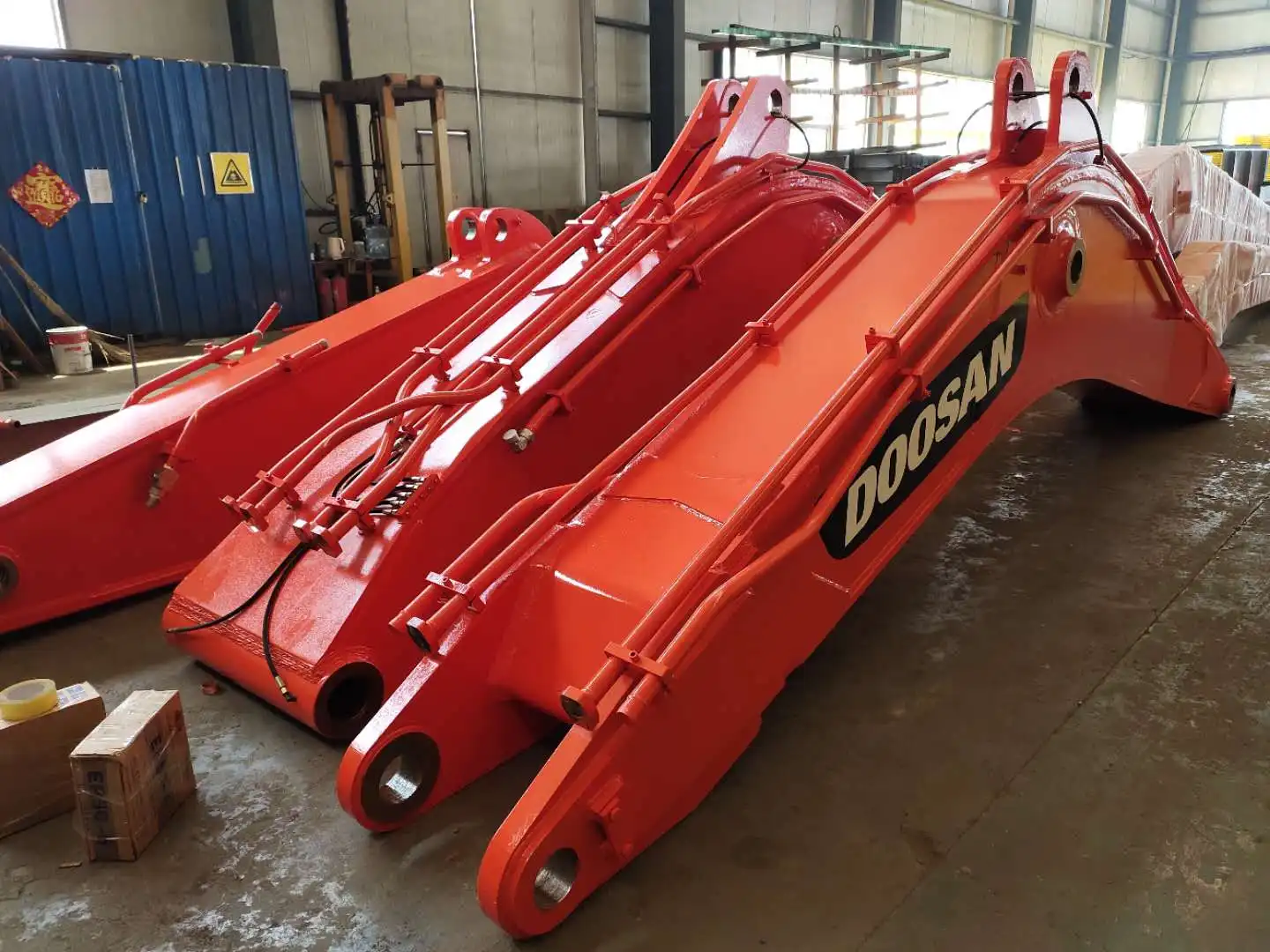

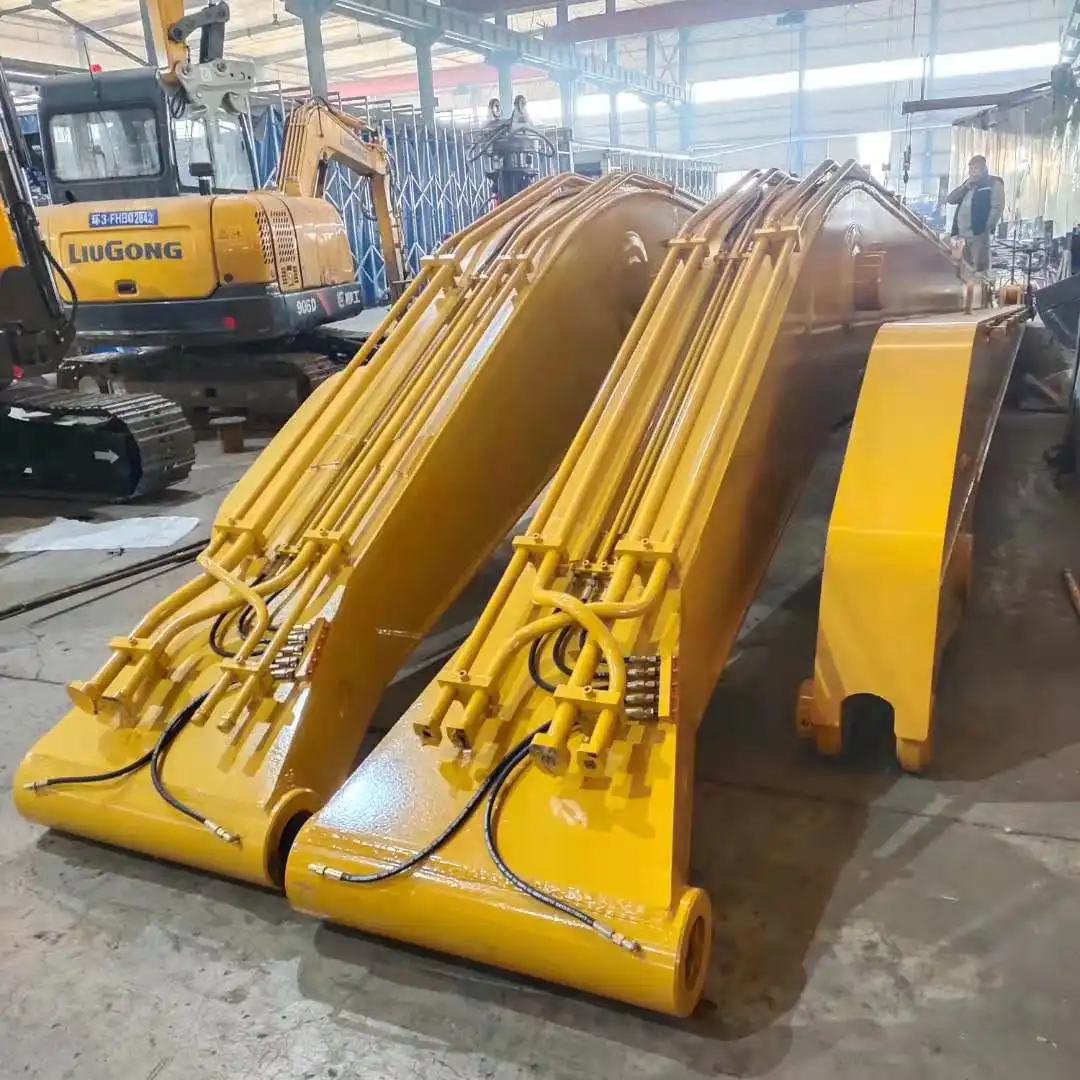

The boom is the primary arm of an excavator, serving as the foundation for the entire digging apparatus. This long, sturdy component connects the main body of the machine to the stick and bucket. Booms come in various designs, including standard, long reach, and telescopic, each tailored to specific job requirements. For instance, long reach booms are ideal for deep excavation or working across obstacles, while standard booms offer versatility for everyday tasks.
Excavator boom cylinders, powerful hydraulic components, control the boom's movement. These cylinders allow operators to raise and lower the boom with precision, enabling them to navigate various terrains and work at different depths. The boom's design and strength are crucial factors in determining an excavator's reach and lifting capacity.
Stick and dipper: Extending the reach
Attached to the end of the boom is the stick, also known as the dipper arm. This component acts as an extension, providing additional reach and flexibility to the excavator's digging capabilities. The stick's length can vary, with longer sticks offering greater reach but potentially reducing the machine's lifting capacity.
Like the boom, the stick is controlled by hydraulic cylinders, allowing for precise movements during digging, lifting, and dumping operations. The coordination between the boom and stick movements is essential for efficient excavation and material handling.
Bucket types: Tailored for various tasks
At the end of the stick, you'll find the bucket – perhaps the most recognizable part of an excavator. Excavator buckets come in a wide variety of shapes and sizes, each designed for specific tasks. Some common types include:
- General purpose buckets: Versatile options suitable for most digging and loading tasks
- Rock buckets: Reinforced with additional wear plates for handling abrasive materials
- Trenching buckets: Narrow designs for creating precise trenches
- Grading buckets: Wide, flat-bottomed buckets for smoothing and leveling surfaces
- Skeleton buckets: Featuring openings that allow water and fine materials to pass through
Choosing the right bucket for the job is crucial for maximizing efficiency and productivity. Many excavators are equipped with quick-coupler systems, allowing operators to switch between different bucket types quickly and easily.
Hydraulic System
While the boom, stick, and bucket are the visible components of an excavator, the hydraulic system is the invisible force that brings the excavator parts to life. This complex network of components works together to provide the power and precision needed for excavator operations.
Hydraulic cylinders: Precision in motion
Hydraulic cylinders are the muscles of an excavator, responsible for the movement of the boom, stick, and bucket. These cylinders consist of a piston rod that extends and retracts within a cylinder body, powered by pressurized hydraulic fluid. The size and number of cylinders vary depending on the excavator's size and intended use.
The precise control of these cylinders allows operators to perform delicate tasks such as grading or placing pipes with remarkable accuracy. Regular maintenance of hydraulic cylinders, including checking for leaks and ensuring proper fluid levels, is essential for maintaining optimal excavator performance.
Pumps and motors: Driving excavator efficiency
Hydraulic pumps are the heart of the excavator's hydraulic system. These components pressurize the hydraulic fluid, creating the force necessary to power the cylinders and other hydraulic components. Most modern excavators use variable displacement pumps, which can adjust their output based on the machine's needs, improving fuel efficiency and reducing wear on components.
Hydraulic motors convert the pressurized fluid's energy into mechanical energy, powering functions such as the excavator's swing and travel movements. The efficiency of these pumps and motors directly impacts the excavator's overall performance and fuel consumption.
Valves and hoses: Controlling fluid flow
A network of valves and hoses directs the flow of hydraulic fluid throughout the excavator. Control valves regulate the amount and direction of fluid flow to different components, allowing for precise control of each function. These valves are typically operated by the joysticks and pedals in the operator's cab.
High-pressure hoses transport the hydraulic fluid between components. These hoses must be regularly inspected for wear, damage, or leaks to prevent system failures and ensure safe operation. Proper maintenance of the entire hydraulic system is crucial for maximizing excavator performance and longevity.
Operator's controls: Mastering excavator functionality
The operator's cab is where all the excavator's complex systems come together under human control. Modern excavator cabs are designed with ergonomics and comfort in mind, allowing operators to work efficiently for extended periods.
Joysticks: Precision at your fingertips
Joysticks are the primary means of controlling an excavator's movements. Most excavators feature two joysticks, each controlling multiple functions. For example, one joystick might control the boom and stick movements, while the other manages the bucket and swing functions. This setup allows for simultaneous control of multiple excavator parts, enabling skilled operators to perform complex maneuvers with ease.
Many modern excavators feature programmable joysticks, allowing operators to customize control patterns to their preferences or to match the layout they're most familiar with. This flexibility can significantly improve operator comfort and productivity.
Pedals: Controlling travel and swing
Foot pedals in the excavator cab typically control the machine's travel movements and sometimes the swing function. The travel pedals allow the operator to move the excavator forward, backward, and steer, much like the pedals in a car. Some excavators feature a separate swing pedal, enabling the operator to rotate the upper structure while keeping both hands free for other controls.
Mastering the coordination between hand and foot controls is essential for efficient excavator operation. Experienced operators can seamlessly blend multiple movements, such as swinging while extending the boom and stick, to achieve maximum productivity.
Display panels: Monitoring excavator performance
Modern excavators are equipped with advanced display panels that provide real-time information about the machine's performance and status. These digital displays offer insights into fuel consumption, hydraulic pressure, engine temperature, and other vital metrics. Some systems even provide maintenance reminders and diagnostic information, helping operators and maintenance teams keep the excavator in peak condition.
Many display panels also feature customizable work modes, allowing operators to optimize the excavator's performance for specific tasks or conditions. For example, an operator might select a "power" mode for heavy digging or an "economy" mode for lighter work to improve fuel efficiency.
Understanding the different parts of an excavator is crucial for anyone involved in construction, mining, or earthmoving operations. From the powerful boom and versatile bucket to the intricate hydraulic system and intuitive controls, each component plays a vital role in the excavator's functionality. By familiarizing yourself with these parts and their purposes, you can improve operational efficiency, streamline maintenance processes, and make more informed decisions when purchasing or renting equipment. As excavator technology continues to evolve, staying up-to-date with the latest advancements will ensure you're always getting the most out of these indispensable machines.
FAQ
①Q: How often should excavator parts be inspected?
A: Daily visual inspections are recommended, with more thorough checks performed weekly or monthly, depending on usage. Always follow the manufacturer's guidelines for maintenance schedules.
②Q: Can excavator attachments be interchanged between different brands?
A: While some attachments are universal, many are brand-specific. It's essential to check compatibility before purchasing or using attachments from different manufacturers.
③Q: What's the lifespan of an excavator's hydraulic system?
A: With proper maintenance, an excavator's hydraulic system can last 10-15 years or more. Regular fluid changes, filter replacements, and prompt repairs of leaks or damaged components are crucial for longevity.
④Q: How do I choose the right bucket for my excavator?
A: Consider factors such as material density, required digging depth, and specific job requirements. Consult with the manufacturer or a dealer to ensure you select a bucket that matches your excavator's specifications and intended use.
⑤Q: Are there any advancements in excavator technology to improve efficiency?
A: Yes, recent advancements include GPS-guided systems for precise grading, hybrid and electric models for reduced emissions, and telematics for remote monitoring and diagnostics of excavator performance.
