What are the main components of a ballast plow system?
A ballast plow system is a crucial piece of railway maintenance equipment designed to distribute and shape ballast along railroad tracks efficiently. Its main components include the plow blade, hydraulic system, and frame. These elements work together to ensure proper track support, drainage, and stability.
Plow Blade
V-shaped design for efficient material distribution
The heart of any ballast plow system is its blade. The V-shaped design of the plow blade is engineered for optimal material distribution along the track. This unique shape allows the blade to effectively push ballast outward from the center of the track, ensuring even coverage and proper support for the rails and ties.
The angle of the V-shape is carefully calculated to achieve the ideal balance between pushing force and material spread. This design minimizes the energy required to move the ballast while maximizing the area covered. As a result, railway maintenance crews can work more efficiently, covering larger sections of track in less time.
Bolt-on poly or rubber edges for versatility
Modern ballast plow blades often feature bolt-on poly or rubber edges. These interchangeable components offer several advantages over traditional all-metal blades. First, they provide increased versatility, allowing maintenance teams to adapt the plow to different track conditions or ballast types by simply swapping out the edges.
Poly and rubber edges also help reduce wear and tear on both the plow and the track components. Their slightly softer composition means they're less likely to damage rails, ties, or other track hardware accidentally. This can lead to significant cost savings in terms of reduced equipment maintenance and track repairs.
Durable construction for heavy-duty railway applications
Given the demanding nature of railway maintenance, ballast plow blades must be built to withstand harsh conditions. Manufacturers use high-strength steel alloys and advanced welding techniques to ensure the blade can handle the immense forces involved in moving tons of ballast material.
The blade's durability is further enhanced by protective coatings that resist corrosion and abrasion. These treatments help extend the life of the plow, reducing downtime and replacement costs for railway operators. Some designs also incorporate reinforced wear points or easily replaceable wear plates, allowing for quick and cost-effective maintenance when needed.
Hydraulic System
Powerful cylinders for precise blade control
The hydraulic system is the muscle behind the ballast plow's operations. At its core are powerful hydraulic cylinders that provide the force necessary to move and position the plow blade with precision. These cylinders are designed to withstand the high pressures and constant use associated with railway maintenance tasks.
The size and number of cylinders vary depending on the specific plow model and its intended use. Larger plows may feature multiple cylinders to ensure even force distribution and prevent blade twisting under heavy loads. The hydraulic system's power allows operators to adjust the blade's angle and depth on the fly, adapting to changing track conditions without interrupting work.
Quick-attach mechanism for loader compatibility
Many modern ballast plows feature a quick-attach mechanism as part of their hydraulic system. This innovation allows the plow to be easily mounted on various types of loaders or excavators, increasing its versatility and reducing setup time. The quick-attach system typically uses standardized hydraulic couplings that can be connected and disconnected rapidly without special tools.
This compatibility with different host machines means that railway maintenance teams can use existing equipment to operate the ballast plow, potentially reducing overall fleet costs. It also allows for greater flexibility in maintenance operations, as the same plow can be quickly moved between different sections of track or even different job sites as needed.
Hydraulic valves for smooth operation and adjustment
Precision control of the ballast plow is achieved through a series of hydraulic valves. These valves regulate the flow of hydraulic fluid to the cylinders, allowing for smooth and accurate blade movements. Advanced plow systems may incorporate proportional valves that offer variable control, enabling operators to make fine adjustments to blade position and pressure.
The hydraulic system often includes safety features such as pressure relief valves to prevent damage from overloading, and check valves to maintain blade position even if hydraulic pressure is lost. Some systems also incorporate accumulators to absorb shocks and vibrations, further protecting both the plow and the operator from the harsh railway environment.
Frame
Integrated rail wheels for smooth track guidance
The frame of a ballast plow system serves as its backbone, providing structural support and housing various components. One of the most critical features of the frame is the integrated rail wheels. These specialized wheels are designed to ride directly on the rails, ensuring the plow remains perfectly aligned with the track during operation.
The rail wheels are typically made from hardened steel to withstand the constant wear of running on metal rails. They're precisely machined to match the rail profile, allowing for smooth movement along the track. This design eliminates the need for constant steering adjustments, reducing operator fatigue and improving overall efficiency.
Sturdy construction to withstand railway environments
Railway environments are notoriously tough on equipment. The frame of a ballast plow must be built to endure not only the forces involved in moving ballast but also the vibrations, impacts, and environmental stresses of constant use on the tracks. Manufacturers use high-strength steel alloys and reinforced construction techniques to create frames that can stand up to these demanding conditions.
The frame's design often incorporates strategic reinforcements at high-stress points, such as where the blade attaches or where the hydraulic cylinders exert force. Some frames feature modular construction, allowing damaged sections to be replaced without requiring a complete frame replacement. This approach can significantly reduce maintenance costs and downtime over the life of the equipment.
Adjustable features for various track widths
To accommodate different railway systems and track configurations, many ballast plow frames include adjustable features. These may include expandable axles that can widen or narrow the distance between the rail wheels, allowing the plow to work on tracks of varying gauges. Some designs also offer adjustable blade mounts, enabling operators to optimize the plow's performance for different ballast profiles or track bed designs.
The ability to adjust the frame's configuration not only increases the plow's versatility but also helps ensure optimal performance across a range of track conditions. This adaptability is particularly valuable for railway maintenance contractors who may work on diverse rail networks or for operators managing tracks with varying specifications within their system.
Understanding the main components of a ballast plow system is essential for railway professionals seeking to maintain safe and efficient tracks. The plow blade, hydraulic system, and frame work in harmony to ensure proper ballast distribution and track stability. As technology continues to advance, ballast plow systems are becoming more efficient, precise, and environmentally friendly, contributing to the overall improvement of railway infrastructure worldwide.
FAQ
1. How often should ballast plow systems be maintained?
Regular maintenance is crucial for ballast plow systems. Generally, daily visual inspections and weekly more thorough checks are recommended. Full servicing should be performed every 500 operating hours or as specified by the manufacturer.
2. Can ballast plows be used on high-speed rail lines?
Yes, specially designed ballast plows are available for high-speed rail maintenance. These models often feature enhanced precision controls and more durable components to meet the exacting standards of high-speed track beds.
3. What safety features are typically included in modern ballast plow systems?
Modern ballast plows often include safety features such as emergency stop buttons, overflow protection valves, and enhanced operator visibility systems. Some models also incorporate telematics for remote monitoring and diagnostics.
4. How does weather affect ballast plow operations?
Extreme weather can impact ballast plow efficiency. Heavy rain may saturate ballast, making it harder to move, while freezing conditions can cause ballast to clump. Operators should adjust their techniques and possibly use specialized equipment in challenging weather conditions.
5. What advancements are being made in ballast plow technology?
Recent advancements include GPS-guided systems for more precise ballast distribution, environmentally friendly hydraulic fluids, and integration with digital track maintenance planning systems for optimized scheduling and resource allocation.
Ballast Plow Supplier
Tiannuo Machinery stands at the forefront of railway maintenance equipment manufacturing, offering a comprehensive range of solutions. Our product line extends beyond plows to include railway sleeper changing machines, screening machines, and tamping machines, all designed to enhance track maintenance efficiency.

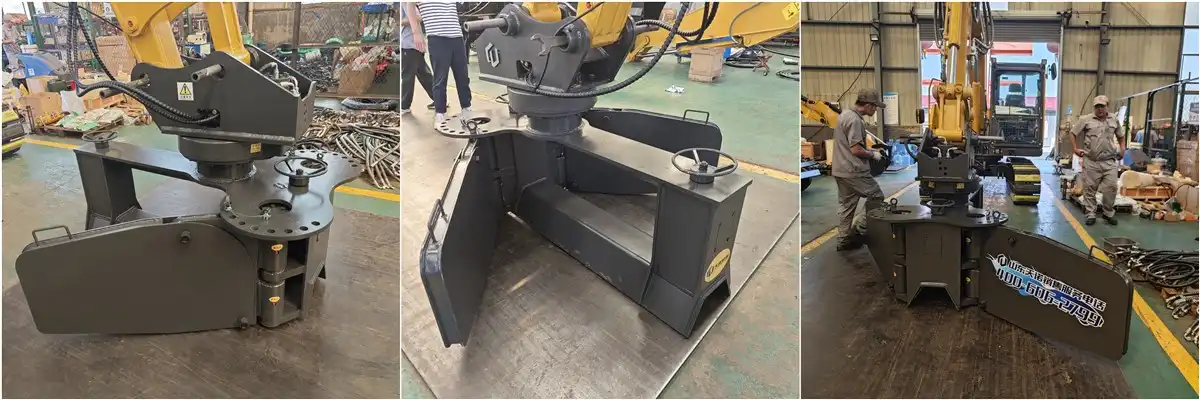

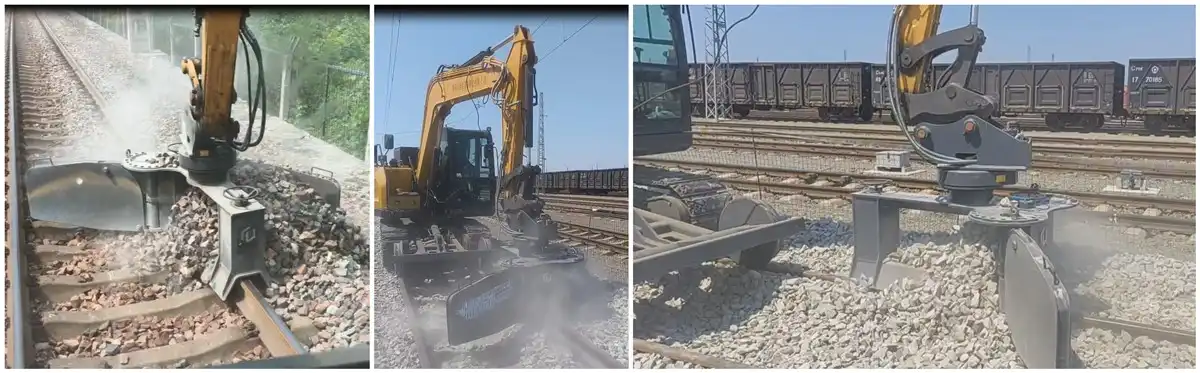

Need equipment to clean ballast efficiently? Ballast plow is here to help. Suitable for machines weighing 5-10 tons, with a track gauge of 1435 mm, width of 2800 mm, height of 460 mm, and an inclination angle of 8°.
