What does an excavator cab rotate upon?
An excavator cab rotates upon a specialized mechanism known as the swing bearing or slewing ring. This crucial component allows the entire upper structure of the excavator, including the cab, engine, and boom, to rotate smoothly on top of the undercarriage. The swing bearing is a large, circular bearing that connects the excavator's upper and lower frames, enabling 360-degree rotation. This design is essential for the versatility and efficiency of excavators in various applications, from construction and mining to landscaping and demolition work.

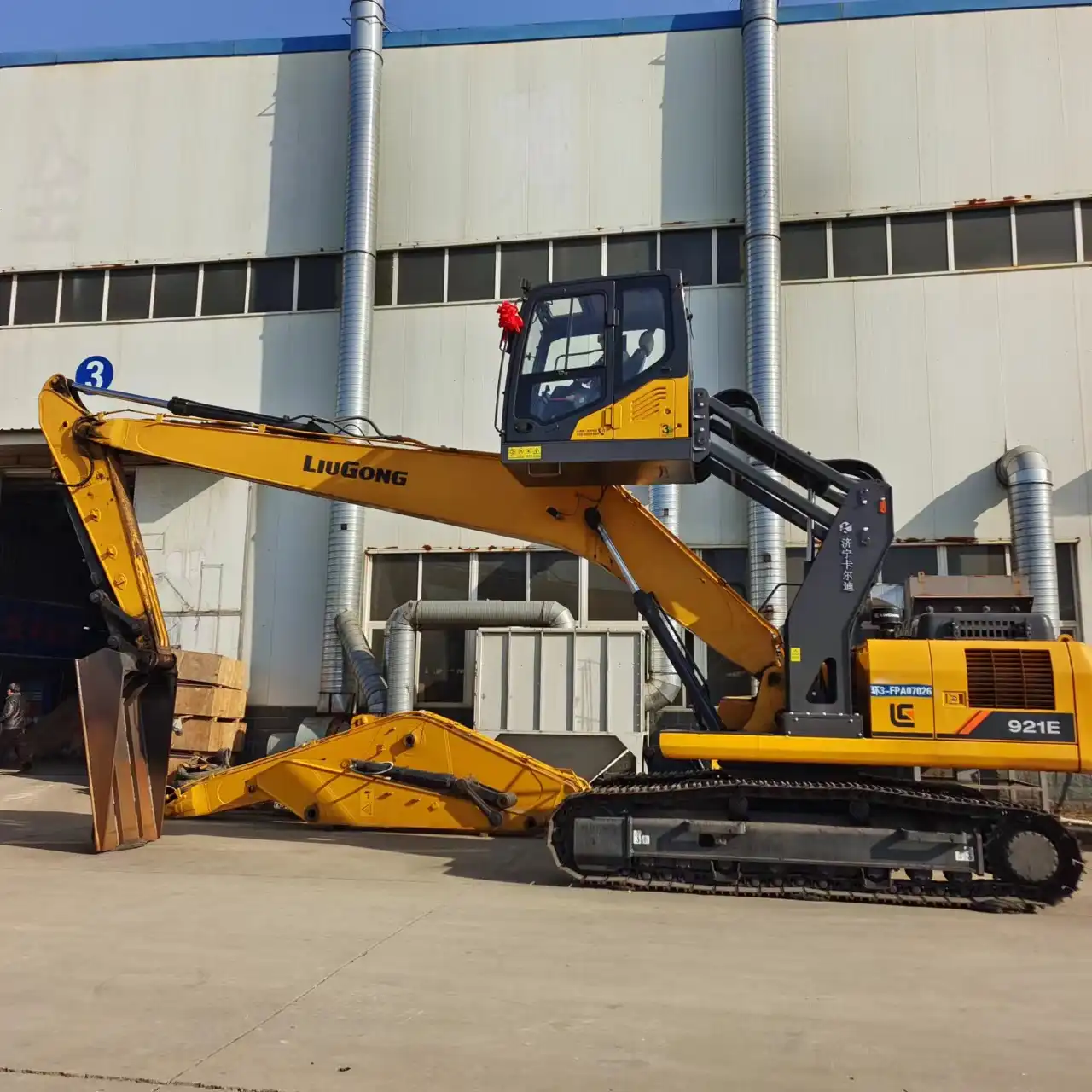

Excavator's Swing Mechanism
Excavator's Rotating Platform
The rotating platform of an excavator cab is a marvel of engineering that allows these powerful machines to perform a wide range of tasks with precision and efficiency. At its core, the rotating platform consists of the upper frame, which houses the operator's cab, engine, hydraulic systems, and counterweight. This entire assembly sits atop the undercarriage, connected by the swing bearing.
The design of the rotating platform is crucial for the excavator's functionality. It allows operators to position the boom and arm precisely without moving the tracks or wheels, significantly enhancing the machine's versatility. This capability is particularly valuable in confined spaces or when working on multiple tasks in a single location.
How the swing bearing enables cab rotation
The swing bearing, also known as a slewing ring, is the unsung hero of excavator mobility. It's a large, circular bearing that acts as the interface between the upper and lower frames of the excavator. The bearing consists of two rings - an inner ring attached to the undercarriage and an outer ring connected to the upper structure.
Between these rings are rolling elements, typically balls or rollers, which allow for smooth rotation with minimal friction. The swing bearing is designed to handle both axial and radial loads, ensuring stability even when the excavator is working under heavy loads or on uneven terrain.
The role of hydraulics in the swing mechanism
While the swing bearing provides the physical means for rotation, the power behind this movement comes from the excavator's hydraulic system. A hydraulic swing motor, usually located near the center of the upper frame, drives the rotation of the cab and upper structure.
The hydraulic system allows for precise control over the speed and direction of rotation. Operators can make small, incremental movements or rapid full rotations as needed. This hydraulic power also enables the excavator to hold its position firmly when stationary, which is crucial for stability during digging operations.
The integration of hydraulics with the swing bearing creates a robust and responsive rotation system. This system can handle the significant torque required to move the heavy upper structure while providing the fine control necessary for precise operations.

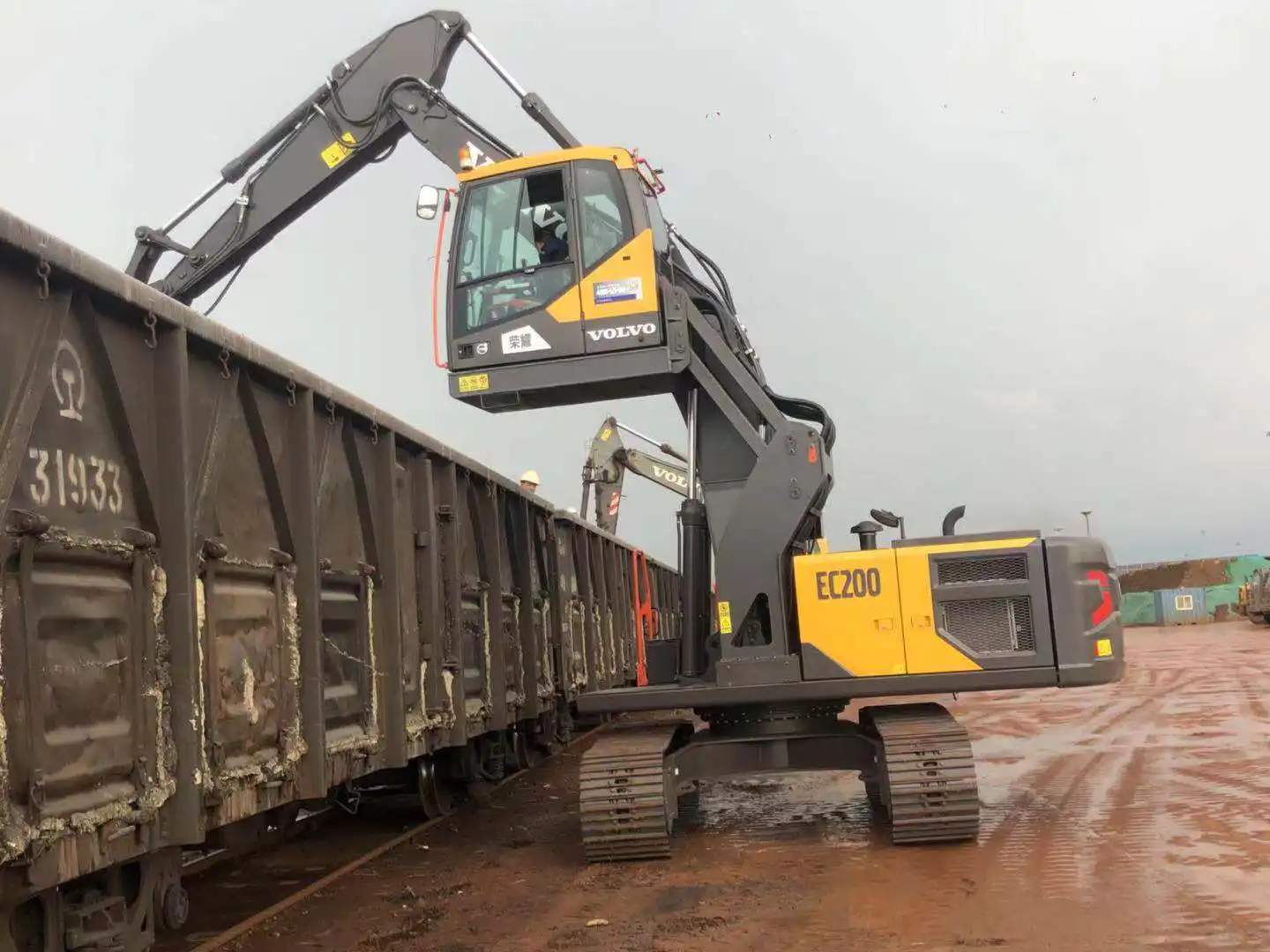

Key Components Of Cab Rotation System
Slewing ring: The heart of excavator cab rotation
The slewing ring, or swing bearing, is the central component that enables an excavator's cab rotation. This large, circular bearing is designed to handle both axial and radial loads, allowing the entire upper structure of the excavator to rotate smoothly and securely.
Slewing rings come in various designs, including ball and roller types. Ball slewing rings use steel balls as rolling elements, offering smooth operation and lower friction. Roller slewing rings, on the other hand, use cylindrical or tapered rollers, which can handle heavier loads and provide greater stability.
The size and type of slewing ring used depend on the excavator's size and intended applications. Larger excavators typically require more robust slewing rings to handle the increased weight and operational forces.
Hydraulic motors and their function in cab rotation
Hydraulic motors are the powerhouse behind the excavator's rotation system. These motors convert hydraulic pressure into mechanical energy, driving the rotation of the upper structure. The hydraulic swing motor is typically mounted near the center of the upper frame and connects to the slewing ring through a series of gears.
The use of hydraulics in cab rotation offers several advantages. It allows for precise control over rotation speed and direction, enabling operators to make fine adjustments or rapid movements as needed. Hydraulic systems also provide high torque at low speeds, which is ideal for the controlled movement of heavy loads.
Modern excavators often feature variable displacement hydraulic motors, which can adjust their output based on the required force and speed. This enhances efficiency and reduces fuel consumption during operation.
Swing gears and their impact on rotation precision
Swing gears play a crucial role in translating the power from the hydraulic motor to the slewing ring. These gears are typically arranged in a planetary gear system, which offers high torque in a compact design.
The precision of the swing gears directly impacts the accuracy of the excavator's movements. High-quality, well-maintained gears ensure smooth rotation and minimize backlash - the slight reverse movement that can occur when changing rotation direction.
Gear ratios are carefully calculated to provide the optimal balance between speed and torque. This ensures that the excavator can rotate quickly when needed but also maintain precise control for delicate operations.

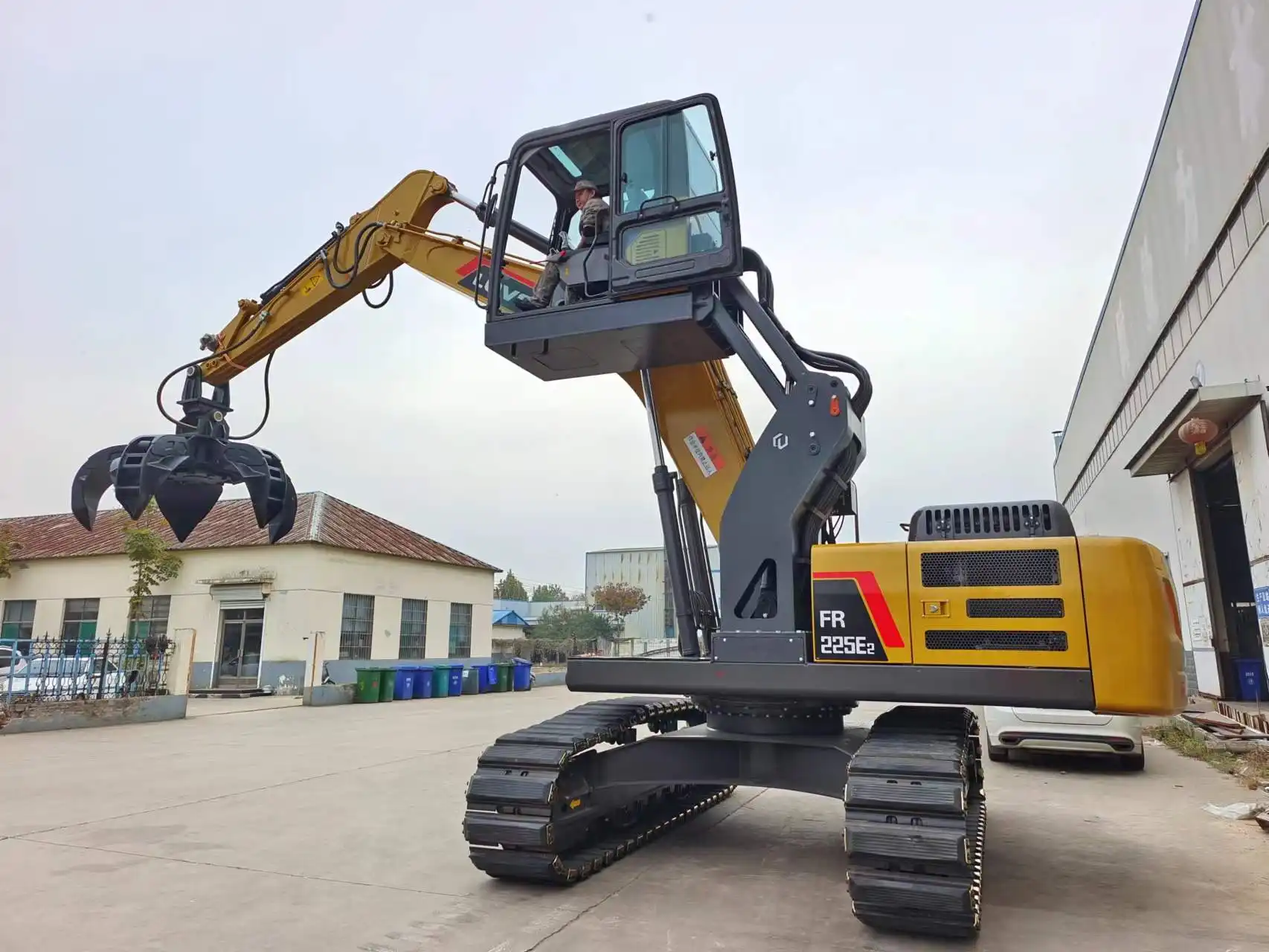

How Does Cab Rotation Enhance Excavator Efficiency?
360-degree visibility: Improving operator safety
The ability of an excavator cab to rotate 360 degrees significantly enhances operator visibility, which is crucial for both safety and efficiency. With full rotation capabilities, operators can maintain a clear view of their surroundings without repositioning the entire machine.
This improved visibility reduces blind spots, decreasing the risk of accidents on busy construction sites. Operators can easily monitor the working area, identify potential hazards, and ensure the safety of ground workers without leaving their seat.
Many modern excavator cabs are designed with large windows and slim pillars to further enhance visibility. Some models even feature cameras and display screens to provide a comprehensive view of the machine's surroundings, complementing the benefits of cab rotation.
Increased productivity through versatile movement
The rotational capability of excavator cabs greatly enhances the machine's versatility and productivity. Operators can quickly switch between tasks or work areas without moving the entire machine, saving valuable time and reducing fuel consumption.
For instance, in trenching operations, an excavator can dig, rotate to dump the soil, and return to digging position efficiently. In demolition work, the operator can attack structures from various angles without repositioning the tracks or wheels.
This versatility is particularly valuable in confined spaces or on sites with multiple work zones. The ability to rotate allows excavators to work effectively in areas where movement might otherwise be restricted, increasing overall site productivity.
The rotation of an excavator cab is a complex yet crucial aspect of these versatile machines. Built upon the foundation of the swing bearing or slewing ring, and powered by robust hydraulic systems, this rotational capability significantly enhances an excavator's efficiency, safety, and versatility. From improving operator visibility and reducing physical strain to increasing productivity in various work environments, the benefits of cab rotation are clear. As excavator technology continues to evolve, we can expect further improvements in rotation systems, potentially leading to even more efficient and operator-friendly machines in the future.
FAQ
1. How often should the excavator's swing bearing be maintained?
Regular maintenance of the swing bearing is crucial for optimal performance. Generally, it should be inspected and lubricated according to the manufacturer's recommendations, typically every 250-500 operating hours. However, the exact frequency may vary based on working conditions and usage intensity.
2. Can the rotation speed of an excavator cab be adjusted?
Yes, most modern excavators allow for adjustment of the rotation speed. This is typically controlled through the hydraulic system and can be fine-tuned to suit different operational requirements or operator preferences.
3. What are the signs that an excavator's rotation system needs repair?
Signs of a failing rotation system include unusual noises during rotation, jerky or inconsistent movement, excessive play in the upper structure, or visible damage to the slewing ring. If any of these symptoms are observed, immediate inspection by a qualified technician is recommended.
4. How does cab rotation affect the excavator's stability?
While cab rotation itself doesn't significantly impact stability, the position of the boom and arm during rotation can affect the machine's center of gravity. Operators need to be aware of load limits and maintain proper positioning, especially when working on uneven terrain or with heavy loads.
5. Are there any special considerations for operating rotating cabs in cold weather?
In cold weather, the hydraulic fluid may become more viscous, potentially affecting the smoothness of cab rotation. It's important to allow the machine to warm up properly before operation and to use hydraulic fluids appropriate for cold weather conditions as recommended by the manufacturer.
