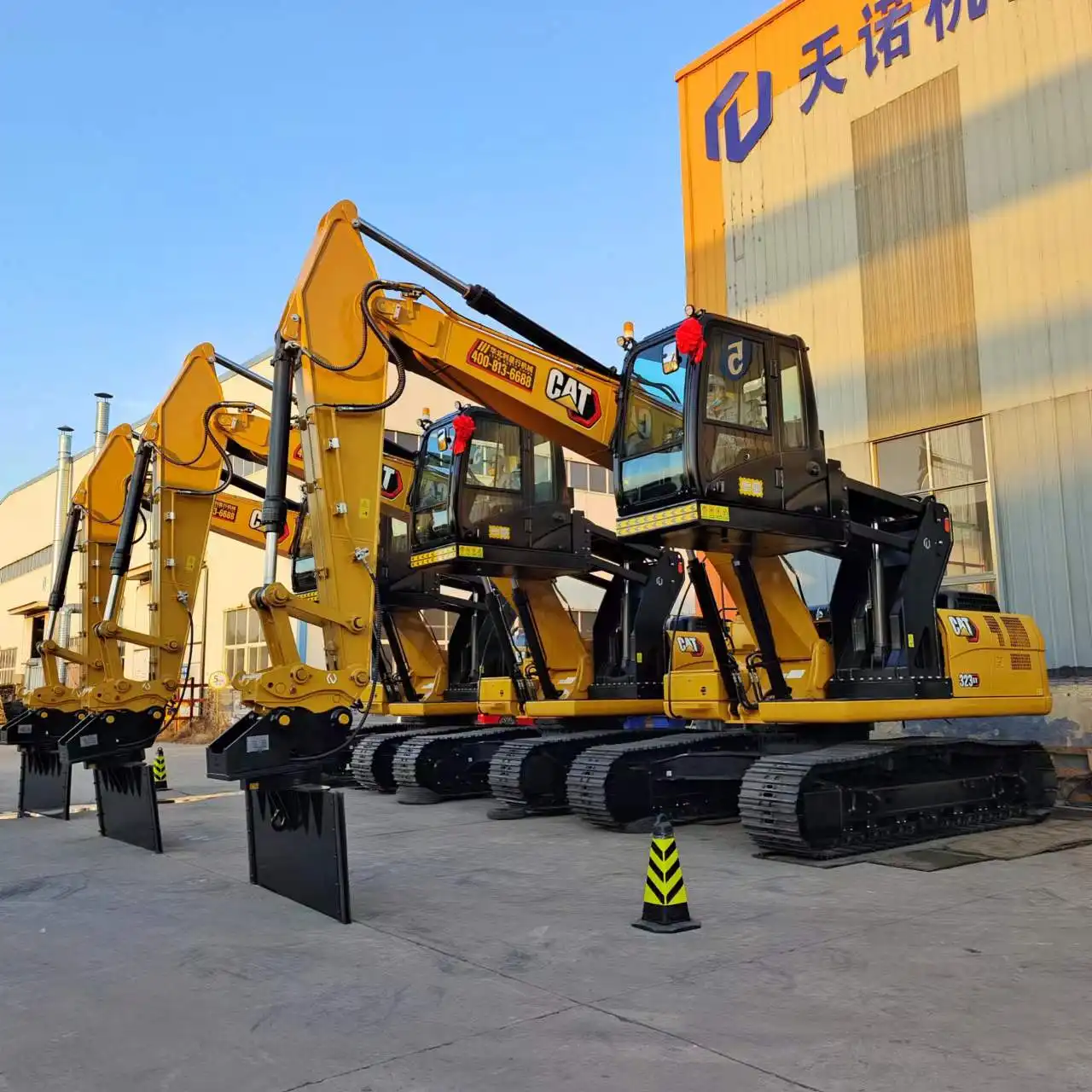

What hydraulic systems are required for the excavator Lift Cab?

Excavator lift cabs rely on sophisticated hydraulic systems to enhance operator visibility and comfort. These systems typically include hydraulic cylinders, pressure control valves, and fluid reservoirs. The primary components are double-acting cylinders, which allow for both upward and downward movement of the cab. Additionally, telescopic cylinders may be incorporated to achieve greater height ranges. Pressure control mechanisms ensure smooth, controlled motion, while safety valves prevent sudden drops in case of hydraulic failure. The entire system is integrated with the excavator's main hydraulics, requiring careful design to maintain overall machine performance and efficiency.

Hydraulic Cylinder Types: Choosing the Right Option

Single-acting vs. double-acting cylinders for lift cabs

When it comes to selecting the appropriate hydraulic cylinders for excavator lift cabs, the choice between single-acting and double-acting cylinders is crucial. Single-acting cylinders use hydraulic pressure to extend and rely on gravity or an external force for retraction. While simpler in design, they're less common in lift cab applications due to their limitations.

Double-acting cylinders, on the other hand, utilize hydraulic pressure for both extension and retraction. This makes them ideal for lift cabs, as they offer precise control in both directions. The ability to actively lower the cab enhances safety and allows for smoother operation, especially when working in confined spaces or on uneven terrain.

Telescopic cylinders: Enhancing excavator cab height range

Telescopic cylinders represent a significant advancement in excavator lift cab technology. These multi-stage cylinders can extend to great lengths while maintaining a compact retracted size. This feature is particularly valuable in situations where maximum visibility at various heights is required, such as in demolition work or high-reach applications.

The use of telescopic cylinders allows operators to adjust their vantage point with greater flexibility, improving overall job site efficiency. However, it's important to note that telescopic cylinders are more complex and may require additional maintenance compared to standard cylinders.

Cushioned cylinders: Improving operator comfort in lift cabs

Operator comfort is a key consideration in excavator design, and cushioned cylinders play a vital role in achieving this. These specialized cylinders incorporate a cushioning mechanism at the end of their stroke, which slows down the piston as it nears the end of its travel. This feature minimizes jarring and vibration, reducing operator fatigue and potential long-term health issues.

For lift cabs, cushioned cylinders ensure smooth starts and stops during elevation changes. This not only enhances operator comfort but also protects the cab structure and hydraulic components from excessive stress, potentially extending the lifespan of the equipment.

Pressure Requirements: Calculating Optimal Performance

Determining ideal hydraulic pressure for excavator cab lifts

Calculating the ideal hydraulic pressure for excavator cab lifts is a critical step in ensuring optimal performance and safety. The pressure requirements depend on several factors, including the weight of the cab, desired lift speed, and the dimensions of the hydraulic cylinders. Engineers must carefully balance these elements to achieve smooth, controlled movement without overstraining the system.

Typically, excavator lift cab systems operate at pressures ranging from 2,000 to 5,000 psi (138 to 345 bar). However, the exact pressure will vary based on the specific machine design and intended application. It's crucial to consider safety factors and account for potential load variations, such as additional equipment or adverse weather conditions that might affect the cab's weight.

Flow rate considerations for smooth cab movement

While pressure provides the force necessary to lift the cab, the flow rate of hydraulic fluid determines the speed and smoothness of the movement. A well-designed system should provide a consistent, controlled flow to ensure steady cab elevation without jerky motions or hesitations.

The optimal flow rate is typically calculated based on the desired lift speed and the volume of the hydraulic cylinders. It's important to note that faster isn't always better; a moderate, steady pace often provides the best balance between efficiency and operator comfort. Additionally, variable flow control valves can be incorporated to allow operators to adjust the lift speed based on their preferences or job requirements.

Balancing power and efficiency in hydraulic lift systems

Achieving the right balance between power and efficiency is a key challenge in designing hydraulic lift systems for excavator cabs. While high pressure and flow rates can provide quick, powerful lifts, they also increase energy consumption and put greater stress on components. Conversely, a system that prioritizes efficiency might sacrifice performance in demanding situations.

Modern hydraulic systems often employ load-sensing technology to optimize this balance. These systems adjust pressure and flow based on the actual load, ensuring that only the necessary power is used at any given time. This approach not only improves fuel efficiency but also reduces wear on hydraulic components, potentially extending the life of the equipment.

Integration Challenges: Overcoming Common Hurdles

Synchronizing cab lift with excavator arm movements

One of the primary challenges in integrating lift cab hydraulics is synchronizing the cab's movement with the excavator's arm operations. This coordination is essential for maintaining optimal visibility and operator comfort throughout various work scenarios. Advanced control systems use sensors and computerized algorithms to adjust the cab's position in real-time, based on the arm's movements and the operator's preferences.

Implementing such a system requires careful calibration and testing to ensure smooth, predictable operation. Engineers must account for the different response times of the cab lift and arm hydraulics, as well as potential conflicts in hydraulic fluid demand between these systems. Successful integration results in a seamless operator experience, where the cab position automatically optimizes for each task.

Preventing hydraulic leaks in lift cab connections

Hydraulic leaks are a common issue in heavy machinery, and lift cab systems are particularly vulnerable due to their constant movement and exposure to environmental factors. Preventing leaks is crucial for maintaining system efficiency, safety, and environmental compliance. Designers employ several strategies to address this challenge, including the use of high-quality seals and fittings specifically designed for dynamic applications.

Regular maintenance and inspection protocols are essential for early detection of potential leak points. Some advanced systems incorporate sensors that can detect minor pressure drops, alerting operators to potential leaks before they become significant issues. Additionally, the use of biodegradable hydraulic fluids is becoming more common, minimizing environmental impact in case of leaks.

Ensuring safety: Implementing fail-safe hydraulic systems

Safety is paramount in excavator design, especially when it comes to lift cab systems. Fail-safe mechanisms are crucial to prevent accidents in case of hydraulic failure. These systems typically include check valves that lock the cylinder in place if pressure is lost, preventing sudden drops of the cab. Redundant hydraulic circuits may also be employed to provide backup in case of primary system failure.

Emergency lowering systems are another critical safety feature. These allow the operator to safely lower the cab even in the event of complete hydraulic failure, often using gravity or a separate, manual hydraulic pump. Regular testing and maintenance of these safety systems are essential to ensure they function correctly when needed.

Hydraulic systems for excavator lift cabs are complex yet crucial components that significantly enhance operator comfort, safety, and productivity. By carefully selecting the right cylinder types, optimizing pressure and flow rates, and addressing integration challenges, manufacturers can create lift cab systems that meet the demanding needs of modern construction and demolition work. As technology continues to advance, we can expect even more sophisticated and efficient hydraulic solutions for excavator lift cabs, further improving operator experience and overall machine performance.

FAQ

1. How often should the hydraulic system for an excavator lift cab be serviced?

Regular maintenance is crucial for optimal performance and safety. Generally, it's recommended to inspect the hydraulic system every 250-500 operating hours, with more comprehensive services annually or every 2000 hours, whichever comes first. However, always consult your equipment's specific maintenance schedule.

2. Can lift cab hydraulic systems be retrofitted to older excavators?

Yes, many older excavators can be retrofitted with lift cab systems. However, this process requires careful engineering to ensure compatibility with the existing hydraulic system and structural integrity of the machine. It's best to consult with experienced professionals or the original equipment manufacturer for such modifications.

3. What are the signs that an excavator lift cab's hydraulic system needs attention?

Key indicators include slow or jerky cab movement, unusual noises during operation, visible fluid leaks, and difficulty maintaining cab position. If you notice any of these signs, it's important to have the system inspected by a qualified technician promptly.

4. How does cold weather affect lift cab hydraulic systems?

Cold temperatures can increase hydraulic fluid viscosity, leading to slower system response and potential damage if not properly managed. Using appropriate cold-weather hydraulic fluids and allowing proper warm-up times are essential in low-temperature environments.

5. Are there any special considerations for lift cab hydraulics in high-reach excavators?

High-reach excavators often require more robust lift cab systems due to the increased height and potential for greater vibration. These systems may incorporate additional stabilization features and higher-capacity hydraulic components to ensure safe and stable operation at extreme heights.

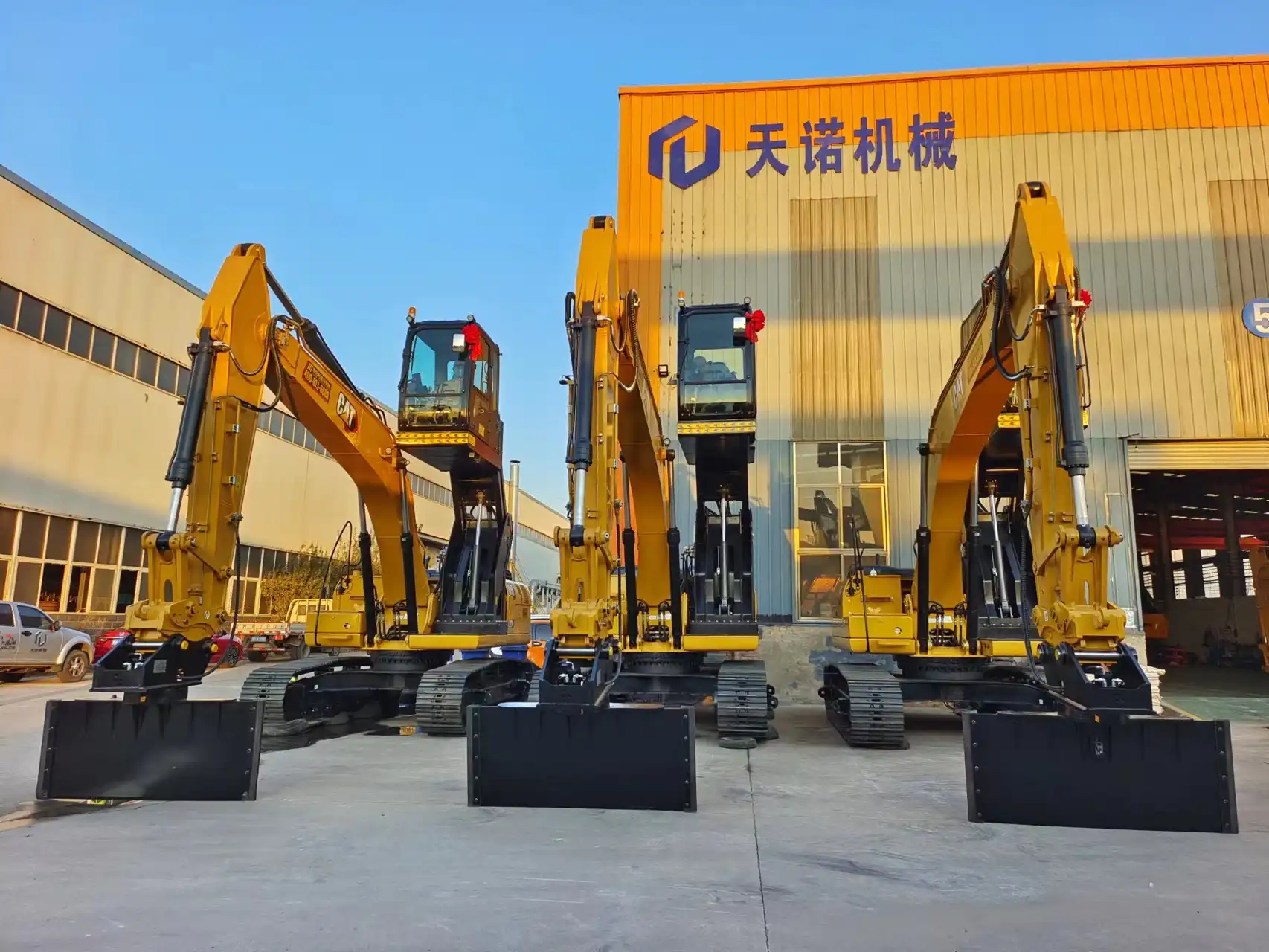

Excavator Lift Cab For Sale

Tiannuo Machinery offers a wide range of excavator cab solutions designed to meet the diverse needs of the construction, mining, and demolition industries. Our product line includes advanced hydraulic systems for excavator lifting cabs, tilting cabs, and front convex cabs, all engineered to enhance operator visibility and comfort. We also provide custom solutions for railway maintenance equipment, including sleeper changing machines and ballast screening buckets. Our excavator lift cabs are compatible with machines ranging from 13 to 50 tons, featuring adjustable lifting heights up to 2500 mm and a ground clearance of 3800 mm. With a focus on safety and efficiency, our systems include one-click emergency descent features and adjustable driver lifting speeds. For more information on our excavator raised cab solutions and other specialized equipment, contact us at boom@stnd-machinery.com.
