What is a rail clamp?

A rail clamp represents a crucial piece of railway maintenance equipment designed to secure, lift, and position steel rails during construction and maintenance operations. These specialized tools enable railway crews to handle heavy rail sections safely and efficiently without requiring extensive manual labor or complex lifting equipment. The excavator rail clamp has revolutionized railway maintenance by transforming standard excavators into precision rail-handling machines capable of managing various rail installation and replacement tasks.

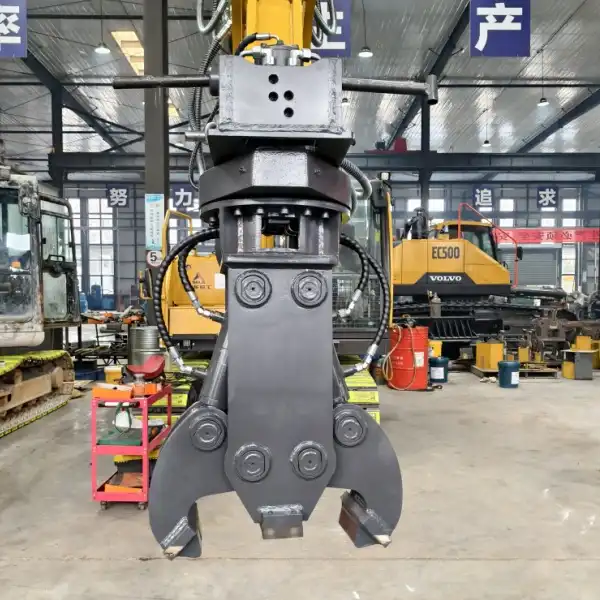

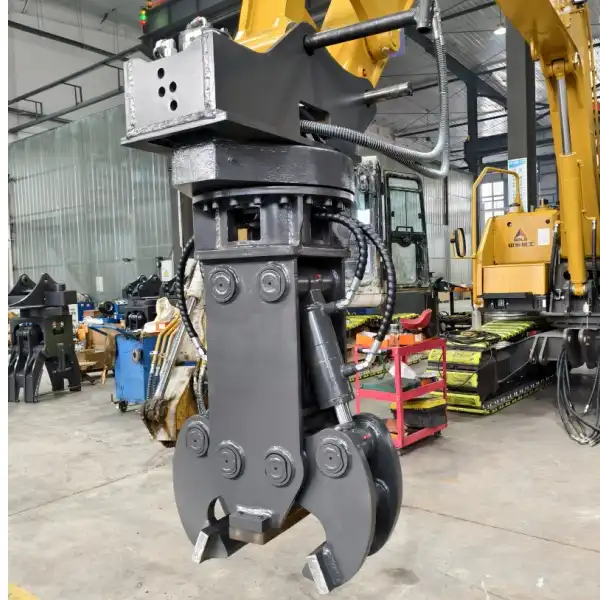

Specialized Attachment

Rail clamps function as highly specialized excavator attachments engineered specifically for railway maintenance applications. These sophisticated devices transform conventional excavators into precision rail-handling equipment capable of managing the unique challenges associated with steel rail manipulation and positioning.

Hydraulic Integration Systems

The hydraulic integration of rail clamps with excavator systems represents a remarkable engineering achievement that enables seamless operation control. Modern excavator rail clamps utilize the host machine's hydraulic power to generate substantial clamping forces while maintaining precise control over grip pressure. This integration allows operators to adjust clamping force based on rail weight, environmental conditions, and specific operational requirements.

Advanced hydraulic systems incorporate pressure regulation valves that prevent excessive force application, protecting both the rail surface and the clamp mechanism from damage. The integration typically operates through dedicated hydraulic lines that connect directly to the excavator's auxiliary hydraulic circuits, providing independent control over clamping and release functions. This sophisticated control system enables operators to achieve the precise manipulation required for delicate rail positioning tasks.

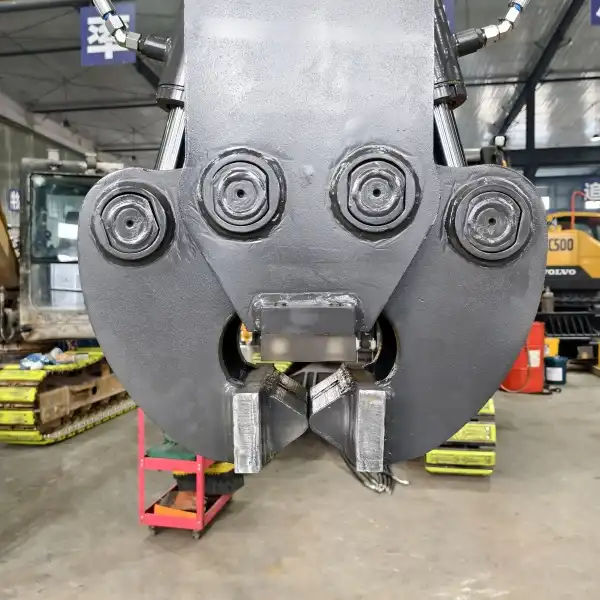

Mechanical Design Features

The mechanical design of rail clamps incorporates specialized features that address the unique challenges of rail handling while maximizing operational efficiency. High-strength alloy steel construction provides the durability required for heavy-duty railway applications while maintaining the precision necessary for accurate rail positioning. The clamping mechanism typically features contoured gripping surfaces that conform to standard rail profiles, ensuring secure contact without damaging the rail surface.

Engineering innovations in clamp design include self-aligning mechanisms that automatically adjust to rail positioning variations, reducing the skill level required for effective operation. The mechanical advantage provided by leverage systems enables substantial gripping forces while minimizing hydraulic pressure requirements. This efficiency translates into reduced fuel consumption and extended operational periods between maintenance intervals.

Safety features integrated into the mechanical design include fail-safe locking mechanisms that prevent accidental rail release during transport operations. These mechanisms typically incorporate spring-loaded safety pins that engage automatically when hydraulic pressure drops below operational thresholds. The robust construction standards ensure reliable operation under the demanding conditions typical of railway maintenance environments.

Attachment Versatility

Modern rail clamps demonstrate remarkable versatility through their ability to handle various rail types and sizes commonly encountered in railway maintenance operations. The excavator rail clamp design accommodates standard rail profiles while providing adjustment capabilities for specialized rail sections. This adaptability reduces the need for multiple specialized attachments, improving operational efficiency and reducing equipment costs.

Quick-coupler compatibility enables rapid attachment changes that minimize downtime during complex maintenance operations. The standardized mounting systems ensure compatibility with various excavator models while maintaining the structural integrity necessary for safe rail handling. This versatility proves particularly valuable for maintenance contractors who work on multiple railway systems with different specifications.

Used For Replacing Small Steel Rails At Skylight Points

Skylight operations represent some of the most challenging aspects of railway maintenance, requiring precise coordination between multiple crews and equipment systems. Rail clamps play a crucial role in these operations by enabling the efficient replacement of small steel rails at skylight points where traditional maintenance methods prove impractical.

Skylight Operation Efficiency

Skylight operations demand rapid execution to minimize track closure times and reduce impacts on railway operations. The excavator rail clamp enhances skylight efficiency by enabling single-operator rail handling that would otherwise require multiple workers and additional equipment. This efficiency translates directly into reduced track closure times and improved operational availability for railway networks.

The precision control provided by rail clamps enables accurate rail positioning even in the confined spaces typical of skylight operations. Traditional manual methods often struggle with the exact positioning required for proper rail alignment, particularly when working around existing infrastructure. The mechanical advantage provided by hydraulic clamping systems ensures consistent rail placement accuracy regardless of operator experience level.

Professional maintenance crews report significant improvements in skylight operation productivity when utilizing rail clamps compared to traditional methods. The ability to handle multiple rail sections consecutively without repositioning equipment contributes to streamlined operations that maximize productive time within limited track access windows. This productivity enhancement proves particularly valuable during emergency repairs where rapid restoration of service is critical.

Small Rail Handling Capabilities

Small steel rails present unique handling challenges that require specialized equipment capable of providing precise control while maintaining adequate gripping force. Rail clamps address these challenges through adjustable clamping mechanisms that accommodate various rail sizes without compromising grip security. The ability to handle small rails effectively expands the range of maintenance operations that can be performed with a single attachment.

The graduated force application capability of modern rail clamps prevents damage to smaller rail sections while providing sufficient grip for secure handling. This balance between force and protection proves essential when working with specialty rails or older rail sections that may have reduced structural integrity. The precise control enables operators to adapt their technique based on specific rail characteristics and condition.

Engineering innovations in small rail handling include specialized gripping surfaces that distribute clamping forces across broader contact areas, reducing stress concentrations that could damage rail surfaces. These design features enable the safe handling of rails with various surface conditions while maintaining the grip security necessary for accurate positioning. The versatility in small rail handling makes these attachments valuable for maintenance operations across diverse railway environments.

Applicable Track Gauges 1435mm, 1520mm, 1000mm, 1067mm

Railway systems worldwide utilize various track gauge standards, each presenting unique challenges for maintenance equipment design and operation. Rail clamps must accommodate these different gauge requirements while maintaining consistent performance across diverse railway environments.

Standard Gauge Compatibility (1435mm)

The standard gauge of 1435mm represents the most common railway track configuration globally, requiring rail clamps that can handle the specific rail profiles and weights associated with this gauge. Standard gauge rail networks operate with specific infrastructure requirements that demand specialized equipment capabilities. The excavator rail clamp designed for standard gauge applications incorporates features optimized for the rail weights and handling characteristics typical of these systems.

Standard gauge rail sections typically weigh between 50-60 kg per meter, requiring substantial clamping forces to ensure secure handling during positioning operations. The hydraulic systems of standard gauge rail clamps are calibrated to provide optimal force application while preventing rail damage through excessive pressure. This calibration ensures reliable operation across the wide variety of rail conditions encountered in standard gauge networks.

Maintenance operations on standard gauge railways often involve handling long rail sections that require precise positioning for proper joint alignment. The extended reach capability of rail clamps enables operators to position rails accurately while maintaining safe working distances from track infrastructure. This capability proves particularly valuable during maintenance operations on busy railway corridors where space limitations constrain traditional maintenance methods.

Broad Gauge Systems (1520mm)

Broad gauge railway systems operating at 1520mm require specialized rail clamps designed to accommodate the increased rail weights and different infrastructure characteristics associated with this gauge. The broader track spacing affects rail handling dynamics and requires equipment modifications to maintain operational efficiency. Rail clamps for broad gauge applications incorporate enhanced hydraulic systems to handle the increased rail weights typical of these systems.

The structural requirements for broad gauge rail clamps include reinforced clamping mechanisms that can withstand the higher forces generated during the handling of heavier rail sections. These design modifications ensure reliable operation while maintaining the precision control necessary for accurate rail positioning. The enhanced structural integrity proves essential for maintaining equipment reliability under the demanding conditions of broad gauge railway maintenance.

Professional maintenance crews working on broad gauge systems appreciate the robust construction and enhanced capabilities of specialized rail clamps. The ability to handle the unique challenges of broad gauge maintenance while maintaining operational efficiency contributes significantly to maintenance productivity. This specialized capability ensures optimal performance across diverse railway gauge configurations.

Narrow Gauge Applications (1000mm, 1067mm)

Narrow gauge railway systems present unique challenges that require specialized rail clamps designed for the lighter rail sections and different operational characteristics associated with these gauges. The 1000mm and 1067mm gauges are commonly used in industrial, mining, and regional railway applications where the specialized capabilities of narrow gauge systems provide operational advantages.

Rail clamps for narrow gauge applications typically feature reduced clamping forces optimized for the lighter rail weights while maintaining the precision control necessary for accurate positioning. The excavator rail clamp designed for narrow gauge applications incorporates specialized gripping surfaces that accommodate the different rail profiles commonly used in these systems. This specialization ensures optimal performance across diverse narrow gauge configurations.

The versatility required for narrow gauge operations often involves working in confined spaces where traditional maintenance equipment cannot operate effectively. Rail clamps provide the maneuverability and control necessary for these challenging applications while maintaining the safety standards required for railway maintenance operations. This capability proves essential for maintaining critical narrow gauge infrastructure in industrial and mining environments.

Engineering considerations for narrow gauge rail clamps include weight optimization to ensure compatibility with smaller excavators commonly used in narrow gauge operations. The reduced weight requirements enable the use of specialized attachment systems that provide enhanced maneuverability in confined working spaces. This optimization contributes to improved operational efficiency and reduced equipment costs for narrow gauge maintenance operations.

FAQ

①What is the maximum clamping force of an excavator rail clamp?

Modern excavator rail clamps can generate clamping forces up to 30 kN, with force adjustment capabilities based on rail size and operational requirements.

②Are rail clamps compatible with different excavator models?

Yes, rail clamps feature quick-coupler compatibility and can be mounted on standard and custom rail-road excavators from various manufacturers.

③What safety features are included in rail clamp design?

Safety features include locking pins, pressure hold valves, and fail-safe mechanisms that prevent accidental rail release during operations.

④Can rail clamps handle different rail weights?

Rail clamps are designed to handle various rail weights through adjustable clamping mechanisms and graduated force application systems.

⑤What maintenance is required for rail clamps?

Regular maintenance includes hydraulic system inspection, lubrication of moving parts, and periodic testing of safety mechanisms to ensure reliable operation.

The evolution of rail clamp technology continues to advance railway maintenance capabilities, enabling more efficient and safer rail handling operations across diverse gauge configurations. These specialized attachments have become essential tools for railway maintenance organizations seeking to optimize their operational efficiency while maintaining the highest safety standards. The versatility and precision control provided by modern rail clamps make them invaluable for addressing the complex challenges of contemporary railway maintenance.

Professional maintenance crews recognize that rail clamps represent a critical investment in operational capability and safety enhancement. The ability to handle various rail types and gauges with a single attachment reduces equipment costs while improving operational flexibility. This versatility proves particularly valuable for maintenance contractors working across multiple railway systems with different specifications and requirements.

The continued development of rail clamp technology focuses on enhancing automation capabilities while maintaining the precision control that makes these attachments so effective. Future innovations will likely incorporate advanced sensor systems and automated positioning capabilities that further improve operational efficiency and safety performance. These developments will continue to advance the capabilities of railway maintenance operations worldwide.

TianNuo's excavator rail clamp systems represent the pinnacle of railway maintenance technology, incorporating high-strength alloy steel construction with customizable hydraulic or manual operation modes. Our rail clamps feature adjustable clamping forces up to 30 kN, ensuring secure handling of various rail sizes while maintaining the precision necessary for accurate positioning. The standard 1435mm gauge compatibility, with custom options available, ensures broad applicability across diverse railway systems.

The integrated hydraulic control systems operate efficiently within 16-21 MPa pressure ranges, providing responsive control that adapts to varying operational requirements. Advanced safety features including locking pins and pressure hold valves ensure reliable operation under demanding conditions, while the anti-rust coating and heat treatment provide long-term durability in challenging environments. Our commitment to quality includes comprehensive OEM and ODM support to address specific operational requirements and ensure optimal performance for your railway maintenance applications.

Railway maintenance professionals seeking to enhance their rail handling capabilities will find our rail clamp systems provide exceptional value through improved operational efficiency and enhanced safety performance. The versatility to handle multiple gauge configurations with adjustable features reduces equipment requirements while improving operational flexibility. For detailed technical specifications and consultation on selecting the optimal rail clamp configuration for your specific maintenance requirements, contact our technical team at boom@stnd-machinery.com.

References

1. International Railway Journal. "Advanced Rail Handling Equipment for Modern Railway Maintenance." Railway Engineering International, 2024.
2. Thompson, M.J. "Excavator Attachments for Railway Infrastructure: Design and Application Principles." Journal of Railway Engineering, 2023.
3. European Railway Agency. "Technical Standards for Railway Maintenance Equipment and Attachments." Railway Safety Standards, 2024.
4. Anderson, R.K. "Track Gauge Variations and Their Impact on Maintenance Equipment Design." Transportation Engineering Quarterly, 2023.
5. Railway Maintenance Association. "Best Practices for Rail Handling Equipment Operation and Safety." Professional Railway Maintenance Manual, 2024.
