What Is an Excavator Long Reach Extension Arm? Uses & Benefits for Deep Excavation
Standard excavator fronts cannot always reach deep foundations, river channels, steep slopes or work areas behind obstacles. An appropriately matched Excavator Extension Arm expands horizontal reach and digging depth while allowing the carrier to remain in a more practical working position.
STND Machinery manufactures complete extension arm packages for 20–50 ton excavators, with published lengths from 16 to 26 meters and project-specific matching for the carrier, attachment and operating conditions.
What Is an Excavator Extension Arm?

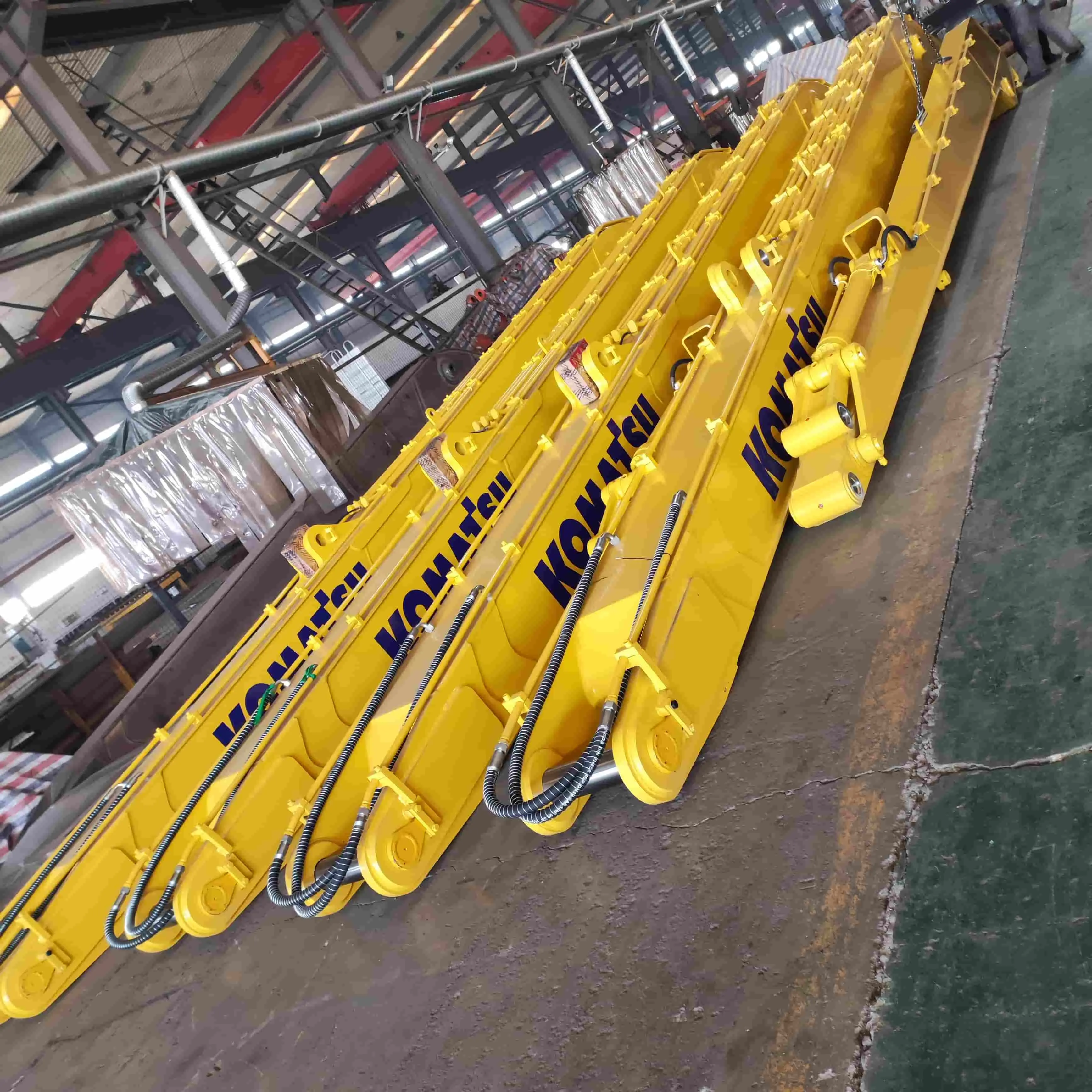

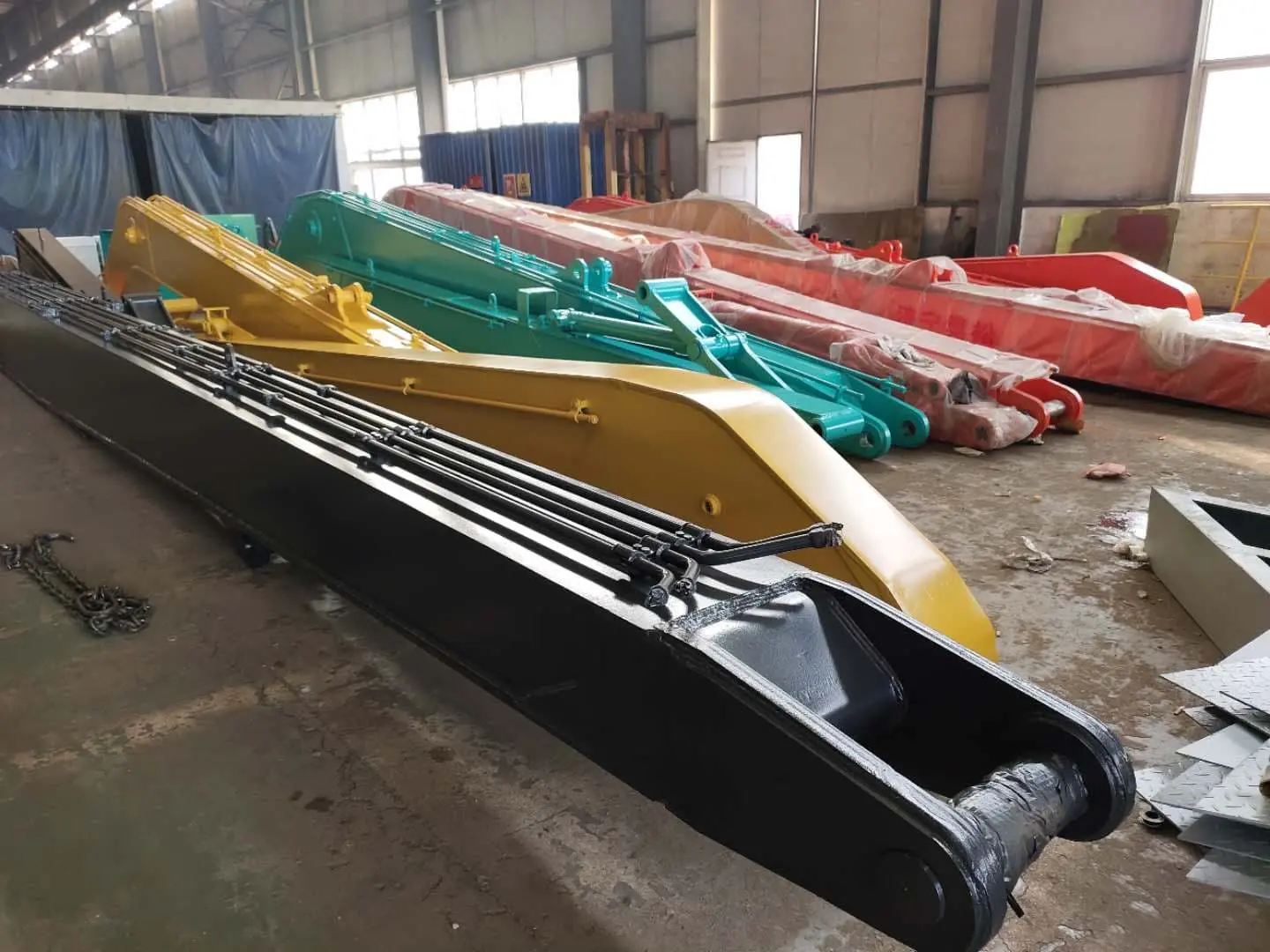

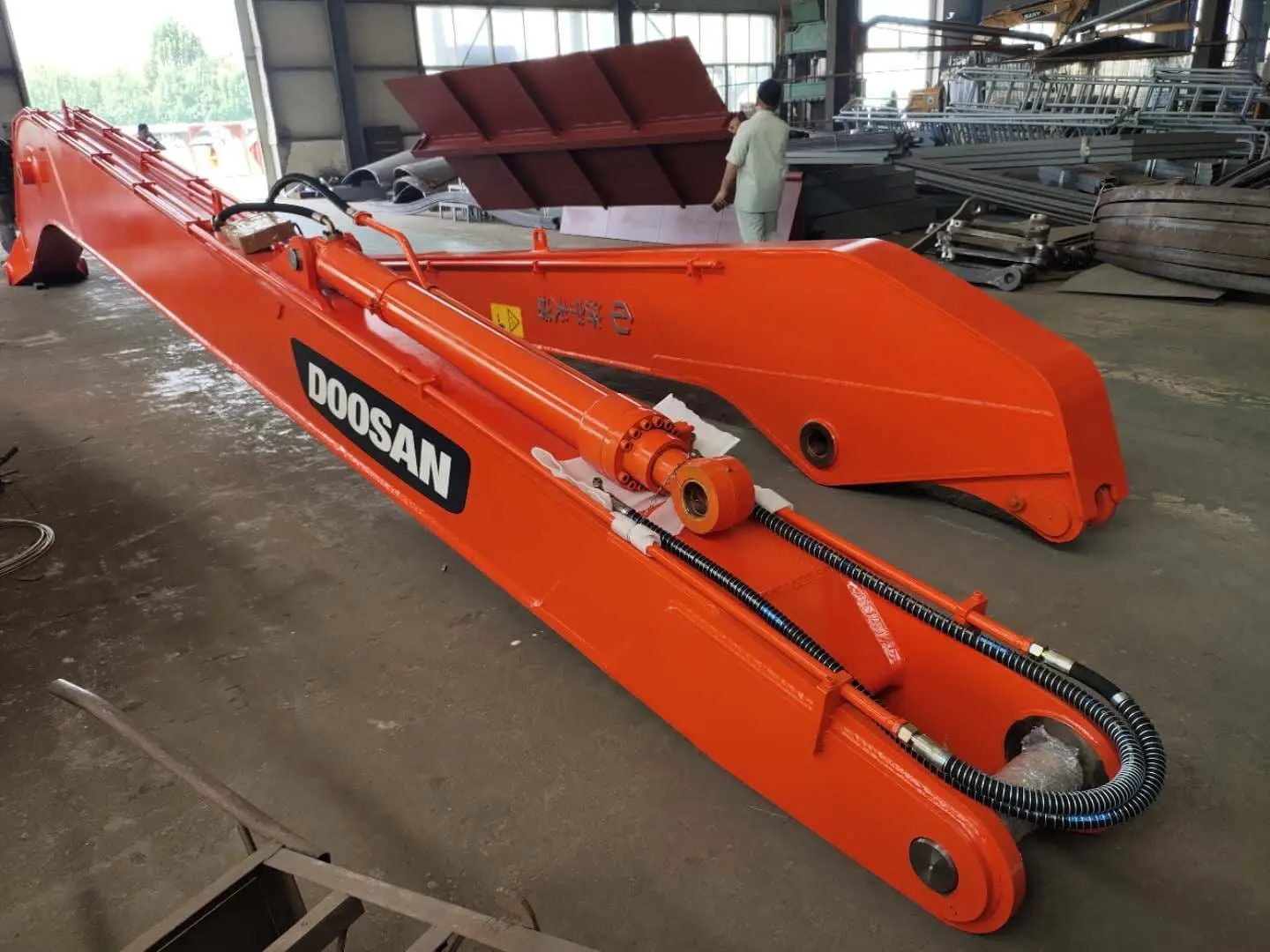

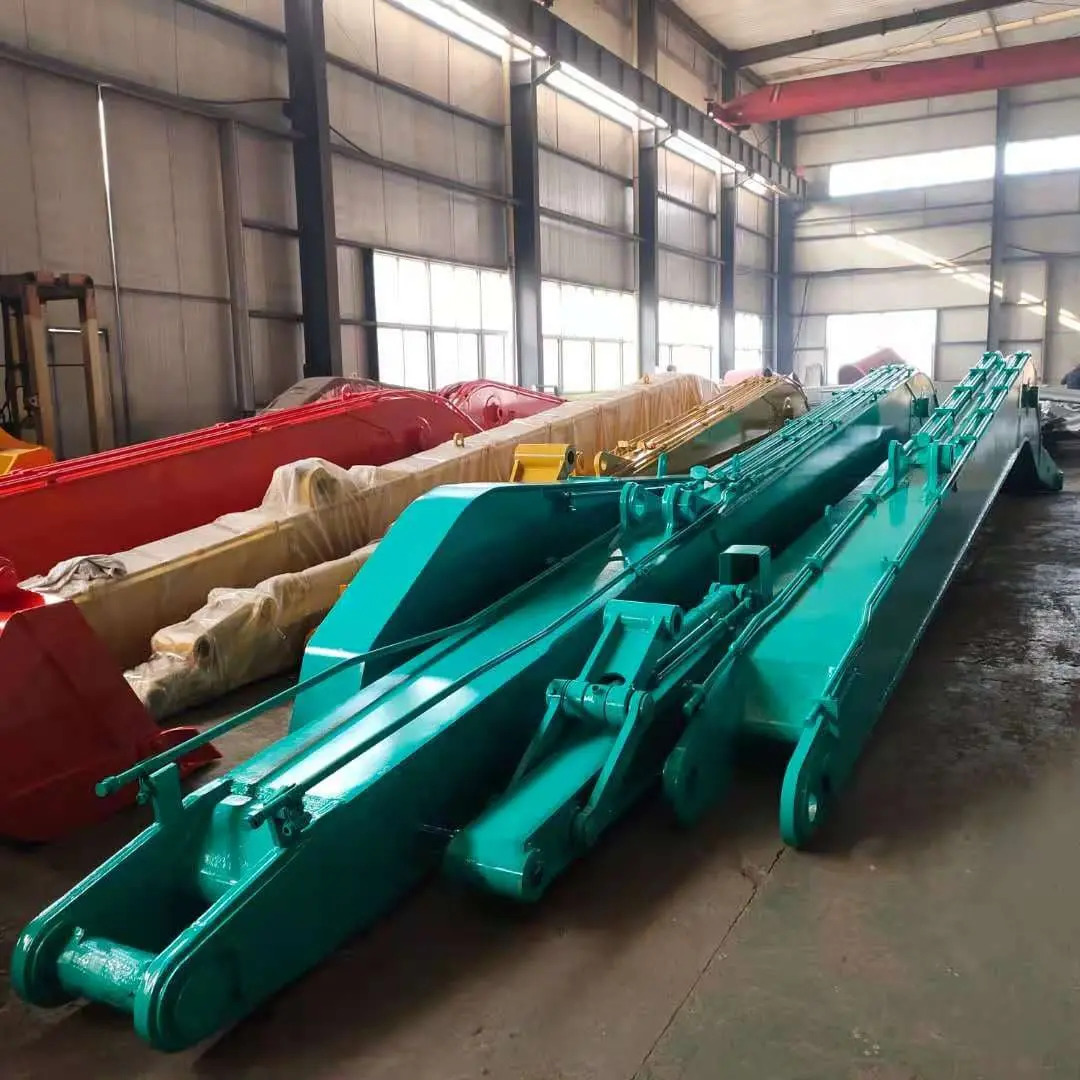

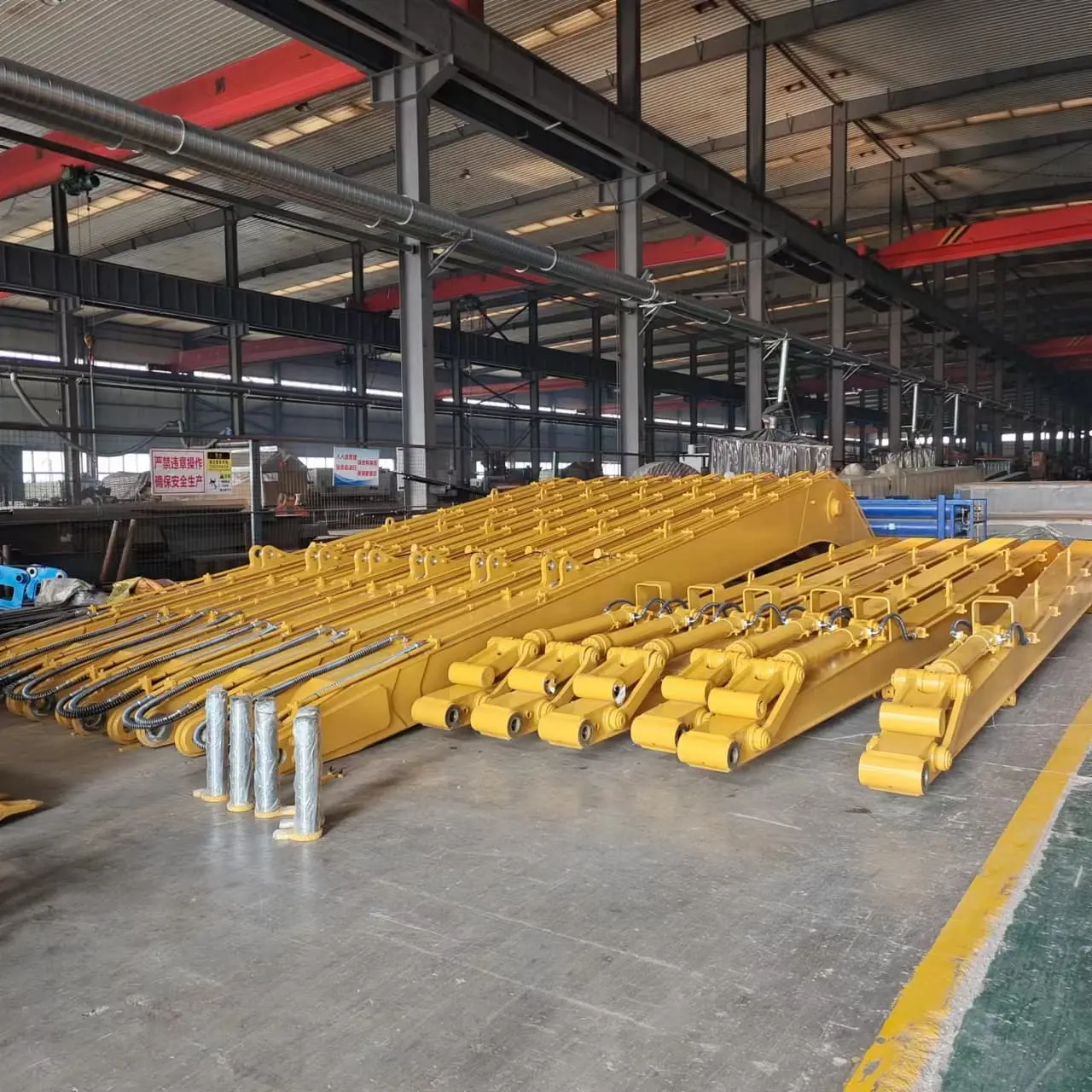

An Excavator Extension Arm is a replacement boom-and-arm assembly designed to extend the working range of an excavator. Because additional reach changes leverage, working load and machine stability, the boom geometry, bucket, hydraulic connections and counterweight arrangement must be evaluated as one system.
Key Advantages
1. Four Practical Reach Configurations
Published 16 m, 20 m, 22 m and 26 m configurations provide a clear starting point for different carrier classes and jobsite requirements.
2. High-Strength Structural Design
High-strength steel, controlled welding and reinforced load areas support reliable operation in deep excavation, slope work and long-distance material handling.
3. Complete Component Package
Each published package includes one bucket, one bucket cylinder, six pins, four high-pressure hoses, three grease pipes, one linkage assembly and one transport link.
4. One-to-One Engineering Match
Length, mounting points, attachment interface and component selection can be matched to the excavator model, target reach, material and working cycle.
Published Configurations
Carrier Class | Total Length | Boom and Arm Split |
20–25 t | 16 m | 8.5 m boom + 7.5 m arm |
25–34 t | 20 m | 11 m boom + 9 m arm |
35–40 t | 22 m | 12 m boom + 10 m arm |
40–50 t | 26 m | 14 m boom + 12 m arm |
These are reference configurations. Final dimensions, bucket capacity, working load, hydraulic connections and counterweight requirements require engineering confirmation.
Main Applications
River and canal work: Reach channels and sediment while keeping the carrier on firmer ground.
Deep excavation: Work below the practical digging depth of a standard boom and arm.
Slope and ditch cleaning: Cover wider areas along roads, levees and drainage projects.
Ports and restricted sites: Reach barges, stockpiles or work zones where carrier access is limited.
How to Select the Right Extension Arm
Provide the excavator brand, model, operating weight, mounting dimensions, target working radius and depth, material density, intended bucket or attachment, expected load and jobsite photos. The longest arm is not automatically the best choice: greater reach reduces the allowable working load and changes machine stability.
Why Choose STND Machinery?
Shandong Tiannuo Construction Machinery Co., Ltd. was founded in 2014 and specializes in custom excavator arms, excavator modifications, hydraulic attachments and railway maintenance equipment. Its technical team has more than ten years of excavator retrofitting experience, supported by project matching, precision manufacturing and technical service.
For a carrier-matched proposal and quotation, send your excavator model, target reach, working material and jobsite details. Shandong Tiannuo Construction Machinery Co., Ltd. is located at 369 Deyuan Road, Jining High-tech Zone, Shandong Province, China. Visit www.stnd-machinery.com or contact arm@stnd-machinery.com for more information about the Excavator Extension Arm.
