What is ballast plow material?

Understanding the materials used in ballast plow construction is crucial for railway maintenance professionals seeking durable, efficient equipment. These specialized tools, designed to distribute and manage crushed stone or gravel along railway tracks, require robust materials that can withstand continuous heavy-duty operations. The primary materials include high-strength steel alloys, wear-resistant plates, and specially treated components that ensure longevity under harsh working conditions. Quality materials directly impact the equipment's performance, maintenance requirements, and overall operational costs. Railway construction companies and maintenance teams rely on equipment built with premium materials to maintain track stability and ensure safe railway operations. Modern manufacturing techniques have enhanced material durability, making today's equipment more reliable than ever before.

Plow Blades and Cutting Edges

The plow blades and cutting edges of the ballast plow are the most critical components that directly interact with ballast materials. These parts experience the highest wear and stress, so they need the strongest and most durable materials. I need to discuss high-carbon steel, hardened steel alloys, and wear-resistant treatments that extend blade life.

High-Carbon Steel Construction

The heart of any effective railway maintenance tool lies in its cutting components. High-carbon steel forms the backbone of quality plow blades, offering exceptional hardness and edge retention. This material contains carbon percentages ranging from 0.6% to 1.4%, providing the perfect balance between hardness and toughness. Manufacturing processes involve precise heat treatment cycles that optimize the steel's molecular structure, creating blades capable of maintaining sharp edges even after extensive use.

Professional railway maintenance teams appreciate how high-carbon steel blades slice through compacted ballast with minimal effort. The material's natural resistance to deformation ensures consistent cutting performance across varying ballast conditions. Advanced metallurgy techniques have enhanced traditional high-carbon steel formulations, incorporating trace elements that improve corrosion resistance without compromising cutting ability.

Hardened Steel Alloy Systems

Modern equipment manufacturers utilize sophisticated hardened steel alloy systems that surpass conventional materials in durability and performance. These alloys typically combine chromium, manganese, and molybdenum with base steel to create superior cutting edges. The hardening process involves controlled heating and cooling cycles that achieve specific hardness ratings, typically ranging from 50 to 60 HRC (Rockwell Hardness Scale).

Railway contractors have discovered that hardened steel alloys maintain their cutting effectiveness significantly longer than standard steel alternatives. The enhanced wear resistance translates directly into reduced downtime and lower replacement costs. Quality manufacturers invest heavily in alloy development, creating proprietary formulations that deliver exceptional performance under extreme working conditions.

Wear-Resistant Surface Treatments

Beyond base material selection, surface treatments play a vital role in extending blade life and maintaining cutting efficiency. Nitriding processes create extremely hard surface layers that resist abrasive wear while maintaining a tough core structure. Carbide overlays applied through specialized welding techniques provide additional protection in high-wear areas.

These surface treatments work synergistically with base materials to create cutting edges that outlast untreated alternatives by substantial margins. Railway maintenance professionals report significant cost savings when using equipment with properly treated cutting components. The investment in quality surface treatments pays dividends through extended operational periods and reduced maintenance requirements.

Structural Frames and Components

The structural frame of the ballast plow needs to be strong enough to handle the forces generated during ballast work while being light enough for efficient operation. I should cover structural steel types, welding considerations, and how frame materials affect overall equipment performance and longevity. Structural Steel Specifications

The foundation of reliable railway maintenance equipment rests on carefully selected structural steel that provides strength without excessive weight. Grade 50 structural steel, with its yield strength of 50,000 psi, offers an excellent strength-to-weight ratio for frame construction. This material withstands the dynamic forces generated during ballast manipulation while maintaining dimensional stability over extended service periods.

Engineering teams specify structural steel based on stress analysis calculations that account for maximum operating loads and safety factors. The material's predictable behavior under stress allows designers to optimize frame geometry, reducing weight while maintaining structural integrity. Quality manufacturers source structural steel from certified suppliers who provide complete material certifications and traceability documentation.

Welding and Fabrication Considerations

Proper welding techniques and material selection directly impact frame durability and performance. AWS (American Welding Society) certified welding procedures ensure consistent joint quality throughout the fabrication process. Low-hydrogen welding electrodes prevent hydrogen embrittlement, a common cause of premature failure in high-strength steel applications.

Skilled fabricators understand how different steel grades respond to welding heat, adjusting techniques to minimize distortion and maintain material properties. Post-weld heat treatment procedures relieve residual stresses that could lead to premature cracking or failure. Railway equipment manufacturers invest in certified welding programs that guarantee consistent quality across all production units.

Corrosion Protection Systems

Railway environments expose equipment to moisture, chemicals, and abrasive materials that accelerate corrosion. Multi-layer coating systems provide comprehensive protection against environmental degradation. Zinc-rich primers create sacrificial barriers that protect base steel even when surface coatings are damaged.

Polyurethane topcoats offer excellent chemical resistance and UV protection, maintaining appearance and protection for years of outdoor service. Some manufacturers apply hot-dip galvanizing to critical structural components, providing decades of corrosion protection. Regular maintenance of protective coatings extends equipment life and maintains professional appearance throughout the service period.

Wear-Resistant Attachments

Wear-resistant attachments include components like wear plates, skid shoes, and other parts that experience constant friction and abrasion. These need special materials and treatments to handle the harsh conditions while maintaining functionality. Hardened Wear Plates

Critical wear areas require specialized protection through hardened wear plates that resist abrasive damage. AR (Abrasion Resistant) steel plates, typically ranging from AR400 to AR500 hardness levels, provide exceptional resistance to gouging and scratching. These plates undergo through-hardening processes that create uniform hardness throughout the material thickness.

Installation techniques for wear plates require careful consideration of thermal expansion and mechanical fastening methods. Properly installed plates distribute loads evenly across underlying structures while providing renewable protection. Railway maintenance teams appreciate how replaceable wear plates extend equipment life while maintaining operational efficiency.

Polymer and Composite Components

Modern railway equipment increasingly incorporates advanced polymer and composite materials in specific applications. Ultra-high molecular weight polyethylene (UHMWPE) provides excellent wear resistance with self-lubricating properties. These materials excel in applications where metal-to-metal contact would cause excessive wear or noise.

Composite materials offer unique advantages in reducing equipment weight while maintaining strength requirements. Glass-fiber reinforced polymers provide corrosion immunity and electrical insulation properties valuable in railway applications. Careful material selection ensures compatibility with operating environments and maintenance procedures.

Replaceable Cutting Edges

Economical operation requires replaceable cutting edges that restore equipment performance without complete component replacement. Bolt-on cutting edges utilize high-carbon steel or carbide materials selected for specific operating conditions. Standardized mounting systems simplify field replacement and reduce inventory requirements.

Professional maintenance teams stock multiple cutting edge configurations to optimize performance for different ballast types and working conditions. Quick-change systems minimize downtime during replacement operations. Quality cutting edges maintain precise dimensional tolerances that ensure proper equipment operation and ballast distribution patterns.

FAQ

What type of steel is used in ballast plow construction?

High-strength structural steel (typically Grade 50) forms the main frame, while high-carbon steel and hardened alloys are used for cutting components. Wear plates utilize AR400-AR500 abrasion-resistant steel for maximum durability.

How long do ballast plow materials typically last?

Quality materials with proper maintenance can provide 5-10 years of service life for structural components, while cutting edges may require replacement every 1-2 years depending on usage intensity and ballast conditions.

Are replacement parts readily available for railway maintenance equipment?

Reputable manufacturers maintain comprehensive parts inventories and provide quick delivery of replacement components. Standardized designs ensure compatibility and simplify maintenance procedures.

What maintenance is required for different materials?

Regular inspection of wear components, proper lubrication of moving parts, and maintenance of protective coatings ensure optimal performance. Following manufacturer guidelines prevents premature wear and extends service life.

How do environmental conditions affect material selection?

Harsh environments require enhanced corrosion protection and specialized materials. Cold climates may require low-temperature steel grades, while corrosive environments benefit from stainless steel or enhanced coating systems.

Understanding the materials used in ballast plow construction empowers railway professionals to make informed equipment decisions that optimize performance and minimize operating costs. Quality materials form the foundation of reliable railway maintenance operations, ensuring safe and efficient track maintenance for years of dependable service. Professional contractors who invest in equipment built with premium materials consistently achieve better project outcomes and lower total ownership costs.

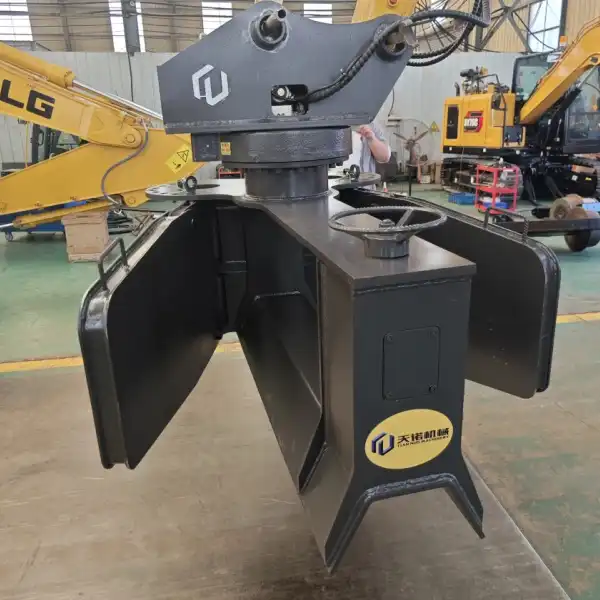

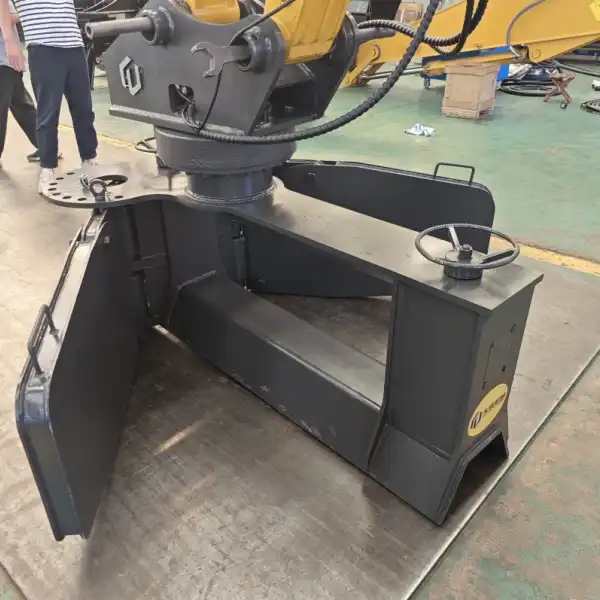

Tiannuo's Ballast Plow represents the pinnacle of material engineering and manufacturing excellence. Our cutting method utilizes side cutting technology with excavation efficiency exceeding 30 m³/h. The drag chain rotation speed reaches ≥30 r/min, while excavation depth capabilities extend ≤260 mm under sleepers. Complete 360° rotation angle provides maximum operational flexibility, with effective excavation length ≥2800 mm that can be customized for specific requirements.

Professional railway maintenance teams seeking reliable, durable equipment solutions can explore our comprehensive product range. Our commitment to quality materials and precision manufacturing ensures optimal performance in demanding railway environments. For detailed specifications and customization options, contact our technical team at arm@stnd-machinery.com.
