What is sleeper replacement in railway?
Replacement of railway sleepers is a vital infrastructure maintenance procedure undertaken all over the world for the effective functioning of rail systems. It entails removal of deteriorated sleepers or railroad ties and replacing them with new ones in a systematic fashion to retain the proper alignment and integrity of the tracks. The operation is mechanized with the use of A railway sleeper changer, which becomes the cornerstone equipment for this operation. These specialized machines significantly decrease the replacement time while also improving accuracy and safety standards across railway networks. The need to grasp the concepts around sleeper replacement becomes most relevant for railway operators, construction companies, and maintenance teams who need to work within the operational needs and safety regulations. It also involves extensive work aside from swapping components, which includes track integrity evaluation, ballast maintenance, and railway alignment procedures as a collective process to a sustainable system for functioning and meets the safety standards for passengers.
Process Of Replacing Old Or Damaged Railway Sleepers
Initial Assessment and Planning Phase
The sleeper replacement procedure commences with an exhaustive examination of the track to find worn out, broken, or damaged sleepers that need replacement. To determine which components can be prioritized for replacement, railway maintenance teams perform systematic evaluations with specialized detection devices, as well as visual examinations. This step captures the track gauge changes and the ballast displacement patterns, and marks the location of the problem sleepers. Safety measures, as well as traffic control and material movement, are taken into account for the movement of the maintenance crew to ensure minimum disruption to the service.
Ballast Removal and Site Preparation
After the identified sleepers are marked, maintenance crews proceed with ballast excavation around the marked components. Rail threaders, ballast regulators, tamping machines, as well as sleeper gantries, are some of the specialized machines used to reduce the amount of manual labor needed for the sleeper replacement railway processes. Adjacent track sections need to be preserved and thus monitored closely during the ballast removal processes to avoid track disruption. Crews systematically clear stone ballast from around the sleeper ends and center sections, exposing the full sleeper profile and any embedded fastening systems that secure the rails.
Sleeper Extraction and Disposal
The actual sleeper removal demands precision equipment capable of safely extracting heavy concrete or timber components without damaging surrounding infrastructure. Modern extraction techniques utilize hydraulic railway sleeper changers and mechanical grips that secure the sleeper at multiple contact points. Teams must carefully disconnect all rail fastening systems, including clips, bolts, and plates, before attempting sleeper removal. The extracted sleepers undergo proper disposal procedures, with concrete sleepers often recycled for construction aggregate and timber sleepers processed according to environmental regulations regarding treated wood materials.
Specialized Machinery： Railway Sleeper Changers
Advanced Hydraulic Systems and Automation
Today's railway sleeper changers use modern machinery with powerful hydraulic systems to manage lifting, positioning, and placement operations with precision control. These systems include hydraulic control systems with operational pressure and flow control, which dynamically adjust based on requirements. Automation features include programmable positioning, automated ballast clearing, as well as integrated error prevention safety systems. More advanced models have computerized control interfaces which permit monitoring and pre-scheduled replacement, programmable system check-ups and monitoring, and maintenance tracking through digital displays and advanced diagnostic systems.
Mobility and Track Compatibility Features
Railway sleeper changers must navigate diverse track configurations while maintaining operational flexibility across different railway systems. These machines typically feature dual-mode mobility systems that allow operation on both standard roadways and railway tracks. Track-compatible designs include specialized wheel assemblies, gauge adjustment mechanisms, and derailment prevention systems that ensure safe operation across various track specifications. Many models incorporate quick-change wheel systems that enable rapid transition between road and rail operation modes, maximizing deployment flexibility for maintenance crews working across extensive railway networks.
Safety Integration and Operational Efficiency
Contemporary sleeper changing equipment prioritizes operator safety through integrated protection systems, emergency shutdown capabilities, and ergonomic design features. These machines incorporate proximity sensors, load monitoring systems, and automated stabilization mechanisms that prevent accidents during operation. Efficiency enhancements include rapid cycling capabilities, multiple sleeper handling capacity, and streamlined material handling systems that reduce overall replacement timeframes. The combination of safety features and operational efficiency makes modern railway sleeper changer equipment indispensable for large-scale railway maintenance operations.
Replaced Sleepers Aligned
Precision Placement and Initial Alignment
Proper sleeper alignment represents the most critical aspect of the replacement process, directly impacting track stability, train safety, and operational longevity. New sleeper installation requires precise positioning to maintain correct track gauge, elevation, and lateral alignment specifications. Specialized alignment equipment uses laser guidance systems and mechanical positioning aids to ensure each sleeper achieves exact placement tolerances. The initial placement process involves careful lowering of new sleepers into prepared ballast beds, followed by preliminary positioning adjustments that establish basic geometric relationships with adjacent track components.
Ballast Redistribution and Compaction
Following sleeper placement, maintenance teams redistribute ballast around the new components using specialized spreading and compaction equipment. This process involves carefully placing clean, properly graded stone ballast around sleeper ends and center sections to provide uniform support distribution. The blade is used to remove ballast. Sleeper is gripped by two hydraulically operated grips to be pulled from the ballast bed. New sleepers placed and the blade can be used to refill ballast. Compaction procedures utilize tamping machines that systematically consolidate ballast beneath and around each sleeper, eliminating voids and establishing proper load transfer characteristics between the track structure and underlying foundation.
Final Adjustment and Quality Control
The alignment process concludes with comprehensive quality control measurements and final positioning adjustments to ensure compliance with railway engineering standards. Track geometry measurement equipment verifies proper gauge dimensions, cross-level relationships, and longitudinal alignment parameters. Any deviations from specified tolerances trigger additional adjustment procedures using precision alignment tools and mechanical positioning systems. The completed installation undergoes final inspection protocols that document proper fastener installation, ballast consolidation, and overall track geometry compliance before returning the section to operational service.
FAQ
①How often should railway sleepers be replaced?
Railway sleeper replacement schedules vary based on traffic loads, environmental conditions, and sleeper materials, typically ranging from 15-30 years for concrete sleepers and 8-15 years for timber sleepers under normal operating conditions.
②What factors determine sleeper replacement priority?
Replacement priorities consider sleeper condition, track geometry deviations, safety risks, traffic density, and maintenance cost-effectiveness, with severely deteriorated sleepers requiring immediate attention regardless of scheduled maintenance cycles.
③Can sleeper replacement occur during regular train operations?
Most sleeper replacement operations require temporary service interruptions or speed restrictions to ensure worker safety and maintain proper installation procedures, though some advanced systems allow limited replacement during scheduled maintenance windows.
④What qualifications do operators need for railway sleeper changer equipment?
Operators typically require specialized training certification, mechanical equipment experience, and railway safety qualification, with most programs requiring 40-80 hours of instruction covering equipment operation, safety protocols, and maintenance procedures.
Railway Sleeper Changer Supplier

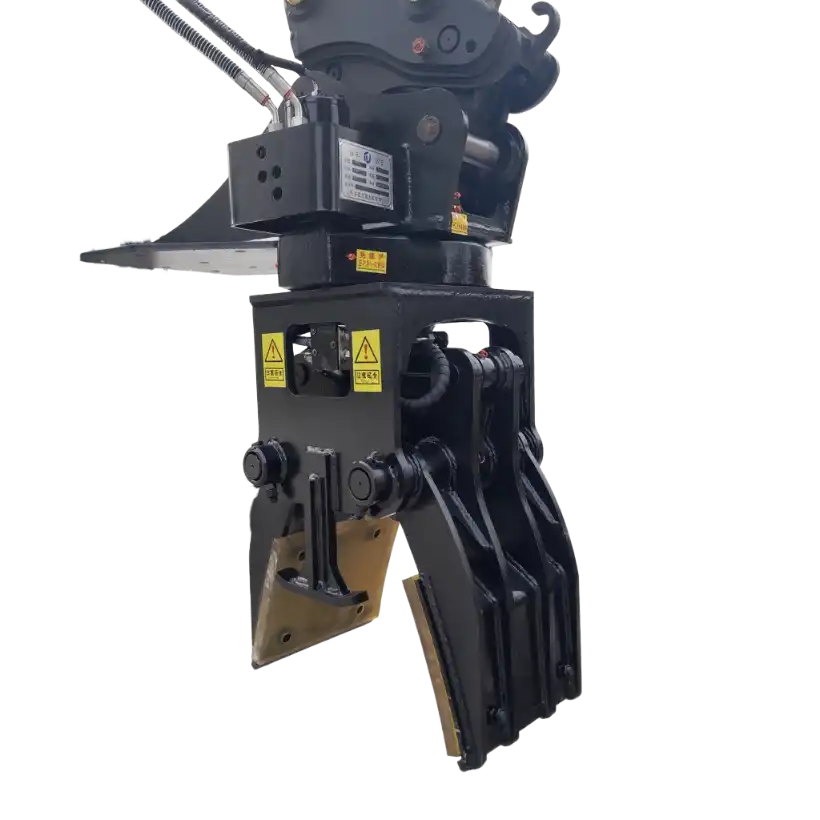

Railway infrastructure maintenance demands reliable, efficient equipment that meets the stringent requirements of modern transportation networks. TianNuo Machinery's railway sleeper changer represents the pinnacle of specialized railway maintenance technology, combining advanced engineering with proven operational reliability. This sophisticated machine features a two-wheel drive system with chassis-equipped track wheels capable of reaching speeds up to 15 km/h, while positioning mode incorporates track limit wheels preventing derailment during operations. The equipment accommodates standard track gauges of 1435/1520 mm through its hydraulic drive system utilizing two integrated plunger motors and forged track wheel materials ensuring exceptional durability. With a sleeper clamp opening capacity under 650 mm and complete 360° rotation capability, the machine handles diverse sleeper configurations across a 2800 mm large plate width. Operational versatility extends across normal road surfaces and railway lines, achieving railway track running speeds of 10-15 km/h with powered wheels and 2.86-5.0 km/h during free wheel railway operations. For comprehensive information about our advanced railway maintenance solutions and technical specifications, contact our specialists at rich@stnd-machinery.com.
