What is tamper?
A tamper, specifically a high-vibration hydraulic ballast tamping machine, is a crucial piece of equipment in railway maintenance. This specialized machine compacts and stabilizes the ballast beneath railway tracks, ensuring optimal track alignment and longevity. By applying controlled vibration and pressure, tampers efficiently consolidate loose stones, replacing manual labor with precision engineering. These machines are indispensable for modern railway systems, playing a vital role in track installation, maintenance, and safety.
A Machine: Compacts Ballast Under Railway Sleepers
Ensures Track Stability and Alignment
The primary function of a high-vibration hydraulic ballast tamping machine is to ensure track stability and alignment. As trains traverse the rails, the ballast beneath the sleepers can shift and settle, leading to misalignment and potential safety hazards. Tampers address this issue by compacting the ballast, creating a solid foundation for the track structure.
These machines work by inserting vibrating tines into the ballast on either side of the sleeper. The tines then squeeze and vibrate the stones, filling voids and creating a dense, uniform layer. This process is critical for maintaining proper track geometry, including the correct level, alignment, and cross-level of the rails.
Replaces Manual Labor for Efficient Maintenance
Before the advent of tamping machines, railway maintenance crews had to manually tamp the ballast using hand tools. This labor-intensive process was time-consuming, inconsistent, and often resulted in suboptimal compaction. The introduction of high-vibration hydraulic ballast tamping machines revolutionized track maintenance, dramatically increasing efficiency and quality.
Modern tampers can maintain several kilometers of track in a single shift, a task that would have taken weeks to complete manually. This efficiency not only reduces maintenance costs but also minimizes track downtime, allowing for more frequent and thorough maintenance cycles without disrupting rail services.
Critical for Concrete Sleeper Installation
The use of tamping machines is particularly crucial when installing concrete sleepers. Unlike wooden sleepers, concrete sleepers require precise positioning and a uniform ballast bed to function correctly. Tampers ensure that the ballast is evenly distributed and compacted, providing the necessary support for these heavier, more rigid sleepers.
During installation, tampers work in conjunction with other specialized equipment to achieve optimal track geometry. They play a vital role in the "lift and tamp" process, where the track is raised to the desired level, and the tamper fills and compacts the space beneath with ballast. This precision is essential for creating a stable, long-lasting track structure capable of withstanding the high speeds and heavy loads of modern rail traffic.
Uses Vibration And Pressure To Densify Loose Stones
High-Frequency Vibrations Settle Ballast Particles
The effectiveness of high-vibration hydraulic ballast tamping machines lies in their ability to generate high-frequency vibrations. These vibrations are carefully calibrated to resonate with the natural frequencies of the ballast particles, causing them to settle and interlock more effectively.
As the tamping tines penetrate the ballast, they vibrate at frequencies typically ranging from 30 to 45 Hz. This rapid movement causes the stones to momentarily "fluidize," allowing them to rearrange into a more compact configuration. The process is similar to how a concrete vibrator works, temporarily liquefying the mixture to remove air pockets and create a denser material.
Hydraulic Pressure Compacts Stones for Optimal Density
While vibration settles the ballast particles, hydraulic pressure is equally crucial in achieving optimal density. The tamping machine's hydraulic system exerts controlled force on the ballast through the tamping tines. This pressure works in tandem with the vibrations to squeeze the stones together, filling voids and creating a tightly packed layer.
The hydraulic system allows for precise control over the applied pressure, which can be adjusted based on factors such as ballast type, track condition, and desired compaction level. This adaptability ensures that the tamping process is tailored to the specific needs of each section of track, resulting in consistent and high-quality maintenance across diverse railway environments.
Prevents Track Settling and Improves Longevity
The combination of vibration and pressure in ballast tamping significantly contributes to preventing track settling and improving overall track longevity. By creating a uniformly compacted ballast bed, tampers help distribute the load of passing trains more evenly across the track structure.
This even distribution reduces the likelihood of localized settling or deformation, which can lead to track geometry issues over time. Additionally, the densely packed ballast is more resistant to water infiltration and erosion, further enhancing the track's durability and reducing the frequency of major maintenance interventions.
Hydraulic-Powered
Precise Control for Uniform Tamping Force
The hydraulic power system in modern tamping machines is a key factor in their effectiveness and versatility. This system provides the precise control necessary to apply uniform tamping force across various track conditions and ballast types. The hydraulic components, including pumps, valves, and cylinders, work in harmony to translate operator inputs into exact movements and pressures.
This level of control allows maintenance crews to fine-tune the tamping process for optimal results. For instance, they can adjust the depth of tine penetration, the squeeze pressure, and the duration of the tamping cycle. Such precision ensures that each sleeper receives the appropriate level of ballast compaction, contributing to a more uniform and stable track structure overall.
Adjustable Pressure for Various Ballast Types
Railway networks often incorporate different types of ballast depending on local availability, track requirements, and environmental conditions. The hydraulic system in tamping machines accommodates this variety by allowing for adjustable pressure settings. Operators can modify the hydraulic pressure to suit the specific characteristics of the ballast being compacted.
For example, harder granite ballast may require higher pressure settings to achieve proper compaction, while softer limestone ballast might need lower pressures to avoid crushing. This adaptability ensures that the tamping process is optimized for each unique section of track, maximizing the effectiveness of maintenance operations and the longevity of the ballast bed.
Efficient Operation for High-Speed Rail Maintenance
The hydraulic power system in tamping machines plays a crucial role in meeting the demanding maintenance requirements of high-speed rail networks. These advanced rail systems require exceptionally precise track geometry to ensure safe operation at high velocities. The hydraulic-powered tampers can achieve the necessary precision while working efficiently to minimize track downtime.
The quick response and smooth operation of hydraulic systems allow tamping machines to work at higher speeds without compromising quality. This efficiency is particularly valuable in busy rail corridors where maintenance windows are limited. By leveraging hydraulic power, tampers can swiftly correct track geometry issues, ensuring that high-speed lines remain in optimal condition for safe and comfortable passenger travel.
FAQ
1. How often should ballast tamping be performed?
The frequency of ballast tamping depends on various factors such as track usage, environmental conditions, and the type of ballast used. Generally, high-traffic lines may require tamping every 6-12 months, while less frequented tracks might need attention every 2-3 years. Regular track inspections help determine when tamping is necessary.
2. Can tamping machines work in all weather conditions?
Most modern tamping machines are designed to operate in a wide range of weather conditions. However, extreme temperatures, heavy rainfall, or snow can affect their performance and may require adjustments to the tamping process. It's best to consult the manufacturer's guidelines for specific operational limits.
3. How does ballast tamping affect train speed limits?
Proper ballast tamping can positively impact train speed limits. By ensuring correct track geometry and stability, tamping allows for higher safe operating speeds. However, immediately after tamping, there's usually a temporary speed restriction until the track settles. This period typically lasts a few days to a week, depending on traffic volume.
4. Are there environmental concerns associated with ballast tamping?
While ballast tamping is generally environmentally friendly, it can generate dust, especially in dry conditions. Modern tamping machines often incorporate dust suppression systems to minimize this issue. Additionally, proper maintenance of hydraulic systems prevents oil leaks that could potentially contaminate the surrounding soil.
5. How does the cost of machine tamping compare to manual methods?
Although the initial investment in tamping machines is significant, they are far more cost-effective than manual tamping in the long run. Machine tamping is faster, more consistent, and requires fewer labor hours. This efficiency translates to reduced maintenance costs and less frequent track closures, providing substantial economic benefits for railway operators.
High-vibration hydraulic ballast tamping machines are indispensable in modern railway maintenance. These sophisticated devices ensure track stability, alignment, and longevity through precise compaction of ballast materials.
China High-Vibration Hydraulic Ballast Tamping Machine

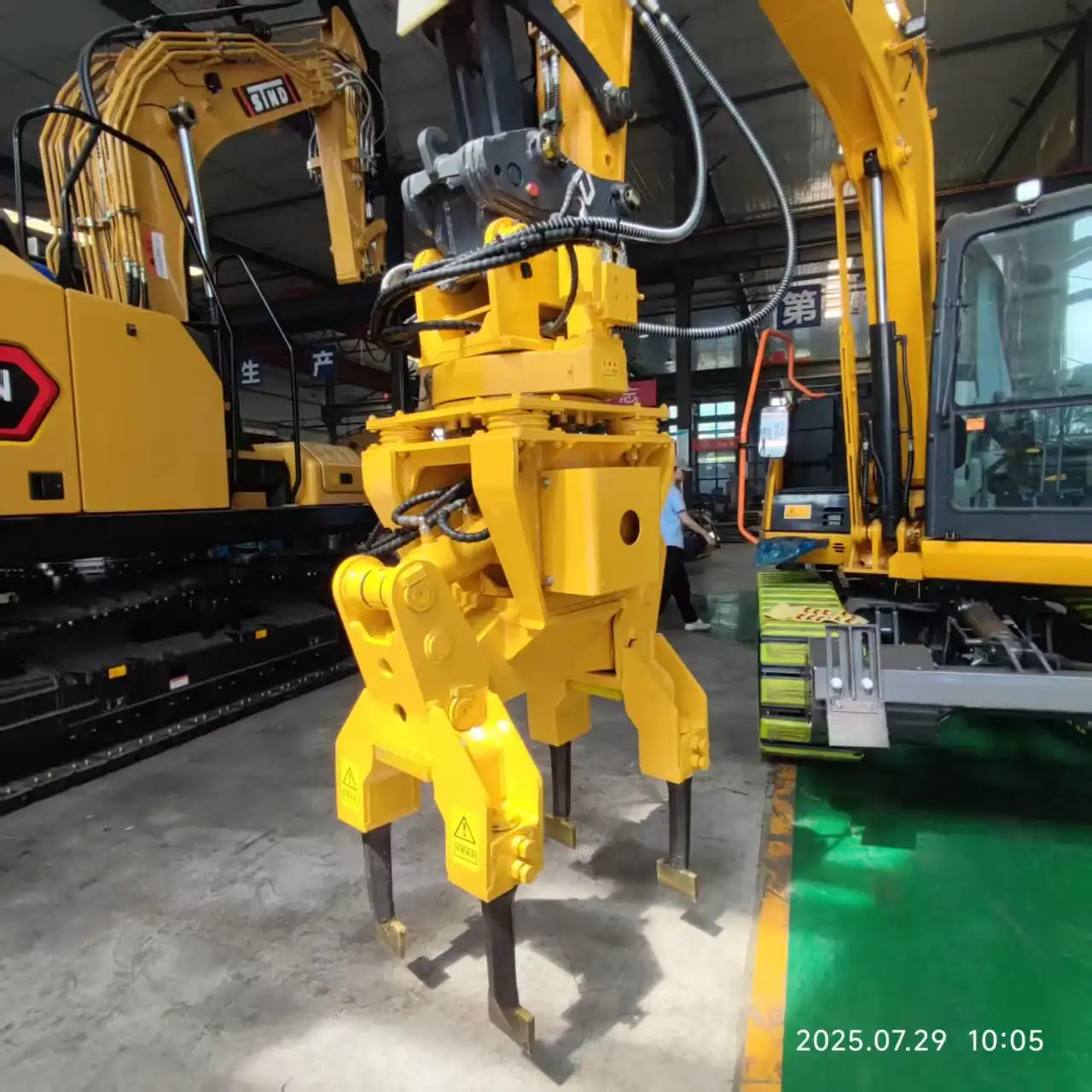

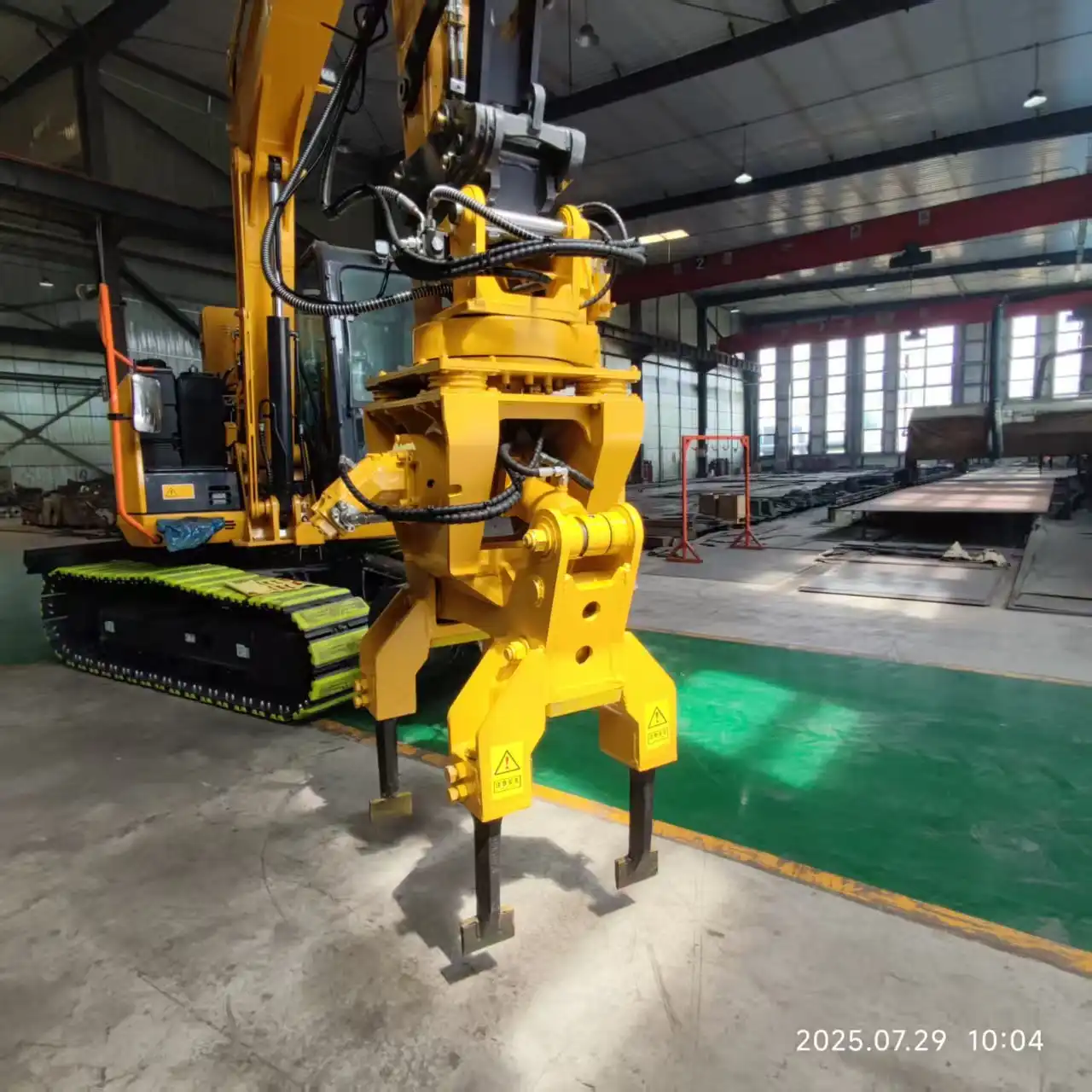

TianNuo Machinery offers a comprehensive range of railway maintenance equipment, including high-vibration hydraulic ballast tamping machines. These advanced tampers are designed for optimal performance on various track gauges, with models suitable for 70-50 excavators. The tamping clamping range of 180-700 mm ensures versatility across different ballast configurations. Available in both four-claw and eight-claw variants, these machines cater to diverse maintenance needs. TianNuo's tampers integrate seamlessly with other railway maintenance tools such as sleeper changing machines, screening machines, and slag cleaning machines. For those interested in enhancing their railway maintenance capabilities, contact us at rich@stnd-machinery.com.
