What is the ballast plow made of?

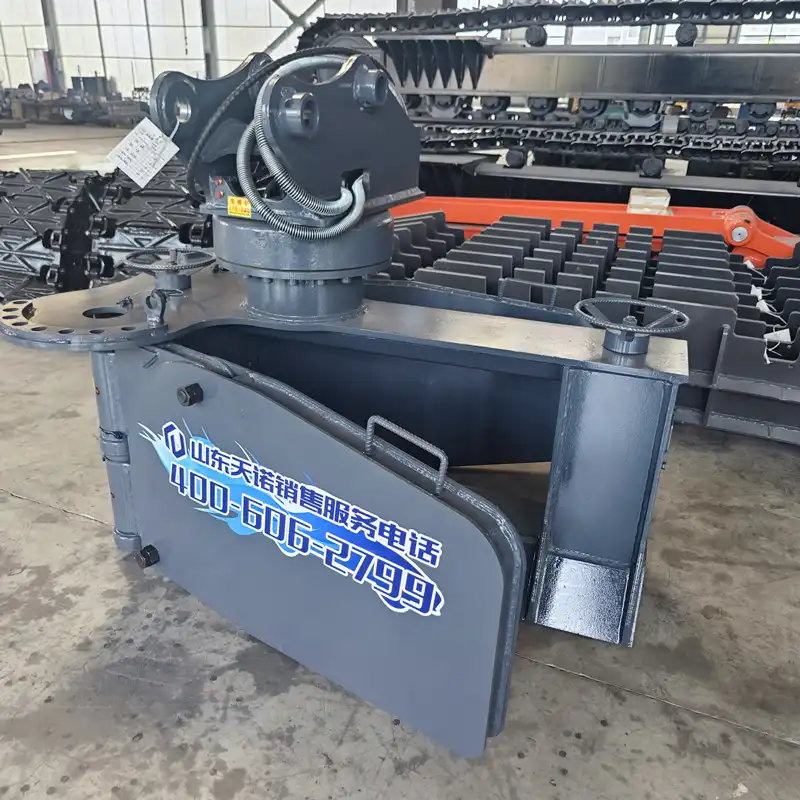

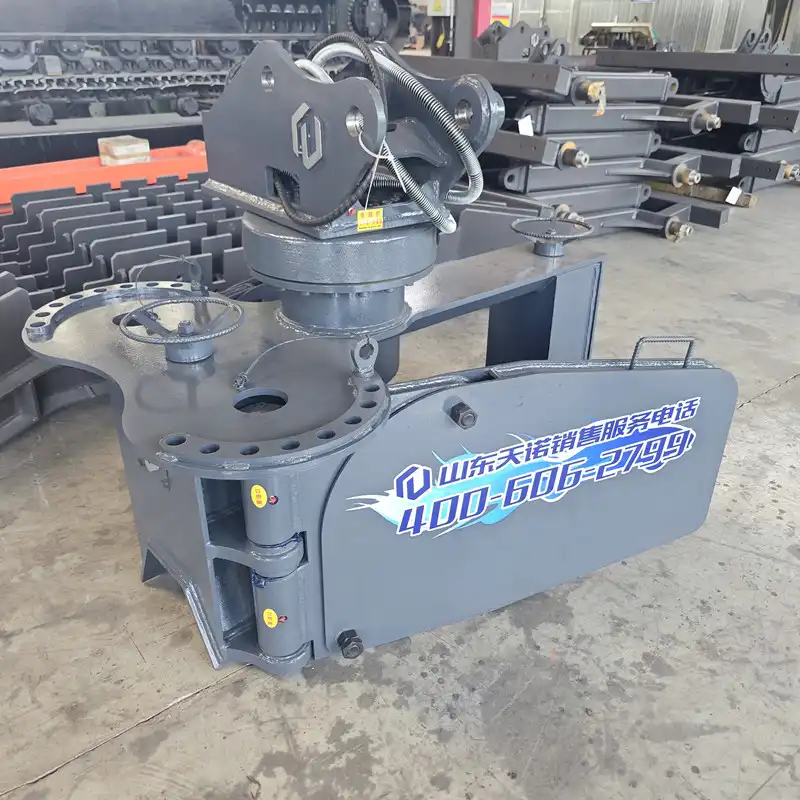

The ballast plow, a crucial piece of railway maintenance equipment, is primarily constructed using high-strength steel and advanced composite materials. This robust machine is designed to distribute and level ballast along railway tracks, ensuring optimal track stability and drainage. Its core components, including the blade, frame, and attachment points, are typically crafted from durable steel alloys that can withstand the rigorous demands of railway operations. These materials are carefully selected to balance strength, weight, and longevity, making them an indispensable tool in modern track maintenance.
Materials Engineering in Ballast Plow Design
High-strength Steel: The Backbone of Ballast Plows
High-strength steel forms the foundation of ballast plow construction, providing the necessary durability and reliability for these heavy-duty machines. This material is chosen for its exceptional strength-to-weight ratio, allowing the plow to maintain its effectiveness without becoming excessively heavy. The steel used undergoes rigorous heat treatment processes to enhance its mechanical properties, resulting in a product that can withstand the immense forces encountered during ballast manipulation.
Its blade, which directly interacts with the track ballast, is typically made from wear-resistant steel grades. These specialized alloys contain additional elements like chromium and manganese, which significantly improve the blade's ability to resist abrasion and impact. This ensures that the plow maintains its shape and effectiveness over extended periods of use, reducing the need for frequent replacements and minimizing maintenance downtime.
Composite Materials for Enhanced Performance
While steel remains the primary material, modern ballast plows increasingly incorporate composite materials to optimize performance. These advanced composites, often consisting of carbon fiber-reinforced polymers, are utilized in non-load-bearing components to reduce overall weight without compromising structural integrity. The lighter weight allows for improved maneuverability and reduced fuel consumption of the vehicles operating the plows.
Composite materials also offer excellent vibration-damping properties, which are crucial in railway applications. By absorbing and dissipating vibrations, these materials help protect sensitive components and improve the overall lifespan. Additionally, the use of composites can contribute to noise reduction during operation, an important consideration in urban and environmentally sensitive areas.
Corrosion-resistant Alloys in Rail Maintenance Equipment
Given the exposed nature of railway infrastructure to various weather conditions, corrosion resistance is a critical factor in ballast plow design. Manufacturers often employ corrosion-resistant alloys, such as stainless steel or galvanized coatings, for components that are particularly susceptible to rust and degradation. These materials ensure that the ballast plow remains operational and efficient even when exposed to moisture, de-icing salts, and other corrosive elements commonly encountered in railway environments.
The use of these specialized alloys extends beyond the visible parts of the plow. Internal components, such as hydraulic systems and control mechanisms, also benefit from corrosion-resistant materials to maintain reliability and reduce the risk of failure due to environmental factors. This comprehensive approach to material selection significantly enhances the longevity and performance in diverse operating conditions.
Durability Tests for Ballast Plow Components
Stress Testing of Ballast Plow Materials
To ensure the reliability and longevity of ballast plows, manufacturers subject the materials and components to rigorous stress testing. These tests simulate the extreme conditions that the equipment may encounter during operation. High-stress areas, such as the attachment points and the plow blade, undergo particularly intense scrutiny to identify potential weak points and optimize design.
Advanced computer simulations, including finite element analysis, are employed to model the distribution of forces across the ballast plow structure. This allows engineers to fine-tune the design and material selection, ensuring that each component can withstand the dynamic loads experienced during ballast manipulation. Physical stress tests, involving cyclic loading and impact resistance evaluations, complement these digital simulations, providing real-world validation of the plow's durability.
Wear Resistance Analysis for Railway Equipment
Wear resistance is a critical factor in the performance and lifespan. Manufacturers conduct extensive wear resistance analyses to evaluate how different materials and surface treatments withstand the abrasive nature of ballast rocks. These tests often involve accelerated wear simulations, where materials are subjected to conditions that mimic years of use in a compressed timeframe.
The results of these analyses guide the selection of materials and the application of protective coatings or surface hardening treatments. For instance, the leading edge of the plow blade may be reinforced with tungsten carbide inserts or undergo specialized heat treatment to enhance its wear resistance. This attention to wear characteristics ensures that ballast plows maintain their effectiveness over extended periods, reducing the frequency of repairs and replacements.
Environmental Impact on Ballast Plow Longevity
The diverse environmental conditions encountered in railway operations pose significant challenges to ballast plow durability. Manufacturers conduct comprehensive environmental impact tests to assess how different materials react to various climatic conditions, chemical exposures, and temperature fluctuations. These tests help in selecting materials that can withstand the specific environmental challenges of different geographical regions.
Thermal cycling tests, for example, evaluate how materials expand and contract under extreme temperature variations, ensuring that the plow's components maintain their integrity in both frigid winters and scorching summers. Salt spray tests assess corrosion resistance in coastal or de-icing chemical-rich environments. By considering these environmental factors, manufacturers can tailor the material composition and protective measures to maximize their operational lifespan across diverse railway networks.
Eco-friendly Materials in Modern Plows
Recycled Materials in Ballast Plow Manufacturing
In response to growing environmental concerns, the railway industry is increasingly incorporating recycled materials into ballast plow construction. High-quality recycled steel, sourced from decommissioned railway equipment and other industrial sectors, is being utilized in non-critical components. This approach not only reduces the demand for virgin materials but also lowers the carbon footprint associated with manufacturing these essential maintenance tools.
Innovative recycling technologies have enabled the use of reclaimed plastics in certain parts of ballast plows, such as non-load-bearing covers and housings. These recycled plastics offer comparable performance to their virgin counterparts while contributing to waste reduction. The integration of recycled materials is carefully balanced with performance requirements to ensure that the durability and efficiency are not compromised.
Biodegradable Components for Sustainable Rail Maintenance
While its core structure requires durable, long-lasting materials, certain auxiliary components are being redesigned with biodegradability in mind. For instance, some manufacturers are exploring the use of biodegradable lubricants and hydraulic fluids. These eco-friendly alternatives reduce the environmental impact of potential leaks or spills during operation or maintenance.
Research is also underway to develop biodegradable wear plates and sacrificial components that can gradually decompose without harmful environmental effects once they've served their purpose. While these biodegradable elements are not yet widespread in ballast plow construction, they represent a promising direction for future developments in sustainable railway maintenance equipment.
Energy-efficient Materials in TianNuo Machinery Products
TianNuo Machinery, a leader in railway maintenance equipment, is at the forefront of incorporating energy-efficient materials into its ballast plow designs. By utilizing advanced lightweight alloys and optimized structural designs, TianNuo's plows require less energy to operate, reducing fuel consumption and emissions during maintenance activities. These energy-efficient materials not only contribute to environmental sustainability but also offer cost savings for railway operators in the long run.
The company's commitment to energy efficiency extends to the manufacturing process itself. TianNuo employs cutting-edge production techniques that minimize material waste and energy consumption during the fabrication of ballast plows. This holistic approach to energy efficiency demonstrates TianNuo's dedication to sustainable practices throughout the lifecycle of their railway maintenance equipment.
FAQ
1. How often should a ballast plow be replaced?
Varies depending on usage and maintenance, but typically ranges from 10 to 15 years. Regular inspections and proper maintenance can significantly extend its operational life.
2. Can ballast plows be used on all types of railway tracks?
While ballast plows are versatile, they may require adjustments for different track gauges and ballast types. Most modern plows are designed to be adaptable to various railway configurations.
3. What are the environmental benefits of using modern ballast plows?
Environmental sustainability by improving track maintenance efficiency, reducing the need for ballast replacement, and incorporating eco-friendly materials in their construction.
4. How do ballast plows improve track safety?
By effectively redistributing and leveling ballast, these plows ensure proper track drainage and stability, which are crucial for safe railway operations and reducing the risk of derailments.
5. What maintenance is required for a ballast plow?
Regular maintenance includes inspecting and replacing wear parts, lubricating moving components, checking hydraulic systems, and ensuring all attachments are secure. The frequency depends on usage intensity and operating conditions.
Ballast Plow Manufacturers
TianNuo Machinery stands out as a leading manufacturer of a wide range of high-quality railway maintenance equipment. TianNuo's expertise extends to excavator modification equipment, offering solutions like lifting cabs and tilting cabs. They also produce specialized engineering arms and excavator accessories, catering to diverse industrial needs. For those interested in TianNuo's railway maintenance solutions, you can contact us at raymiao@stnd-machinery.com. TianNuo's ballast plows are designed for machine weights ranging from 5 to 10 tons, with a track gauge of 1435 mm, making them suitable for a variety of railway maintenance tasks.
