What is the difference between a knuckle boom and a boom?

When it comes to excavator booms, understanding the difference between a knuckle boom and a standard boom is crucial for making informed decisions in various industries. The main distinction lies in their design and functionality. A boom is the primary arm that extends from the machine's body, but the knuckle boom adds an extra joint for increased flexibility. This additional articulation point allows for a wider range of motion and more precise control, making knuckle booms ideal for complex tasks in confined spaces.

Knuckle Boom vs. Straight Boom: Design Comparison

Articulating vs. Fixed: Key Structural Differences

The most noticeable difference between knuckle booms and straight booms is their structural design. Straight booms, also known as fixed booms, consist of a single, rigid arm that extends outward from the excavator's body. This simple design provides strength and stability for straightforward digging and lifting tasks.

In contrast, knuckle booms feature an additional joint or "knuckle" in the middle of the boom. This articulation point allows the boom to bend, creating a more versatile range of motion. The knuckle design mimics the movement of a human arm, providing greater flexibility and reach in various work scenarios.

Range of Motion: How Knuckle Booms Outperform

The articulating design of knuckle booms significantly enhances their range of motion compared to straight booms. While straight booms are limited to a more linear path of movement, knuckle booms can reach around obstacles, over barriers, and into tight spaces with ease. This increased maneuverability is particularly beneficial in urban construction sites, forestry operations, and other applications where space is at a premium.

Knuckle booms can often achieve a full 360-degree rotation, allowing operators to work efficiently from a single position. This capability reduces the need for frequent machine repositioning, saving time and increasing productivity on job sites.

Weight Distribution and Stability Comparison

When it comes to weight distribution and stability, both knuckle booms and straight booms have their strengths. Straight booms typically offer excellent stability for heavy lifting tasks, as their rigid structure allows for a more direct transfer of force. This makes them ideal for applications that require consistent, high-capacity lifting.

Knuckle booms, while offering increased flexibility, must be designed with careful consideration for weight distribution. The additional joint in the boom can create more complex load dynamics. However, modern engineering has largely overcome these challenges, and many knuckle booms now offer comparable stability to their straight counterparts, with the added benefit of adaptability.

The choice between a knuckle boom and a straight boom often comes down to the specific requirements of the job at hand. For tasks that demand reach and precision in confined spaces, knuckle booms excel. On the other hand, for straightforward, heavy-duty lifting, a straight boom may be the more suitable option.

Flexibility and Reach: Key Advantages of Knuckle Booms

Maximizing Workspace with Knuckle Boom Versatility

The versatility of knuckle booms allows operators to maximize their workspace efficiency. In urban construction projects, where space is often limited by surrounding buildings or infrastructure, knuckle booms shine. Their ability to navigate around obstacles and reach into tight corners means that work can proceed smoothly without the need for multiple machine setups or additional equipment.

For example, in demolition work, a knuckle boom can reach upper floors of a building while maintaining a safe distance for the operator. In landscaping, these booms can extend over fences or hedges to perform tasks without causing damage to surrounding structures or vegetation.

Precision Control: Knuckle Booms in Tight Spaces

The articulating design of knuckle booms provides operators with an unprecedented level of precision control. This is particularly valuable in industries such as utilities maintenance, where workers often need to maneuver around delicate infrastructure. The ability to make fine adjustments to the boom's position allows for careful placement of loads or attachments, reducing the risk of accidental damage and improving overall safety.

In underground mining operations, where space is at a premium and accuracy is crucial, knuckle booms offer the control needed to navigate complex tunnel systems and perform precise excavation tasks. This level of control also translates to improved efficiency in material handling and sorting operations across various industries.

Increased Productivity: Time-Saving Benefits

The flexibility and reach of knuckle booms contribute significantly to increased productivity on job sites. By reducing the need for frequent machine repositioning, these booms allow operators to complete tasks more quickly and with less interruption. This time-saving aspect is particularly valuable in industries where project timelines are tight and efficiency is paramount.

Moreover, the versatility of knuckle booms often means that a single machine can perform a wider range of tasks. This reduces the need for multiple specialized pieces of equipment on site, leading to cost savings and simplified logistics for project managers.

As we consider the advantages of knuckle booms, it's clear that their flexibility and precision make them invaluable tools across numerous industries. However, the decision between a knuckle boom and a straight boom isn't always straightforward. Let's explore how to choose the right boom for specific lifting needs and industry applications.

Choosing the Right Boom for Your Lifting Needs

Industry-Specific Applications: Boom Selection Guide

Selecting the appropriate boom type depends heavily on the specific industry and application. In the construction sector, knuckle booms are often preferred for their ability to work around existing structures and navigate congested urban sites. They excel in tasks such as placing HVAC units on rooftops or installing signage on buildings.

For the forestry industry, knuckle booms are invaluable for their ability to reach through dense foliage and perform selective logging with minimal environmental impact. In contrast, straight booms might be more suitable for clear-cutting operations where extended reach is less critical than raw lifting power.

In the mining sector, the choice between knuckle and straight booms often depends on the specific mining method and environment. Underground operations typically benefit from the maneuverability of knuckle booms, while open-pit mining might favor the stability of straight booms for heavy material handling.

Cost-Benefit Analysis: Knuckle vs. Straight Booms

When conducting a cost-benefit analysis, it's essential to consider both the initial investment and long-term operational costs. Knuckle booms generally have a higher upfront cost due to their more complex design and additional hydraulic components. However, their versatility can lead to significant savings over time by reducing the need for multiple machines or frequent repositioning.

Straight booms, while typically less expensive initially, may incur higher operational costs in certain scenarios where their limited flexibility necessitates additional equipment or labor. For businesses with diverse project portfolios, the adaptability of knuckle booms can provide a better return on investment by serving a wider range of applications.

Future Trends: Innovations in Boom Technology

The future of boom technology is exciting, with ongoing innovations aimed at enhancing performance, safety, and efficiency. We're seeing the integration of advanced materials that reduce weight without compromising strength, allowing for greater reach and lifting capacity. Smart sensors and IoT connectivity are being incorporated to provide real-time data on load stress and boom positioning, improving safety and enabling predictive maintenance.

Electrification is another trend gaining momentum, with manufacturers developing hybrid and fully electric excavators featuring both knuckle and straight booms. These eco-friendly options are increasingly attractive for projects with strict emissions regulations or noise constraints.

As we look ahead, the line between knuckle and straight booms may blur, with modular designs allowing for greater customization based on specific job requirements. This flexibility will enable operators to adapt their equipment more readily to diverse work environments.

The choice between a knuckle boom and a straight boom ultimately depends on the specific needs of your project and industry. Knuckle booms offer unparalleled flexibility and precision, making them ideal for complex tasks in confined spaces. Straight booms, with their simplicity and strength, remain excellent choices for straightforward, heavy-duty lifting operations. As technology continues to advance, we can expect both types of booms to become even more efficient and adaptable, further blurring the lines between their capabilities. When making your decision, consider factors such as workspace constraints, required lifting capacity, and the variety of tasks you'll need to perform.

FAQ

1. What are the main advantages of a knuckle boom over a straight boom?

Knuckle booms offer greater flexibility, improved maneuverability in tight spaces, and the ability to work around obstacles. They provide a wider range of motion and can often perform tasks that would require repositioning with a straight boom.

2. Are knuckle booms more expensive than straight booms?

Generally, yes. Knuckle booms tend to have a higher initial cost due to their more complex design and additional components. However, their versatility can lead to cost savings over time in certain applications.

3. Which industries benefit most from using knuckle booms?

Industries that frequently work in confined spaces or require precise positioning benefit greatly from knuckle booms. These include urban construction, forestry, utilities maintenance, and underground mining.

4. Can a knuckle boom lift as much weight as a straight boom?

While knuckle booms have traditionally had lower lifting capacities compared to straight booms, modern engineering has significantly closed this gap. Many knuckle booms now offer comparable lifting capacities, especially at closer ranges.

5. How does the maintenance of a knuckle boom compare to a straight boom?

Knuckle booms typically require more maintenance due to their additional moving parts and hydraulic systems. However, advancements in design and materials have improved durability and reduced maintenance needs in recent years.

Excavator Boom Supplier

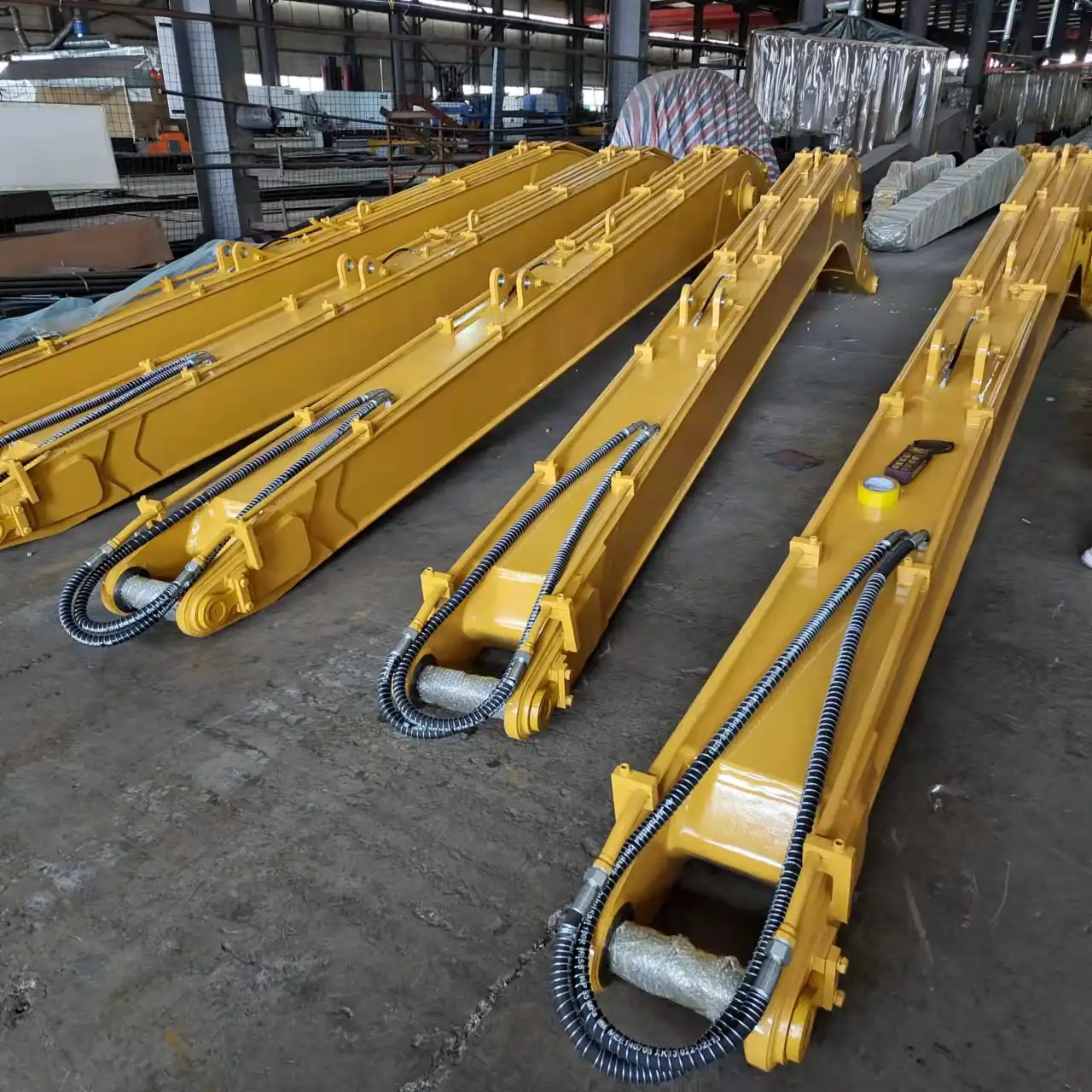

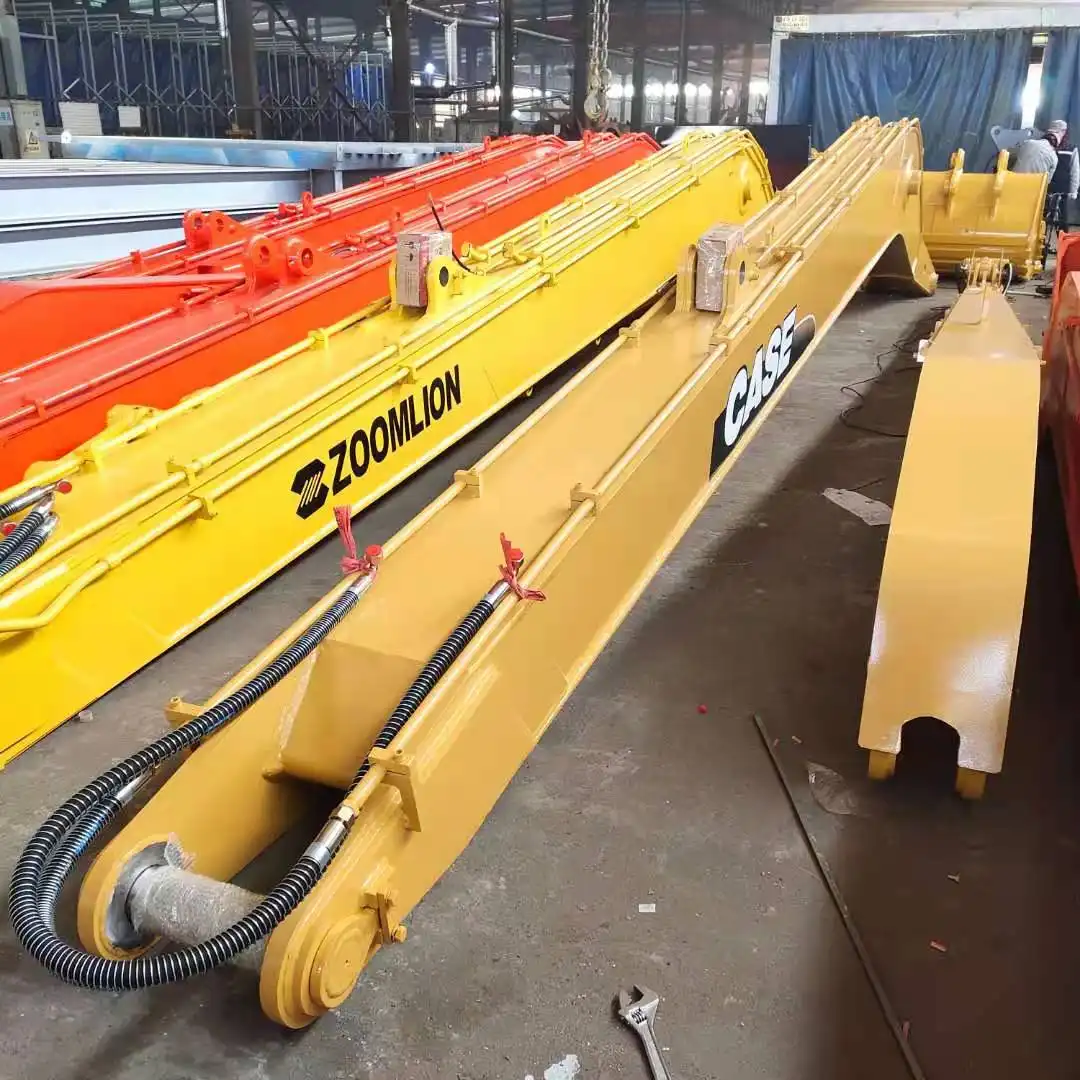

At Tiannuo Machinery, we specialize in manufacturing and supplying a wide range of excavator booms and related equipment. Our product line includes both knuckle and straight booms, as well as a variety of attachments and accessories to meet the diverse needs of the construction, mining, and forestry industries. We offer customized solutions for railway maintenance, including sleeper changing machines and ballast screening buckets. Our expertise extends to excavator modifications, such as extended arms and specialized cabs for enhanced operator comfort and productivity. Whether you need a standard arm for general construction or a specialized boom for tunnel work, we have the experience and capabilities to meet your requirements. For expert advice on selecting the right excavator boom for your project or to request a quote, contact us at arm@stnd-machinery.com. Our team is committed to providing high-quality products with competitive pricing and excellent after-sales support.
