What is the difference between a tilt coupler and a tilt bucket?

When working with excavators in construction, railway maintenance, or earthmoving projects, understanding the distinction between tilt couplers and tilt buckets becomes essential for optimal productivity and operational success. The fundamental difference lies in their operational approach and structural integration: a tilt coupler serves as an intermediary mechanism that allows multiple attachments to tilt through a single hydraulic system mounted between the excavator arm and various tools, while a tilt bucket integrates the tilting function directly into the bucket assembly itself. This distinction significantly impacts versatility, cost-effectiveness, operational efficiency, and long-term maintenance requirements. For specialized applications like railway shoulder forming, ballast management, or backfilling operations, a degree rotating hydraulic tilt ditching bucket offers precision control with comprehensive 360-degree rotation capabilities and 45-degree tilting angles, making it exceptionally suitable for complex grading tasks that require both rotational movement and precise angle adjustments in confined railway corridors.

Purpose & Function

Primary Applications in Construction and Railway Work

Tilt couplers serve as universal solutions for operators who frequently switch between different attachments while maintaining consistent tilting capabilities across their entire tool inventory. The most significant advantage of tilt couplers lies in their ability to transform any compatible attachment into a tilting tool, whether dealing with ripper teeth for breaking hardpan soil, digging buckets for foundation work, land rakes for site preparation, or specialized tools like pallet forks for material handling. This universal approach proves particularly valuable in railway construction projects where crews encounter diverse terrain conditions and must adapt quickly to changing operational requirements.

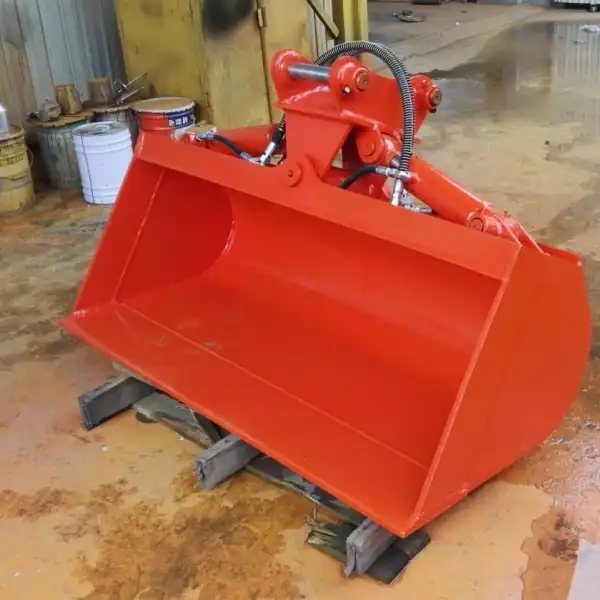

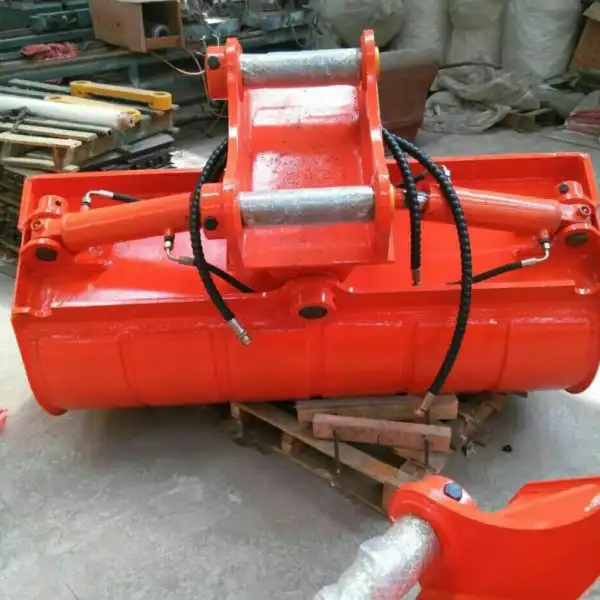

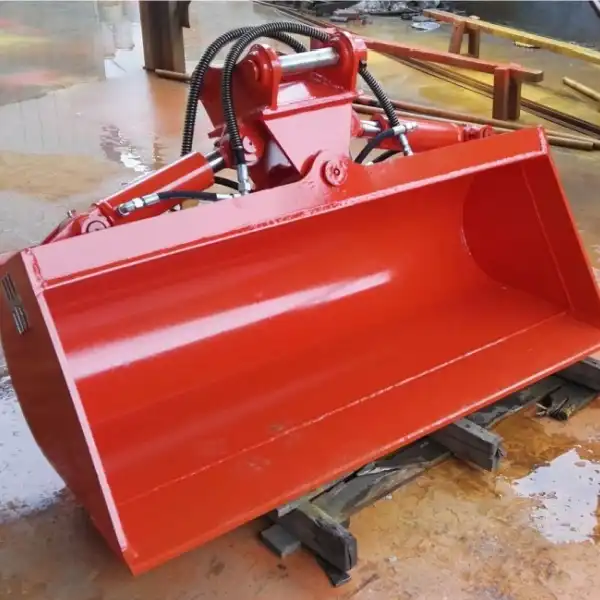

Tilt buckets excel in specialized applications where consistent bucket use predominates the workflow, offering superior performance through purpose-built design optimization. Railway maintenance operations particularly benefit from dedicated degree rotating hydraulic tilt ditching bucket systems that combine multiple movement capabilities into a single, integrated solution. These specialized units handle complex operations, including shoulder forming, ballast management, drainage maintenance, and debris removal with exceptional precision and efficiency.

The integrated approach eliminates potential failure points that exist at connection interfaces, making tilt buckets exceptionally reliable choices for demanding railway environments where equipment downtime translates directly into significant operational costs and potential safety concerns. Railway maintenance schedules operate within strict time windows, often during overnight hours when passenger and freight traffic ceases, making equipment reliability absolutely critical for project success.

Operational Efficiency and Workflow Integration

The functional approaches between tilt couplers and tilt buckets create distinctly different operational workflows that significantly impact project efficiency and labor productivity. Tilt coupler systems require operators to carefully consider attachment compatibility, hydraulic flow requirements, and safety protocols associated with each tool change. Every attachment swap involves hydraulic disconnection and reconnection procedures, safety lock-out protocols, and often requires additional ground personnel to assist with the process.

Tilt bucket systems streamline operations by eliminating attachment changes for bucket-centric tasks, enabling operators to focus entirely on operational precision rather than equipment management. Railway projects involving continuous ditching, grading, and backfilling operations benefit tremendously from this focused approach, where operational continuity directly correlates with project completion timelines and cost control.

The degree rotating hydraulic tilt ditching bucket exemplifies this operational efficiency through its comprehensive movement capabilities, offering full 360-degree rotation combined with precise 45-degree tilting for complex railway shoulder work. This combination eliminates the need for excavator repositioning during detailed work, significantly reducing cycle times and improving overall productivity. Operators can achieve optimal positioning for intricate railway infrastructure tasks without interrupting their workflow for mechanical adjustments or equipment changes.

Maintenance and Reliability Considerations

Maintenance requirements reveal crucial distinctions between these systems that directly impact operational availability and long-term cost effectiveness. Tilt coupler systems centralize their mechanical complexity into a single unit that must accommodate diverse attachment weights, operational stresses, and varying hydraulic demands. While this centralization simplifies some maintenance procedures, it creates a critical vulnerability where mechanical or hydraulic failure in the tilt mechanism effectively sidelines the entire excavator until repairs are completed.

Tilt bucket systems distribute maintenance requirements across individual units rather than centralizing them within a single critical component. This distribution reduces single-point-of-failure risks while allowing operators to maintain backup equipment for critical operations. Railway contractors frequently prefer this redundancy approach, ensuring project continuity even when individual components require scheduled maintenance or unexpected repairs.

The maintenance approach also differs in terms of skill requirements and service accessibility. Tilt coupler repairs often require specialized hydraulic expertise and may necessitate complete removal from the excavator for detailed service work. Tilt bucket maintenance typically involves more straightforward procedures that can often be performed in field conditions with standard maintenance equipment and techniques.

Design & Compatibility

Structural Engineering and Load Distribution

The engineering philosophies underlying tilt couplers and tilt buckets reflect fundamentally different approaches to load management, structural integrity, and operational optimization. Tilt coupler designs must incorporate sophisticated mechanisms capable of accommodating diverse attachment weights, varying center-of-gravity locations, and dramatically different operational stress patterns. The structural engineering challenges include designing robust pivot mechanisms, comprehensive sealing systems, and hydraulic components that maintain precise control across widely varying load conditions.

Modern tilt coupler systems employ advanced materials science and precision manufacturing techniques to achieve reliable performance across diverse applications. The typical tilt coupler incorporates high-strength steel castings with extensive reinforcement structures, sophisticated bearing systems capable of handling both radial and thrust loads, and comprehensive sealing systems designed to exclude contamination while maintaining hydraulic integrity under extreme conditions.

Tilt bucket designs optimize their structural approach by integrating tilting mechanisms directly into bucket assemblies, enabling engineers to optimize load paths and eliminate stress concentrations that typically occur at connection interfaces. This integration allows for more efficient material utilization and often results in lighter overall weight while maintaining superior strength characteristics for specific applications.

The degree rotating hydraulic tilt ditching bucket exemplifies advanced engineering integration through its utilization of Q460 high-strength steel construction combined with WH60C wear-resistant materials strategically positioned in high-wear areas. This material combination provides exceptional durability for demanding railway applications while maintaining the precise dimensional control required for accurate grading and backfilling operations.

The structural optimization extends beyond basic strength requirements to encompass fatigue resistance, corrosion protection, and serviceability considerations. Railway maintenance environments expose equipment to challenging conditions, including ballast abrasion, chemical exposure from drainage systems, and extreme temperature variations that can dramatically impact equipment longevity and performance consistency.

Hydraulic System Integration and Control

Hydraulic integration requirements represent one of the most significant technical distinctions between tilt coupler and tilt bucket systems, directly impacting installation complexity, operational characteristics, and long-term maintenance requirements. Tilt coupler systems typically require dedicated hydraulic circuits capable of supporting multiple attachment types with varying flow rates, pressure requirements, and control characteristics.

The hydraulic complexity extends beyond simple flow requirements to encompass sophisticated control systems capable of maintaining precise positioning control across diverse attachment configurations. Modern tilt couplers often incorporate proportional hydraulic controls, pressure compensation systems, and advanced safety features including hydraulic lock mechanisms and emergency stop capabilities.

Installation requirements for tilt coupler systems frequently involve extensive hydraulic system modifications including additional hydraulic pumps, sophisticated control valve assemblies, and comprehensive safety systems designed to prevent accidental attachment release or uncontrolled movement. These modifications can significantly impact excavator warranty coverage and may require specialized installation expertise.

Tilt bucket systems streamline hydraulic integration by optimizing their requirements for specific operational parameters rather than accommodating universal compatibility. This focused approach reduces installation complexity while maximizing operational efficiency and response characteristics. Railway maintenance applications particularly benefit from this optimization, where precise control and consistent response become critical for achieving specified grading tolerances and surface finishes.

The degree rotating hydraulic tilt ditching bucket demonstrates advanced hydraulic integration through its dual-function capability, providing independent control for both rotational and tilting movements. This sophisticated control system enables operators to achieve complex positioning requirements with exceptional precision while maintaining smooth, coordinated movement that reduces stress on both the attachment and excavator hydraulic systems.

Tilt Range

Angular Capabilities and Precision Control

The tilting range capabilities represent critical performance parameters that directly determine operational effectiveness across different applications and significantly impact the ability to achieve specified work quality standards. Tilt coupler systems offer varying angular ranges depending on their specific design and intended applications, with typical ranges extending from basic ±45-degree capabilities for general construction work to extreme ±90-degree ranges for specialized applications requiring dramatic angle adjustments.

The relationship between tilt range and operational precision creates important trade-offs that must be carefully considered during equipment selection. Tilt couplers with extensive angular ranges often sacrifice some precision control to accommodate the mechanical complexity required for extreme positioning capabilities. This trade-off may be acceptable for general construction applications, but can become problematic for precision work like railway maintenance, where dimensional accuracy directly impacts infrastructure performance and safety.

Advanced tilt coupler systems incorporate sophisticated control mechanisms, including proportional hydraulic valves, position feedback systems, and automated safety limits designed to prevent over-rotation or excessive force application. These control enhancements improve operational precision but add complexity and potential maintenance requirements that must be considered in the overall equipment evaluation process.

Tilt bucket systems typically offer standardized angular ranges optimized for their specific intended applications rather than attempting to achieve maximum versatility. This optimization approach often results in superior precision control within the designed operating range while simplifying mechanical design and reducing potential failure modes.

Railway maintenance operations particularly benefit from the precision-focused approach demonstrated by degree rotating hydraulic tilt ditching bucket systems that provide carefully calibrated 45-degree tilting ranges combined with full 360-degree rotation capabilities. This combination enables precise shoulder forming and drainage work essential for railway infrastructure maintenance while eliminating the need for excavator repositioning during detailed operations.

Rotational Movement and Multi-Axis Control

Rotational capabilities represent an advanced feature that distinguishes sophisticated tilting systems from basic angle-adjustment mechanisms, providing operators with comprehensive positioning control that dramatically expands operational capabilities. Modern tilt coupler systems offer varying rotational ranges from basic 180-degree capabilities suitable for general construction applications to full 360-degree rotation for specialized applications requiring complete positioning flexibility.

The integration of rotational and tilting movements creates complex control challenges that require sophisticated hydraulic systems and operator interface designs. Operators must coordinate multiple movement axes while maintaining awareness of attachment position, load conditions, and operational safety requirements. This complexity necessitates comprehensive operator training programs and often requires significant experience to achieve optimal productivity levels.

Multi-axis control systems have evolved to incorporate advanced features including coordinated movement capabilities, programmable positioning sequences, and automated safety systems designed to prevent equipment damage or operational hazards. These enhancements improve operational efficiency while reducing operator workload, but they also increase system complexity and potential maintenance requirements.

The benefits of multi-axis control become particularly apparent in confined working environments like railway maintenance operations, where space limitations prevent traditional excavator repositioning approaches. Advanced tilt bucket systems like the degree rotating hydraulic tilt ditching bucket combine full 360-degree rotation with precise tilting control, enabling operators to achieve optimal positioning for complex railway maintenance tasks without requiring excavator movement.

This comprehensive positioning capability proves especially valuable during railway shoulder forming operations, where precise material placement and surface finishing require continuous adjustment of attachment position relative to the track structure. The ability to maintain consistent working relationships while accommodating varying terrain conditions significantly improves both work quality and operational efficiency.

FAQ

①Which option provides better value for railway maintenance operations?

For railway-focused operations, tilt buckets typically offer superior value through specialized design optimization and reduced operational complexity. The degree rotating hydraulic tilt ditching bucket exemplifies this advantage with railway-specific features including optimized material selection, precise angular control, and integrated multi-axis movement capabilities that eliminate the need for frequent excavator repositioning.

②Can tilt couplers handle the same loads as dedicated tilt buckets?

While tilt couplers can accommodate various attachments, dedicated tilt buckets optimize their load handling capabilities for specific applications and operating conditions. Railway maintenance demands consistent heavy-duty performance under challenging conditions, making purpose-built solutions like specialized tilt buckets the preferred choice for critical infrastructure work where reliability and precision cannot be compromised.

③How do installation requirements differ between tilt couplers and tilt buckets?

Tilt coupler installations typically require extensive hydraulic system modifications, sophisticated control system integration, and specialized technical expertise that may impact excavator warranty coverage. Tilt bucket installations focus on straightforward mounting procedures and dedicated hydraulic connections that can often be completed using standard dealer service capabilities, reducing installation complexity and associated costs.

Understanding these comprehensive differences between tilt couplers and tilt buckets enables informed equipment selection decisions for diverse construction and railway maintenance applications. While tilt couplers provide exceptional versatility across multiple attachment types and operational scenarios, dedicated tilt bucket systems like the degree rotating hydraulic tilt ditching bucket offer optimized performance characteristics specifically designed for specialized railway work including ballast management, shoulder forming, and precision grading operations.

The selection process should carefully consider operational requirements, versatility needs, maintenance capabilities, and long-term cost implications specific to each project's unique demands and constraints. Railway maintenance operations particularly benefit from the reliability, precision, and operational efficiency offered by purpose-built tilt bucket systems that eliminate the complexity and potential failure points associated with universal coupler mechanisms.

For expert guidance on selecting the optimal tilting solution for your railway maintenance and construction projects, including detailed technical specifications and application recommendations, contact our experienced technical specialists at raymiao@stnd-machinery.com. TianNuo Machinery's comprehensive range of excavator attachments and extensive industry experience across railway, construction, and infrastructure projects ensure you receive the most suitable equipment recommendations for your specific operational requirements and performance objectives.
