What is the function of the extension arm?

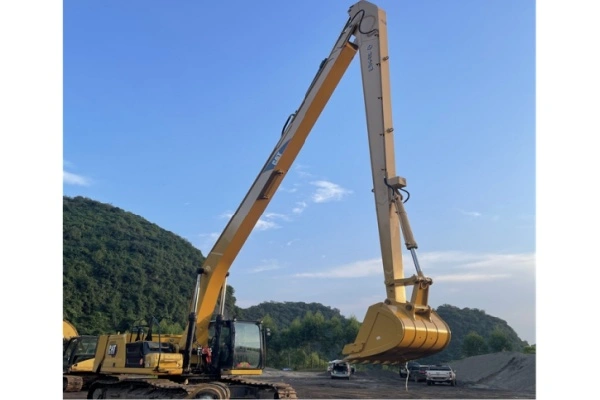

An excavator extension arm, also known as a long reach boom, is a specialized attachment designed to significantly enhance the capabilities of standard excavators. This innovative piece of equipment extends the reach and digging depth of excavators, allowing operators to tackle challenging tasks in various industries. The primary function of an extension arm is to increase the machine's operational range, enabling it to access hard-to-reach areas and perform excavation work at greater depths and distances.
Extends Reach Of Excavators
The most prominent function of an excavator extension arm is its ability to dramatically extend the reach of excavators. This enhancement opens up a world of possibilities for construction, mining, and demolition projects that require operations beyond the standard excavator's limitations.
Increases digging depth for deeper excavations
With an extension arm, excavators can dig much deeper than their standard configurations allow. This increased depth capacity is particularly valuable in projects that involve deep foundation work, underground utility installations, or extensive earthmoving operations. For instance, when digging trenches for large-scale drainage systems or laying pipelines at significant depths, the extended reach proves invaluable.
The ability to dig deeper also means that operators can complete tasks more efficiently, reducing the need for multiple setups or additional equipment. This efficiency translates directly into time and cost savings for project managers and construction companies.
Enables access to hard-to-reach areas on job sites
Job sites often present challenges in terms of accessibility. Whether it's working around existing structures, navigating difficult terrain, or operating in confined spaces, the excavator extension arm provides the flexibility needed to overcome these obstacles. For example, in urban construction projects where space is at a premium, the extended reach allows operators to work from a single position while still accessing a wide area.
This capability is particularly useful in demolition projects, where operators need to maintain a safe distance from collapsing structures while still effectively dismantling them. Similarly, in landscaping and forestry applications, the extended reach enables work in areas that would otherwise be inaccessible to standard excavators.
Improves material placement precision over longer distances
Precision is crucial in many excavation and construction tasks. The excavator extension arm not only increases reach but also enhances the operator's ability to place materials accurately over greater distances. This improved precision is vital in tasks such as loading trucks, placing riprap for erosion control, or positioning large structural elements in construction projects.
The extended reach allows operators to maintain better control and visibility when working at a distance, resulting in more precise operations and reduced risk of errors. This precision can significantly impact project quality and reduce the need for corrective work, ultimately saving time and resources.
Reduces The Need For Frequent Repositioning Of The Excavator
One of the most significant advantages of using an excavator extension arm is its ability to minimize the need for frequent machine repositioning. This feature not only enhances operational efficiency but also contributes to cost savings and improved site safety.
Minimizes machine movement, saving time and fuel
Traditional excavation methods often require frequent repositioning of the machine to cover large areas or reach different parts of a job site. Each repositioning takes time and consumes fuel, adding to the overall project costs. With an extension arm, operators can work from a single position for extended periods, covering a much larger area without moving the base machine.
This reduction in movement translates directly into time savings, allowing projects to progress more rapidly. Moreover, the decreased fuel consumption not only reduces operational costs but also aligns with environmental sustainability goals by lowering emissions.
Enhances efficiency in trench digging and cleanout tasks
Trench digging and cleanout operations are common tasks in construction and utility projects. The excavator extension arm significantly enhances efficiency in these operations by allowing operators to dig longer stretches of trench or clean out larger areas from a single position.
This capability is particularly valuable in projects involving long, straight trenches for utilities or drainage systems. Operators can complete these tasks more quickly and with greater precision, reducing the overall project timeline and improving the quality of work.
Optimizes truck loading without relocating the excavator
Efficient material handling is crucial in many construction and mining operations. The extended reach provided by the extension arm allows excavators to load trucks more efficiently without frequent repositioning. This optimization streamlines the loading process, reducing cycle times and increasing overall productivity.
Operators can position trucks strategically and load them from various angles without moving the excavator, leading to smoother operations and reduced wait times for trucks. This efficiency is particularly beneficial in high-volume excavation projects or quarry operations where continuous material movement is essential.
Enhances Operational Safety
Safety is paramount in any construction or excavation project. The use of excavator extension arms significantly contributes to enhancing operational safety on job sites, particularly in complex or hazardous environments.
Reduces risks associated with frequent machine repositioning
Every time an excavator moves on a job site, it introduces potential safety risks. These risks include collision with other equipment or structures, damage to underground utilities, and accidents involving ground personnel. By reducing the need for frequent repositioning, extension arms minimize these risks.
Operators can work for extended periods from a single, stable position, reducing the chances of accidents related to machine movement. This stability is particularly crucial in areas with unstable ground conditions or on slopes where machine movement could be hazardous.
Improves operator visibility in challenging work environments
Extension arms often come equipped with enhanced visibility features, such as cameras or improved sightlines, which are crucial when working at extended distances or in complex environments. This improved visibility allows operators to maintain better awareness of their surroundings, reducing the risk of accidents or unintended damage.
In demolition projects or when working near existing structures, this enhanced visibility is invaluable. Operators can more accurately control their movements and avoid potential hazards, ensuring safer and more precise operations.
Ensures compliance with OSHA excavation safety guidelines
The Occupational Safety and Health Administration (OSHA) sets strict guidelines for excavation safety. Extension arms help in complying with these guidelines by allowing operators to maintain safe distances from trench edges and excavation walls while still performing necessary tasks.
This compliance is crucial in preventing trench collapses and other excavation-related accidents. By enabling work from a safe distance, excavator extension arms contribute to creating a safer work environment that meets or exceeds regulatory requirements.
Excavator extension arms are invaluable tools in modern construction, mining, and demolition operations. They significantly enhance the capabilities of standard excavators by extending reach, improving efficiency, and enhancing safety. From deeper excavations to precise material placement over long distances, these attachments offer versatility that addresses numerous challenges in complex job sites. By reducing the need for frequent machine repositioning, they not only save time and fuel but also contribute to safer work environments. As the construction industry continues to evolve, the role of excavator extension arms in optimizing operations and meeting stringent safety standards becomes increasingly important.
FAQ
1. How does an excavator extension arm affect the machine's stability?
Extension arms are designed with careful consideration of the excavator's stability. While they do extend the reach, manufacturers engineer them to maintain a safe balance. However, operators must be trained to work within the specified load limits and follow proper operating procedures to ensure stability.
2. Can extension arms be used with all types of excavators?
While many excavators can be fitted with extension arms, compatibility depends on the specific model and size of the excavator. It's essential to consult with manufacturers or specialists to ensure proper matching and installation.
3. How much additional reach can an extension arm provide?
The additional reach varies depending on the specific model and excavator size. Generally, extension arms can add anywhere from 5 to 20 meters of extra reach, with some specialized models offering even greater extensions.
4. Are there any special maintenance requirements for excavator extension arms?
Extension arms require regular maintenance similar to standard excavator booms. This includes checking hydraulic systems, inspecting for wear and tear, and ensuring all joints and connections are properly lubricated and tightened.
5. How does using an extension arm affect fuel consumption?
While extension arms can increase the load on the excavator's engine, they often result in overall fuel savings by reducing the need for frequent machine repositioning. The net effect on fuel consumption depends on the specific application and usage patterns.
China Excavator Extension Arm

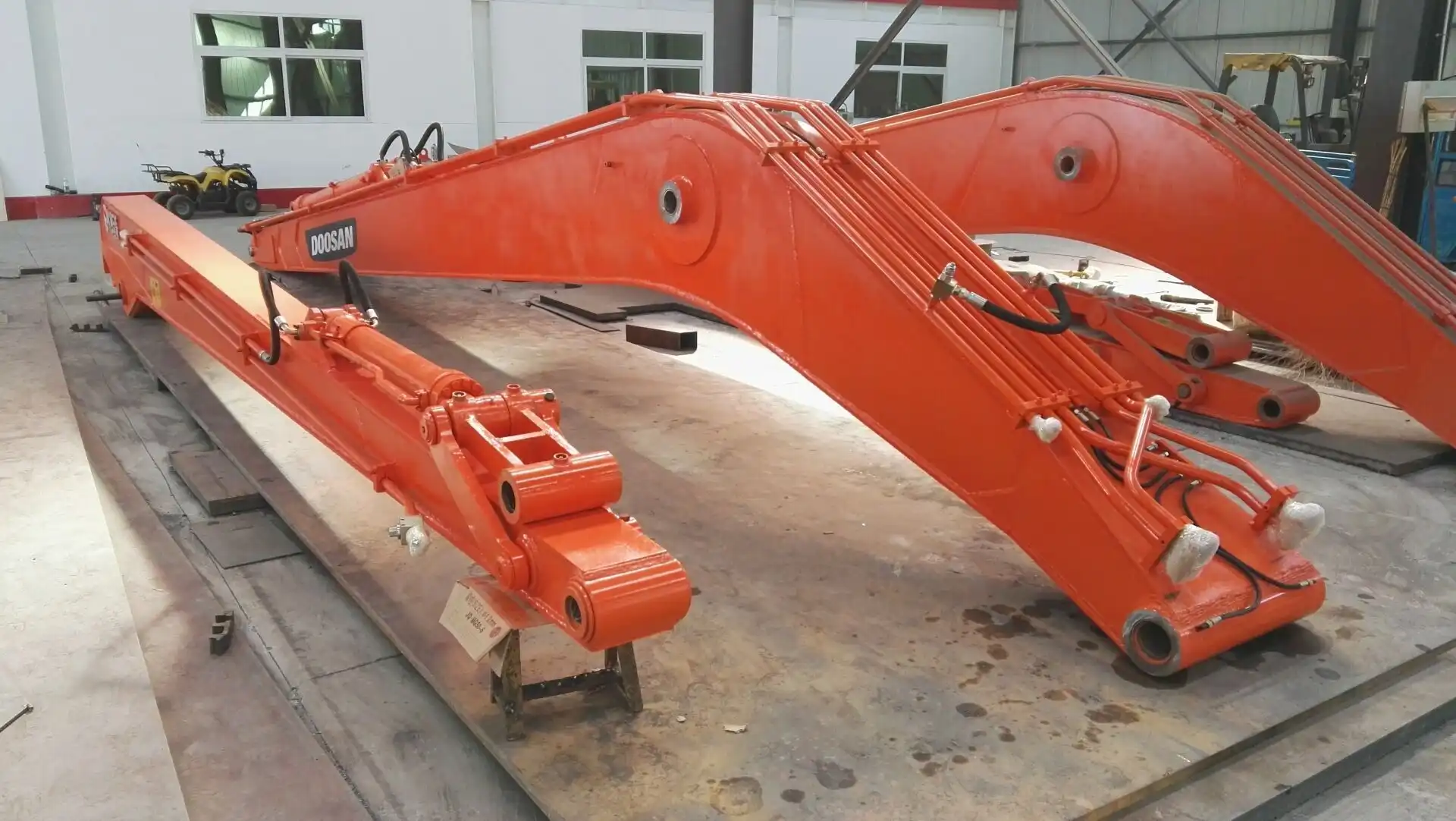

Tiannuo Machinery, a leading manufacturer in China, specializes in producing high-quality excavator extension arms tailored for various applications. Their range includes options for 20-25 ton excavators extending to 16 meters, 25-34 ton models reaching 20 meters, and larger 35-40 ton and 40-50 ton excavators capable of extending to 22 and 26 meters respectively. Each arm comes complete with necessary components such as buckets, cylinders, pins, and hydraulic hoses, ensuring seamless integration with existing equipment. For those interested in enhancing their excavator's capabilities with these advanced extension arms, contact us at rich@stnd-machinery.com.
